GI-22
HOW TO USE THIS MANUAL
Revision: August 20072004 QX56

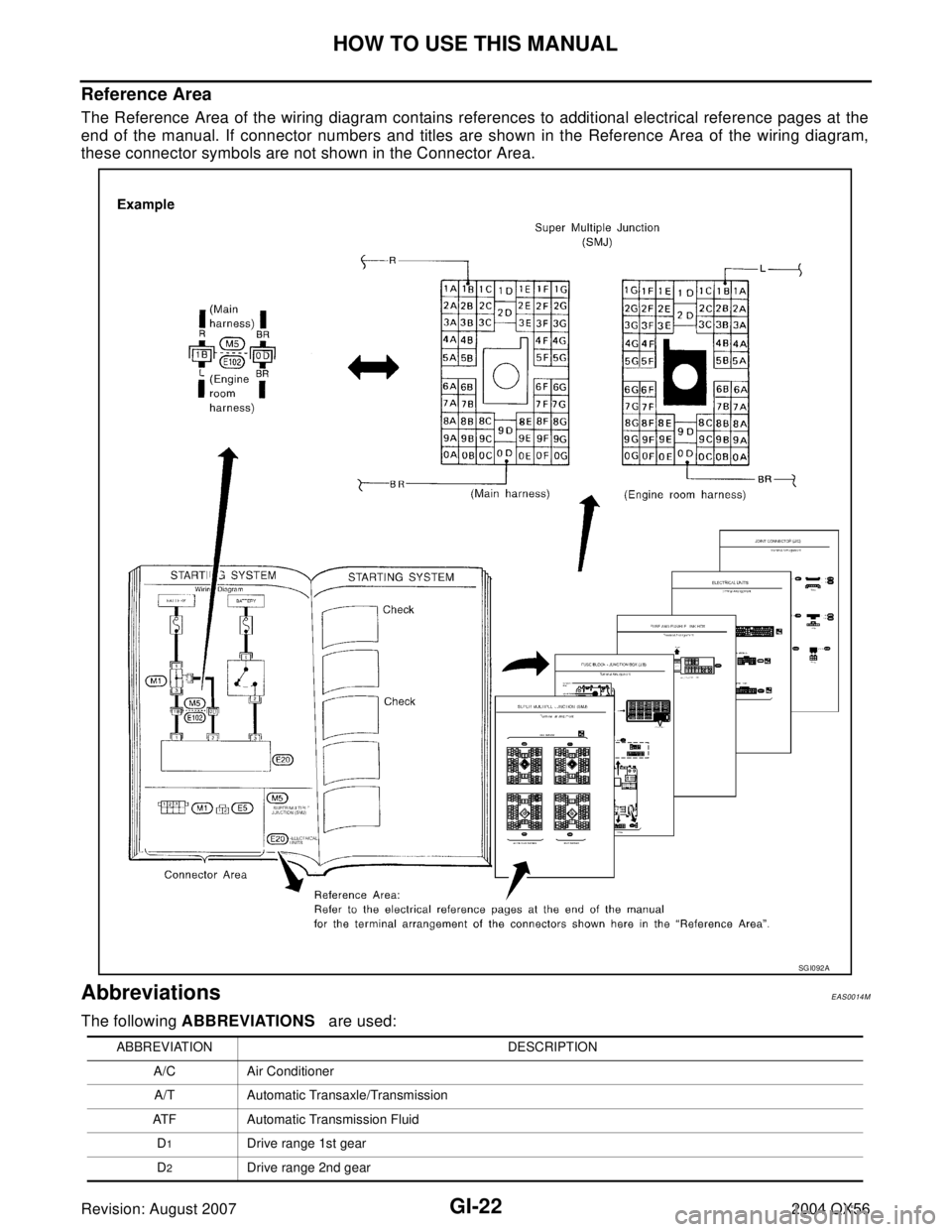

Reference Area
The Reference Area of the wiring diagram contains references to additional electrical reference pages at the
end of the manual. If connector numbers and titles are shown in the Reference Area of the wiring diagram,
these connector symbols are not shown in the Connector Area.
AbbreviationsEAS0014M
The following ABBREVIATIONS are used:
SG I0 92 A
ABBREVIATION DESCRIPTION
A/C Air Conditioner
A/T Automatic Transaxle/Transmission
ATF Automatic Transmission Fluid
D
1Drive range 1st gear
D
2Drive range 2nd gear

IDX-2
ALPHABETICAL INDEX
Numerics
2-4WD shift solenoid valve ................................ TF-95
4LO indicator lamp ............................................. TF-90
4WD shift indicator lamp .................................... TF-85
4WD shift switch ................................................ TF-95
4WD solenoid valve ........................................... TF-95
4WD warning lamp ............................................ TF-13
A
A/C air flow ...................................................... ATC-29
A/C compressor clutch removal and installation .. ATC-
167
A/C compressor mounting ............................. ATC-166
A/C compressor precaution ............................. ATC-11
A/C compressor special service tool ................ ATC-14
A/C control operation (auto A/C) ...................... ATC-26
A/C diagnostic work flow (auto A/C) .............. ATC-120
A/C evaporator ............................................... ATC-175
A/C HFC134a (R134a) system identification ..... ATC-7
A/C HFC134a (R134a) system precaution ........ ATC-5
A/C HFC134a (R134a) system service procedure ATC-
162
A/C HFC134a (R134a) system service tools ... ATC-14
A/C HFC134a system service equipment precaution ...
ATC-11
A/C lubricant (R134a) ...................................... ATC-22
A/C lubrication oil ............................................. ATC-22
A/C operational check ....................... ATC-56, ATC-59
A/C self-diagnoses (auto A/C) ........ ATC-53, ATC-120
A/C service data specification ........................ ATC-182
A/C trouble diagnoses (auto A/C) .................... ATC-33
A/C, A - Wiring diagram ................................... ATC-41
A/T - Wiring diagram .......................................... AT-52
A/T fluid checking ...................... AT-13, AT-58, MA-21
A/T fluid cooler cleaning .................................... AT-15
A/T fluid replacement ............................. AT-13, MA-23
A/T fluid temperature sensor ........................... AT-131
A/T IND - Wiring diagram .................................... DI-41
A/T indicator ........................................................ DI-41
A/T shift lock system ........................................ AT-236
A/T trouble diagnoses ........................................ AT-43
ABS - Wiring diagram ..................................... BRC-16
ABS (anti-lock brake system) ........................... BRC-7
Accelerator control system ............................... ACC-2
Accelerator pedal position (APP) sensor . EC-556, EC-
562, EC-576
Accelerator pedal released position learning ..... EC-44
AF1B1-Wiring diagram EC-431, EC-439, EC-447, EC-
456, EC-466, EC-475, EC-487
AF1B2-Wiring diagram EC-433, EC-441, EC-449, EC-
458, EC-468, EC-477, EC-489
AF1HB1-Wiring diagram .................................. EC-355
AF1HB2-Wiring diagram .................................. EC-357
Aiming adjustment .................................. LT-31, LT-78
Air bag .............................................................. SRS-3
Air cleaner and air duct ..................................... EM-14
Air cleaner filter replacement ............................ MA-15
Air conditioner cut control ................................. EC-30
Air flow meter - See Mass air flow sensor EC-146, EC-
154
Air fuel ratio sensor 1 .. EC-429, EC-437, EC-445, EC-
454, EC-463, EC-472, EC-484
Air fuel ratio sensor 1 heater ........................... EC-354
Air mix. door motor .......................................... ATC-67
All - mode 4WD system ..................................... TF-10
Ambient sensor ............................. ATC-125, ATC-136
Angular tightening application ............................. EM-3
APPS1 - Wiring diagram ................................. EC-558
APPS2 - Wiring diagram ................................. EC-564
APPS3 - Wiring diagram ................................. EC-578
ASC/BS - Wiring diagram ............................... EC-536
ASC/SW - Wiring diagram .............................. EC-519
ASCBOF - Wiring diagram .............................. EC-622
ASCD .............................................................. EC-647
ASCD (automatic speed control device) ........... ACS-3
ASCD brake switch ........................... EC-534, EC-621
ASCD indicator lamp ....................................... EC-628
ASCD steering switch ..................................... EC-517
ASCIND - Wiring diagram ............................... EC-629
ATP switch ......................................................... TF-96
ATP warning lamp .............................................. TF-89
AUDIO - Wiring diagram .................................... AV-10
AUT/DP - Wiring diagram .................................. SE-19
Auto air conditioner - Wiring diagram .............. ATC-41
Auto anti-dazzling inside mirror ........... GW-76, GW-77
Autolamp ............................................................ LT-47
Automatic amplifier ......................................... ATC-60
Automatic transmission number .......................... GI-48
AV and NAVI control unit ................................... AV-63
AV communication line ...................................... AV-87
B
Back door trim ..................................................... EI-31
Back sonar .......................................................... DI-59
BACK/L - Wiring diagram ................................. LT-106
Back-up lamp ................................................... LT-106
Ball joint (front) ................................................ FSU-15
Basic inspection ................................................ EC-79
Battery ................................................................. SC-4
Battery/Starting/Charging System Tester SC-6, SC-12,
SC-19
BCM (Body control module) .............................. BCS-3
Block heater ...................................................... EM-73
Blower motor ................................... ATC-83, ATC-140
Body alignment ................................................ BL-174
Body component parts ..................................... BL-161
Body construction ............................................ BL-173
Body exterior paint color .................................. BL-160
Body mounting ................................................. BL-159
Body repair ....................................................... BL-160
Body sealing .................................................... BL-170
Brake booster .................................................... BR-17
Brake fluid level ................................................. MA-27
Brake hydraulic line ........................................... BR-12
Brake inspection ............................................... MA-28

PERIODIC MAINTENANCE
MA-7
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: August 20072004 QX56
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace drive belts if damaged.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Maintenance-free item. For service procedures, go to the FL section.
(4) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(5) If valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are
required.
CHASSIS AND BODY MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. L = Lubricate. [ ]: At the mileage intervals only. MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title Perform at number of miles,
kilometers or months, which-
ever comes first.Miles x 1,000
(km x 1,000)
Months33.75
(54)
2737.5
(60)
3041.25
(66)
3345
(72)
3648.75
(78)
3952.5
(84)
4256.25
(90)
4560
(96)
48
Drive belts NOTE (1) I*MA-12
Air cleaner filter NOTE (2) [R]MA-15
EVAP vapor linesI*MA-19
Fuel linesI*MA-15
Fuel filter NOTE (3)—
Engine coolant NOTE (4) R*MA-12
Engine oil R R R R R R R RMA-16
Engine oil filter R R R R R R R RMA-16
Spark plugs (double PLATI-
NUM-TIPPED type)Replace every 105,000 miles (169,000 km).MA-17
Intake and exhaust valve
clearance*NOTE (5)EM-52
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section
- Page
or
- Content
Title Perform at number of miles, kilometers or
months, whichever comes first.Miles x
1,000
(km x
1,000)
Months3.75
(6)
37.5
(12)
611 . 2 5
(18)
915
(24)
1218.75
(30)
1522.5
(36)
1826.25
(42)
2130
(48)
24
Brake lines and cables I IMA-27
Brake pads and rotors I I I IMA-28
Automatic transmission fluid NOTE (1) I I MA-21
Transfer fluid and front final drive oil NOTE (1) I IMA-24,
MA-24
Rear final drive oil NOTE (1) I IMA-24,
MA-24
Steering gear, linkage, axle, and suspension
partsIIIIMA-28,
MA-29
Tire Rotation NOTE (2)MA-27
Drive shaft boots and propeller shaft (4WD) I I I IMA-24
Exhaust system I I I IMA-21
In-cabin microfilter R RAT C - 1 4 2

MA-8
PERIODIC MAINTENANCE
Revision: August 20072004 QX56
(1) If towing a trailer, or using a car-top carrier, or driving on rough or muddy roads, change (not just inspect) oil at every 30,000 miles
(48,000 km) or 24 months.
(2) Refer to “Tire rotation” under the “General maintenance” heading earlier in this section.
Schedule 2ELS00102
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the mileage intervals only
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace drive belts if damaged.
(2) Maintenance-free item. For service procedures, go to FL section.
(3) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(4) If valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are
required. MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section
- Page
or
- Content
Title Perform at number of miles, kilometers or
months, whichever comes first.Miles x
1,000
(km x
1,000)
Months33.75
(54)
2737.5
(60)
3041.25
(66)
3345
(72)
3648.75
(78)
3952.5
(84)
4256.25
(90)
4560
(96)
48
Brake lines and cables I IMA-27
Brake pads and rotors I I I IMA-28
Automatic transmission fluid NOTE (1) I IMA-21
Transfer fluid and front final drive oil NOTE (1) I IMA-24,
MA-24
Rear final drive oil NOTE (1) I IMA-24,
MA-24
Steering gear, linkage, axle, and suspension
partsII IIMA-28,
MA-29
Tire Rotation NOTE (2)MA-27
Drive shaft boots and propeller shaft (4WD) I I I IMA-24
Exhaust system I I I IMA-21
In-cabin microfilter R RAT C - 1 4 2
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section - Page
or - Content
Title Perform at number of miles,
kilometers or months, whichever
comes first.Miles x 1,000
(km x 1,000)
Months7.5
(12)
615
(24)
1222.5
(36)
1830
(48)
2437.5
(60)
3045
(72)
3652.5
(84)
4260
(96)
48
Drive belts NOTE (1) I*MA-12
Air cleaner filter [R] [R]MA-15
EVAP vapor lines I* I*MA-19
Fuel lines I* I*MA-15
Fuel filter NOTE (2)—
Engine coolant NOTE (3) R*MA-12
Engine oil R R R R R R R RMA-16
Engine oil filter R R R R R R R RMA-16
Spark plugs (PLATINUM-
TIPPED type)Replace every 105,000 miles (169,000 km).MA-17
Intake and exhaust valve clear-
ance*NOTE (4)EM-52

PERIODIC MAINTENANCE
MA-9
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: August 20072004 QX56
CHASSIS AND BODY MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. L = Lubricate. [ ]: At the mileage interval only.
(1) Refer to “Tire rotation” under the “General maintenance” heading earlier in this section.MAINTENANCE OPERATIONMAINTENANCE INTERVAL Reference
Section
- Page
or
- Content
Title Perform at number of miles, kilome-
ters or months, whichever comes first.Miles x 1,000
(km x 1,000)
Months7.5
(12)
615
(24)
1222.5
(36)
1830
(48)
2437.5
(60)
3045
(72)
3652.5
(84)
4260
(96)
48
Brake lines and cables IIIIMA-27
Brake pads and rotors IIIIMA-28
Automatic transmission fluid IIIIMA-21
Transfer fluid and front final drive oil IIIIMA-24,
MA-24
Rear final drive oil IIIIMA-24,
MA-24
Steering gear, linkage, axle, and sus-
pension parts.IIMA-28,
MA-29
Tire rotation NOTE (1)MA-27
Drive shaft boots and propeller shaft
(4WD)IIIIMA-24
Exhaust system I IMA-21
In-cabin microfilter RRRRAT C - 1 4 2

MA-10
RECOMMENDED FLUIDS AND LUBRICANTS
Revision: August 20072004 QX56
RECOMMENDED FLUIDS AND LUBRICANTSPFP:00000
Fluids and LubricantsELS00103
*1: For further details, MA-11, "SAE Viscosity Number" .
*2: Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and automatic
transmission durability, and may damage the automatic transmission, which is not covered by the NISSAN new vehicle limited warranty.
*3: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON
TM III or MERCONTM or equivalent ATF may also be used.
*4: Available in mainland U.S.A. through your NISSAN dealer.
*5: For further details, see “Air conditioner specification label”.
*6: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0° C (32° F).
*7: DEXRON
TM III, MERCONTM or equivalent may also be used. Outside the continental United States and Alaska contact a NISSAN
dealership for more information regarding suitable fluids, including recommended brand(s) of DEXRONTM III or MERCONTM Auto-
matic Transmission Fluid.
*8: For further details, refer to GI-5, "
Precautions for Fuel (Unleaded Premium Gasoline Required)" . DescriptionCapacity (Approximate)
Recommended Fluids/Lubricants
Metric US measure Imp measure
Fuel
105.8 28 gal 23 1/4 galUnleaded gasoline with octane rating of
at least 91 AKI (RON 96) *8
Engine oil
Drain and refillWith oil filter
change6.2 6 1/2 qt 5 1/2 qt

API Certification Mark *1

API grade SL, Energy Conserving *1

ILSAC grade GF-III *1 Without oil filter
change5.9 6 1/4 qt 5 1/4 qt
Dry engine (engine overhaul)
7.6 8 qt 6 3/4 qt
Cooling systemWith reservoir at
MAX level14.4 3 3/4 gal 3 1/8 galGenuine NISSAN Long Life Anti-freeze
coolant or equivalent
Automatic transmission fluid (ATF)
10.6 11 1/4 qt 9 3/8 qt Genuine NISSAN Matic J ATF *2
Rear final drive oil
1.75 3 3/4 pt 3 1/8 pt API GL-5 Viscosity SAE 80W-90 *6
Transfer fluid
3.0 3 1/8 qt 2 5/8 qtGenuine NISSAN Matic D ATF (Conti-
nental U.S and Alaska) or Canada NIS-
SAN Automatic Transmission Fluid *7
Front final drive oil
1.6 3 3/8 pt 2 7/8 pt API GL-5 Viscosity SAE 80W-90 *6
Power steering fluid (PSF)
1.0 1 1/8 qt 7/8 qt Genuine NISSAN PSF or equivalent *3
Brake fluid — — —Genuine NISSAN Super Heavy Duty
Brake Fluid or equivalent,
DOT 3 (US FMVSS No. 116) *4
Brake grease — — —PBC (poly butyl cuprysil) grease or
equivalent
Multi-purpose grease — — — NLGI No. 2 (lithium soap base)
Windshield washer fluid
4.5 1 1/4 gal 1 galGenuine NISSAN Windshield Washer
Concentrate Cleaner & Anti-freeze or
equivalent
Air conditioning system refrigerant 1.08 ± 0.05 kg 2.38 ± 0.11 lb 2.38 ± 0.11 lb HFC-134a (R-134a) *5
Air conditioning system lubricants
290 m9.8 fl oz 10.2 fl ozNISSAN A/C System Lubricant Type S
(DH-PS) or equivalent *5

CHASSIS AND BODY MAINTENANCE
MA-23
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: August 20072004 QX56
b. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
c. Read out the value of “ATF TEMP 1”.
7. Re-check fluid level at fluid temperatures of approximately 65°C
(149°F) using “HOT” range on A/T fluid level gauge.
CAUTION:

When wiping away the fluid level gauge, always use lint-
free paper, not a cloth one.

To check fluid level, insert the ATF level gauge until the
cap contacts the end of the charging pipe, with the gauge
reversed from the normal attachment conditions as
shown.
8. Check fluid condition.

If fluid is very dark or smells burned, refer to check operation
of A/T. Flush cooling system after repair of A/T.

If ATF contains frictional material (clutches, bands, etc.),
replace radiator and flush cooler line using cleaning solvent
and compressed air after repair of A/T. Refer to CO-10,
"RADIATOR" and AT-15, "A/T Fluid Cooler Cleaning" .
9. Install the removed ATF level gauge into the fluid charging pipe.
Changing A/T FluidELS001JN
1. Increase ATF temperature by 80°C (176°F) once.
2. Stop the engine.
3. Remove the tightening bolt for the ATF level gauge.
4. Drain ATF from drain plug and refill with new ATF. Always refill same volume with drained fluid.

To replace the ATF, pour in new fluid at the charging pipe with the engine idling and at the same time
drain the old fluid from the radiator cooler hose return side.

When the color of the fluid coming out is about the same as the color of the new fluid, the replacement
is complete. The amount of new transmission fluid to use should be 30 to 50% increase of the stipu-
lated amount.
CAUTION:

Use only specified ATF fluid. Do not mix with other fluid.

Using ATF other than the specified ATF fluid will cause deterioration in driveability and auto-
matic transmission durability, and may damage the automatic transmission, which is not cov-
ered by the warranty.

When filling ATF, take care not to splash any heat generating parts such as the exhaust.
5. Increase ATF temperature by 80°C (176°F) once.
6. Check fluid level and condition. Refer to MA-21, "
Checking A/T Fluid" . If fluid is still dirty, repeat step 2.
through 5.
7. Install the removed ATF level gauge in the fluid charging pipe.
WLIA0014E
Level gauge bolt : Refer to AT-13, "A/T FLUID" .
SCIA1684E
ATF fluid capacity and specification : Refer to MA-10, "Fluids and Lubricants" .
Drain plug : Refer to AT-13, "
A/T FLUID" .
Level gauge bolt : Refer to AT- 1 3 , "
A/T FLUID" .

RFD-18
REAR FINAL DRIVE ASSEMBLY
Revision: August 20072004 QX56
2. Install the pinion mate shaft into the differential case so that it
meets the lock pin holes.
3. Adjust the clearance between rear face of side gear and thrust
washer by selecting the correct thickness side gear thrust
washer. Refer to RFD-26, "
AVAILABLE SIDE GEAR THRUST
WAS HER S" .
Use two feeler gauges as shown to prevent the side gear from
leaning.
SIDE BEARING PRELOAD
NOTE:
A selection of carrier side bearing adjusting washers is required for completion of this procedure.
1. All parts must be clean. The bearings must be well lubricated
with light oil or DEXRON
TM type automatic transmission fluid.
2. Place the differential case assembly, with the side bearing outer
races installed, into the gear carrier.
3. Insert the left and right side bearing adjusting washers in posi-
tion between the side bearings and the gear carrier as shown.
SPD5 53
Side gear thrust washer and
differential case clearance: 0.20 mm (0.0079 in)
or less
SPD8 28
SPD5 27
SPD9 24
