DTC P0011, P0021 IVT CONTROL
EC-801
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

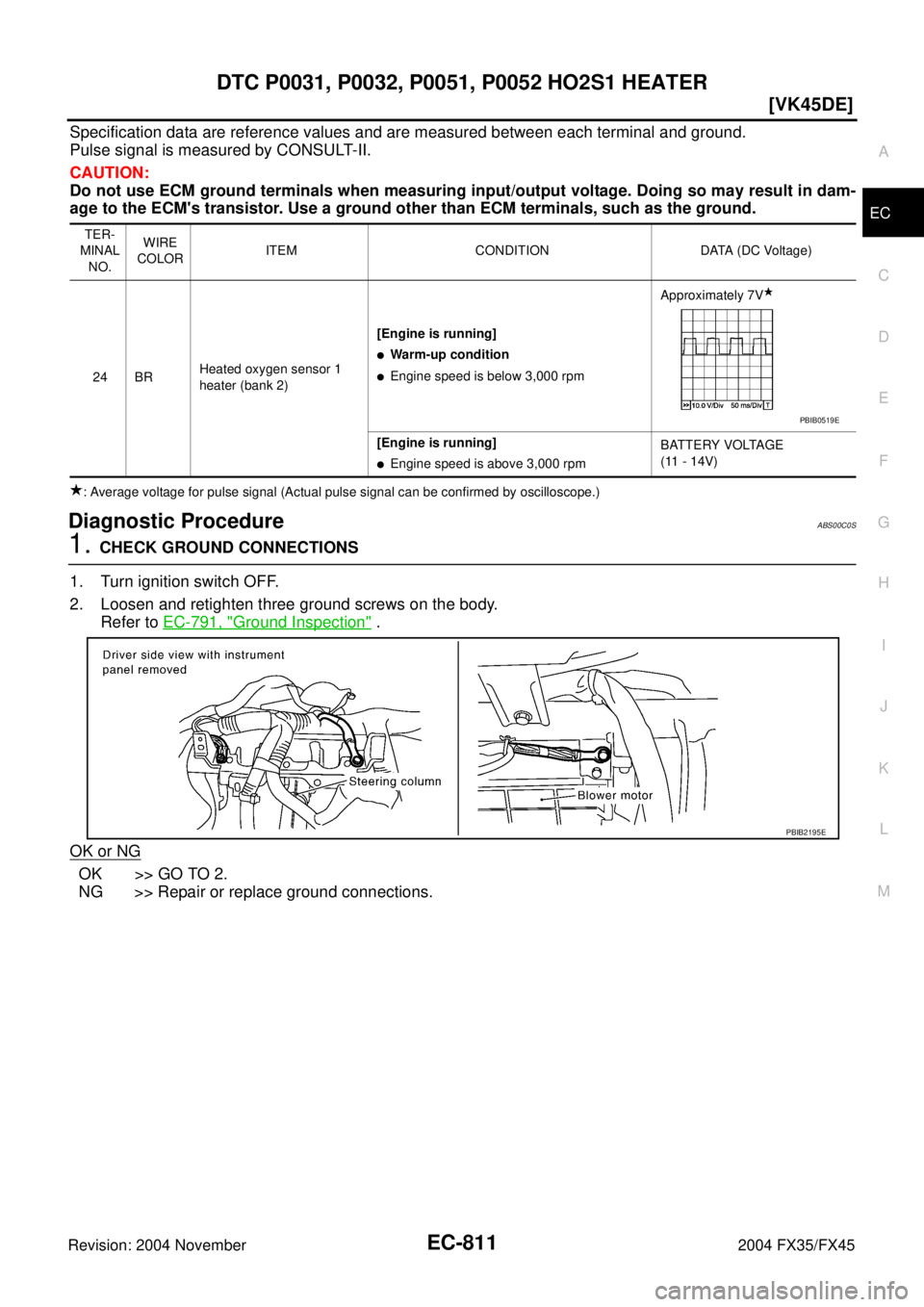

CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureABS00C0K
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 B RIntake valve timing control
solenoid valve (bank 2)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm7 - 12V
53 R/LIntake valve timing control
position sensor (bank 2)[Engine is running]

Warm-up condition

Idle speed0 - 1.0V
[Engine is running]

Engine speed is 2,000 rpm0 - 1.0V
PBIB1790E
PBIB2046E
PBIB2195E

EC-802
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45
2. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sen-
sor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness connectors F102, M82

Joint connector-3

Harness for open or short between intake valve timing control position sensor and ECM

Harness for open or short between intake valve timing control position sensor and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between intake valve timing control position sensor terminal 1 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.Voltage: Battery voltage
PBIB1517E
SEF509Y
Continuity should exist.

DTC P0011, P0021 IVT CONTROL
EC-803
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F102, M82

Harness for open or short between intake valve timing control position sensor and ground
>> Repair open circuit or short to power in harness or connectors.
6. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 72 and intake valve timing control position sensor (bank
1) terminal 2 or ECM terminal 53 and intake valve timing control position sensor (bank 2) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-805, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace intake valve timing control position sensor.
8. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control solenoid
valve terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.Continuity should exist.
Voltage: Battery voltage
PBIB1517E
PBIB0192E

EC-804
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45
9. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E19, F49

Harness for open or short between intake valve timing control solenoid valve and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Check harness continuity between ECM terminal 10 and intake valve timing control solenoid valve (bank
1) terminal 1 or ECM terminal 11 and intake valve timing control solenoid valve (bank 2) terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-805, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace intake valve timing control solenoid valve.
12. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-964, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace crankshaft position sensor (POS).
13. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-970, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace camshaft position sensor (PHASE).
14. CHECK CAMSHAFT
Check accumulation of debris to the signal pick-up portion of the camshaft. Refer to EM-208, "
CAMSHAFT" .
OK or NG
OK >> GO TO 15.
NG >> Remove debris and clean the signal pick-up cutout of camshaft.
15. CHECK INTERMITTENT INCIDENT
Refer toEC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
For wiring diagram, refer to EC-961
for CKP sensor (POS), and EC-967 for CMP sensor (PHASE).
>>INSPECTION END Continuity should exist.

DTC P0011, P0021 IVT CONTROL
EC-805
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

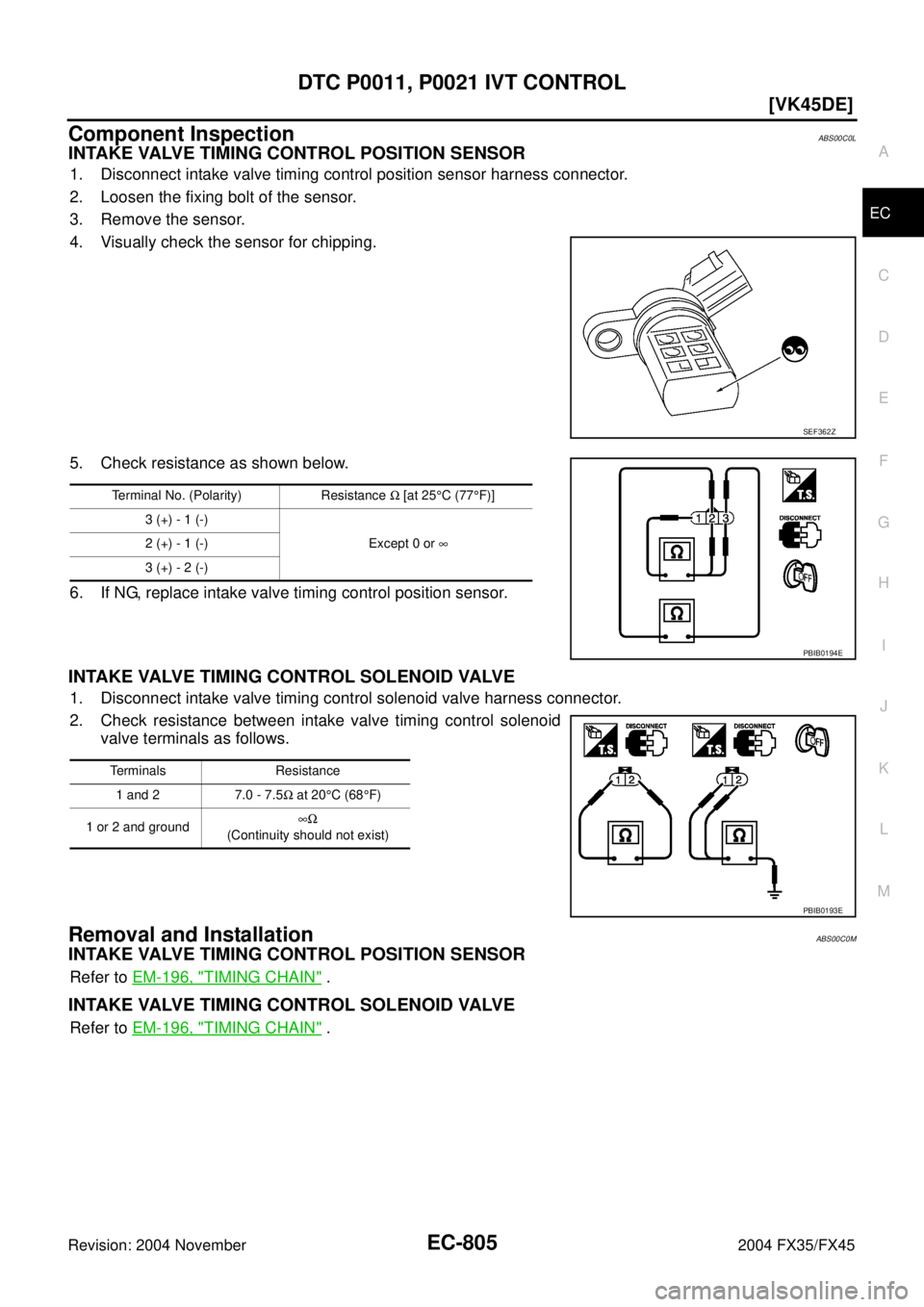

Component InspectionABS00C0L
INTAKE VALVE TIMING CONTROL POSITION SENSOR
1. Disconnect intake valve timing control position sensor harness connector.
2. Loosen the fixing bolt of the sensor.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, replace intake valve timing control position sensor.
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve terminals as follows.
Removal and InstallationABS00C0M
INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EM-196, "TIMING CHAIN" .
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EM-196, "TIMING CHAIN" .
SEF362Z
Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
3 (+) - 1 (-)
Except 0 or ∞ 2 (+) - 1 (-)
3 (+) - 2 (-)
PBIB0194E
Terminals Resistance
1 and 2 7.0 - 7.5Ω at 20°C (68°F)
1 or 2 and ground∞Ω
(Continuity should not exist)
PBIB0193E

EC-806
[VK45DE]
DTC P0031, P0032, P0051, P0052 HO2S1 HEATER
Revision: 2004 November 2004 FX35/FX45
DTC P0031, P0032, P0051, P0052 HO2S1 HEATERPFP:22690
DescriptionABS00C0N
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxygen sensor 1 heater corresponding to the engine speed
and engine coolant temperature. The duty percent varies with engine coolant temperature when engine is
started.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeABS00C0O
Specification data are reference values.
On Board Diagnosis LogicABS00C0P
Sensor Input signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speed
Heated oxygen sensor 1
heater controlHeated oxygen sensor 1 heater
Engine coolant temperature sensor Engine coolant temperature
Engine speed rpm Heated oxygen sensor 1 heater
Above 3,000OFF
Below 3,000 after warming up ON
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 HTR (B1)
HO2S1 HTR (B2)

Engine: After warming up

Engine speed: Below 3,000 rpmON

Engine speed: Above 3,000 rpm OFF
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0031
0031
(Bank 1)Heated oxygen
sensor 1 heater
control circuit lowThe current amperage in the heated oxygen
sensor 1 heater circuit is out of the normal
range.
(An excessively low voltage signal is sent to
ECM through the heated oxygen sensor 1
heater.)

Harness or connectors
(The heated oxygen sensor 1 heater circuit is
open or shorted.)

Heater oxygen sensor 1 heater P0051
0051
(Bank 2)
P0032
0032
(Bank 1)Heated oxygen
sensor 1 heater
control circuit highThe current amperage in the heated oxygen
sensor 1 heater circuit is out of the normal
range.
(An excessively high voltage signal is sent to
ECM through the heated oxygen sensor 1
heater.)

Harness or connectors
(The heated oxygen sensor 1 heater circuit is
shorted.)

Heater oxygen sensor 1 heater P0052
0052
(Bank 2)

DTC P0031, P0032, P0051, P0052 HO2S1 HEATER
EC-809
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
2LHeated oxygen sensor 1
heater (bank 1)[Engine is running]

Warm-up condition

Engine speed is below 3,000 rpmApproximately 7V
[Engine is running]

Engine speed is above 3,000 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB0519E

DTC P0031, P0032, P0051, P0052 HO2S1 HEATER
EC-811
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureABS00C0S
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 BRHeated oxygen sensor 1
heater (bank 2)[Engine is running]

Warm-up condition

Engine speed is below 3,000 rpmApproximately 7V
[Engine is running]

Engine speed is above 3,000 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB0519E
PBIB2195E
