2004 INFINITI FX35 sensor

DTC P0102, P0103 MAF SENSOR
EC-831
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00C1F
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P0102
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and wait at least 5 seconds.
4. If DTC is detected, go to EC-833, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR DTC P0103
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-833, "
Diagnostic Procedure" .
If DTC is not detected, go to next step.
5. Start engine and wait at least 5 seconds.
6. If DTC is detected, go to EC-833, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
SEF058Y
SEF058Y

EC-832
[VK45DE]
DTC P0102, P0103 MAF SENSOR
Revision: 2004 November 2004 FX35/FX45

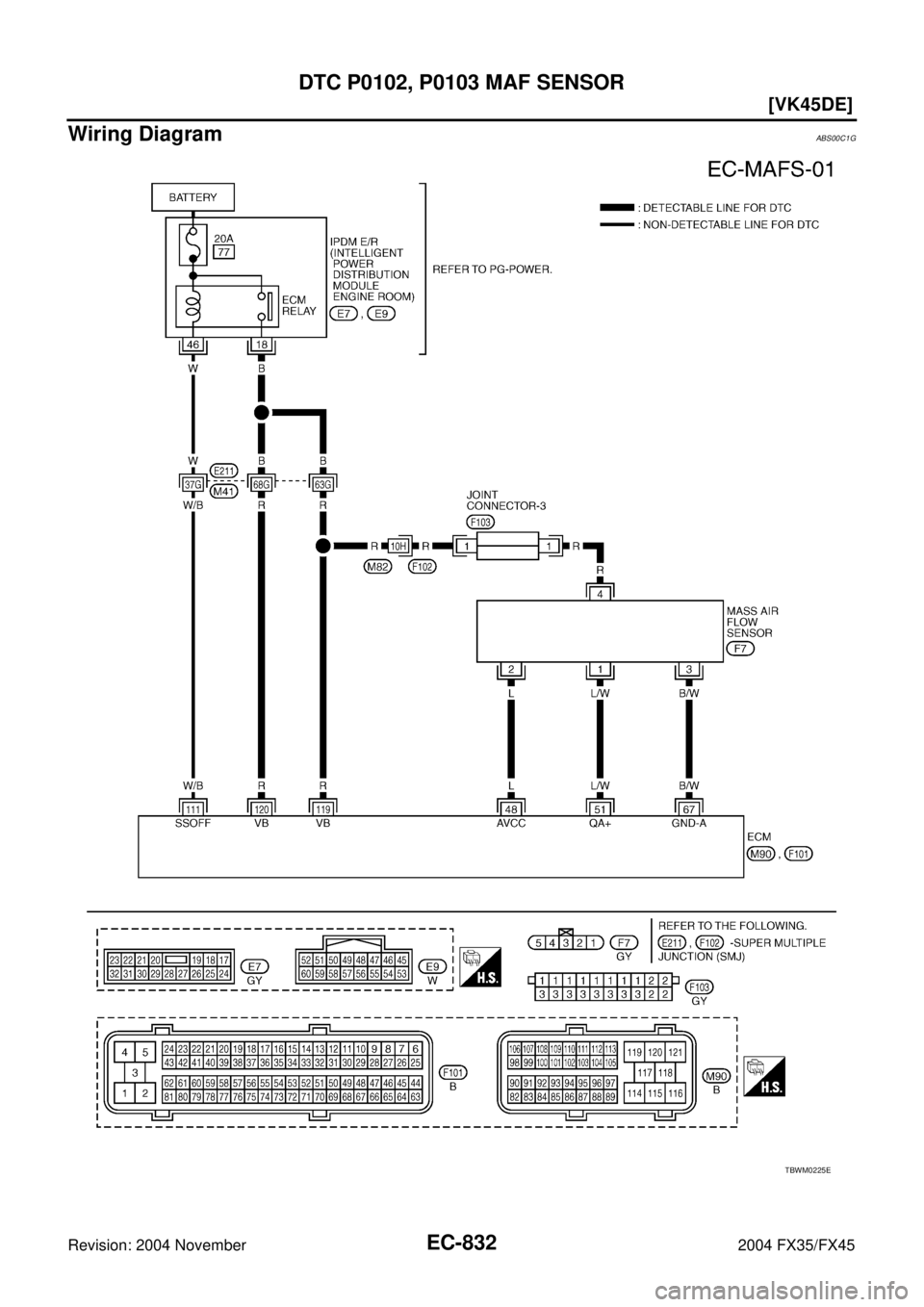

Wiring DiagramABS00C1G
TBWM0225E

DTC P0102, P0103 MAF SENSOR
EC-833
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00C1H
1. INSPECTION START
Which malfunction (P0102 or P0103) is duplicated?
P0102 or P0103
P0102 >> GO TO 2.
P0103 >> GO TO 3.
2. CHECK INTAKE SYSTEM
Check the following for connection.

Air duct

Va c u u m h o s e s

Intake air passage between air duct to intake manifold
OK or NG
OK >> GO TO 3.
NG >> Reconnect the parts.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
48 LSensor power supply
(Mass air flow sensor)[Ignition switch: ON]Approximately 5V
51 L/W Mass air flow sensor[Engine is running]

Warm-up condition

Idle speed1.2 - 1.8V
[Engine is running]

Warm-up condition

Engine speed is 2,500 rpm1.7 - 2.4V
67 B/WSensor ground
(Mass air flow sensor / IAT
sensor / Power steering
pressure sensor / EVAP
control system pressure
sensor / Refrigerant pres-
sure sensor / ECT sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
111 W / BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120R
RPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)

EC-834
[VK45DE]
DTC P0102, P0103 MAF SENSOR
Revision: 2004 November 2004 FX35/FX45
3. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace ground connections.
4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow (MAF) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between MAF sensor terminals 2, 4 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness connectors M82, F102

Joint connector-3

Harness for open or short between IPDM E/R and mass air flow sensor

Harness for open or short between mass air flow sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2195E
PBIB1502E
Terminal Voltage
2 Approximately 5V
4 Battery voltage
PBIB0076E

DTC P0102, P0103 MAF SENSOR
EC-835
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between MAF sensor terminal 1 and ECM terminal 51.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK MASS AIR FLOW SENSOR
Refer to EC-829, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace mass air flow sensor.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

EC-836
[VK45DE]
DTC P0102, P0103 MAF SENSOR
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS00C1I
MASS AIR FLOW SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 51 (Mass air flow sensor
signal) and ground.
*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.
4. If the voltage is out of specification, proceed the following.

Turn ignition switch OFF.

Disconnect mass air flow sensor harness connector and reconnect it again.

Perform steps 2 and 3 again.
5. If NG, remove mass air flow sensor from air duct. Check hot film for damage or dust.
6. If NG, clean or replace mass air flow sensor.
Removal and InstallationABS00C1J
MASS AIR FLOW SENSOR
Refer to EM-172, "AIR CLEANER AND AIR DUCT" .
Condition Voltage V
Ignition switch ON (Engine stopped.) Approx. 1.0
Idle (Engine is warmed-up to normal
operating temperature.)1.2 - 1.8
2,500 rpm (Engine is warmed-up to
normal operating temperature.)1.7 - 2.4
Idle to about 4,000 rpm* 1.2 - 1.8 to Approx. 4.0
PBIB1106E

DTC P0112, P0113 IAT SENSOR
EC-837
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P0112, P0113 IAT SENSORPFP:22630
Component DescriptionABS00C1K
The intake air temperature sensor is built-into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.

*: These data are reference values and are measured between ECM terminal 34
(Intake air temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM termi-
nals, such as the ground.
On Board Diagnosis LogicABS00C1L
DTC Confirmation ProcedureABS00C1M
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-840, "
Diagnostic Procedure"
.
SEC266C
Intake air temperature
°C (°F)Voltage* V Resistance kΩ
-10 (14) 4.43 7.9 - 9.3
25 (77) 3.32 1.9 - 2.1
80 (176) 1.23 0.31 - 0.37
SEF012P
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0112
0112Intake air tempera-
ture sensor circuit
low inputAn excessively low voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted.)

Intake air temperature sensor
P0113
0113Intake air tempera-
ture sensor circuit
high inputAn excessively high voltage from the sensor is
sent to ECM.
SEF058Y

EC-838
[VK45DE]
DTC P0112, P0113 IAT SENSOR
Revision: 2004 November 2004 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II” above.
