2004 INFINITI FX35 Front end

PRECAUTIONS
EI-3
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AIS0057U
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for WorkAIS0057V

After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check
their operation.

Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

EI-16
FRONT BUMPER
Revision: 2004 November 2004 FX35/FX45
REMOVAL
1. Remove front grille. Refer to EI-23, "Removal and Installation" .
2. Remove fillet molding assembly. Only the place connected with
a front bumper fascia is removed.
3. Remove bolts and clips of front undercover.
4. Remove screws and clips of right/left fender protectors on front
side. Refer to EI-25, "
Removal and Installation" .
5. Remove bolts of right/left fender.
6. Insert driver rolled with cloth between bumper fascia and “S”
type clips, and remove bumper fascia.
7. Disconnect harness connector of fog lamps.
8. Remove bumper fascia assembly.
9. Remove bumper energy absorber.
10. Remove bolts and nuts of bumper reinforcement, and remove
bumper reinforcement. Remove bolts and nuts with power tool.
11. Remove ICC sensor with bracket. Refer to Refer to ACS-67,
"REMOVAL AND INSTALLATION" .
12. Remove nuts of bumper stay, and remove bumper stay. Remove
nuts with power tool.
13. Remove nuts of front bumper guard bar, and remove front
bumper guard bar. Remove nuts with power tool.
14. Remove fog lamps located in bumper fascia. Refer to LT- 8 8 ,
"Removal and Installation" .
INSTALLATION
Install in the reverse order of removal.
7. Clip (C205) 8. Bumper fascia assembly 9. Number plate holder
10. Bolt 11. Bolt 12. Bolt
13. Nut 14. Bolt 15. Clip (“S” type)
16. Fillet molding 17. Bolt
PIIA4350E
PIIA4338E
PIIA4331E
PIIA4339E

FRONT BUMPER
EI-17
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
FRONT FILLET MOLDING ASSEMBLY
Removal
1. Remove screws of fillet molding assembly.
2. Remove clips of fillet molding assembly.
3. Remove fillet molding assembly.
Installation
1. Clean adhesive portion of front fender with white gasoline.
2. Strip pattern from the new double adhesive tape and paste on front fender.
3. Fillet molding assembly hold with front fender.
PIIA4350E

FENDER PROTECTOR
EI-25
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
FENDER PROTECTORPFP:63840
Removal and InstallationAIS0037D
REMOVAL
1. Remove bolts of fender protector front.
2. Remove clips of fender protector front.
3. Remove fender protector front.
4. Remove bolt of fender protector rear.
5. Remove clips of fender protector rear.
6. Remove fender protector rear.
INSTALLATION
Install in the reverse order of removal.
PIIA4326E

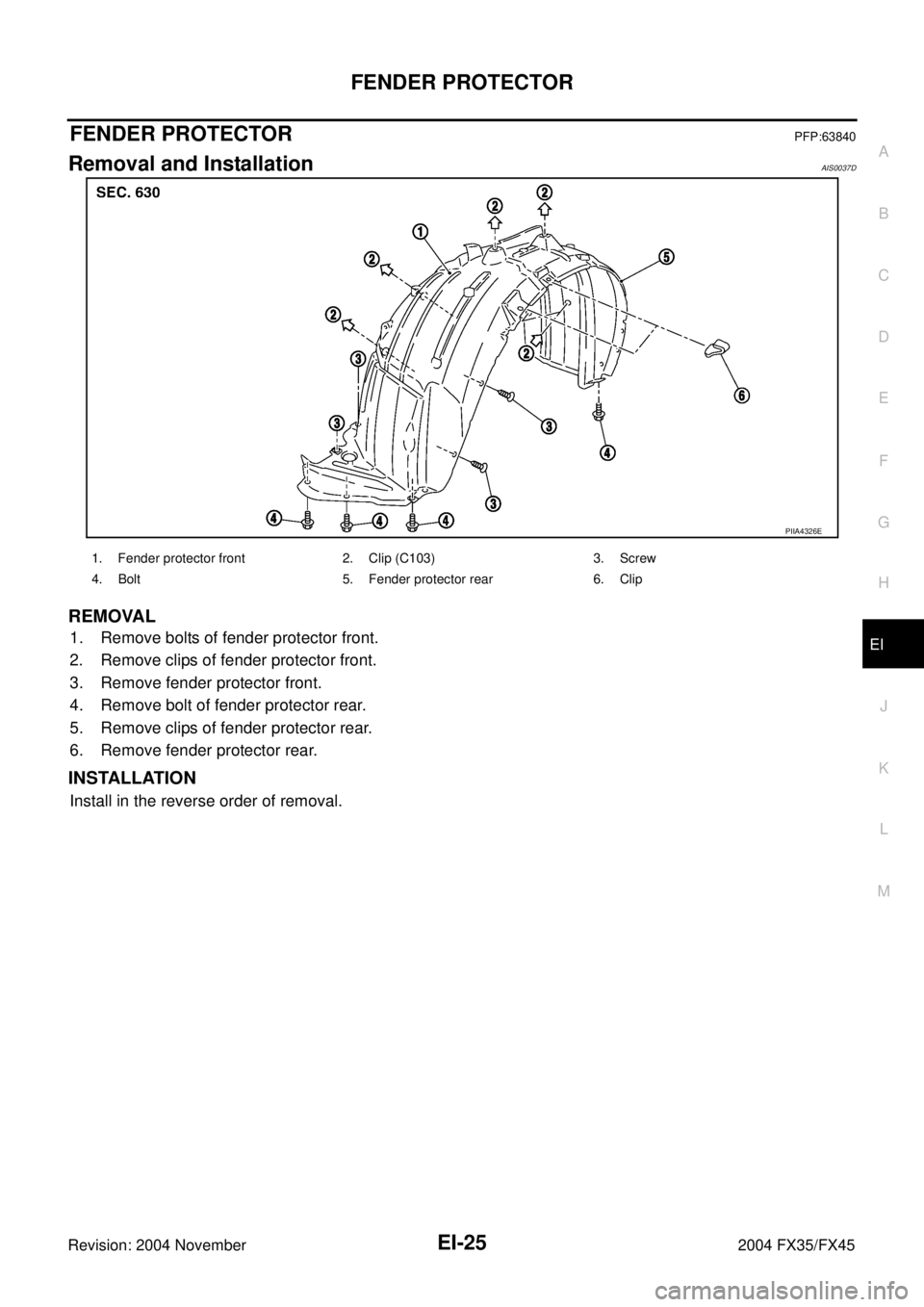

1. Fender protector front 2. Clip (C103) 3. Screw
4. Bolt 5. Fender protector rear 6. Clip

HEADLINING
EI-43
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
REMOVAL
1. Remove front pillar garnish. Refer to EI-37, "Removal and Installation" .
2. Remove kicking plate (front/rear). Refer to EI-37, "
Removal and Installation" .
3. Remove body side welt. Refer to EI-37, "
Removal and Installation" .
4. Remove seat belt shoulder anchor (front/rear). Refer to SB-4, "
Removal and Installation of Front Seat
Belt" and SB-6, "Removal and Installation of Rear Seat Belt" .
5. Remove center pillar garnish (lower/upper) and luggage side finisher assembly and rear pillar upper gar-
nish assembly. Refer to EI-37, "
Removal and Installation" and EI-44, "Removal and Installation" .

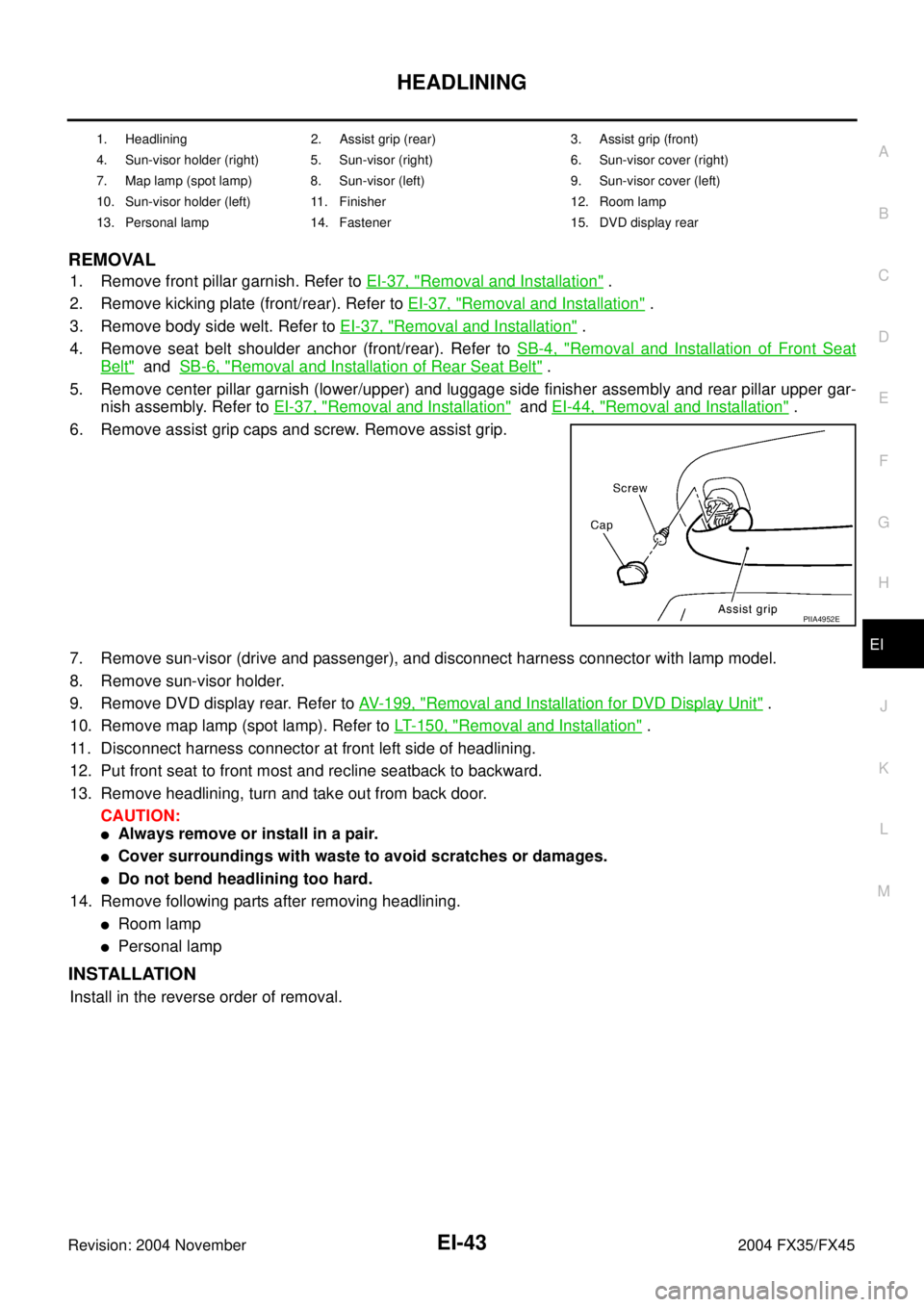

6. Remove assist grip caps and screw. Remove assist grip.
7. Remove sun-visor (drive and passenger), and disconnect harness connector with lamp model.
8. Remove sun-visor holder.
9. Remove DVD display rear. Refer to AV- 1 9 9 , "
Removal and Installation for DVD Display Unit" .
10. Remove map lamp (spot lamp). Refer to LT- 1 5 0 , "
Removal and Installation" .
11. Disconnect harness connector at front left side of headlining.
12. Put front seat to front most and recline seatback to backward.
13. Remove headlining, turn and take out from back door.
CAUTION:

Always remove or install in a pair.

Cover surroundings with waste to avoid scratches or damages.

Do not bend headlining too hard.
14. Remove following parts after removing headlining.

Room lamp

Personal lamp
INSTALLATION
Install in the reverse order of removal.
1. Headlining 2. Assist grip (rear) 3. Assist grip (front)
4. Sun-visor holder (right) 5. Sun-visor (right) 6. Sun-visor cover (right)
7. Map lamp (spot lamp) 8. Sun-visor (left) 9. Sun-visor cover (left)
10. Sun-visor holder (left) 11. Finisher 12. Room lamp
13. Personal lamp 14. Fastener 15. DVD display rear
PIIA4952E

EM-2Revision: 2004 November 2004 FX35/FX45 FUEL INJECTOR AND FUEL TUBE ........................ 45
Removal and Installation ........................................ 45
REMOVAL ........................................................... 46
INSTALLATION .................................................... 47
INSPECTION AFTER INSTALLATION ................ 49
ROCKER COVER ..................................................... 51
Removal and Installation ........................................ 51
REMOVAL ........................................................... 51
INSTALLATION .................................................... 52
FRONT TIMING CHAIN CASE ................................. 54
Removal and Installation ........................................ 54
REMOVAL ........................................................... 54
INSTALLATION .................................................... 58
INSPECTION AFTER INSTALLATION ................ 62
TIMING CHAIN .......................................................... 63
Removal and Installation ........................................ 63
REMOVAL ........................................................... 64
INSPECTION AFTER REMOVAL ........................ 71
INSTALLATION .................................................... 71
INSPECTION AFTER INSTALLATION ................ 80
CAMSHAFT ............................................................... 82
Removal and Installation ........................................ 82
REMOVAL ........................................................... 83
INSPECTION AFTER REMOVAL ........................ 84
INSTALLATION .................................................... 87
Valve Clearance ...................................................... 89
INSPECTION ....................................................... 89
ADJUSTMENT .................................................... 92
OIL SEAL .................................................................. 94
Removal and Installation of Valve Oil Seal ............. 94
REMOVAL ........................................................... 94
INSTALLATION .................................................... 94
Removal and Installation of Front Oil Seal ............. 95
REMOVAL ........................................................... 95
INSTALLATION .................................................... 96
Removal and Installation of Rear Oil Seal .............. 96
REMOVAL ........................................................... 96
INSTALLATION .................................................... 96
CYLINDER HEAD ..................................................... 98
On-Vehicle Service ................................................. 98
CHECKING COMPRESSION PRESSURE ......... 98
Removal and Installation ........................................ 99
REMOVAL ........................................................... 99
INSPECTION AFTER REMOVAL ......................100
INSTALLATION ..................................................101
Disassembly and Assembly ..................................102
DISASSEMBLY .................................................103
ASSEMBLY .......................................................103
Inspection After Disassembly ...............................104
VALVE DIMENSIONS ........................................104
VALVE GUIDE CLEARANCE ............................105
VALVE GUIDE REPLACEMENT .......................105
VALVE SEAT CONTACT ...................................107
VALVE SEAT REPLACEMENT .........................107
VALVE SPRING SQUARENESS .......................108
VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD ..............................109
ENGINE ASSEMBLY ...............................................110
Removal and Installation .......................................110
2WD MODEL .....................................................110
REMOVAL .......................................................... 111
INSTALLATION ..................................................113
INSPECTION AFTER INSTALLATION ..............113
AWD MODEL .....................................................115
REMOVAL ..........................................................115
INSTALLATION ..................................................118
INSPECTION AFTER INSTALLATION ..............118
CYLINDER BLOCK .................................................120
Disassembly and Assembly ..................................120
DISASSEMBLY ..................................................121
ASSEMBLY ........................................................126
How to Select Piston and Bearing ........................131
DESCRIPTION ..................................................131
HOW TO SELECT PISTON ...............................131
HOW TO SELECT CONNECTING ROD BEAR-
ING .....................................................................132
HOW TO SELECT MAIN BEARING ..................133
Inspection After Disassembly ................................136
CRANKSHAFT END PLAY ................................136
CONNECTING ROD SIDE CLEARANCE .........136
PISTON TO PISTON PIN OIL CLEARANCE .....136
PISTON RING SIDE CLEARANCE ...................137
PISTON RING END GAP ..................................137
CONNECTING ROD BEND AND TORSION .....138
CONNECTING ROD BEARING HOUSING
DIAMETER (BIG END) ......................................138
CONNECTING ROD BUSHING OIL CLEAR-
ANCE (SMALL END) .........................................138
CYLINDER BLOCK DISTORTION ....................139
MAIN BEARING HOUSING INNER DIAMETER .140
PISTON TO CYLINDER BORE CLEARANCE ..140
CRANKSHAFT MAIN JOURNAL DIAMETER ...141
CRANKSHAFT PIN JOURNAL DIAMETER ......142
CRANKSHAFT OUT-OF-ROUND AND TAPER .142
CRANKSHAFT RUNOUT ..................................142
CONNECTING ROD BEARING OIL CLEAR-
ANCE .................................................................142
MAIN BEARING OIL CLEARANCE ...................143
MAIN BEARING CRUSH HEIGHT ....................144
CONNECTING ROD BEARING CRUSH
HEIGHT .............................................................144
MAIN BEARING CAP BOLT OUTER DIAMETER .144
CONNECTING ROD BOLT OUTER DIAMETER .144
DRIVE PLATE ....................................................145
OIL JET ..............................................................145
OIL JET RELIEF VALVE ....................................145
SERVICE DATA AND SPECIFICATIONS (SDS) ....146
Standard and Limit ................................................146
GENERAL SPECIFICATIONS ...........................146
DRIVE BELT ......................................................147
INTAKE MANIFOLD COLLECTOR, INTAKE

EM-14
[VQ35DE]
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: 2004 November 2004 FX35/FX45
Use the Chart Below to Help You Find the Cause of the Symptom.ABS004TW
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseType of
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
Top of
engine
Rocker
cover
Cylinder
headTicking or
clickingCA—AB—Tappet
noiseValve clearanceEM-89
Rattle C A — A B CCamshaft
bearing
noiseCamshaft runout
Camshaft journal oil
clearanceEM-84EM-84
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—B B—Piston pin
noisePiston to piston pin oil
clearance
Connecting rod bush-
ing oil clearance (Small
end)EM-136
EM-138
Slap or
rapA——B B APiston
slap noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsionEM-140EM-137
EM-137
EM-138
Knock A B C B B BConnect-
ing rod
bearing
noiseConnecting rod bush-
ing oil clearance (Small
end)
Connecting rod bear-
ing housing diameter
(Big end)EM-138EM-138
Knock A B — A B CMain
bearing
noiseMain bearing oil clear-
ance
Crankshaft runoutEM-143EM-142
Front of
engine
Timing
chain
caseTapping or
tickingAA—BBBTiming
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operationEM-71
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belts
(Sticking
or slip-
ping)Drive belts deflection
EM-15
CreakingABABABDrive belts
(Slipping)Idler pulley bearing
operation
Squall
CreakAB—BABWater
pump
noiseWater pump operationCO-22,
"WATER
PUMP"

EM-22
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Note to the following, and install in the reverse order of removal.
Part Installation Direction
Referring to front marks, install parts shown in figure.
Intake Manifold Collector (Lower)
Tighten in numerical order as shown in the figure.
NOTE:
Tighten mounting bolts to secure gasket (lower), intake manifold col-
lector (lower), gasket (upper), and intake manifold collector cover.
Intake Manifold Collector (Upper)

If stud bolts were removed, install them and tighten to the speci-
fied torque below.

Shank length under bolt head varies with bolt location. Install
bolts while referring to numbers shown below and in figure. (Bolt
length does not include pilot portion.)

Tighten in numerical order as shown in the figure.
Water Hose

Insert hose by 27 to 32 mm (1.06 to 1.26 in) from connector end.
PBIC0776E
PBIC0774E
: 5.9 N·m (0.6 kg-m, 52 in-lb)
Bolt
M6 × 25 mm (0.98 in) : 7, 8, 10, 11, 13, 14, 15, 16, 18
M6 × 45 mm (1.77 in) : 2, 4, 5
M6 × 60 mm (2.36 in) : 1, 3, 6, 9
M6 Nut : 12, 17
PBIC0773E
