2004 INFINITI FX35 CD player

AV-198
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player connector and audio unit connector.
3. Check continuity between DVD player harness connector M73
terminals 1 (L), 2 (R), 3(LG), 4 (PU) and audio unit harness con-
nector M65 terminals 37 (L), 39 (R), 43 (LG), 42 (PU).
4. Check continuity between DVD player harness connector M73
terminals 1 (L), 2 (R), 3 (LG), 4 (PU) and ground.
OK or NG
OK >> GO TO 4
NG >> Repair harness or connector.
4. CHECK MES SOUND SIGNAL
1. Connect DVD player connector and audio unit connector.
2. Turn the ignition switch ACC and push “POWER” switch of DVD
player.
3. Check the signal between DVD player harness connector M73
terminals 1 (L) and 2 (R), 3 (LG) and 4 (PU) with CONSULT-II or
oscilloscope.
OK or NG
OK >> Replace audio unit.
NG >> Replace DVD player.
Removal and Installation for DVD PlayerAKS00BP5
REMOVAL
1. Remove center console. Refer to IP-12, "(H) Center Console" .
2. Remove center console rear finisher. Refer to IP-18, "
CENTER
CONSOLE" .
3. Remove screws (2) with power tool and remove DVD player.1 – 37 : Continuity should exist.
2 – 39 : Continuity should exist.
3 – 43 : Continuity should exist.
4 – 42 : Continuity should exist.
1, 2, 3, 4 – Ground : Continuity should not exist.
SKIA7034E
Te r m i n a l
Condition Reference value
(+) (-)
12
Play CD or DVD videoRefer to AV- 1 8 8 , "
Te r m i -
nals and Reference Value
for DVD Player" . 34SKIB0518E
SKIA5810E

BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45

If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness
pinches, open circuits, and improper wiring.

If the following components are replaced with non-genuine components or converted, VDC OFF indicator
lamp and SLIP indicator lamp may turn on or the VDC system may not operate properly. Components
related to suspension (Shock Absorber, Strut, Spring, Bush, etc.), Tires, wheels (exclude specified size),
components related to brake (Pad, Rotor, Caliper, etc.), components related to engine (Muffler, ECM,
etc.), components related to body reinforcement (Roll bar, Tower bar, etc.).

Driving in the condition of breakage or excessive wear of suspension, tires or components related to the
brakes may cause VDC OFF indicator lamp and SLIP indicator lamp turn on, and the VDC system may
not operate properly.

When the TCS or VDC is activated by sudden acceleration or sudden turn, some noise may occur. The
noise is a result of the normal operation of the TCS and VDC.

When driving on roads which have extreme slopes (such as mountainous roads) or high banks (such as
sharp carves on a freeway), the VDC may not operate normally, or VDC OFF indicator lamp and SLIP
indicator lamp may turn on. However, this is not a malfunction, if normal operation can be resumed after
restarting engine.

Sudden turns (such as spin turns, acceleration turns), drifting, etc. When VDC function is OFF (VDC SW
ON) may cause the G -sensor system indicate a malfunction. However, this is not a malfunction, if normal
operation can be resumed after restarting engine.

IP-18
INSTRUMENT PANEL ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
CENTER CONSOLE
Disassembly
1. Insert a remover into side between gaps console rear finisher and pull back to your side, and disconnect
pawls below.
2. Disconnect harness connector and remove console rear finisher.
3. Insert a remover into side between gaps of console mask and pull back to your side.
4. Remove screws with power tool and remove console lid.
5. Remove screws fixing DVD player with power tool.
6. Disconnect harness connectors, and remove DVD player.
Assembly
Assemble in the reverse order of disassembly.

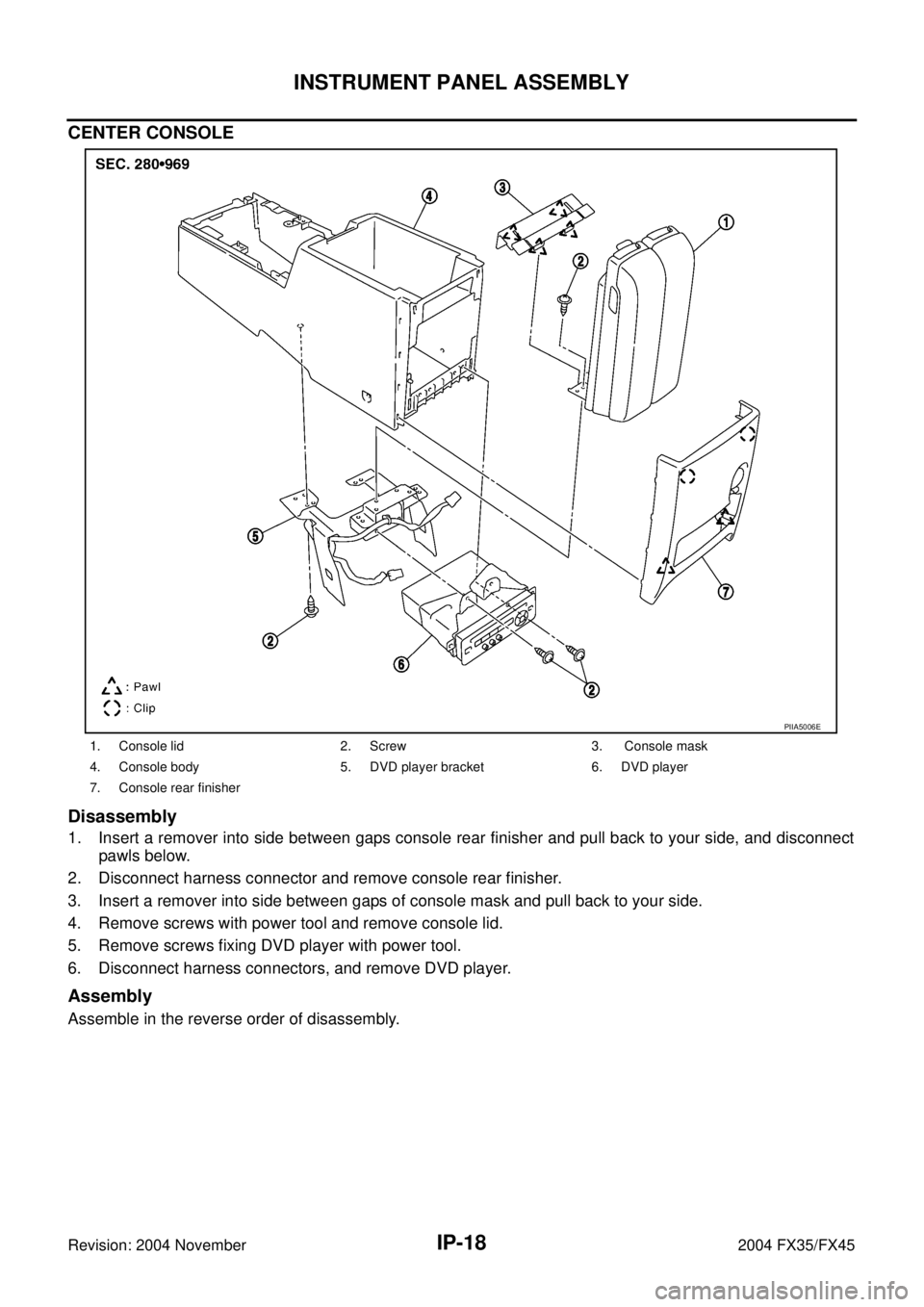

1. Console lid 2. Screw 3. Console mask
4. Console body 5. DVD player bracket 6. DVD player
7. Console rear finisher
PIIA5006E

LT-158
INTERIOR ROOM LAMP
Revision: 2004 November 2004 FX35/FX45
When inserted the key plate to key switch, power is supplied (with intelligent key system)

through the key switch and ignition knob switch terminal 4

to BCM (body control module) terminal 37.
When moved the ignition knob switch, power is supplied (with intelligent key system)

through the ignition knob switch terminal 2

to intelligent key unit terminal 27.
With the ignition switch in the ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds terminals M35, M45 and M85.
When the driver side door is opened, ground is supplied

through case ground of door switch driver side

to BCM (body control module) terminal 62.
When the passenger side door is opened, ground is supplied

through case ground of door switch passenger side

to BCM (body control module) terminal 12.
When the rear door LH is opened, ground is supplied

through case ground of door switch rear door LH

to BCM (body control module) terminal 63, and

to personal lamp LH terminal 1.
When the rear door RH is opened, ground is supplied

through case ground of door switch rear door RH

to BCM (body control module) terminal 13, and

to personal lamp RH terminal 1.
When the driver side door is unlocked by the door lock and unlock switch, BCM (body control module)
receives a ground signal

through grounds terminals M35, M45 and M85

to power window main switch terminal 17 (door lock and unlock switch) or front power window (passenger
side) terminal 11 (door lock and unlock switch)

from power window main switch terminal 14 (door lock and unlock switch) or front power window (passen-
ger side) terminal 16 (door lock and unlock switch)

to BCM (body control module) terminal 22.
When the front driver side door is unlocked by the driver side door lock assembly (door key cylinder switch),
BCM (body control module) receives a ground signal

through grounds M35, M45 and M85

to front door lock assembly (driver side) (door key cylinder switch) terminal 5

from front door lock assembly (driver side) (door key cylinder switch) terminal 6

to power window main switch terminal 6 (door lock and unlock switch)

from power window main switch terminal 14 (door lock and unlock switch)

to BCM (body control module) terminal 22.
When a signal, or combination of signals is received by BCM (body control module), ground is supplied

through BCM (body control module) terminal 48

to interior room lamp terminal 1(without DVD player),

to map lamp terminal 2 and

to front door inside handle illumination (driver side and passenger side) terminal 2
With power and supplied, the interior lamp illuminates.

LT-186
ILLUMINATION
Revision: 2004 November 2004 FX35/FX45

to VDC off switch (illumination) terminal 3

to clock (illumination) terminal 3

to hazard switch (illumination) terminal 3

to heated seat switch (driver side) (illumination) terminal 5

to heated seat switch (passenger side) (illumination) terminal 5

to A/C and AV switch (illumination) terminal 3

to NAVI control unit (illumination) terminal 25

to DVD player (illumination) terminal 12

to front cigarette lighter socket terminal 2

to rear power window switch LH (illumination) terminal 6 and

to rear power window switch RH (illumination) terminal 6.
Illumination control

through combination meter terminal 19

to A/T device (illumination) terminal 12

to snow mode switch (illumination) terminal 2

to VDC off switch (illumination) terminal 4

to clock (illumination) terminal 4

to hazard switch (illumination) terminal 4

to heated seat switch (driver side) (illumination) terminal 6

to heated seat switch (passenger side) (illumination) terminal 6

to A/C and AV switch (illumination) terminal 4

to NAVI control unit (illumination) terminal 30

to DVD player (illumination) terminal 10.
Ground is supplied at all times

to glove box lamp terminal 2 and

to front cigarette lighter socket terminal 3

through grounds M35, M45 and M85

to rear power window switch LH (illumination) terminal 7 and

to rear power window switch RH (illumination) terminal 7

through grounds B15 and B45.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST or 2ND position (or if auto light system is acti-
vated), and the ignition switch is turned from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then the illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by the battery saver control, and illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionAKS007EJ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080Y
Refer to LAN-6, "CAN Communication Unit" .
