COMBINATION METERS
DI-13
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
3. Turn ignition switch ON while pressing trip transfer switch and
trip reset switch at the same time.
4. After ignition switch is turned ON, release trip transfer switch
and trip reset switch. (With 7 seconds after the ignition switch is
turned ON.)

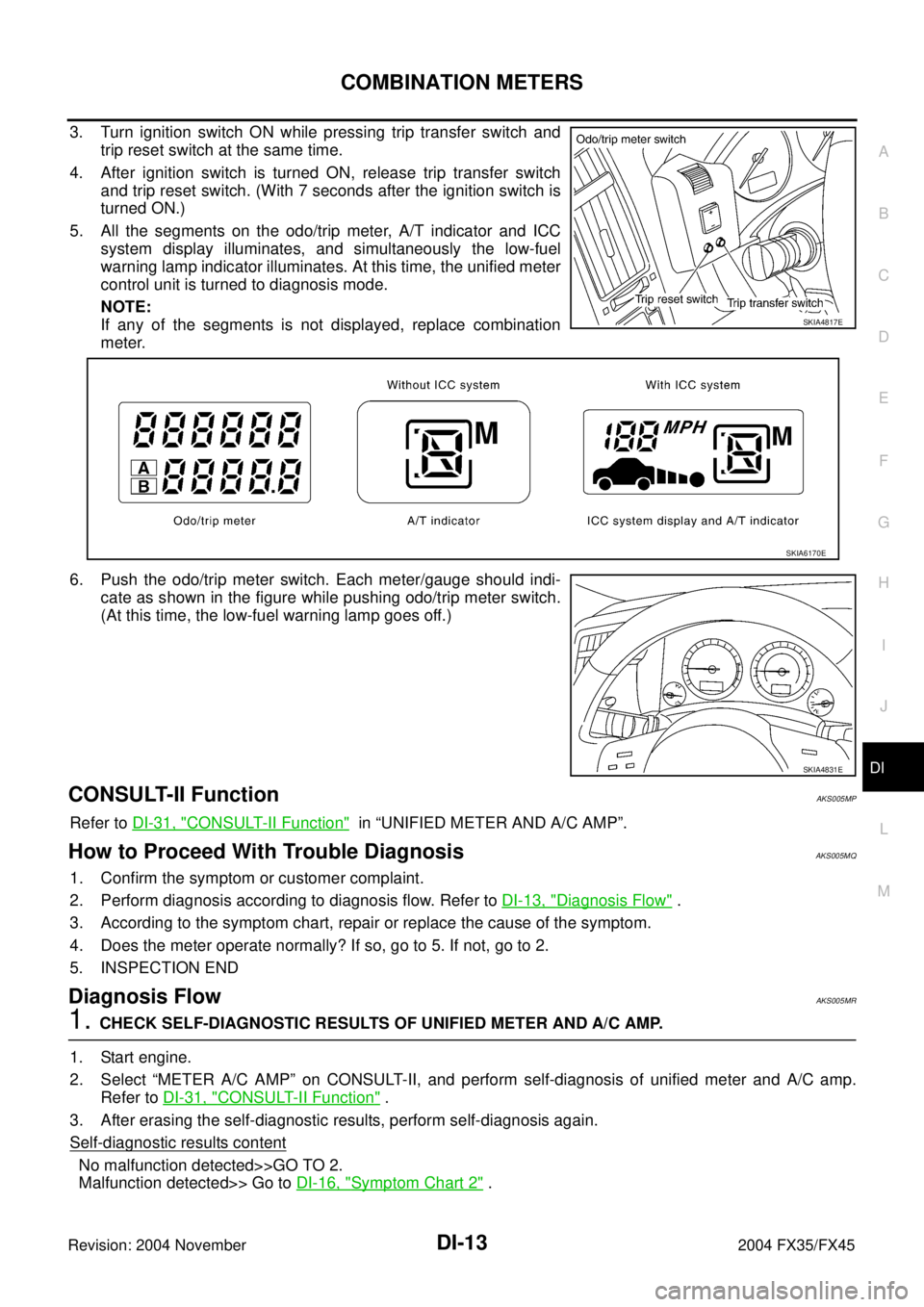

5. All the segments on the odo/trip meter, A/T indicator and ICC
system display illuminates, and simultaneously the low-fuel
warning lamp indicator illuminates. At this time, the unified meter
control unit is turned to diagnosis mode.
NOTE:
If any of the segments is not displayed, replace combination
meter.
6. Push the odo/trip meter switch. Each meter/gauge should indi-
cate as shown in the figure while pushing odo/trip meter switch.
(At this time, the low-fuel warning lamp goes off.)
CONSULT-II FunctionAKS005MP
Refer to DI-31, "CONSULT-II Function" in “UNIFIED METER AND A/C AMP”.
How to Proceed With Trouble DiagnosisAKS005MQ
1. Confirm the symptom or customer complaint.
2. Perform diagnosis according to diagnosis flow. Refer to DI-13, "
Diagnosis Flow" .
3. According to the symptom chart, repair or replace the cause of the symptom.
4. Does the meter operate normally? If so, go to 5. If not, go to 2.
5. INSPECTION END
Diagnosis FlowAKS005MR
1. CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.
1. Start engine.
2. Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp.
Refer to DI-31, "
CONSULT-II Function" .
3. After erasing the self-diagnostic results, perform self-diagnosis again.
Self-diagnostic results content
No malfunction detected>>GO TO 2.
Malfunction detected>> Go to DI-16, "
Symptom Chart 2" .
SKIA4817E
SKIA6170E
SKIA4831E

DI-14
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45
2. CHECK WARNING LAMP ILLUMINATION
Turn ignition switch ON. (Engine stopped)
Do warning lamps (such as malfunction indicator lamp and oil pressure warning lamp) illuminate?
YES >> GO TO 3.
NO >> Check ignition power supply system of combination meter. Refer to DI-15, "
Power Supply and
Ground Circuit Inspection" .
3. CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-12, "
SELF-DIAGNOSIS FUNCTION" .
Does self-diagnosis function operate?
YES >> GO TO 4.
NO >> Check battery power supply of combination meter and ground system. Refer to DI-15, "
Power
Supply and Ground Circuit Inspection" .
4. CHECK ODO/TRIP METER OPERATION

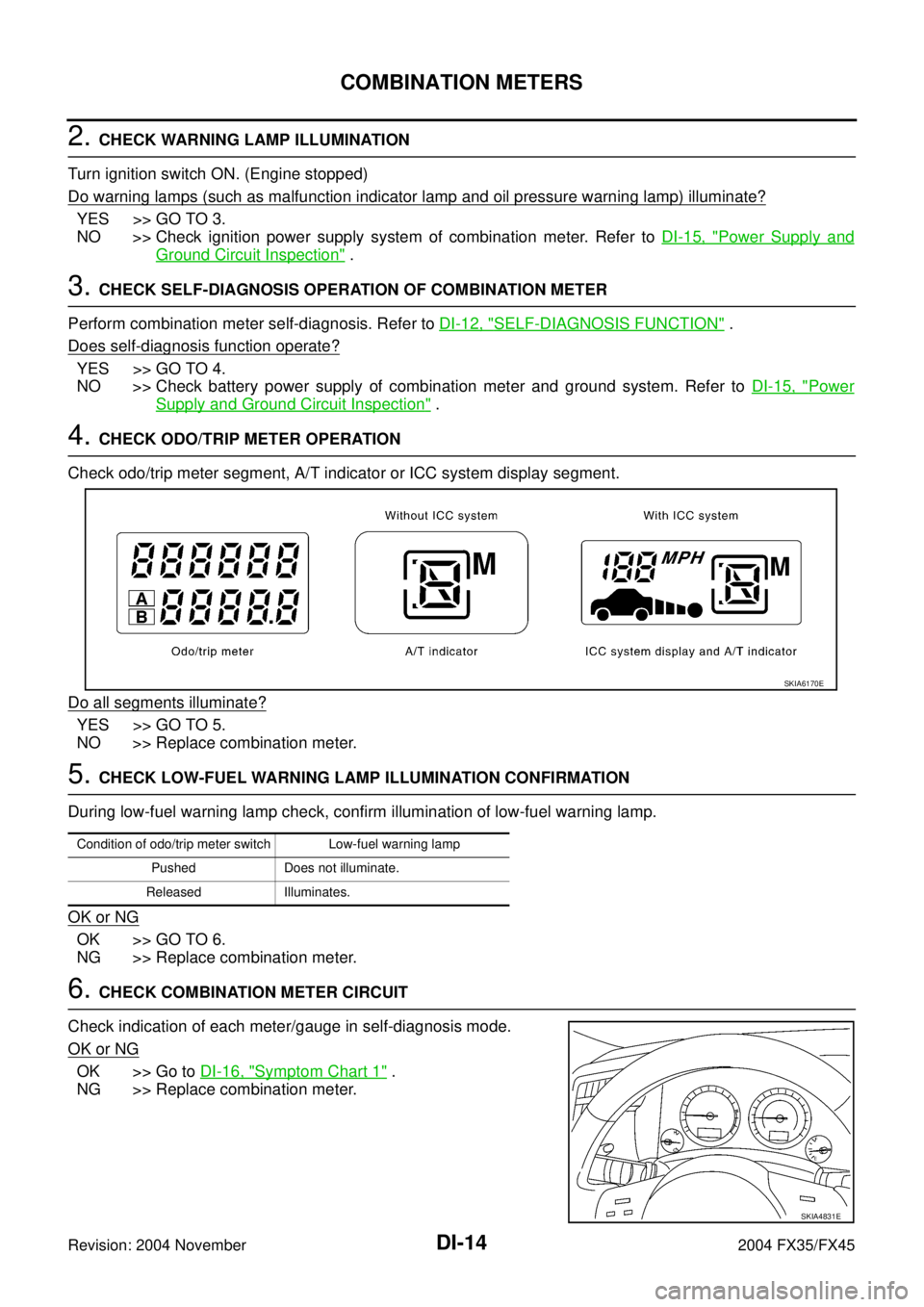

Check odo/trip meter segment, A/T indicator or ICC system display segment.
Do all segments illuminate?
YES >> GO TO 5.
NO >> Replace combination meter.
5. CHECK LOW-FUEL WARNING LAMP ILLUMINATION CONFIRMATION
During low-fuel warning lamp check, confirm illumination of low-fuel warning lamp.
OK or NG
OK >> GO TO 6.
NG >> Replace combination meter.
6. CHECK COMBINATION METER CIRCUIT
Check indication of each meter/gauge in self-diagnosis mode.
OK or NG
OK >> Go to DI-16, "Symptom Chart 1" .
NG >> Replace combination meter.
SKIA6170E
Condition of odo/trip meter switch Low-fuel warning lamp
Pushed Does not illuminate.
Released Illuminates.
SKIA4831E

DI-16
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between combination meter harness connector
terminals and ground.
3. Check continuity between unified meter and A/C amp. harness
connector terminals and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Symptom Chart 1 AKS005MT
Symptom Chart 2AKS005MU

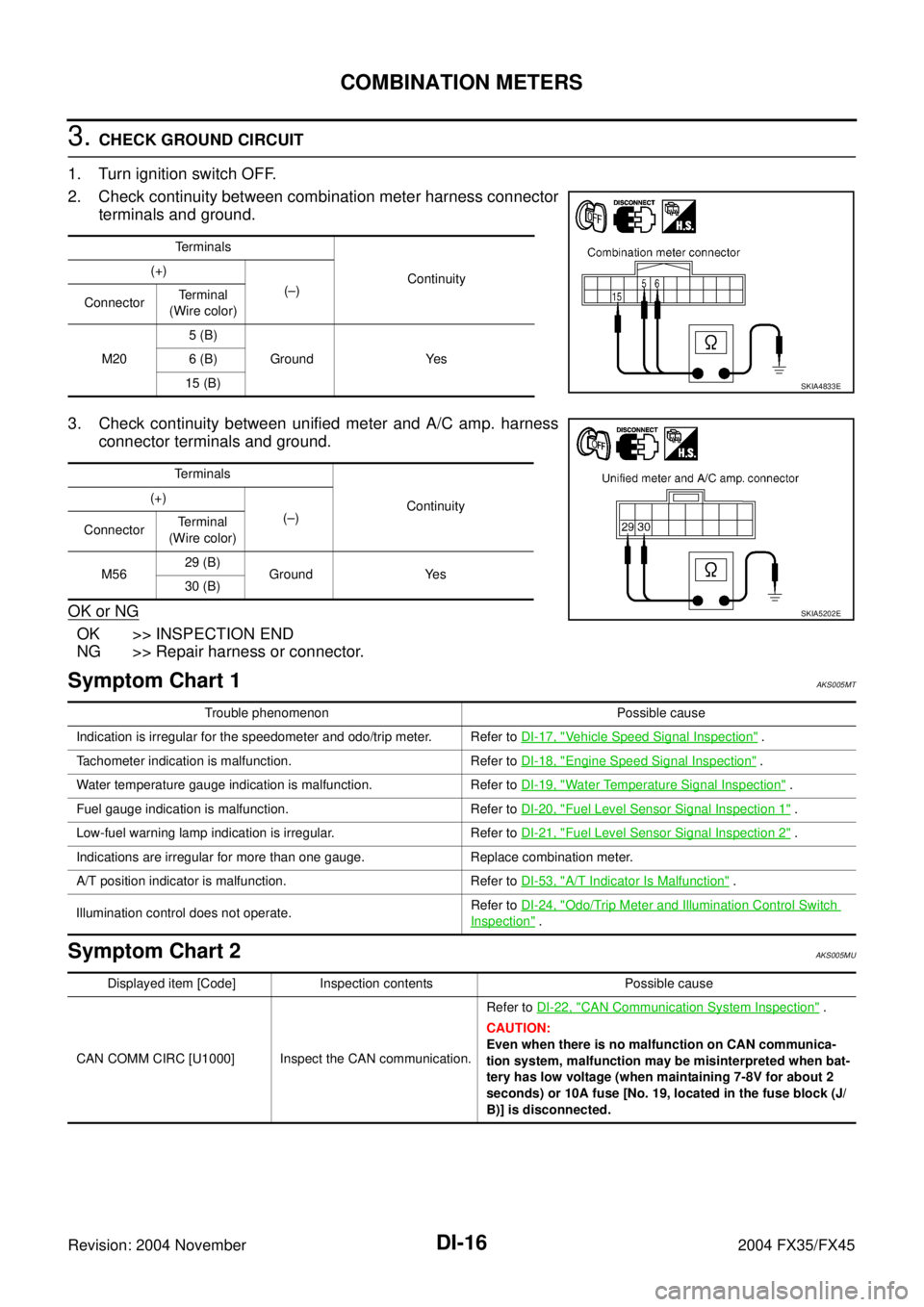

Terminals
Continuity (+)
(–)
ConnectorTerminal
(Wire color)
M205 (B)
Ground Yes 6 (B)
15 (B)
SKIA4833E
Terminals
Continuity (+)
(–)
ConnectorTerminal
(Wire color)
M5629 (B)
Ground Yes
30 (B)
SKIA5202E
Trouble phenomenon Possible cause
Indication is irregular for the speedometer and odo/trip meter. Refer to DI-17, "
Vehicle Speed Signal Inspection" .
Tachometer indication is malfunction. Refer to DI-18, "
Engine Speed Signal Inspection" .
Water temperature gauge indication is malfunction. Refer to DI-19, "
Water Temperature Signal Inspection" .
Fuel gauge indication is malfunction. Refer to DI-20, "
Fuel Level Sensor Signal Inspection 1" .
Low-fuel warning lamp indication is irregular. Refer to DI-21, "
Fuel Level Sensor Signal Inspection 2" .
Indications are irregular for more than one gauge. Replace combination meter.
A/T position indicator is malfunction. Refer to DI-53, "
A/T Indicator Is Malfunction" .
Illumination control does not operate.Refer to DI-24, "
Odo/Trip Meter and Illumination Control Switch
Inspection" .
Displayed item [Code] Inspection contents Possible cause
CAN COMM CIRC [U1000] Inspect the CAN communication.Refer to DI-22, "
CAN Communication System Inspection" .
CAUTION:
Even when there is no malfunction on CAN communica-
tion system, malfunction may be misinterpreted when bat-
tery has low voltage (when maintaining 7-8V for about 2
seconds) or 10A fuse [No. 19, located in the fuse block (J/
B)] is disconnected.

COMBINATION METERS
DI-17
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
Vehicle Speed Signal InspectionAKS005MV
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Preform the ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-25, "
CONSULT-II Func-
tions" .
OK or NG
OK >> GO TO 2.
NG >> Check the applicable parts.

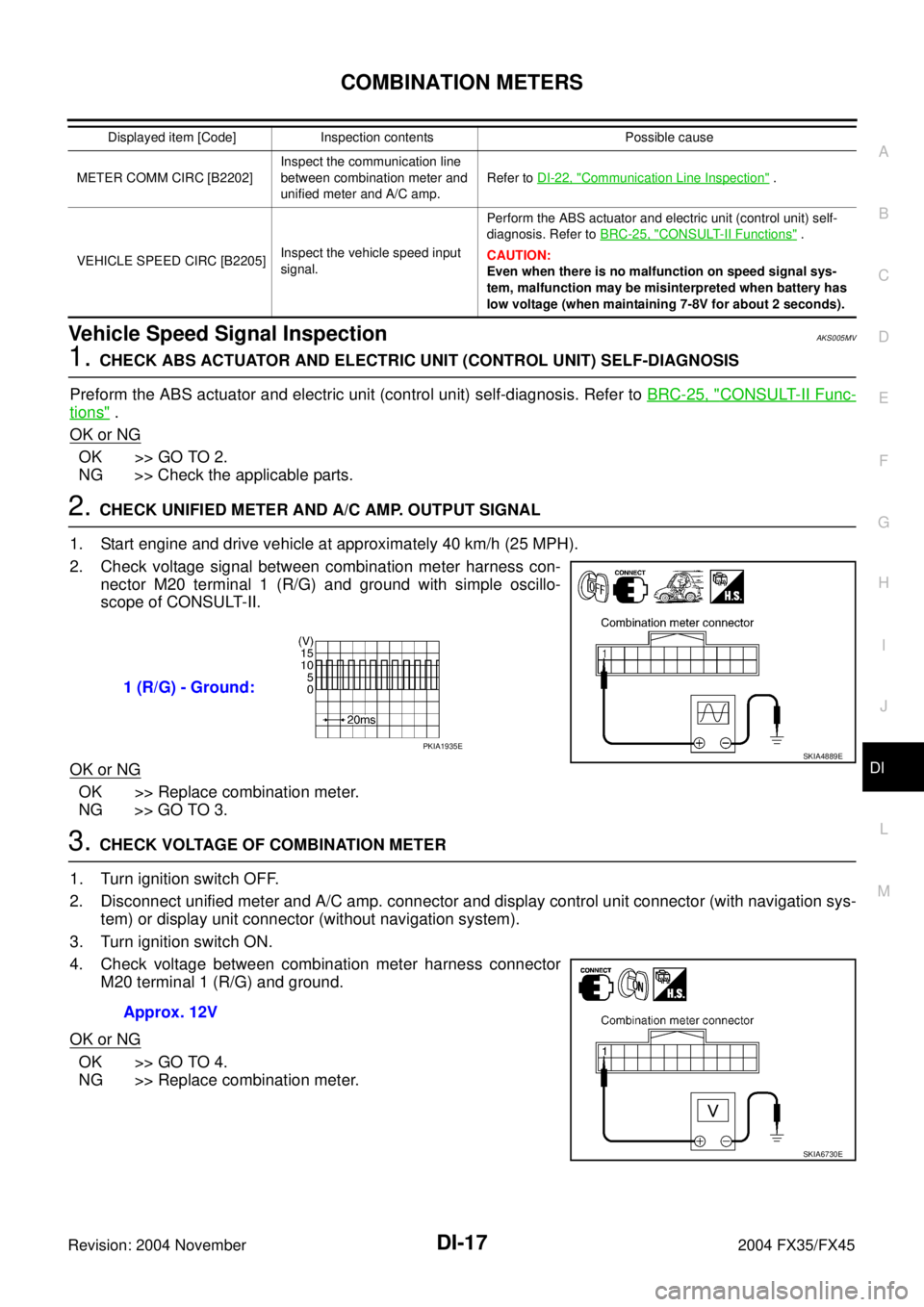

2. CHECK UNIFIED METER AND A/C AMP. OUTPUT SIGNAL
1. Start engine and drive vehicle at approximately 40 km/h (25 MPH).
2. Check voltage signal between combination meter harness con-
nector M20 terminal 1 (R/G) and ground with simple oscillo-
scope of CONSULT-II.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 3.
3. CHECK VOLTAGE OF COMBINATION METER
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector and display control unit connector (with navigation sys-
tem) or display unit connector (without navigation system).
3. Turn ignition switch ON.
4. Check voltage between combination meter harness connector
M20 terminal 1 (R/G) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace combination meter.
METER COMM CIRC [B2202]Inspect the communication line
between combination meter and
unified meter and A/C amp.Refer to DI-22, "Communication Line Inspection" .
VEHICLE SPEED CIRC [B2205]Inspect the vehicle speed input
signal.Perform the ABS actuator and electric unit (control unit) self-
diagnosis. Refer to BRC-25, "
CONSULT-II Functions" .
CAUTION:
Even when there is no malfunction on speed signal sys-
tem, malfunction may be misinterpreted when battery has
low voltage (when maintaining 7-8V for about 2 seconds). Displayed item [Code] Inspection contents Possible cause
1 (R/G) - Ground:
SKIA4889EPKIA1935E
Approx. 12V
SKIA6730E

DI-18
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45
4. CHECK CONTINUITY BETWEEN COMBINATION METER AND UNIFIED METER AND A/C AMP.
1. Disconnect combination meter connector.

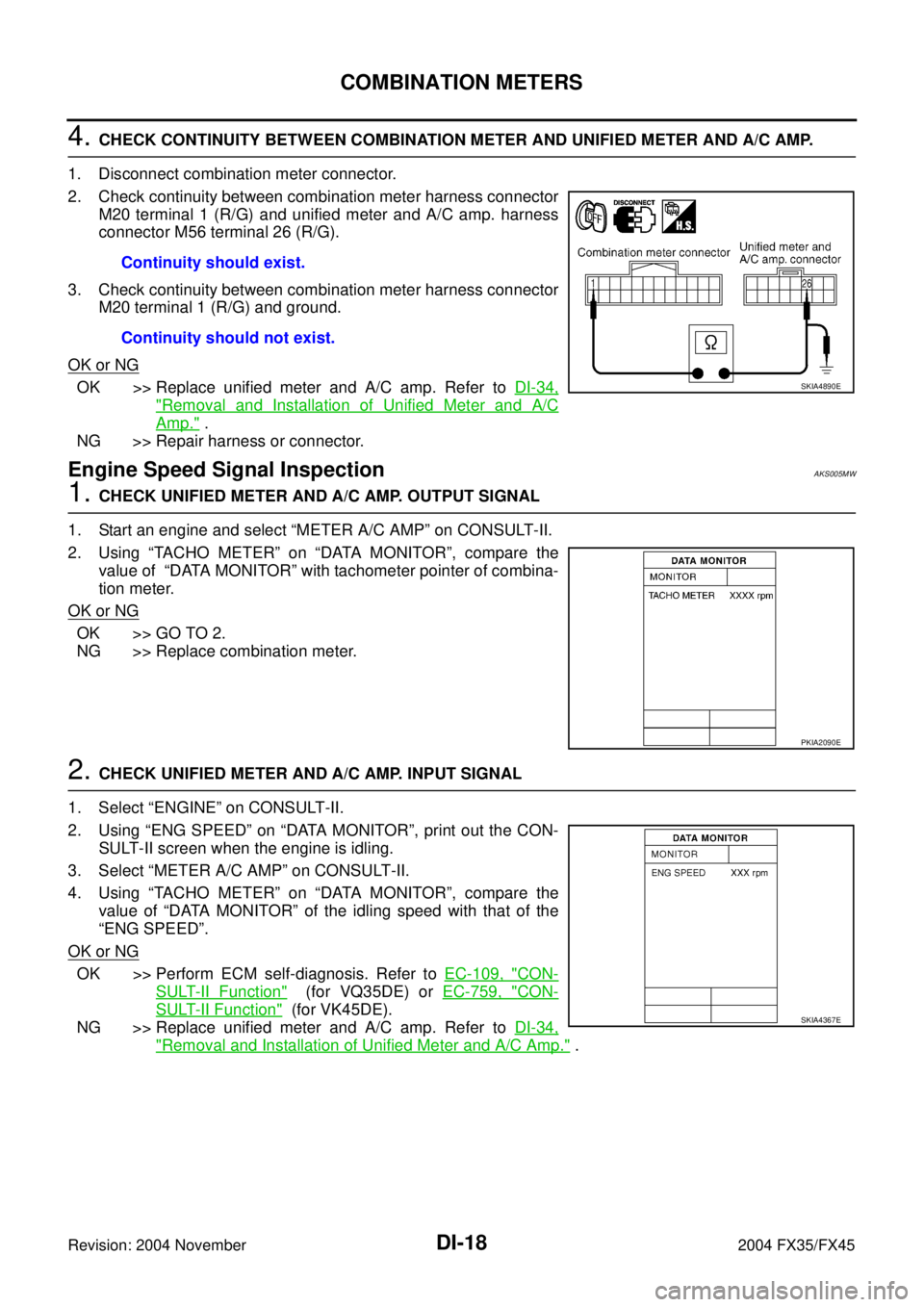

2. Check continuity between combination meter harness connector
M20 terminal 1 (R/G) and unified meter and A/C amp. harness
connector M56 terminal 26 (R/G).
3. Check continuity between combination meter harness connector
M20 terminal 1 (R/G) and ground.
OK or NG
OK >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C
Amp." .
NG >> Repair harness or connector.
Engine Speed Signal Inspection AKS005MW
1. CHECK UNIFIED METER AND A/C AMP. OUTPUT SIGNAL
1. Start an engine and select “METER A/C AMP” on CONSULT-II.
2. Using “TACHO METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” with tachometer pointer of combina-
tion meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “ENGINE” on CONSULT-II.
2. Using “ENG SPEED” on “DATA MONITOR”, print out the CON-
SULT-II screen when the engine is idling.
3. Select “METER A/C AMP” on CONSULT-II.
4. Using “TACHO METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” of the idling speed with that of the
“ENG SPEED”.
OK or NG
OK >> Perform ECM self-diagnosis. Refer to EC-109, "CON-
SULT-II Function" (for VQ35DE) or EC-759, "CON-
SULT-II Function" (for VK45DE).
NG >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C Amp." . Continuity should exist.
Continuity should not exist.
SKIA4890E
PKIA2090E
SKIA4367E

COMBINATION METERS
DI-19
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
Water Temperature Signal InspectionAKS005MX
1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Start engine and select “METER A/C AMP” on CONSULT-II.
2. Using “W TEMP METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” with water temperature gauge
pointer of combination meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “ENGINE” on CONSULT-II.
2. Using “COOLAN TEMP/S” on “DATA MONITOR”, print out the
CONSULT-II screen.
3. Select “METER A/C AMP” on CONSULT-II.
4. Using “W TEMP METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” with that of the “COOLAN TEMP/S”.
OK or NG
OK >> Perform ECM self-diagnosis. Refer to EC-109, "CON-
SULT-II Function" (for VQ35DE) or EC-759, "CON-
SULT-II Function" (for VK45DE).
NG >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C
Amp." .

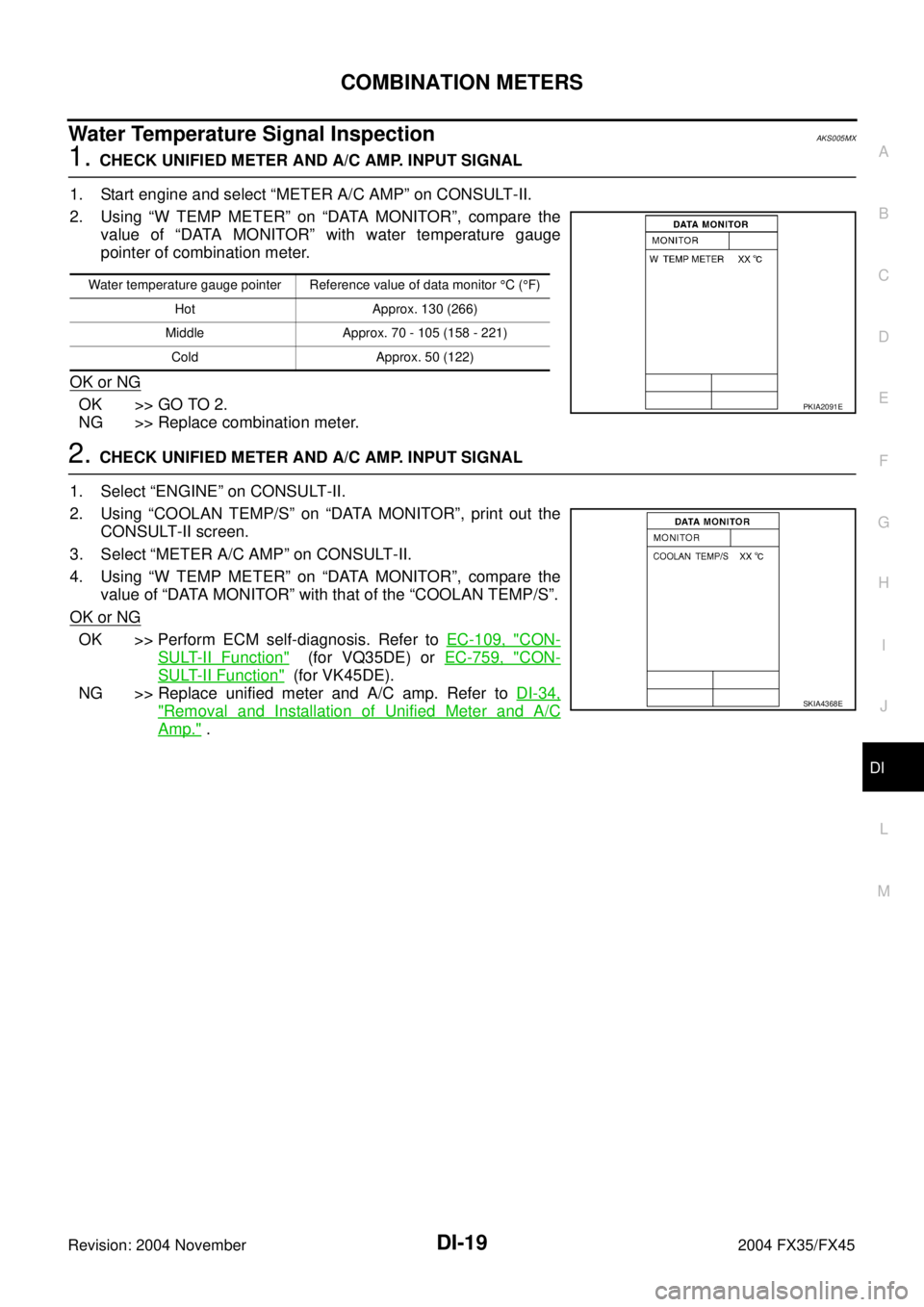

Water temperature gauge pointer Reference value of data monitor °C (°F)
Hot Approx. 130 (266)
Middle Approx. 70 - 105 (158 - 221)
Cold Approx. 50 (122)
PKIA2091E
SKIA4368E

DI-22
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45
CAN Communication System InspectionAKS005N0
1. CHECK CAN COMMUNICATION
1. Select “SELF-DIAG RESULTS” mode for “METER A/C AMP” with CONSULT-II.
2. Print out CONSULT-II screen.
>> Go to “CAN system”. Refer to LAN-4, "
Precautions When Using CONSULT-II" .
Communication Line InspectionAKS005N1
1. CHECK CONNECTOR
Check combination meter, unified meter and A/C amp. and terminals (combination meter-side, unified meter
and A/C amp. side, and harness side) for looseness or bent terminals.
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK METER/GAUGES VISUALLY
Does the pointer on the meter/gauge fluctuate at the engine start?
Is the fluctuation acceptable?
YES >> GO TO 3.
NO >> GO TO 6.
3. CHECK CONTINUITY COMMUNICATION CIRCUIT (TX: COMBINATION METER)
1. Turn ignition switch OFF.
2. Disconnect the combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector
M20 terminal 13 (L/B) and unified meter and A/C amp. harness
connector M55 terminal 19 (L/B).
4. Check continuity between combination meter harness connector
M20 terminal 13 (L/B) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK VOLTAGE OF UNIFIED METER AND A/C AMP.
1. Connect unified meter and A/C amp. connector.
2. Turn ignition switch ON.
3. Check voltage between combination meter harness connector
M20 terminal 13 (L/B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C
Amp." . Continuity should exist.
Continuity should not exist.
SKIA4837E
Approx. 5V
SKIA4886E

DI-28
UNIFIED METER AND A/C AMP
Revision: 2004 November 2004 FX35/FX45
UNIFIED METER AND A/C AMPPFP:27760
System DescriptionAKS005N8

For the unified meter and A/C amp., the signal required for controlling the combination meter are inte-
grated in the A/C auto amp.

Unified meter and A/C amp. controls each operation for A/C auto amp. For information regarding A/C con-
trol, refer to AT C - 3 0 , "
AIR CONDITIONER CONTROL" in ATC section.

Unified meter and A/C amp. inputs necessary information for combination meter from each unit by CAN
communication and so on.

And unified meter and A/C amp. outputs these signals using communication line (TX, RX) between unified
meter and A/C amp. and combination meter.

The signals required for the distance to empty (DTE) display are centralized in the unified meter and A/C
amp., converted into data, and sent to the display unit (without NAVI) display control unit (with NAVI) using
CAN communication.

Other input signals are also sent to the ECM, TCM, AWD control unit, BCM, display unit (without NAVI)
and display control unit (with NAVI) using CAN communication.

The unified meter and A/C amp. have a CONSULT-II function (self-diagnostic results, CAN diagnostic
support monitor, data monitor).
INPUT/OUTPUT SIGNALS
Between Unified Meter & A/C amp. and Combination Meter
Unit Input Output
Unified meter and A/C amp.

Seat belt buckle switch signal (Driver's side)

Parking brake signal

Illumination control nighttime required signal

Refuel status signal

Low-fuel warning lamp condition signal

Combination meter receive error signal

Delivery destination data signal

Combination meter specifications signal

Vehicle speed signal (8-pulse)

Engine speed signal

Engine coolant temperature signal

Fuel level sensor signal (resistance value)

Malfunction indicator lamp signal

ABS warning lamp signal

Low tire pressure warning lamp signal

Brake warning lamp signal

A/T CHECK warning lamp signal

ICC warning lamp signal

Oil pressure switch signal

Door switch signal

AWD warning lamp signal

VDC OFF indicator lamp signal

SLIP indicator lamp signal

ASCD CRUISE indicator lamp signal

ASCD SET indicator lamp signal

High beam request signal

Turn indicator signal

Snow mode switch signal

ICC system display signal

A/T position indicator signal

Manual mode indicator signal

Manual mode gear position signal

CAN communication condition signal of A/T

Position lights request signal

Buzzer output signal
