BRC-60
[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Revision: 2004 November 2004 FX35/FX45

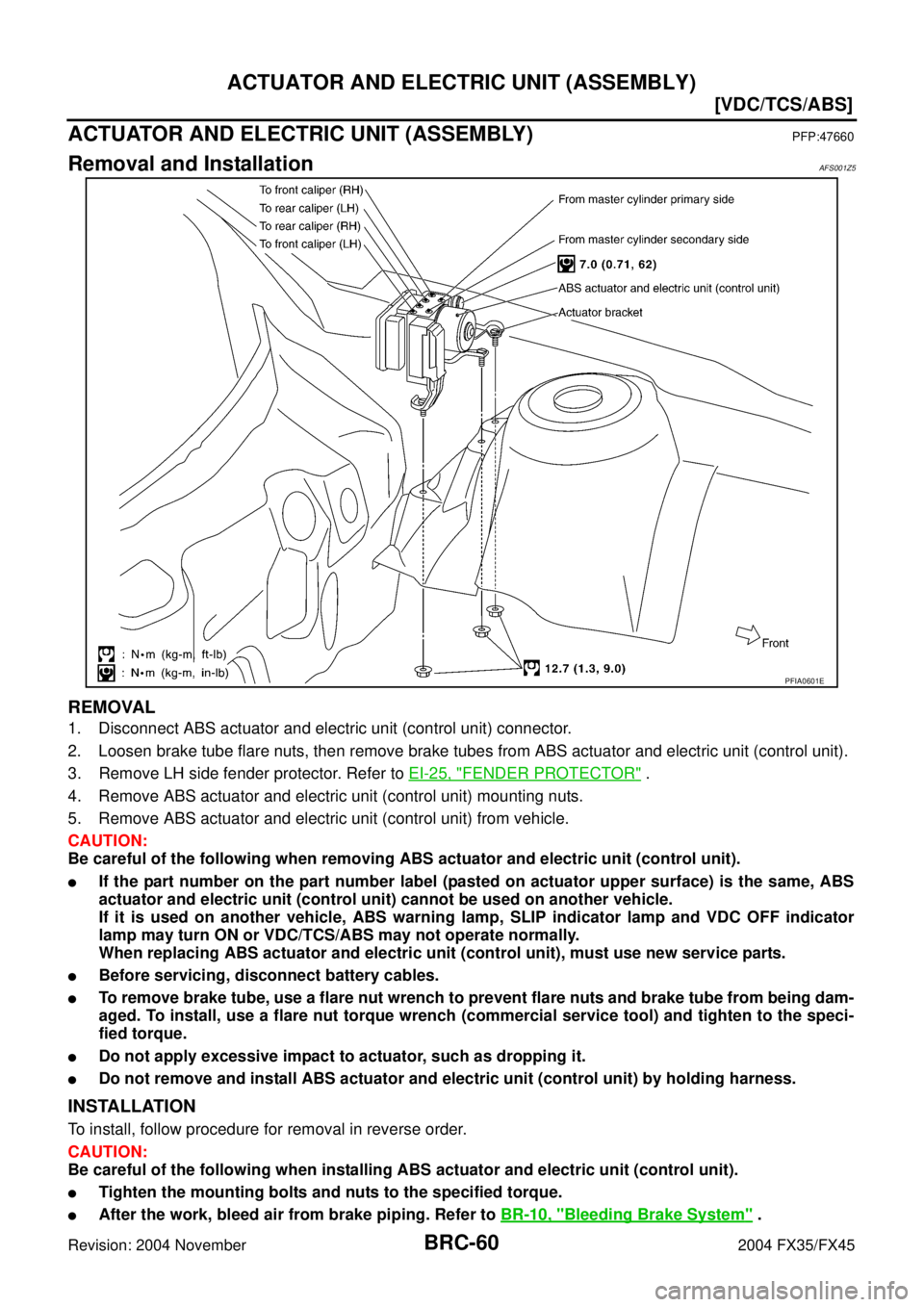

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)PFP:47660
Removal and InstallationAFS001Z5
REMOVAL
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Loosen brake tube flare nuts, then remove brake tubes from ABS actuator and electric unit (control unit).
3. Remove LH side fender protector. Refer to EI-25, "
FENDER PROTECTOR" .
4. Remove ABS actuator and electric unit (control unit) mounting nuts.
5. Remove ABS actuator and electric unit (control unit) from vehicle.
CAUTION:
Be careful of the following when removing ABS actuator and electric unit (control unit).

If the part number on the part number label (pasted on actuator upper surface) is the same, ABS
actuator and electric unit (control unit) cannot be used on another vehicle.
If it is used on another vehicle, ABS warning lamp, SLIP indicator lamp and VDC OFF indicator
lamp may turn ON or VDC/TCS/ABS may not operate normally.
When replacing ABS actuator and electric unit (control unit), must use new service parts.

Before servicing, disconnect battery cables.

To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-
aged. To install, use a flare nut torque wrench (commercial service tool) and tighten to the speci-
fied torque.

Do not apply excessive impact to actuator, such as dropping it.

Do not remove and install ABS actuator and electric unit (control unit) by holding harness.
INSTALLATION
To install, follow procedure for removal in reverse order.
CAUTION:
Be careful of the following when installing ABS actuator and electric unit (control unit).

Tighten the mounting bolts and nuts to the specified torque.

After the work, bleed air from brake piping. Refer to BR-10, "Bleeding Brake System" .
PFIA0601E

EC-1
ENGINE CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EC
A
EC
Revision: 2004 November 2004 FX35/FX45
ENGINE CONTROL SYSTEM
VQ35DE
INDEX FOR DTC ...................................................... 15
Alphabetical Index .................................................. 15
DTC No. Index ....................................................... 19
PRECAUTIONS ........................................................ 23
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................ 23
On Board Diagnostic (OBD) System of Engine and
A/T .......................................................................... 23
Precaution .............................................................. 23
Wiring Diagrams and Trouble Diagnosis ................ 26
PREPARATION ......................................................... 27
Special Service Tools ............................................. 27
Commercial Service Tools ...................................... 28
ENGINE CONTROL SYSTEM .................................. 29
System Diagram ..................................................... 29
Vacuum Hose Drawing ........................................... 30
System Chart ......................................................... 31
Multiport Fuel Injection (MFI) System .................... 32
Electronic Ignition (EI) System ............................... 34
Air Conditioning Cut Control ................................... 35
Fuel Cut Control (at No Load and High Engine
Speed) .................................................................... 35
CAN communication .............................................. 36
BASIC SERVICE PROCEDURE .............................. 37
Idle Speed and Ignition Timing Check .................... 37
Idle Speed/Ignition Timing/Idle Mixture Ratio
Adjustment ............................................................. 38
Accelerator Pedal Released Position Learning ...... 49
Throttle Valve Closed Position Learning ................ 49
Idle Air Volume Learning ........................................ 49
Fuel Pressure Check .............................................. 51
ON BOARD DIAGNOSTIC (OBD) SYSTEM ............ 53
Introduction ............................................................ 53
Two Trip Detection Logic ........................................ 53
Emission-Related Diagnostic Information .............. 54
IVIS (Infiniti Vehicle Immobilizer System — NATS) ... 68
Malfunction Indicator Lamp (MIL) ........................... 68
OBD System Operation Chart ................................ 72TROUBLE DIAGNOSIS ............................................ 77
Trouble Diagnosis Introduction ............................... 77
DTC Inspection Priority Chart ................................. 80
Fail-Safe Chart ....................................................... 82
Basic Inspection ..................................................... 83
Symptom Matrix Chart ............................................ 88
Engine Control Component Parts Location ............ 92
Circuit Diagram ....................................................... 98
ECM Harness Connector Terminal Layout ...........100
ECM Terminals and Reference Value ...................100
CONSULT-II Function ...........................................109
Generic Scan Tool (GST) Function .......................122
CONSULT-II Reference Value in Data Monitor .....125
Major Sensor Reference Graph in Data Monitor
Mode .....................................................................129
TROUBLE DIAGNOSIS - SPECIFICATION VALUE .131
Description ............................................................131
Testing Condition ..................................................131
Inspection Procedure ............................................131
Diagnostic Procedure ...........................................132
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT .......................................................................135
Description ............................................................135
Diagnostic Procedure ...........................................135
POWER SUPPLY AND GROUND CIRCUIT ...........136
Wiring Diagram .....................................................136
Diagnostic Procedure ...........................................137
Ground Inspection ................................................141
DTC U1000, U1001 CAN COMMUNICATION LINE .142
Description ............................................................142
On Board Diagnosis Logic ....................................142
DTC Confirmation Procedure ...............................142
Wiring Diagram .....................................................143
Diagnostic Procedure ...........................................144
DTC P0011, P0021 IVT CONTROL ........................145
Description ............................................................145
CONSULT-II Reference Value in Data Monitor Mode
.145
On Board Diagnosis Logic ....................................146

EC-7
C
D
E
F
G
H
I
J
K
L
M
ECA
Revision: 2004 November 2004 FX35/FX45Component Inspection ......................................... 575
Removal and Installation ...................................... 575
DTC P2138 APP SENSOR ..................................... 576
Component Description ........................................ 576
CONSULT-II Reference Value in Data Monitor Mode
. 576
On Board Diagnosis Logic ................................... 576
DTC Confirmation Procedure ............................... 577
Wiring Diagram .................................................... 578
Diagnostic Procedure ........................................... 579
Component Inspection ......................................... 584
Removal and Installation ...................................... 584
IGNITION SIGNAL .................................................. 585
Component Description ........................................ 585
Wiring Diagram .................................................... 586
Diagnostic Procedure ........................................... 591
Component Inspection ......................................... 595
Removal and Installation ...................................... 596
INJECTOR CIRCUIT ............................................... 597
Component Description ........................................ 597
CONSULT-II Reference Value in Data Monitor Mode
. 597
Wiring Diagram .................................................... 598
Diagnostic Procedure ........................................... 599
Component Inspection ......................................... 602
Removal and Installation ...................................... 602
FUEL PUMP CIRCUIT ............................................ 603
Description ........................................................... 603
CONSULT-II Reference Value in Data Monitor Mode
. 603
Wiring Diagram .................................................... 604
Diagnostic Procedure ........................................... 605
Component Inspection ......................................... 608
Removal and Installation ...................................... 608
REFRIGERANT PRESSURE SENSOR ................. 609
Component Description ........................................ 609
Wiring Diagram .................................................... 610
Diagnostic Procedure ............................................ 611
Removal and Installation ...................................... 613
ELECTRICAL LOAD SIGNAL ................................ 614
Description ........................................................... 614
CONSULT-II Reference Value in Data Monitor Mode
. 614
Diagnostic Procedure ........................................... 614
ICC BRAKE SWITCH ............................................. 615
Component Description ........................................ 615
CONSULT-II Reference Value in Data Monitor Mode
. 615
Wiring Diagram .................................................... 616
Diagnostic Procedure ........................................... 617
Component Inspection ......................................... 622
ASCD BRAKE SWITCH ......................................... 624
Component Description ........................................ 624
CONSULT-II Reference Value in Data Monitor Mode
. 624
Wiring Diagram .................................................... 625
Diagnostic Procedure ........................................... 626
Component Inspection ......................................... 631ASCD INDICATOR ..................................................632
Component Description ........................................632
CONSULT-II Reference Value in Data Monitor Mode
.632
Wiring Diagram .....................................................633
Diagnostic Procedure ...........................................634
SNOW MODE SWITCH ..........................................635
Description ............................................................635
CONSULT-II Reference Value in the Data Monitor
Mode .....................................................................635
Wiring Diagram .....................................................636
Diagnostic Procedure ...........................................637
Component Inspection ..........................................640
MIL AND DATA LINK CONNECTOR ......................641
Wiring Diagram .....................................................641
EVAPORATIVE EMISSION SYSTEM .....................643
Description ............................................................643
Component Inspection ..........................................646
Removal and Installation ......................................647
How to Detect Fuel Vapor Leakage ......................647
ON BOARD REFUELING VAPOR RECOVERY
(ORVR) ....................................................................650
System Description ...............................................650
Diagnostic Procedure ...........................................651
Component Inspection ..........................................653
POSITIVE CRANKCASE VENTILATION ...............655
Description ............................................................655
Component Inspection ..........................................655
AUTOMATIC SPEED CONTROL DEVICE (ASCD) .657
System Description ...............................................657
Component Description ........................................659
SERVICE DATA AND SPECIFICATIONS (SDS) ....660
Fuel Pressure .......................................................660
Idle Speed and Ignition Timing .............................660
Calculated Load Value ..........................................660
Mass Air Flow Sensor ...........................................660
Intake Air Temperature Sensor .............................660
Engine Coolant Temperature Sensor ...................660
Heated Oxygen Sensor 1 Heater .........................660
Heated Oxygen sensor 2 Heater ..........................660
Crankshaft Position Sensor (POS) .......................660
Camshaft Position Sensor (PHASE) ....................660
Throttle Control Motor ...........................................660
Injector ..................................................................661
Fuel Pump ............................................................661
VK45DE
INDEX FOR DTC .....................................................662
Alphabetical Index ................................................662
DTC No. Index ......................................................665
PRECAUTIONS ......................................................670
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ...............................................................670
On Board Diagnostic (OBD) System of Engine and
A/T ........................................................................670
Precaution ............................................................670
Wiring Diagrams and Trouble Diagnosis ..............673

EC-8Revision: 2004 November 2004 FX35/FX45 PREPARATION .......................................................674
Special Service Tools ...........................................674
Commercial Service Tools ....................................675
ENGINE CONTROL SYSTEM ................................676
System Diagram ...................................................676
Vacuum Hose Drawing .........................................677
System Chart ........................................................678
Multiport Fuel Injection (MFI) System ...................679
Electronic Ignition (EI) System .............................681
Nissan Torque Demand (NTD) Control System ....682
Air Conditioning Cut Control .................................683
Fuel Cut Control (at No Load and High Engine
Speed) ..................................................................683
CAN communication .............................................684
BASIC SERVICE PROCEDURE .............................685
Idle Speed and Ignition Timing Check ..................685
Idle Speed/Ignition Timing/Idle Mixture Ratio
Adjustment ............................................................687
Accelerator Pedal Released Position Learning ....698
Throttle Valve Closed Position Learning ...............698
Idle Air Volume Learning ......................................698
Fuel Pressure Check ............................................700
ON BOARD DIAGNOSTIC (OBD) SYSTEM ..........703
Introduction ...........................................................703
Two Trip Detection Logic ......................................703
Emission-related Diagnostic Information ..............704
IVIS (Infiniti Vehicle Immobilizer System — NATS) .717
Malfunction Indicator Lamp (MIL) .........................717
OBD System Operation Chart ..............................721
TROUBLE DIAGNOSIS ..........................................726
Trouble Diagnosis Introduction .............................726
DTC Inspection Priority Chart ...............................729
Fail-safe Chart ......................................................731
Basic Inspection ...................................................733
Symptom Matrix Chart ..........................................738
Engine Control Component Parts Location ..........742
Circuit Diagram .....................................................748
ECM Harness Connector Terminal Layout ...........750
ECM Terminals and Reference Value ...................750
CONSULT-II Function ...........................................759
Generic Scan Tool (GST) Function .......................772
CONSULT-II Reference Value in Data Monitor .....775
Major Sensor Reference Graph in Data Monitor
Mode .....................................................................778
TROUBLE DIAGNOSIS - SPECIFICATION VALUE .780
Description ............................................................780
Testing Condition ..................................................780
Inspection Procedure ............................................780
Diagnostic Procedure ...........................................781
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT .......................................................................784
Description ............................................................784
Diagnostic Procedure ...........................................784
POWER SUPPLY AND GROUND CIRCUIT ...........785
Wiring Diagram .....................................................785
Diagnostic Procedure ...........................................786
Ground Inspection ................................................791
DTC U1000, U1001 CAN COMMUNICATION LINE .792
Description ............................................................792On Board Diagnosis Logic ....................................792
DTC Confirmation Procedure ................................792
Wiring Diagram .....................................................793
Diagnostic Procedure ............................................794
DTC P0011, P0021 IVT CONTROL .........................795
Description ............................................................795
CONSULT-II Reference Value in Data Monitor Mode
.796
On Board Diagnosis Logic ....................................796
DTC Confirmation Procedure ................................797
Wiring Diagram .....................................................798
Diagnostic Procedure ............................................801
Component Inspection ..........................................805
Removal and Installation .......................................805
DTC P0031, P0032, P0051, P0052 HO2S1 HEATER .806
Description ............................................................806
CONSULT-II Reference Value in Data Monitor Mode
.806
On Board Diagnosis Logic ....................................806
DTC Confirmation Procedure ................................807
Wiring Diagram .....................................................808
Diagnostic Procedure ............................................811
Component Inspection ..........................................813
Removal and Installation .......................................813
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER .814
Description ............................................................814
CONSULT-II Reference Value in Data Monitor Mode
.814
On Board Diagnosis Logic ....................................814
DTC Confirmation Procedure ................................815
Wiring Diagram .....................................................816
Diagnostic Procedure ............................................819
Component Inspection ..........................................821
Removal and Installation .......................................821
DTC P0101 MAF SENSOR .....................................822
Component Description ........................................822
CONSULT-II Reference Value in Data Monitor Mode
.822
On Board Diagnosis Logic ....................................822
DTC Confirmation Procedure ................................823
Overall Function Check .........................................824
Wiring Diagram .....................................................825
Diagnostic Procedure ............................................826
Component Inspection ..........................................829
Removal and Installation .......................................829
DTC P0102, P0103 MAF SENSOR .........................830
Component Description ........................................830
CONSULT-II Reference Value in Data Monitor Mode
.830
On Board Diagnosis Logic ....................................830
DTC Confirmation Procedure ................................831
Wiring Diagram .....................................................832
Diagnostic Procedure ............................................833
Component Inspection ..........................................836
Removal and Installation .......................................836
DTC P0112, P0113 IAT SENSOR ............................837
Component Description ........................................837
On Board Diagnosis Logic ....................................837
DTC Confirmation Procedure ................................837

EC-14Revision: 2004 November 2004 FX35/FX45CONSULT-II Reference Value in Data Monitor Mode
1255
Wiring Diagram ....................................................1256
Diagnostic Procedure ..........................................1257
Component Inspection .........................................1260
Removal and Installation .....................................1261
IGNITION SIGNAL .................................................1262
Component Description .......................................1262
Wiring Diagram ....................................................1263
Diagnostic Procedure ..........................................1268
Component Inspection .........................................1272
Removal and Installation .....................................1273
INJECTOR CIRCUIT ..............................................1274
Component Description .......................................1274
CONSULT-II Reference Value in Data Monitor Mode
1274
Wiring Diagram ....................................................1275
Diagnostic Procedure ..........................................1276
Component Inspection .........................................1279
Removal and Installation .....................................1279
FUEL PUMP CIRCUIT ...........................................1280
Description ...........................................................1280
CONSULT-II Reference Value in Data Monitor Mode
1280
Wiring Diagram ....................................................1281
Diagnostic Procedure ..........................................1282
Component Inspection .........................................1285
Removal and Installation .....................................1286
REFRIGERANT PRESSURE SENSOR .................1287
Component Description .......................................1287
Wiring Diagram ....................................................1288
Diagnostic Procedure ..........................................1289
Removal and Installation .....................................1291
ELECTRICAL LOAD SIGNAL ...............................1292
Description ...........................................................1292
CONSULT-II Reference Value in Data Monitor Mode
1292
Diagnostic Procedure ..........................................1292
ICC BRAKE SWITCH .............................................1293
Component Description .......................................1293
CONSULT-II Reference Value in Data Monitor Mode
1293
Wiring Diagram ....................................................1294
Diagnostic Procedure ..........................................1295
Component Inspection .........................................1301
ASCD BRAKE SWITCH .........................................1302
Component Description .......................................1302
CONSULT-II Reference Value in Data Monitor Mode
1302Wiring Diagram ....................................................1303
Diagnostic Procedure ...........................................1304
Component Inspection .........................................1308
ASCD INDICATOR .................................................1309
Component Description .......................................1309
CONSULT-II Reference Value in Data Monitor Mode
1309
Wiring Diagram ....................................................1310
Diagnostic Procedure ...........................................1311
SNOW MODE SWITCH ..........................................1312
Description ...........................................................1312
CONSULT-II Reference Value in the Data Monitor
Mode ....................................................................1312
Wiring Diagram ....................................................1313
Diagnostic Procedure ...........................................1314
Component Inspection .........................................1317
MIL AND DATA LINK CONNECTOR .....................1318
Wiring Diagram ....................................................1318
EVAPORATIVE EMISSION SYSTEM ....................1320
Description ...........................................................1320
Component Inspection .........................................1323
Removal and Installation ......................................1324
How to Detect Fuel Vapor Leakage .....................1324
ON BOARD REFUELING VAPOR RECOVERY
(ORVR) ...................................................................1327
System Description ..............................................1327
Diagnostic Procedure ...........................................1328
Component Inspection .........................................1330
POSITIVE CRANKCASE VENTILATION ...............1332
Description ...........................................................1332
Component Inspection .........................................1332
AUTOMATIC SPEED CONTROL DEVICE (ASCD) 1334
System Description ..............................................1334
Component Description .......................................1335
SERVICE DATA AND SPECIFICATIONS (SDS) ...1336
Fuel Pressure .......................................................1336
Idle Speed and Ignition Timing .............................1336
Calculated Load Value .........................................1336
Mass Air Flow Sensor ..........................................1336
Intake Air Temperature Sensor ............................1336
Engine Coolant Temperature Sensor ...................1336
Heated Oxygen Sensor 1 Heater .........................1336
Heated Oxygen Sensor 2 Heater .........................1336
Crankshaft Position Sensor (POS) ......................1336
Camshaft Position Sensor (PHASE) ....................1336
Throttle Control Motor ..........................................1336
Injector .................................................................1337
Fuel Pump ............................................................1337

PRECAUTIONS
EC-23
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
ABS00A2R
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
On Board Diagnostic (OBD) System of Engine and A/TABS006JZ
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:

Be sure to turn the ignition switch OFF and disconnect the negative battery cable before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves,
etc. will cause the MIL to light up.

Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-74, "
HAR-
NESS CONNECTOR" .

Be sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MIL to light up due to the short circuit.

Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to the malfunction of the EVAP system or fuel injection system,
etc.

Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission control module) before returning the vehicle to the customer.
PrecautionABS006K0

Always use a 12 volt battery as power source.

Do not attempt to disconnect battery cables while engine is
running.

Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative
battery cable. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned OFF.

Before removing parts, turn ignition switch OFF and then
disconnect negative battery cable.
SEF289H

EC-40
[VQ35DE]
BASIC SERVICE PROCEDURE
Revision: 2004 November 2004 FX35/FX45
INSPECTION PROCEDURE
1. INSPECTION START
1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for
scheduled maintenance.
2. Open engine hood and check the following:
–Harness connectors for improper connections
–Wiring harness for improper connections, pinches and cut
–Vacuum hoses for splits, kinks and improper connections
–Hoses and ducts for leaks
–Air cleaner clogging
–Gasket
3. Confirm that electrical or mechanical loads are not applied.
–Headlamp switch is OFF.
–Air conditioner switch is OFF.
–Rear window defogger switch is OFF.
–Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no-
load.
6. Make sure that no DTC is displayed with CONSULT-II or GST.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding Diagnostic Procedure.
>> GO TO 3.
SEF983U
SEF976U
SEF977U

BASIC SERVICE PROCEDURE
EC-47
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
27. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-49, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 28.
Yes (Without CONSULT-II)>>GO TO 29.
No >> 1. Follow the instruction of Idle Air Volume Learning.
2. GO TO 4.
28. CHECK CO%
With CONSULT-II
1. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Select “ENG COOLANT TEMP” in “ACTIVE TEST” mode.
4. Set “ENG COOLANT TEMP” to 5°C (41°F) by touching “DWN”
and “Qd”.
5. Start engine and rev it (2,000 to 3,000 rpm) two or three times
under no-load, then run engine at idle speed.
6. Check CO%.
OK or NG
OK >> GO TO 31.
NG >> GO TO 30.
29. CHECK CO%
Without CONSULT-II
1. Start engine and warm it up until engine coolant temperature indicator points to the middle of gauge.
2. Turn ignition switch OFF.
3. Disconnect engine coolant temperature sensor harness connector.
4. Connect a resistor (4.4 kΩ) between terminals of engine coolant
temperature sensor harness connector.
5. Start engine and rev it (2,000 to 3,000 rpm) two or three times
under no-load, then run engine at idle speed.
6. Check CO%.
7. After checking CO%, turn ignition switch OFF, disconnect the
resistor from the terminals of engine coolant temperature sensor
harness connector, and then connect engine coolant tempera-
ture sensor harness connector to engine coolant temperature
sensor.
OK or NG
OK >> GO TO 31.
NG >> GO TO 30.
30. RECONNECT HEATED OXYGEN SENSOR 1 HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Reconnect heated oxygen sensor 1 harness connector.
>> GO TO 34. Idle CO: 0.7 − 9.9% and engine runs smoothly.
SEF172Y
Idle CO: 0.7 − 9.9% and engine runs smoothly.
SEF982UA
