2004 INFINITI FX35 check engine

BL-206
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2004 November 2004 FX35/FX45
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:28591

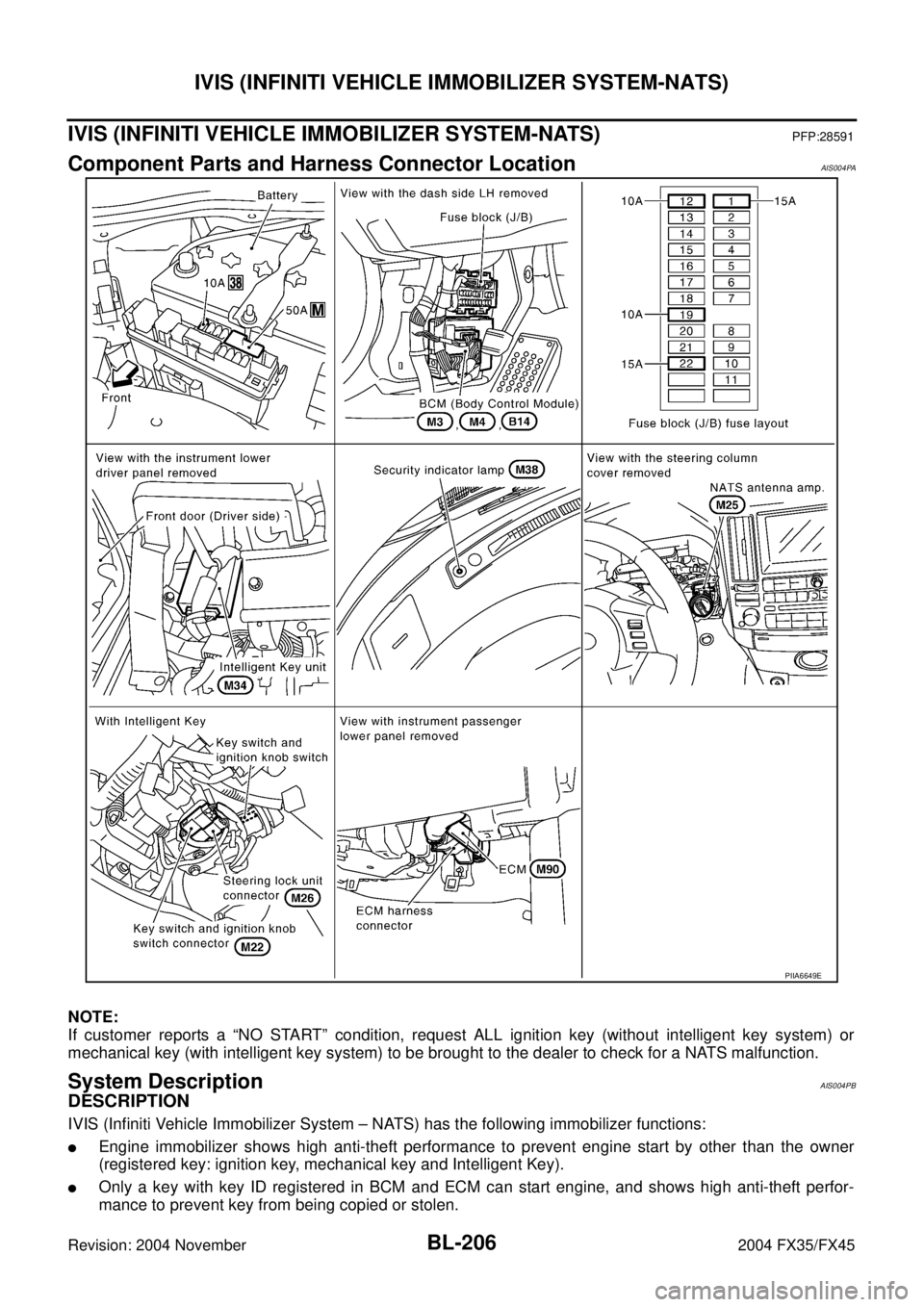

Component Parts and Harness Connector LocationAIS004PA
NOTE:
If customer reports a “NO START” condition, request ALL ignition key (without intelligent key system) or
mechanical key (with intelligent key system) to be brought to the dealer to check for a NATS malfunction.
System DescriptionAIS004PB
DESCRIPTION
IVIS (Infiniti Vehicle Immobilizer System – NATS) has the following immobilizer functions:

Engine immobilizer shows high anti-theft performance to prevent engine start by other than the owner
(registered key: ignition key, mechanical key and Intelligent Key).

Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft perfor-
mance to prevent key from being copied or stolen.
PIIA6649E

BL-216
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2004 November 2004 FX35/FX45
NATS SELF-DIAGNOSTIC RESULT ITEM CHART
Detected items (Screen terms)P No.Code
(Self-diagnostic
result of
“ENGINE”)Description Diagnostic procedure
ECM INT CIRC-IMMU P1613The malfunction of ECM internal circuit
to BCM communication line is detected.Refer to BL-219, "
Diagnostic
Procedure 1" .
CHAIN OF ECM-IMMU P1612Communication impossible between
ECM and BCM.Refer to BL-220, "
Diagnostic
Procedure 2" .
DIFFERENCE OF KEY P1615BCM can receive the key ID signal but
the result of ID verification between key
ID and BCM is NG.Refer to BL-221, "
Diagnostic
Procedure 3" .
CHAIN OF IMMU-KEY P1614 BCM cannot receive the key ID signal.Refer to BL-224, "
Diagnostic
Procedure 6" .
ID DISCORD, IMM-ECM P1611The result of ID verification between
BCM and ECM is NG. System initializa-
tion is required.Refer to BL-222, "
Diagnostic
Procedure 4" .
LOCK MODE P1610When the starting operation is carried
out 5 or more times consecutively under
the following conditions, IVIS(NATS) will
shift the mode to prevent the engine
start.

unregistered ignition key is used (with-
out intelligent key system)

BCM or ECM malfunctioningRefer to BL-223, "
Diagnostic
Procedure 5" .
DON'T ERASE BEFORE
CHECKING ENG DIAG—Engine trouble data and IVIS (NATS)
trouble data have been detected in ECM.Refer to BL-217, "
WORK
FLOW" .

BL-218
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2004 November 2004 FX35/FX45
Trouble Diagnosis Symptom ChartAIS004PK
*: When IVIS (NATS) detects trouble, the security indicator lights up while electronic key is in the “ON” position.
Security Indicator InspectionAIS004PL
*: CONSULT-II self-diagnostic results display screen “no malfunction is detected”.SYMPTOMDisplayed “SELF-DIAG
RESULTS” on CON-
SULT-II screen.DIAGNOSTIC PROCE-
DURESYSTEM (Malfunctioning part or mode)

Security indicator
lighting up*

Engine hard to startECM INT CIRC-IMMU
[P1613]Refer to BL-219, "
Diag-
nostic Procedure 1" .ECM
CHAIN OF ECM-IMMU
[P1612]Refer to BL-220, "
Diag-
nostic Procedure 2" .Open circuit in battery voltage line to BCM (NATS
IMMU) circuit
Open circuit in ignition line to BCM (NATS IMMU)
circuit
Open circuit in ground line to BCM (NATS IMMU)
circuit
Open or short circuit between BCM (NATS IMMU)
and ECM communication line.
ECM
BCM (NATS IMMU)
DIFFERENCE OF KEY
[P1615]Refer to BL-221, "
Diag-
nostic Procedure 3" .Unregistered key
NATS IMMU
CHAIN OF IMMU-KEY
[P1614]Refer to BL-224, "
Diag-
nostic Procedure 6" .Open or short circuit between BCM (NATS IMMU)
and NATS antenna amp.
Malfunction of key ID chip
BCM (NATS IMMU)
Antenna amp.
ID DISCORD, IMM-ECM
[P1611]Refer to BL-222, "
Diag-
nostic Procedure 4"
System initialization has not yet been completed.
ECM
LOCK MODE
[P1610]Refer to BL-223, "
Diag-
nostic Procedure 5" .LOCK MODE

MIL staying ON

Security indicator
lighting up*DON'T ERASE
BEFORE CHECKING
ENG DIAGRefer to BL-217, "WORK FLOW" .Engine trouble data and IVIS (NATS) trouble data
have been detected in ECM
SYMPTOMSYSTEM
(Malfunctioning part or mode)DIAGNOSTIC PROCEDURE
Security indicator does not operate*Security indicator
Refer to BL-226, "
Diagnostic
Procedure 7" . Open circuit between Fuse and BCM (NATS
IMMU)
Continuation of initialization mode
BCM (NATS IMMU)

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-221
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
4. CHECK GROUND CIRCUIT FOR BCM
1. Turn ignition switch OFF.
2. Check continuity between BCM connector M4 terminals 49 (B), 52 (B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness between BCM and ground.
5. REPLACE BCM
1. Replace BCM.
2. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.
Does the engine start?
YES >> BCM is malfunctioning.

Replace BCM.

Perform initialization with CONSULT-II.

For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.
NO >> ECM is malfunctioning.

Replace ECM.

Perform initialization or re-communicating function.
–For re-communicating function, refer to BL-208, "ECM Re-communicating Function" .
–For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.
Diagnostic Procedure 3AIS004PO
Self-diagnostic results:
“DIFFERENCE OF KEY” is displayed on CONSULT-II screen
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm that SELF-DIAGNOSTIC RESULTS “DIFFERENCE OF
KEY” is displayed on CONSULT-II screen.
Does CONSULT-II screen display as shown in figure?
YES >> GO TO 2.
NO >> GO TO BL-218, "
Trouble Diagnosis Symptom Chart" . 49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA5084E
PIIA1261E

BL-224
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2004 November 2004 FX35/FX45
4. PERFORM INITIALIZATION WITH CONSULT-II AGAIN
1. Replace BCM.
2. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS-
IVIS/NVIS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows the message on the screen.
Can the system be initialized?
YES >> System is OK. BCM is malfunctioning.

Replace BCM.

Perform initialization with CONSULT-II.

For initialization, refer to “CONSULT-II Operation
Manual NATS-IVIS/NVIS”.
NO >> ECM is malfunctioning.

Replace ECM.

Perform initialization or re-communicating function.
–For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.
–For re-communicating function, refer to BL-208, "ECM Re-communicating Function" .
Diagnostic Procedure 6AIS004PR
Self-diagnostic results:
“CHAIN OF IMMU-KEY” is displayed on CONSULT-II screen
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm self-diagnostic results “CHAIN OF IMMU-KEY” is displayed on CONSULT-II screen.
Does CONSULT-II screen display as shown?
YES >> GO TO 2.
NO >> GO TO BL-218, "
Trouble Diagnosis Symptom Chart" .
2. CHECK NATS ANTENNA AMP. INSTALLATION
Check NATS antenna amp. installation. Refer to BL-227, "
Removal and Installation NATS Antenna Amp." .
OK or NG
OK >> GO TO 3.
NG >> Reinstall NATS antenna amp. correctly.
3. CHECK KEY ID CHIP
Start engine with another registered ignition key or mechanical key.
Does the engine start?
YES >> Ignition key or mechanical key ID chip is malfunctioning.

Replace the ignition key or mechanical key.

Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS–IVIS/NVIS”.
NO >> GO TO 4.
SEL297W

BL-226
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2004 November 2004 FX35/FX45
7. CHECK NATS ANTENNA AMP. GROUND LINE CIRCUIT
1. Turn ignition switch “OFF”.
2. Check continuity between NATS antenna amp. connector M25 terminal 3 (B) and ground.
OK or NG
OK >> NATS antenna amp. is malfunctioning.
NG >>

Check harness for open or short between NATS
antenna amp. and ground.
NOTE:
If harness is OK, replace BCM, perform initialization
with CONSULT-II. For initialization, refer to “CON-
SULT-II Operation Manual NATS–IVIS/NVIS”.
Diagnostic Procedure 7AIS004PS
“SECURITY INDICATOR LAMP DOES NOT LIGHT UP”
1. CHECK FUSE
Check 10A fuse [No.19, located in the fuse block (J/B)]
OK or NG
OK >> GO TO 2.
NG >> Replace fuse.
2. CHECK SECURITY INDICATOR LAMP
1. Install 10A fuse [No.19, located in the fuse block (J/B)]
2. Start engine and turn ignition switch OFF.
3. Check the security indicator lamp lights up.
OK or NG
OK >> Inspection END.
NG >> GO TO 3.
3. CHECK SECURITY INDICATOR LAMP POWER SUPPLY CIRCUIT
1. Disconnect security indicator lamp connector.
2. Check voltage between security indicator lamp connector M38
terminal 1 (R/W) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness for open or short between fuse and
security indicator lamp. 3 (B) – Ground : Continuity should exist.
PIIA6148E
Security indicator lamp should light up.
1 (R/W) – Ground : Battery voltage
PIIA6149E

BR-6
BRAKE PEDAL
Revision: 2004 November 2004 FX35/FX45
BRAKE PEDALPFP:46501
Inspection and AdjustmentAFS001MT
PLAY AND CLEARANCE BETWEEN BRAKE PEDAL AND FLOOR PANEL WITH PEDAL
DEPRESSED
1. Check brake pedal height from dash lower panel.
2. Adjust height referring to the following specifications.
SFIA1450E
HBrake pedal free height (from dash lower panel
top surface)161.5 − 171.5 mm (6.36 − 6.75 in)
DBrake pedal depressed height [under a force of
490 N (50 kg, 110 lb) with engine running]More than 80 mm (3.15 in)
CClearance between bracket and the threaded end
of stop lamp switch or ASCD cancel switch (or
brake switch)0.74 − 1.96 mm (0.0291−0.0772 in)
A Pedal play 3 − 11 mm (0.12 − 0.43 in)

BRAKE PEDAL
BR-7
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2004 November 2004 FX35/FX45
ADJUSTMENT
1. Loosen stop lamp switch and ASCD cancel switch (or brake
switch) by turning it counterclockwise by 45°.
2. Loosen lock nut (A) on input rod, then rotate input rod to set
pedal to the specified height, and tighten lock nut (A).
CAUTION:
Make sure the threaded end of input rod stays inside clevis.
3. With pedal pulled and held by hand, press stop lamp switch and
ASCD cancel switch (or brake switch) until its threaded end con-
tacts stopper rubber.
4. With the threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) contacting stopper rubber, rotate switch
clockwise by 45° to secure.
CAUTION:
Make sure that the clearance (C) between stopper rubber
and threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) is within the standard.
5. Check pedal play.
CAUTION:
Make sure that stop lamps go off when pedal is released.
6. Start engine to check brake pedal depressed height.
Removal and InstallationAFS001MU
COMPONENT PARTS LOCATION
Lock nut (A) :
Refer to BR-16, "
Removal and Installation"
SFIA0160E
SFIA1940E
