CAN Communication Circuit CheckAKS00C0Y
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display control unit
–Low tire pressure warning control unit
–ICC unit
–Intelligent Key unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ICC sensor
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.

LAN-128
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display control unit connector
–Low tire pressure warning control unit connector
–ICC unit connector
–Intelligent Key unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display control unit

Harness between data link connector and low tire pressure warning control unit

Harness between data link connector and ICC unit

Harness between data link connector and Intelligent Key unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41 6 (L) - 14 (R) : Continuity should not exist.
SKIA6868E

CAN SYSTEM (TYPE 3)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display control unit

Harness between data link connector and low tire pressure warning control unit

Harness between data link connector and ICC unit

Harness between data link connector and Intelligent Key unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector F44
terminals 3 (L) and 8 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector F44 ter-
minals 3 (L), 8 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102. 6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
SKIA6874E
3 (L) - 8 (R) : Continuity should not exist.
SKIA6866E
3 (L) - Ground : Continuity should not exist.
8 (R) - Ground : Continuity should not exist.
SKIA6875E

LAN-130
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector, ICC sensor connector and harness
connector E205.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> GO TO 7.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E205

Harness between ABS actuator and electric unit (control unit) and ICC sensor
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211

Harness between ABS actuator and electric unit (control unit) and harness connector E205

Harness between ABS actuator and electric unit (control unit) and ICC sensor
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect harness connector B8.
2. Check continuity between harness connector B5 terminals 3 (L)
and 10 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between harness connector B5 and harness
connector B5

Harness between harness connector B5 and harness
connector B8 11 (L) - 15 (R) : Continuity should not exist.
SKIA6872E
11 (L) - Ground : Continuity should not exist.
15 (R) - Ground : Continuity should not exist.
SKIA6876E
3 (L) - 10 (R) : Continuity should not exist.
SKIA6877E

CAN SYSTEM (TYPE 4)
LAN-151
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 10

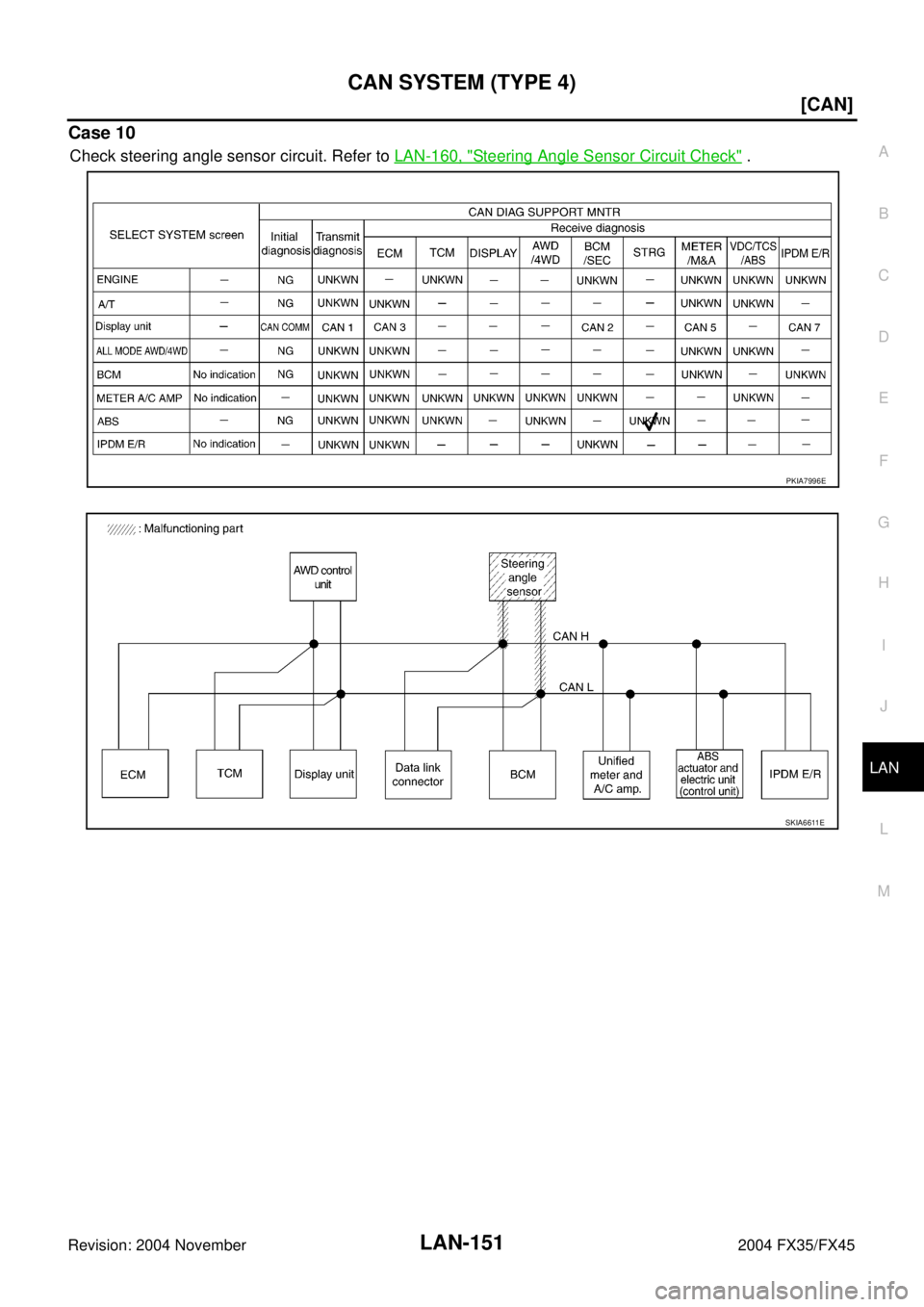

Check steering angle sensor circuit. Refer to LAN-160, "Steering Angle Sensor Circuit Check" .
