2004 INFINITI FX35 sensor

AT-122
DTC P0725 ENGINE SPEED SIGNAL
Revision: 2004 November 2004 FX35/FX45

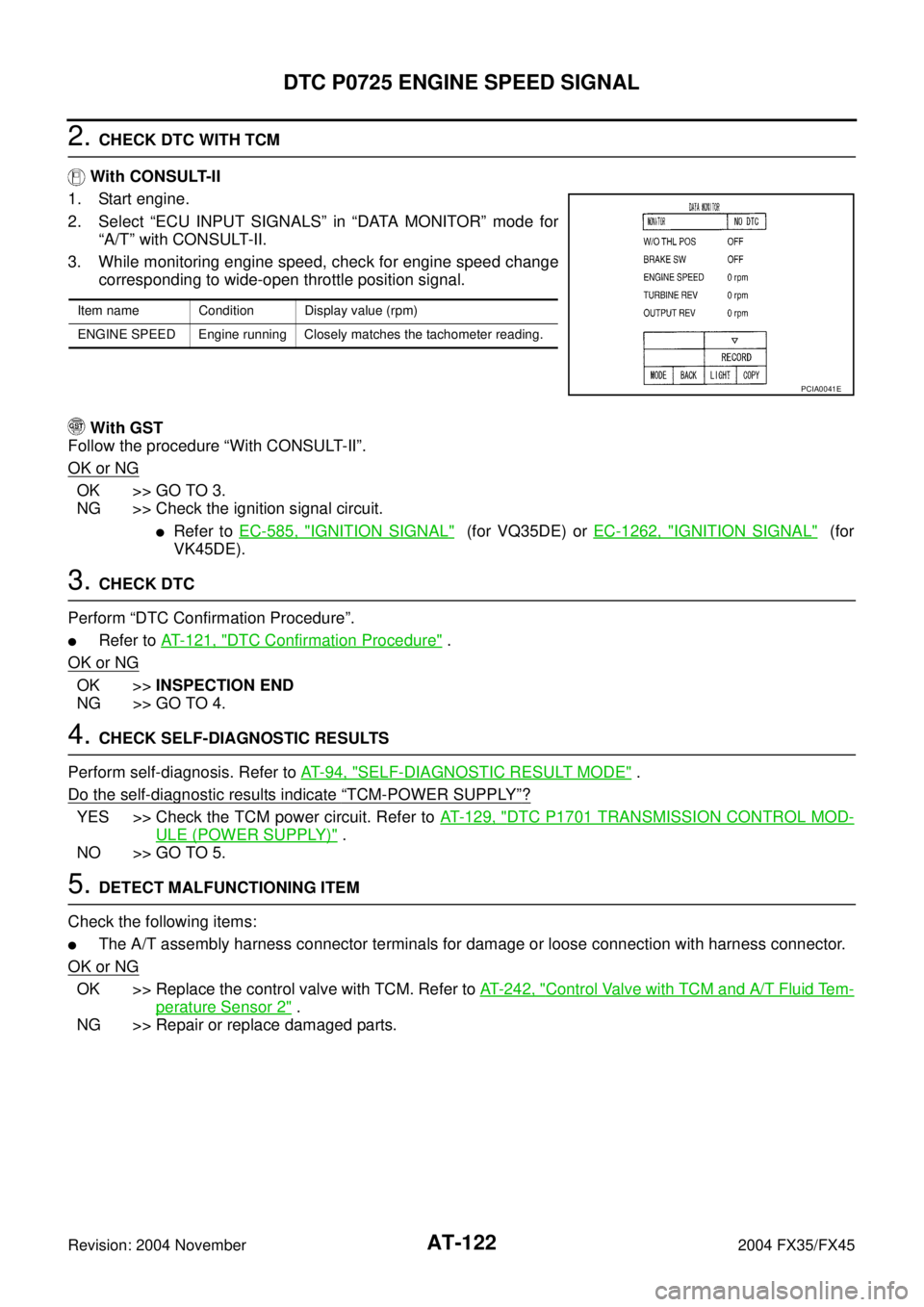

2. CHECK DTC WITH TCM
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. While monitoring engine speed, check for engine speed change
corresponding to wide-open throttle position signal.
With GST
Follow the procedure “With CONSULT-II”.
OK or NG
OK >> GO TO 3.
NG >> Check the ignition signal circuit.

Refer to EC-585, "IGNITION SIGNAL" (for VQ35DE) or EC-1262, "IGNITION SIGNAL" (for
VK45DE).
3. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 2 1 , "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 4 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate
“TCM-POWER SUPPLY”?
YES >> Check the TCM power circuit. Refer to AT- 1 2 9 , "DTC P1701 TRANSMISSION CONTROL MOD-
ULE (POWER SUPPLY)" .
NO >> GO TO 5.
5. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 2 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
Item name Condition Display value (rpm)
ENGINE SPEED Engine running Closely matches the tachometer reading.
PCIA0041E

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-123
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionACS007BI

The torque converter clutch solenoid valve is activated, with the gear in D4 , D5 by the TCM in response
to signals sent from the vehicle speed sensor and accelerator pedal position sensor (throttle position sen-
sor). Torque converter clutch piston operation will then be controlled.

Lock-up operation, however, is prohibited when A/T fluid temperature is too low.

When the accelerator pedal is depressed (less than 1/8) in lock-up condition, the engine speed should not
change abruptly. If there is a big jump in engine speed, there is no lock-up.
CONSULT-II Reference ValueACS007BJ
On Board Diagnosis LogicACS007BK

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “TCC SOLENOID/CIRC” with CONSULT-II or P0740 without CONSULT-II is
detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM detects as irregular by comparing target value with monitor value.
Possible CauseACS007BL

Torque converter clutch solenoid valve

Harness or connectors
(Solenoid circuit is open or shorted.)
DTC Confirmation ProcedureACS007BM
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 80 km/h (50 MPH) or more
ACCELE POSI: 0.5/8 - 1.0/8
SELECTOR LEVER: “D” position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
4. If DTC is detected go to AT- 1 2 4 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Item name Condition Display value (Approx.)
TCC SOLENOIDWhen performing slip lock-up 0.2 - 0.4 A
When performing lock-up 0.4 - 0.6 A
SAT014K

AT-124
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureACS007BN
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Start the engine.
4. Read out the value of “TCC SOLENOID” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 4 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate
“TCM-POWER SUPPLY”?
YES >> Check the TCM power circuit. Refer to AT- 1 2 9 , "DTC P1701 TRANSMISSION CONTROL MOD-
ULE (POWER SUPPLY)" .
NO >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 2 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 2 3 , "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item name Condition Display value (Approx.)
TCC SOLENOIDWhen performing slip lock-up 0.2 - 0.4 A
When performing lock-up 0.4 - 0.6 A
SCIA4793E

AT-126
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
Revision: 2004 November 2004 FX35/FX45
WITH GST
Follow the procedure “With CONSULT-II”.
Diagnostic ProcedureACS007BT
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Start the engine.
4. Read out the value of “TCC SOLENOID” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 4 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate
“TCM-POWER SUPPLY”?
YES >> Check the TCM power circuit. Refer to AT- 1 2 9 , "DTC P1701 TRANSMISSION CONTROL MOD-
ULE (POWER SUPPLY)" .
NO >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 2 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 2 5 , "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item name Condition Display value (Approx.)
TCC SOLENOIDWhen performing slip lock-up 0.2 - 0.4 A
When performing lock-up 0.4 - 0.6 A
SCIA4793E

AT-128
DTC P0745 LINE PRESSURE SOLENOID VALVE
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureACS007BZ
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Start the engine.
4. Read out the value of “LINE PRES SOL” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 4 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate
“TCM-POWER SUPPLY”?
YES >> Check the TCM power circuit. Refer to AT- 1 2 9 , "DTC P1701 TRANSMISSION CONTROL MOD-
ULE (POWER SUPPLY)" .
NO >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 2 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 2 7 , "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item name Condition Display value (Approx.)
LINE PRES SOL During driving 0.2 - 0.6 A
SCIA4793E

AT-132
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
Revision: 2004 November 2004 FX35/FX45
3. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between battery and A/T assembly harness connector terminals 1, 2

Harness for short or open between ignition switch and A/T assembly harness connector terminal 6

10A fuse (No. 37, located in the fuse and fusible link block) and 10A fuse (No. 83, located in the IPDM E/
R)

Ignition switch, Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect A/T assembly harness connector.
3. Check continuity between A/T assembly harness connector ter-
minal 5 (B), 10 (B) and ground. Refer to AT- 1 3 0 , "
Wiring Dia-
gram — AT — POWER" .
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
5. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 2 9 , "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TERMINAL CORD ASSEMBLY
1. Remove control valve with TCM. Refer to AT- 2 4 2 , "
Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect A/T assembly harness connector and control valve with TCM harness connector.
3. Check continuity between A/T assembly harness connector terminal and control valve with TCM harness
connector terminal. Refer to AT- 1 3 0 , "
Wiring Diagram — AT — POWER" .
4. If OK, check harness for short to ground and short to power.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 2 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Replace open circuit or short to ground and short to power in harness or connectors.Continuity should exist.
SCIA2106E

DTC P1702 TRANSMISSION CONTROL MODULE (RAM)
AT-133
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
DTC P1702 TRANSMISSION CONTROL MODULE (RAM)PFP:31036
DescriptionACS007C6
The TCM consists of a microcomputer and connectors for ground, power supply and for signal inputs and out-
puts. The TCM controls the A/T.
On Board Diagnosis LogicACS007C7

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “TCM·RAM” with CONSULT-II is detected when TCM memory RAM is malfunc-
tioning.
Possible CauseACS007C8
TCM.

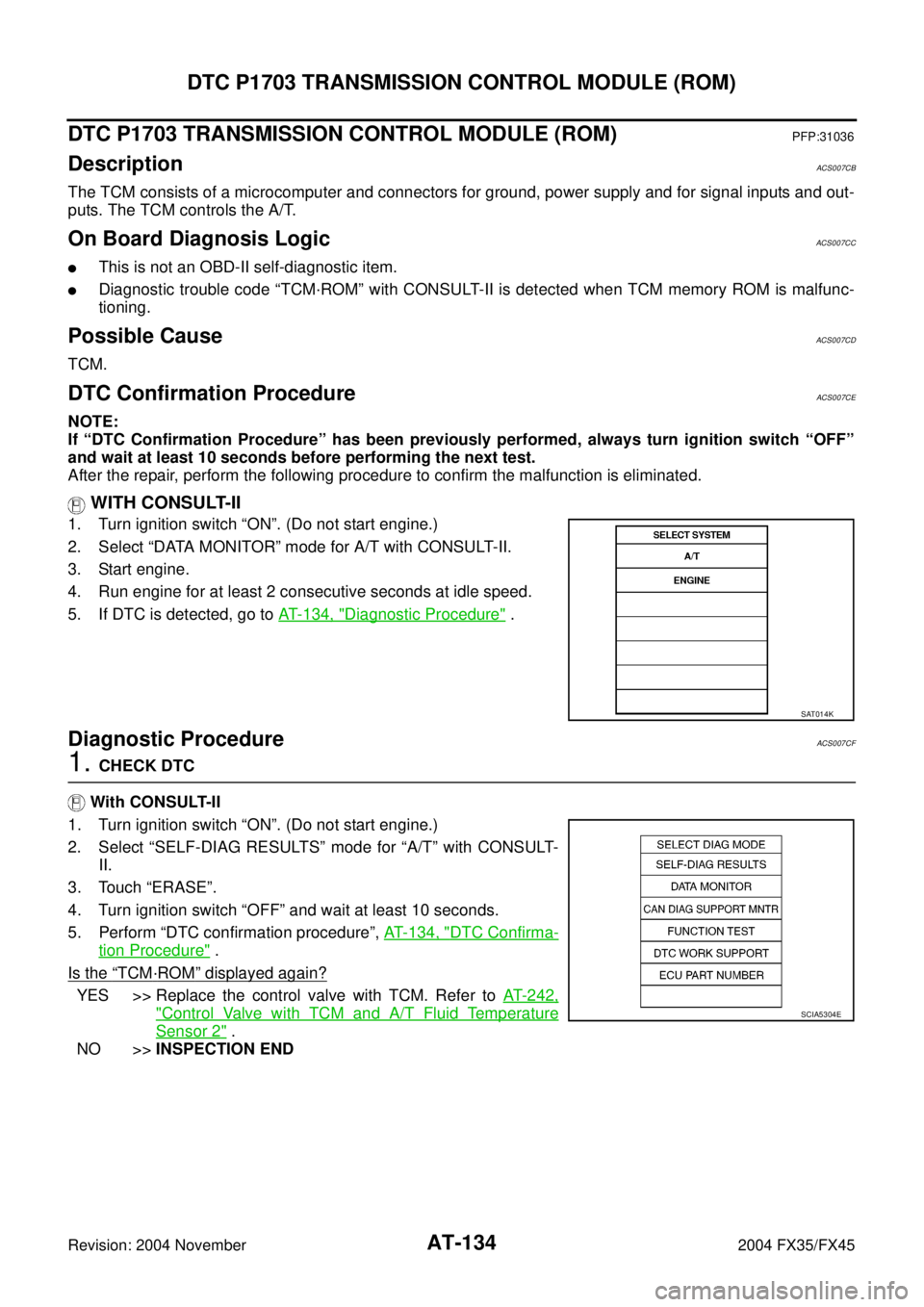

DTC Confirmation ProcedureACS007C9
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Run engine for at least 2 consecutive seconds at idle speed.
5. If DTC is detected, go to AT- 1 3 3 , "
Diagnostic Procedure" .
Diagnostic ProcedureACS007CA
1. CHECK DTC
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
3. Touch “ERASE”.
4. Turn ignition switch “OFF” and wait at least 10 seconds.
5. Perform “DTC confirmation procedure”, AT- 1 3 3 , "
DTC Confirma-
tion Procedure" .
Is the
“TCM·RAM” displayed again?
YES >> Replace the control valve with TCM. Refer to AT- 2 4 2 ,
"Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
NO >>INSPECTION END
SAT014K
SCIA5304E

AT-134
DTC P1703 TRANSMISSION CONTROL MODULE (ROM)
Revision: 2004 November 2004 FX35/FX45
DTC P1703 TRANSMISSION CONTROL MODULE (ROM)PFP:31036
DescriptionACS007CB
The TCM consists of a microcomputer and connectors for ground, power supply and for signal inputs and out-
puts. The TCM controls the A/T.
On Board Diagnosis LogicACS007CC

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “TCM·ROM” with CONSULT-II is detected when TCM memory ROM is malfunc-
tioning.
Possible CauseACS007CD
TCM.
DTC Confirmation ProcedureACS007CE
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for A/T with CONSULT-II.
3. Start engine.
4. Run engine for at least 2 consecutive seconds at idle speed.
5. If DTC is detected, go to AT- 1 3 4 , "
Diagnostic Procedure" .
Diagnostic ProcedureACS007CF
1. CHECK DTC
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
3. Touch “ERASE”.
4. Turn ignition switch “OFF” and wait at least 10 seconds.
5. Perform “DTC confirmation procedure”, AT- 1 3 4 , "
DTC Confirma-
tion Procedure" .
Is the
“TCM·ROM” displayed again?
YES >> Replace the control valve with TCM. Refer to AT- 2 4 2 ,
"Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
NO >>INSPECTION END
SAT014K
SCIA5304E
