9VEHICLE SPECIFICATIONS
3ENGINE
J070A03GK-AAT
SPECIFICATION
PFR5N-11
RC10PYPB4
0.039 ~ 0.043 in. (1.0 ~ 1.1 mm) 2.0 L
4-Cyl., In-line DOHC CVVT
82 x 93.5
1,975
1 - 3 - 4 - 2
0.0067 ~ 0.0091 in.(0.17 ~ 0.23 mm)
0.0098 ~ 0.0122 in.(0.25 ~ 0.31 mm )
0.0047 ~ 0.011 in.(0.12 ~ 0.28 mm)
0.0079 ~ 0.015 in.(0.2 ~ 0.38 mm)
700 ± 100
BTDC 8° ± 5°2.7 L
2.7 6 Cylinder V6 DOHC
86.7 x 75
2,656
1 - 2 - 3 - 4 - 5 - 6
AUTO LASH
750 ± 100
BTDC 12° ± 10°ITEMS
Engine Type
Bore x Stroke
Displacement (cc)
Firing order
Valve clearance
(Cold Engine : 20 ± 5°C)
Spark plug
Spark plug gap
Idle speed (RPM)
Ignition timing (Base)
For adjusting
For checking
NGK
CHAMPIONIntake
Exhaust
Intake
Exhaust

9VEHICLE SPECIFICATIONS

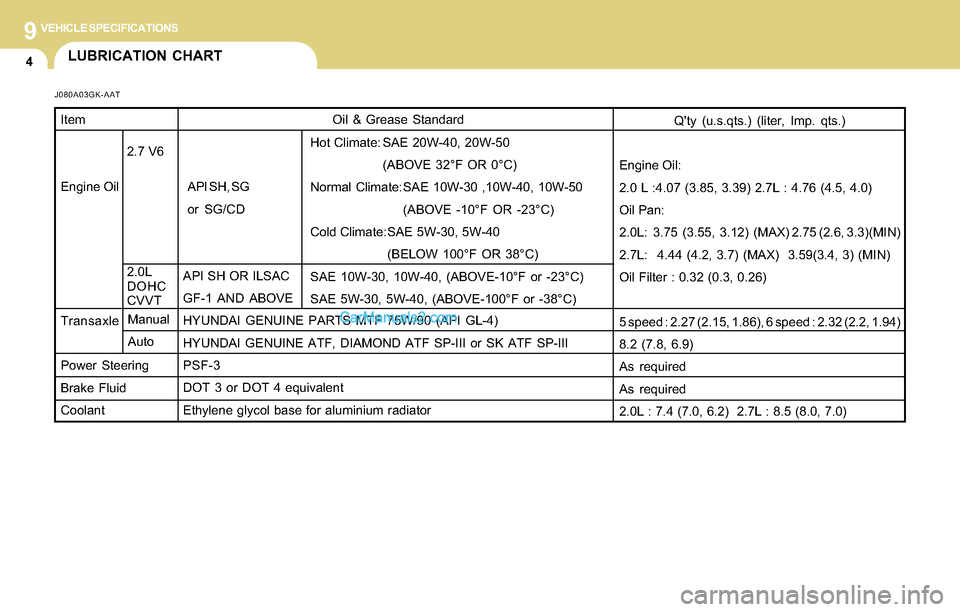

4LUBRICATION CHART
J080A03GK-AAT
Oil & Grease Standard
API SH OR ILSAC
GF-1 AND ABOVE
HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4)
HYUNDAI GENUINE ATF, DIAMOND ATF SP-III or SK ATF SP-III
PSF-3
DOT 3 or DOT 4 equivalent
Ethylene glycol base for aluminium radiatorAPI SH, SG
or SG/CDHot Climate: SAE 20W-40, 20W-50
(ABOVE 32°F OR 0°C)
Normal Climate: SAE 10W-30 ,10W-40, 10W-50
(ABOVE -10°F OR -23°C)
Cold Climate:SAE 5W-30, 5W-40
(BELOW 100°F OR 38°C)
SAE 10W-30, 10W-40, (ABOVE-10°F or -23°C)
SAE 5W-30, 5W-40, (ABOVE-100°F or -38°C)Item
Engine Oil
Transaxle
Power Steering
Brake Fluid
Coolant
Manual
Auto
Q'ty (u.s.qts.) (liter, Imp. qts.)
Engine Oil:
2.0 L :4.07 (3.85, 3.39) 2.7L : 4.76 (4.5, 4.0)
Oil Pan:
2.0L: 3.75 (3.55, 3.12) (MAX) 2.75 (2.6, 3.3)(MIN)
2.7L: 4.44 (4.2, 3.7) (MAX) 3.59(3.4, 3) (MIN)
Oil Filter : 0.32 (0.3, 0.26)
5 speed : 2.27 (2.15, 1.86), 6 speed : 2.32 (2.2, 1.94)
8.2 (7.8, 6.9)
As required
As required
2.0L : 7.4 (7.0, 6.2) 2.7L : 8.5 (8.0, 7.0)
2.0L
DOHC
CVVT 2.7 V6
