2004 FORD MUSTANG Owners Manual

MACH460 SATELLITE READY SOUND
SYSTEM RADIO — CD CHANGER COMPATIBLE
(IF EQUIPPED)
MACH1000 SATELLITE READY SOUND
SYSTEM RADIO — CD CHANGER COMPATIBLE
(IF EQUIPPED)
Your vehicle may be equipped with theMACH
1000audio system. This system is equipped with a
rack of amplifiers and subwoofers in the trunk of the
vehicle. Do not store or rest items on the amplifier
rack, as this could cause damage to the amplifiers
and void your warranty.
TheMACH 1000audio system is capable of
producing very high sound pressure levels. For your
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
25

listening comfort and protection, it is not
recommended to listen to theMACH 1000audio
system at high volume levels for extended periods of
time.
1.Seek:Press and
release SEEK
/
for previous/next
strong station, selection or track.
2.Rewind:In CD
mode, press until
desired selection is
reached.
Fast forward:In CD mode, press until desired
selection is reached.
TEXT:TEXT is only available when equipped with
Satellite radio. Your Audiophile radio comes
equipped with Satellite ready capability. The kit to
enable Satellite reception is available through your
Ford dealer. Detailed Satellite instructions are
included with the dealer installed kit.
3.DSP (Digital
Signal Processing):
Press DSP to access
the Ambiance menu. Ambiance gives the feeling of
“being there”to your music, creating increased
clarity as well as an open and spacious feel to the
music. Press SEL to engage/disengage. Turn the
volume control to increase/decrease the level of
ambiance.
Occupancy:Press DSP again to change the
occupancy mode to optimize sound for:
•ALL SEATS—Enhances acoustic sound for all
seating locations.
•DRIVER SEAT—Enhances acoustic sound for
the driver. Rear seat and passenger seat
performance may be compromised in favor of the
driver.
•REAR SEAT - Enhances acoustic sound for the
rear seat passengers.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
26

4.MACH(MACH 1000
only): Press to engage
MACH 1000 mode.
MACH 1000 mode enhances acoustic sound for all
seating locations and increases the signal to the
trunk mounted speakers and amplifiers for enhanced
bass performance. Press again to return to
previously set occupancy mode.
Mute:(MACH 460
only): Press to mute
the playing media.
5.Eject:Press EJ and
choose the
corresponding preset
(1–6) to eject the desired CD. Press and hold to
eject all loaded discs.
6.Bass:Press BASS;
then press
SEL
/to
decrease/increase the bass output.
Treble:Press TREB;
then press
SEL
/to
decrease/increase the treble output.
7.Select:Use with
Bass, Treble, Balance
and Fade controls to
adjust levels.
8.Balance:Press BAL;
then press
SEL
/to shift
sound to the left/right speakers.
Fade:Press FADE;
then press
SEL
/to shift
sound to the front/rear speakers.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
27

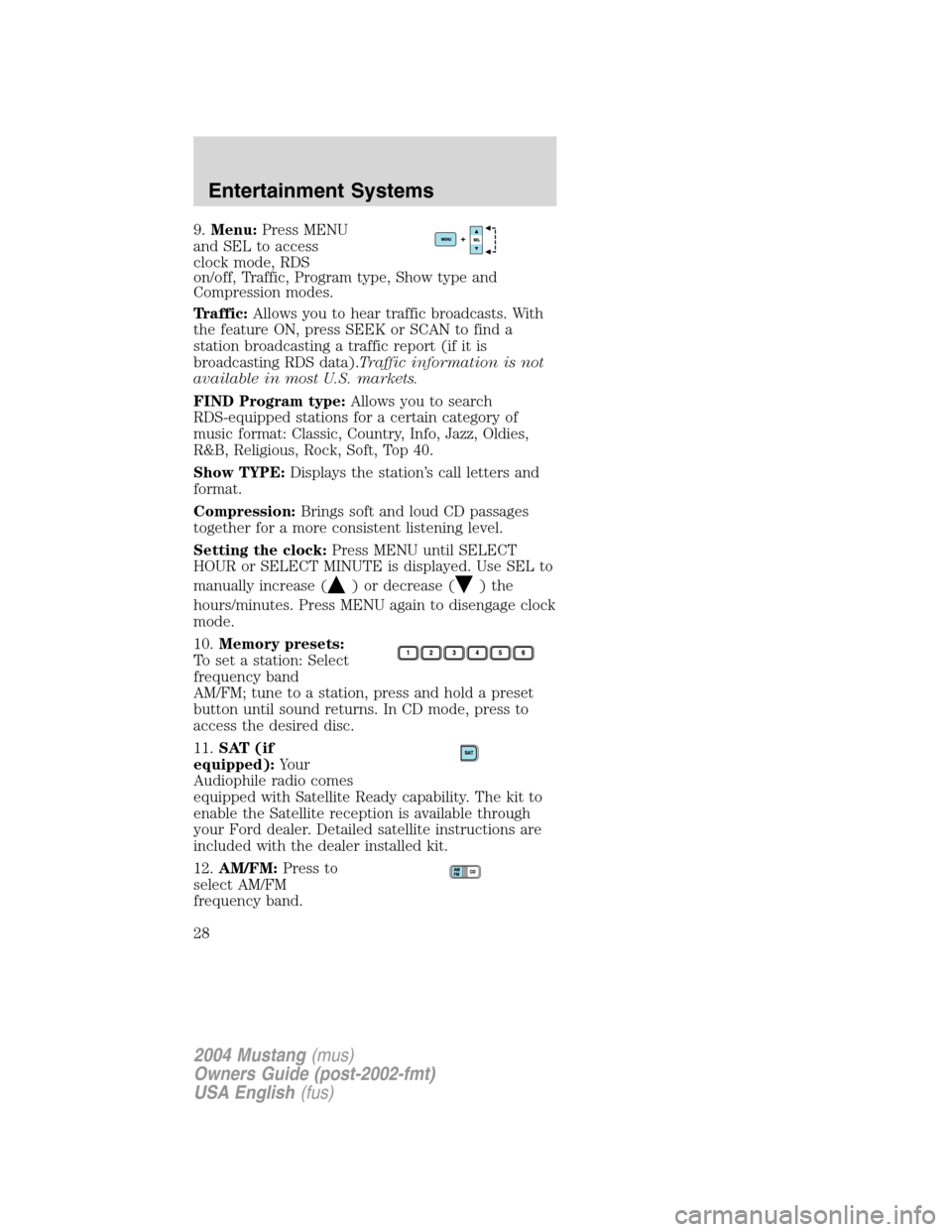

9.Menu:Press MENU
and SEL to access
clock mode, RDS
on/off, Traffic, Program type, Show type and
Compression modes.
Traffic:Allows you to hear traffic broadcasts. With
the feature ON, press SEEK or SCAN to find a
station broadcasting a traffic report (if it is
broadcasting RDS data).Traffic information is not
available in most U.S. markets.
FIND Program type:Allows you to search
RDS-equipped stations for a certain category of
music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.
Show TYPE:Displays the station’s call letters and
format.
Compression:Brings soft and loud CD passages
together for a more consistent listening level.
Setting the clock:Press MENU until SELECT
HOUR or SELECT MINUTE is displayed. Use SEL to
manually increase (
) or decrease () the
hours/minutes. Press MENU again to disengage clock
mode.
10.Memory presets:
To set a station: Select
frequency band
AM/FM; tune to a station, press and hold a preset
button until sound returns. In CD mode, press to
access the desired disc.
11.SAT (if
equipped):Your
Audiophile radio comes
equipped with Satellite Ready capability. The kit to
enable the Satellite reception is available through
your Ford dealer. Detailed satellite instructions are
included with the dealer installed kit.
12.AM/FM:Press to
select AM/FM
frequency band.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
28

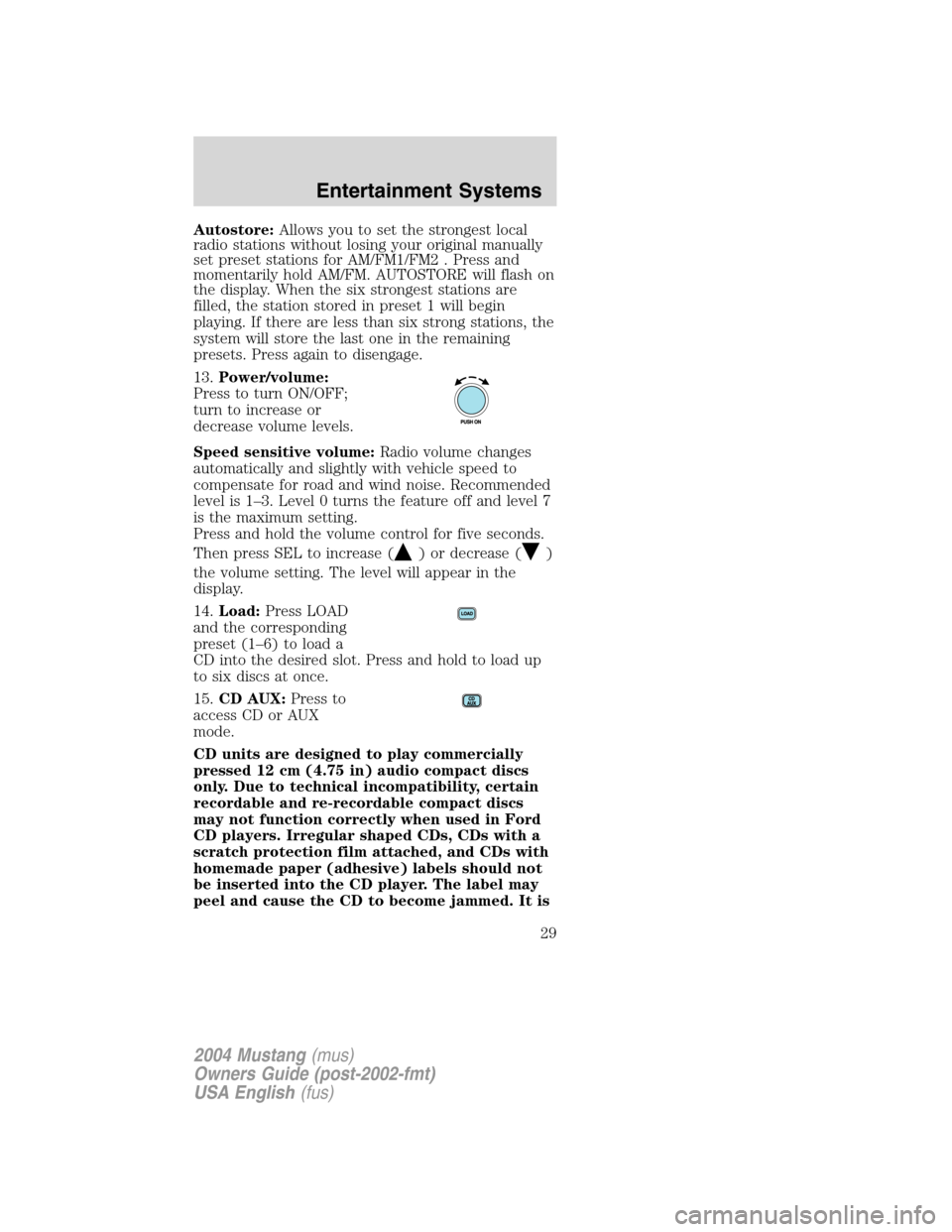

Autostore:Allows you to set the strongest local
radio stations without losing your original manually
set preset stations for AM/FM1/FM2 . Press and
momentarily hold AM/FM. AUTOSTORE will flash on
the display. When the six strongest stations are
filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the
system will store the last one in the remaining
presets. Press again to disengage.
13.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
Speed sensitive volume:Radio volume changes
automatically and slightly with vehicle speed to
compensate for road and wind noise. Recommended
level is 1–3. Level 0 turns the feature off and level 7
is the maximum setting.
Press and hold the volume control for five seconds.
Then press SEL to increase (
) or decrease ()
the volume setting. The level will appear in the
display.
14.Load:Press LOAD
and the corresponding
preset (1–6) to load a
CD into the desired slot. Press and hold to load up
to six discs at once.
15.CD AUX:Press to
access CD or AUX
mode.
CD units are designed to play commercially
pressed 12 cm (4.75 in) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Irregular shaped CDs, CDs with a
scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not
be inserted into the CD player. The label may
peel and cause the CD to become jammed. It is
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
29

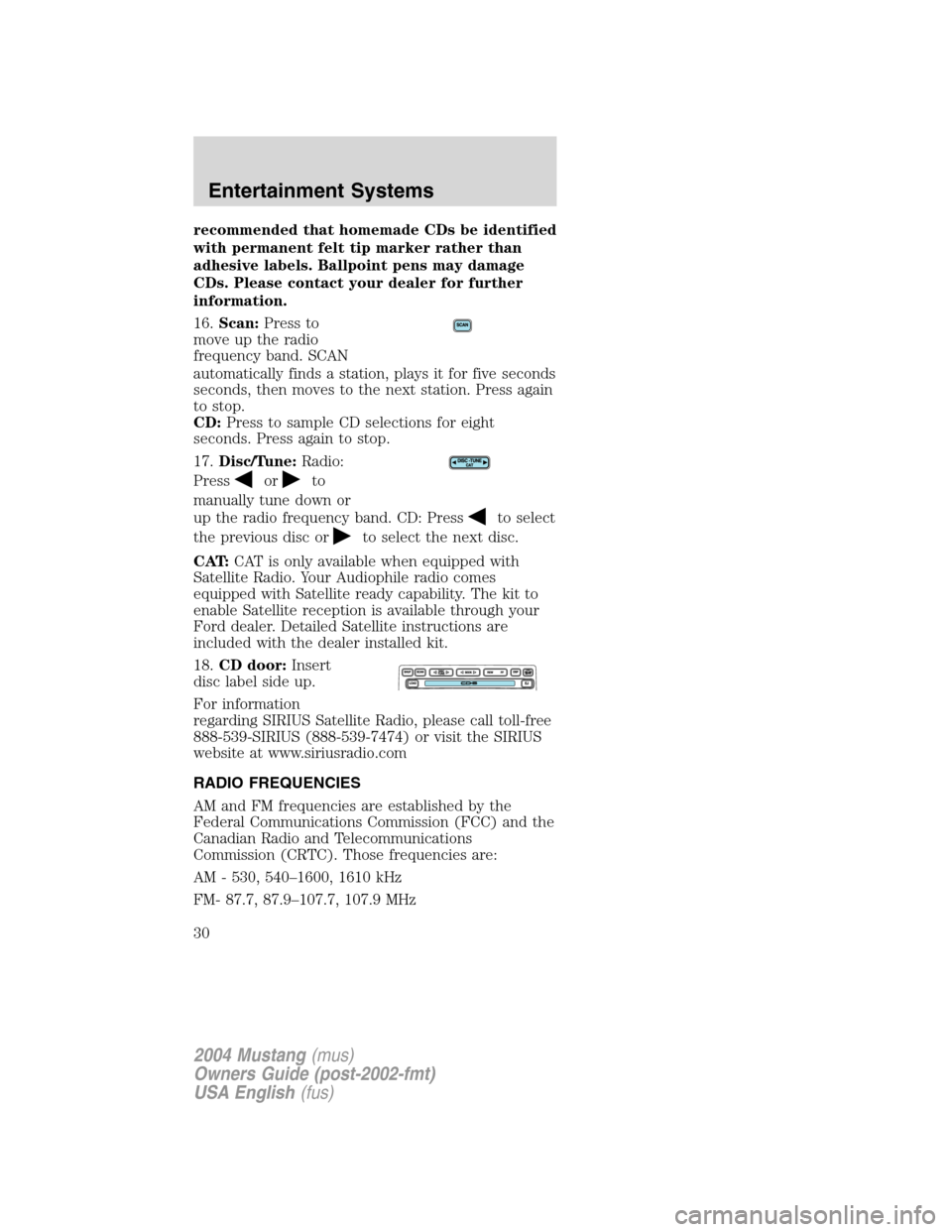

recommended that homemade CDs be identified
with permanent felt tip marker rather than
adhesive labels. Ballpoint pens may damage
CDs. Please contact your dealer for further
information.
16.Scan:Press to
move up the radio
frequency band. SCAN
automatically finds a station, plays it for five seconds
seconds, then moves to the next station. Press again
to stop.
CD:Press to sample CD selections for eight
seconds. Press again to stop.
17.Disc/Tune:Radio:
Press
orto
manually tune down or
up the radio frequency band. CD: Press
to select
the previous disc or
to select the next disc.
CAT:CAT is only available when equipped with
Satellite Radio. Your Audiophile radio comes
equipped with Satellite ready capability. The kit to
enable Satellite reception is available through your
Ford dealer. Detailed Satellite instructions are
included with the dealer installed kit.
18.CD door:Insert
disc label side up.
For information
regarding SIRIUS Satellite Radio, please call toll-free
888-539-SIRIUS (888-539-7474) or visit the SIRIUS
website at www.siriusradio.com
RADIO FREQUENCIES
AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the
Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM - 530, 540–1600, 1610 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
30

RADIO RECEPTION FACTORS
There are three factors that can effect radio
reception:
•Distance/strength: The further you travel from an
FM station, the weaker the signal and the weaker
the reception.
•Terrain: Hills, mountains, tall buildings, power
lines, electric fences, traffic lights and
thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast
tower, a stronger signal may overtake a weaker
one and play while the weak station frequency is
displayed.
CD PLAYER CARE
All audios are CD changer compatible. See your
dealer for further details.
Do:
•Handle discs by their edges only. Never touch the
playing surface.
•Inspect discs before playing. Clean only with an
approved CD cleaner and wipe from the center
out.
Don’t:
•Expose discs to direct sunlight or heat sources for
extended periods of time.
•Insert more than one disc into each slot of the CD
changer magazine.
•Clean using a circular motion.
CD units are designed to play commercially
pressed 12 cm (4.75 in) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Irregular shaped CDs, CDs with a
scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not
be inserted into the CD player. The label may
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
31

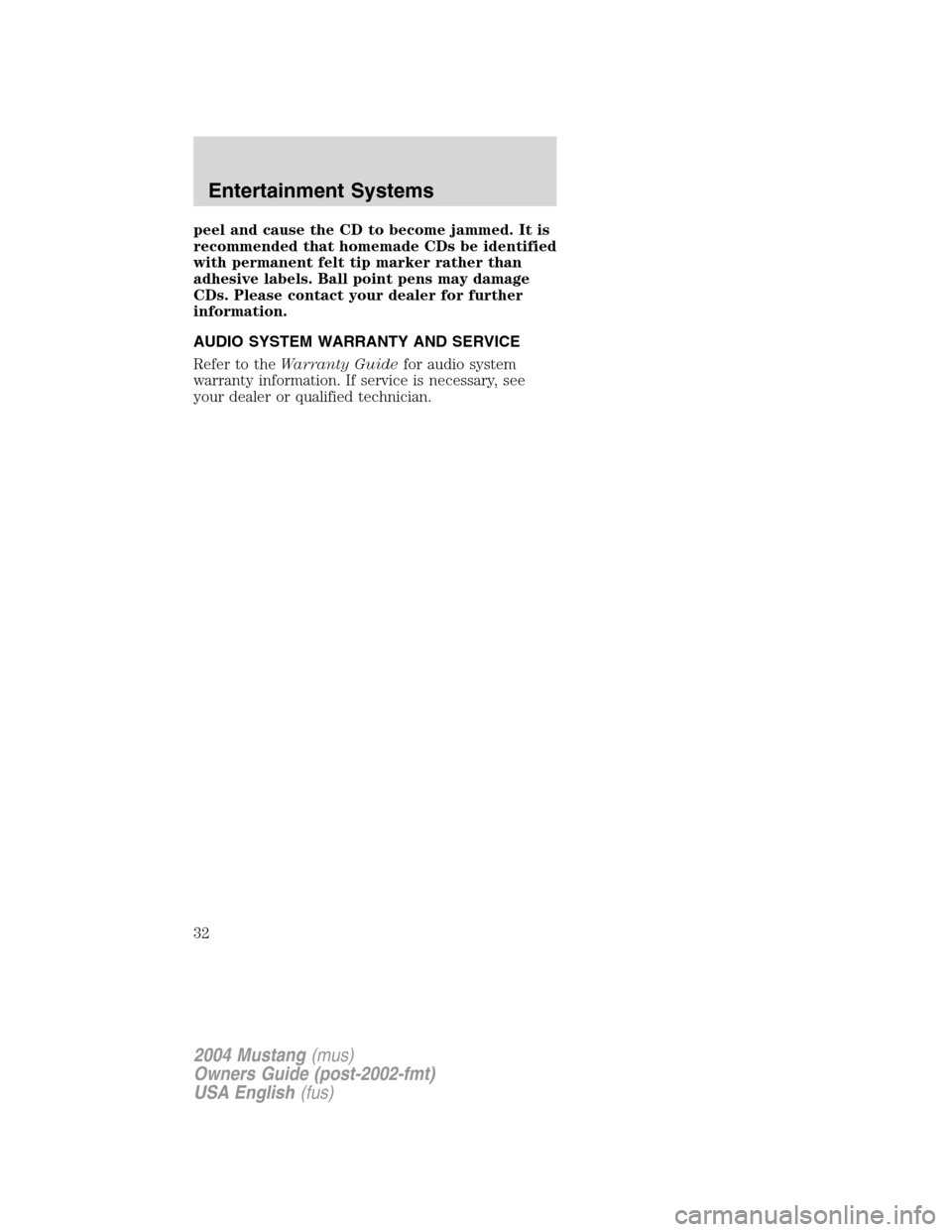

peel and cause the CD to become jammed. It is
recommended that homemade CDs be identified
with permanent felt tip marker rather than
adhesive labels. Ball point pens may damage
CDs. Please contact your dealer for further
information.
AUDIO SYSTEM WARRANTY AND SERVICE
Refer to theWarranty Guidefor audio system
warranty information. If service is necessary, see
your dealer or qualified technician.
