2004 FORD MUSTANG Owners Manual

Fuel gauge:Indicates
approximately how
much fuel is left in the
fuel tank (when the
ignition is in the ON position). The fuel gauge may
vary slightly when the vehicle is in motion or on a
grade.
Refer toFilling the tankin theMaintenance and
Specificationschapter for more information.F
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
17

AM/FM STEREO / SINGLE CD RADIO (IF
EQUIPPED)
1.Balance:
Press
/to shift
sound to the left/right
speakers.
2.Fade:Press
/
to shift sound to the
front/rear speakers.
3.SCN (Scan):Press
to hear a brief sampling
of all listenable stations
or CD tracks. Press again to stop.
4.CLK:To set the
hour, press and hold
CLK and press SEEK
to decrease
or increasethe hours.
To set the minute, press and hold CLK and press
TUNE to decrease
or increasethe minutes.
5.EJ (eject):Press to
eject a CD.
BASS
CDTREB BAL FADESCN
CLK AM
FM
VOL - PUSH ON
SEEK
EJ
COMP DISC
DISCSTUNE
12 3456
FM1ST
SHUFFLE CD CD
1415161718123413
658
12
11
7910
CLK
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
18

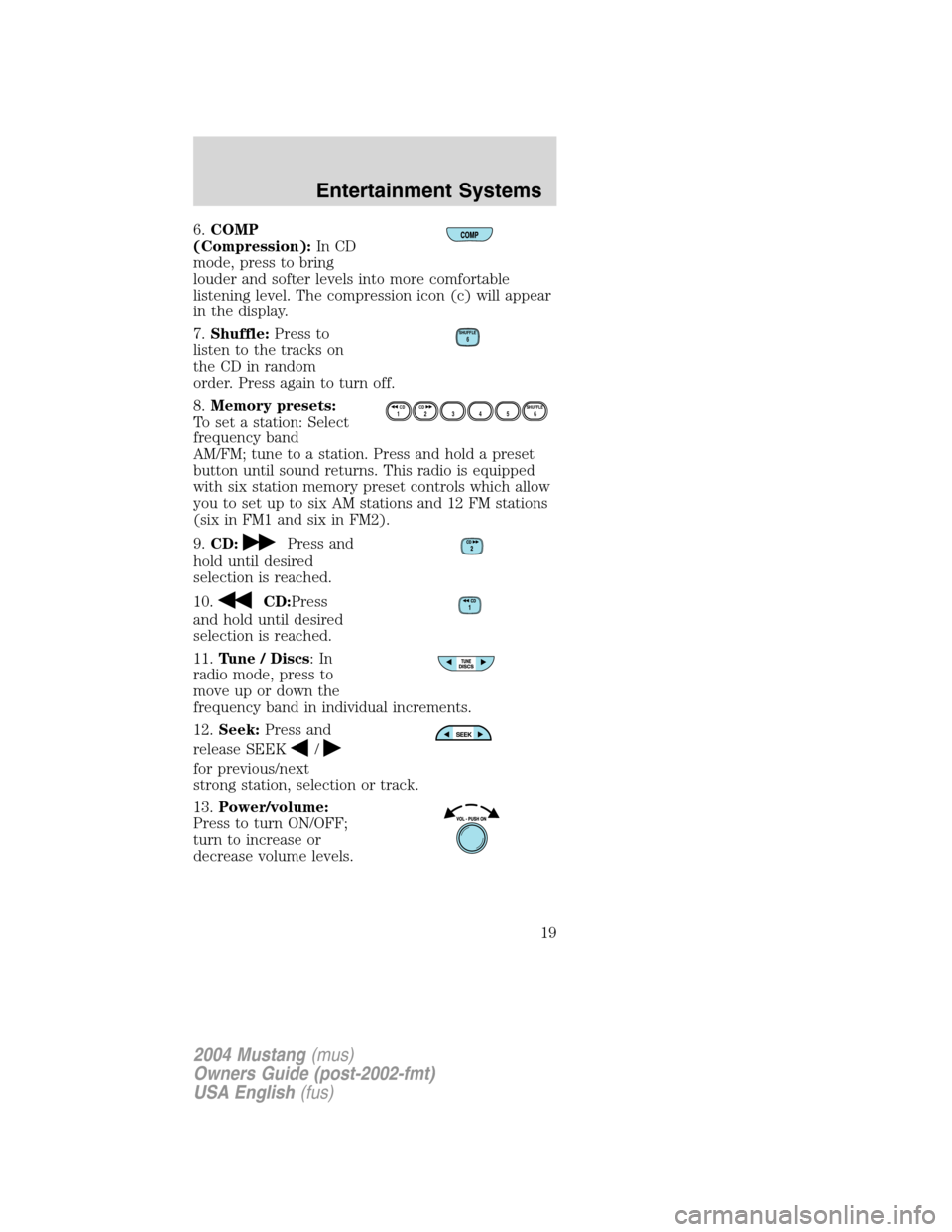

6.COMP
(Compression):In CD
mode, press to bring
louder and softer levels into more comfortable
listening level. The compression icon (c) will appear
in the display.
7.Shuffle:Press to
listen to the tracks on
the CD in random
order. Press again to turn off.
8.Memory presets:
To set a station: Select
frequency band
AM/FM; tune to a station. Press and hold a preset
button until sound returns. This radio is equipped
with six station memory preset controls which allow
you to set up to six AM stations and 12 FM stations
(six in FM1 and six in FM2).
9.CD:
Press and
hold until desired
selection is reached.
10.
CD:Press
and hold until desired
selection is reached.
11.Tune / Discs:In
radio mode, press to
move up or down the
frequency band in individual increments.
12.Seek:Press and
release SEEK
/
for previous/next
strong station, selection or track.
13.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
SHUFFLE6
12 3456SHUFFLE CD CD
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
19

14.CD: Press to enter
CD mode or to play a
CD already loaded into
the system.
15.AM/FM:Press to
choose a frequency
band in radio mode.
16.Bass:
Press
/to
increase/decrease the
bass output.
17.Treble:
Press
/to
increase/decrease the
treble output.
18.CD door:Insert a
CD printed side up.
MACHMP3 AUDIO SYSTEM (IF EQUIPPED)
1.Balance:
Press
/to shift
sound to the left/right
speakers.
2.Fade:Press
/
to shift sound to the
rear/front speakers.
DISC
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
20

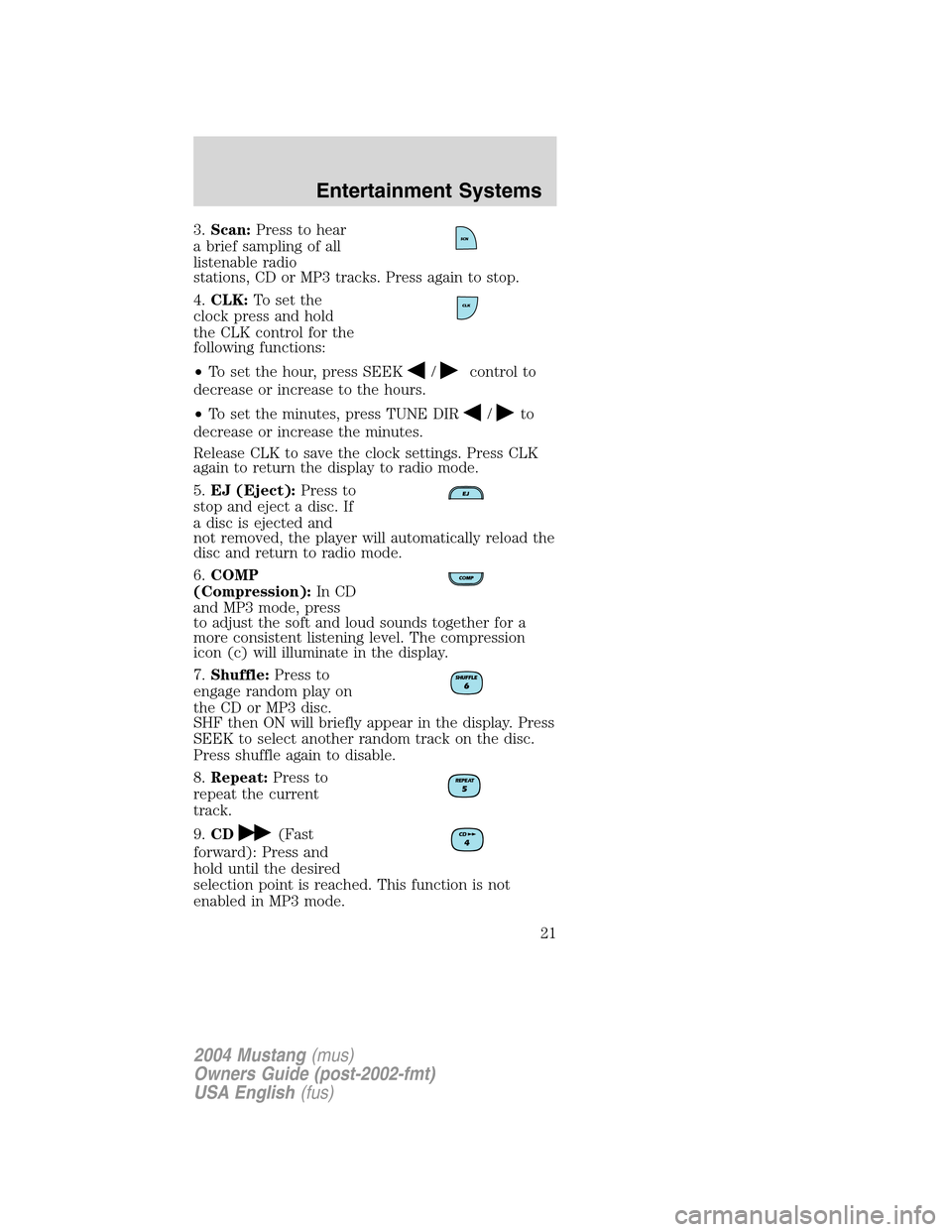

3.Scan:Press to hear
a brief sampling of all
listenable radio
stations, CD or MP3 tracks. Press again to stop.
4.CLK:To set the
clock press and hold
the CLK control for the
following functions:
•To set the hour, press SEEK
/control to
decrease or increase to the hours.
•To set the minutes, press TUNE DIR
/to
decrease or increase the minutes.
Release CLK to save the clock settings. Press CLK
again to return the display to radio mode.
5.EJ (Eject):Press to
stop and eject a disc. If
a disc is ejected and
not removed, the player will automatically reload the
disc and return to radio mode.
6.COMP
(Compression):In CD
and MP3 mode, press
to adjust the soft and loud sounds together for a
more consistent listening level. The compression
icon (c) will illuminate in the display.
7.Shuffle:Press to
engage random play on
the CD or MP3 disc.
SHF then ON will briefly appear in the display. Press
SEEK to select another random track on the disc.
Press shuffle again to disable.
8.Repeat:Press to
repeat the current
track.
9.CD
(Fast
forward): Press and
hold until the desired
selection point is reached. This function is not
enabled in MP3 mode.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
21

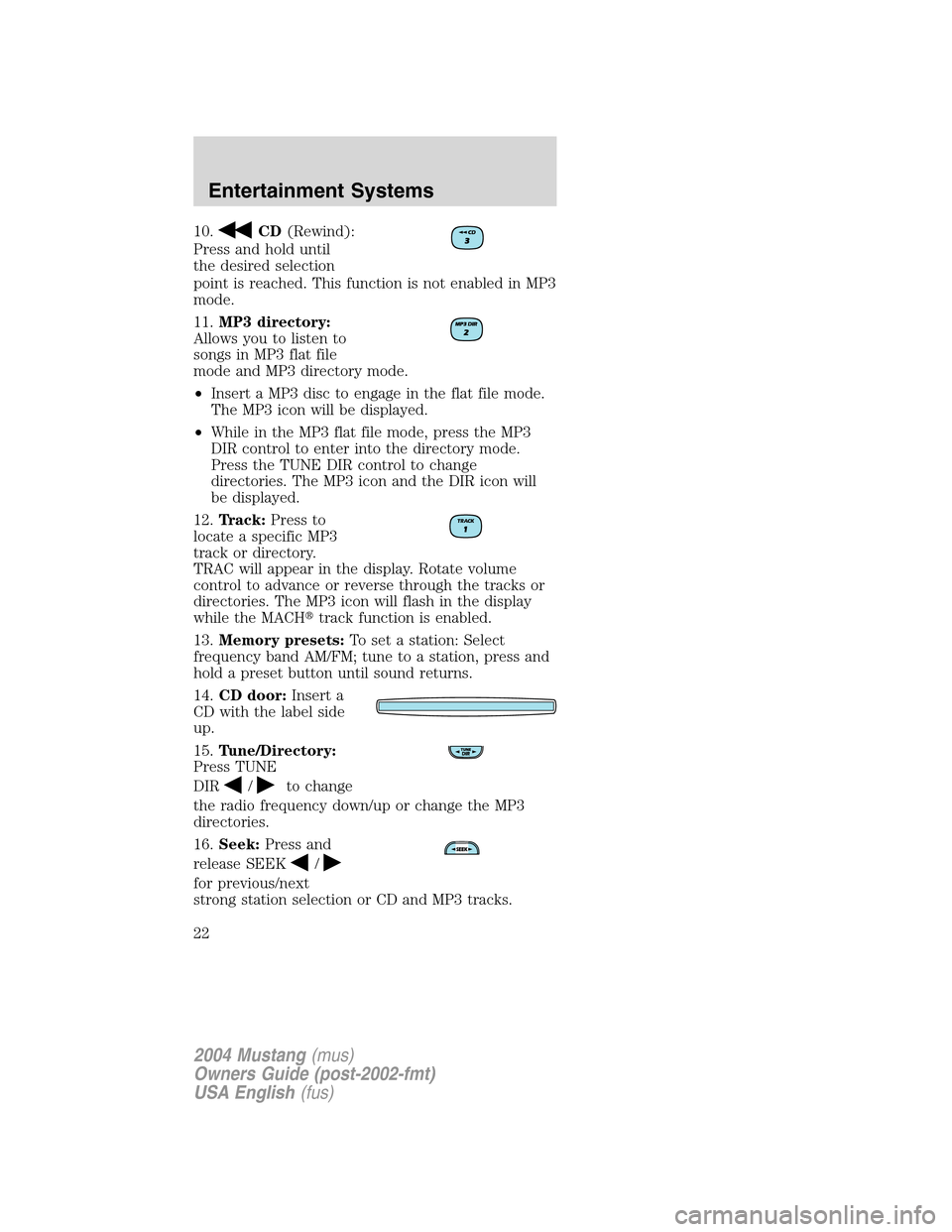

10.CD(Rewind):
Press and hold until
the desired selection
point is reached. This function is not enabled in MP3
mode.
11.MP3 directory:
Allows you to listen to
songs in MP3 flat file
mode and MP3 directory mode.
•Insert a MP3 disc to engage in the flat file mode.
The MP3 icon will be displayed.
•While in the MP3 flat file mode, press the MP3
DIR control to enter into the directory mode.
Press the TUNE DIR control to change
directories. The MP3 icon and the DIR icon will
be displayed.
12.Track:Press to
locate a specific MP3
track or directory.
TRAC will appear in the display. Rotate volume
control to advance or reverse through the tracks or
directories. The MP3 icon will flash in the display
while the MACHtrack function is enabled.
13.Memory presets:To set a station: Select
frequency band AM/FM; tune to a station, press and
hold a preset button until sound returns.
14.CD door:Insert a
CD with the label side
up.
15.Tune/Directory:
Press TUNE
DIR
/to change
the radio frequency down/up or change the MP3
directories.
16.Seek:Press and
release SEEK
/
for previous/next
strong station selection or CD and MP3 tracks.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
22

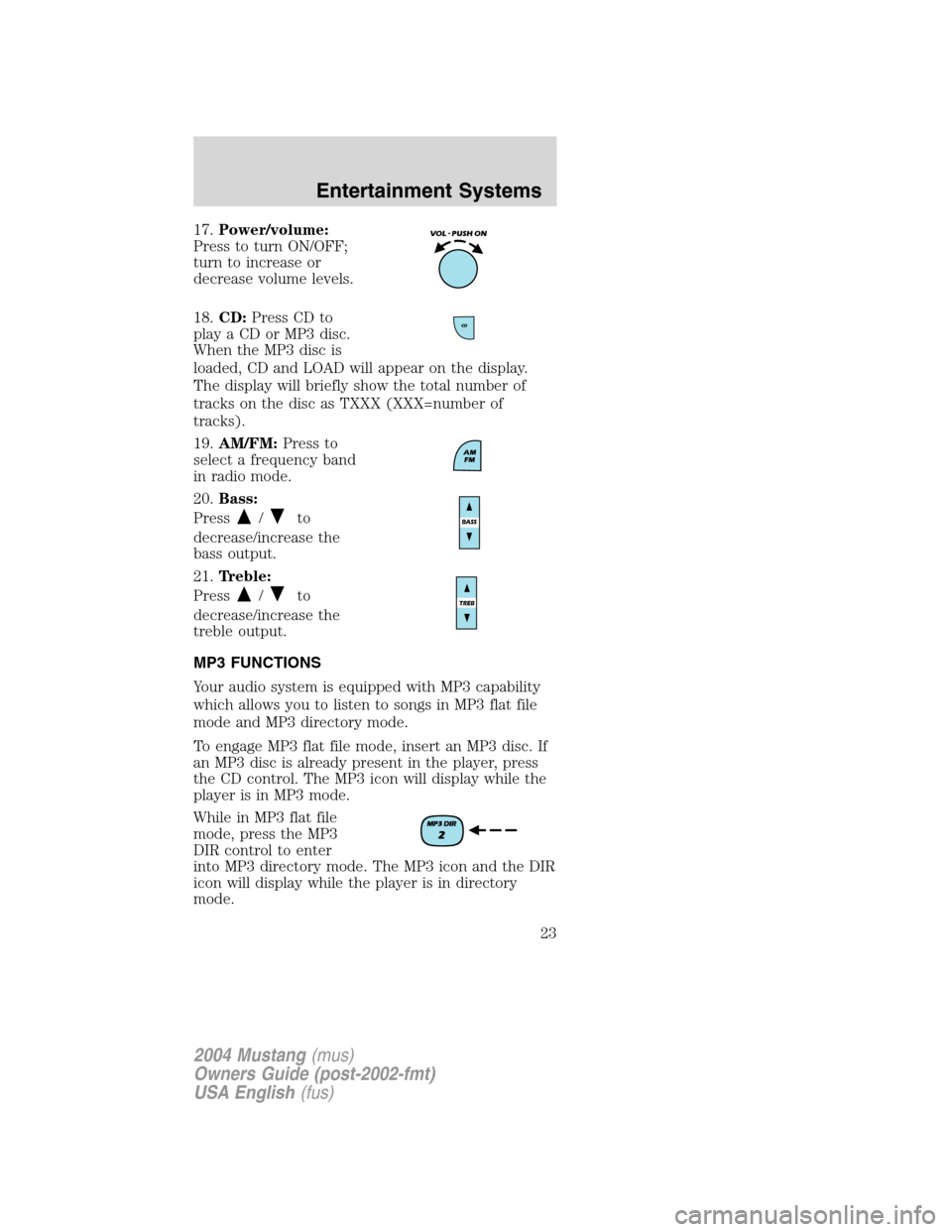

17.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
18.CD:Press CD to
play a CD or MP3 disc.
When the MP3 disc is
loaded, CD and LOAD will appear on the display.
The display will briefly show the total number of
tracks on the disc as TXXX (XXX=number of
tracks).
19.AM/FM:Press to
select a frequency band
in radio mode.
20.Bass:
Press
/to
decrease/increase the
bass output.
21.Treble:
Press
/to
decrease/increase the
treble output.
MP3 FUNCTIONS
Your audio system is equipped with MP3 capability
which allows you to listen to songs in MP3 flat file
mode and MP3 directory mode.
To engage MP3 flat file mode, insert an MP3 disc. If
an MP3 disc is already present in the player, press
the CD control. The MP3 icon will display while the
player is in MP3 mode.
While in MP3 flat file
mode, press the MP3
DIR control to enter
into MP3 directory mode. The MP3 icon and the DIR
icon will display while the player is in directory
mode.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
23

Your MACHMP3 player is also equipped with an
anti-shock buffer for MP3 discs.
MP3 FILE DIRECTORY STRUCTURE
The MACHMP3 music system recognizes MP3 disc
file and directory (folder) structure as follows:
•There are two different modes for MP3 disc
playback: MP3 flat file mode (default) and MP3
directory mode.
•MP3 flat file mode ignores any directory structure
present on the MP3 disc. The player sequentially
numbers each MP3 track on the disc (denoted by
the .mp3 file extension) from T001 to T255.
•MP3 directory mode represents a directory
structure consisting of one level of directories
(folders). The CD player sequentially numbers all
MP3 tracks on the disc (denoted by .mp3
extension) and all directories containing MP3
files, from 01–01 to 99–99. The first two digits
denote the directory number and the last two
digits denote the track number within that
directory.
•Creating discs with only one level of
subdirectories will help with navigation through
the disc files.
ERROR MESSAGES
You may experience an error message for the
following situations:
•NO DISC when the CD control is pressed and
there is not a CD present.
•DISC ERR when there is a damaged or unreadable
disc. Such as, data discs containing no .mp3 files,
or for data discs containing more than 255 files or
directories.
•CD ERR for any other disc malfunction.
