2004 DODGE STRATUS COUPE Owners Manual

Spare fuse location
Spare fuses are contained in the cover of the instru-
ment panel (driver 's side). Always use a fuse of the
same capacity for replacement.
Engine compartment Fuse location table
N29B2642
Engine compartment fuse location
EMERGENCIES 289
8

No. Symbol Electrical system Capacity
1
Fuse (+B) 60A
2
Radiator fan motor 50A
3
Anti-lock braking system 60A
4
Ignition switch 40A
5
Electric window controls 30A
6
Fog lights 15A
7Ð Ð Ð
8
Horn 15A
9
Engine control 20A
10
Air conditioning 10A
11
Stop lights 15A
12
ÐÐ
13
Alternator 7.5A
14
Hazard warning flasher 10A
15
Automatic transaxle 20A
16
Headlights high beam (right) 10A
17
Headlights high beam (left) 10A
18
Headlights low beam (right) 10A
19
Headlights low beam (left) 10A
20
Position lights (right) 7.5A
21
Position lights (left) 7.5A
No. Symbol Electrical system Capacity
22
Dome lights 10A
23
Audio 10A
24
Fuel pump 15A
25
Defroster 40A
²Some fuses may not be installed on your vehicle. Fuse
application depends on the vehicle model, specifica-
tions, or options.
7.5A BROWN
10A RED
15A LIGHT BLUE
20A YELLOW
30A GREEN
40A GREEN
50A RED
60A YELLOW
290 EMERGENCIES

Fuse replacement
1. Before replacing a fuse, always turn off the electrical
item concerned and turn the ignition key to the ªLOCKº
position.
2. Remove the fuse cover.
3. Referring to the fuse location diagrams and corre-
sponding tables, check the fuse that relates to the prob-
lem.4. There is a fuse puller in the cover of the instrument
panel (driver 's side). Remove the fuse puller, clamp it on
the fuse you wish to remove, and pull the fuse straight
out from the fuse block. If the fuse is not blown, some-
thing else must be causing the problem; contact an
authorized dealer to have the problem checked.
N29C0020
OKBlown fuseN29C0200
EMERGENCIES 291
8

5. Insert a new fuse of the same capacity securely into the
fuse block location.
CAUTION!
²Never use a fuse with a capacity larger than that
specified or any substitute, such as wire, foil, etc.
Doing so will cause the circuit wiring to heat up
and could cause a fire.
²If the newly inserted fuse blows again after a
short time, have the electrical system checked by
an authorized dealer to find and correct the cause.
REPLACEMENT OF LIGHT BULBS
Before replacing a bulb, be sure the light is off. Do not
touch the glass part of the new bulb with your bare
fingers; the skin oil left on the glass will evaporate when
the bulb gets hot and the vapor will condense on the
reflector and dim the surface.
Bulb capacity
A bulb should only be replaced with a new bulb of the
same rating and type. The designation can be found on
the base of the bulb.
N29C0010
292 EMERGENCIES

Outside
DescriptionWattage or
Candela
PowerANSI Trade
No. or
Bulb type
1 - Front turn signal and
parking light32/2.2cp 3157NAK
2 - Headlight 65/55W 9007(HB5)
3 - Front side marker light 1.5cp 194NA
4 - Front fog light (if so
equipped)37.5W 896
DescriptionWattage or
Candela
PowerANSI Trade
No. or
Bulb type
5 - High-mounted stop light 18w 921
6 - Stop and tail light 32/2cp 2057
7 - Rear turn signal and tail
light32/2cp 2057
8 - Rear side marker light 5W(W5W) Ð
9 - License plate light 3cp 168
10 - Back up light 32cp 1156
N10B2820N10B2830
EMERGENCIES 293
8

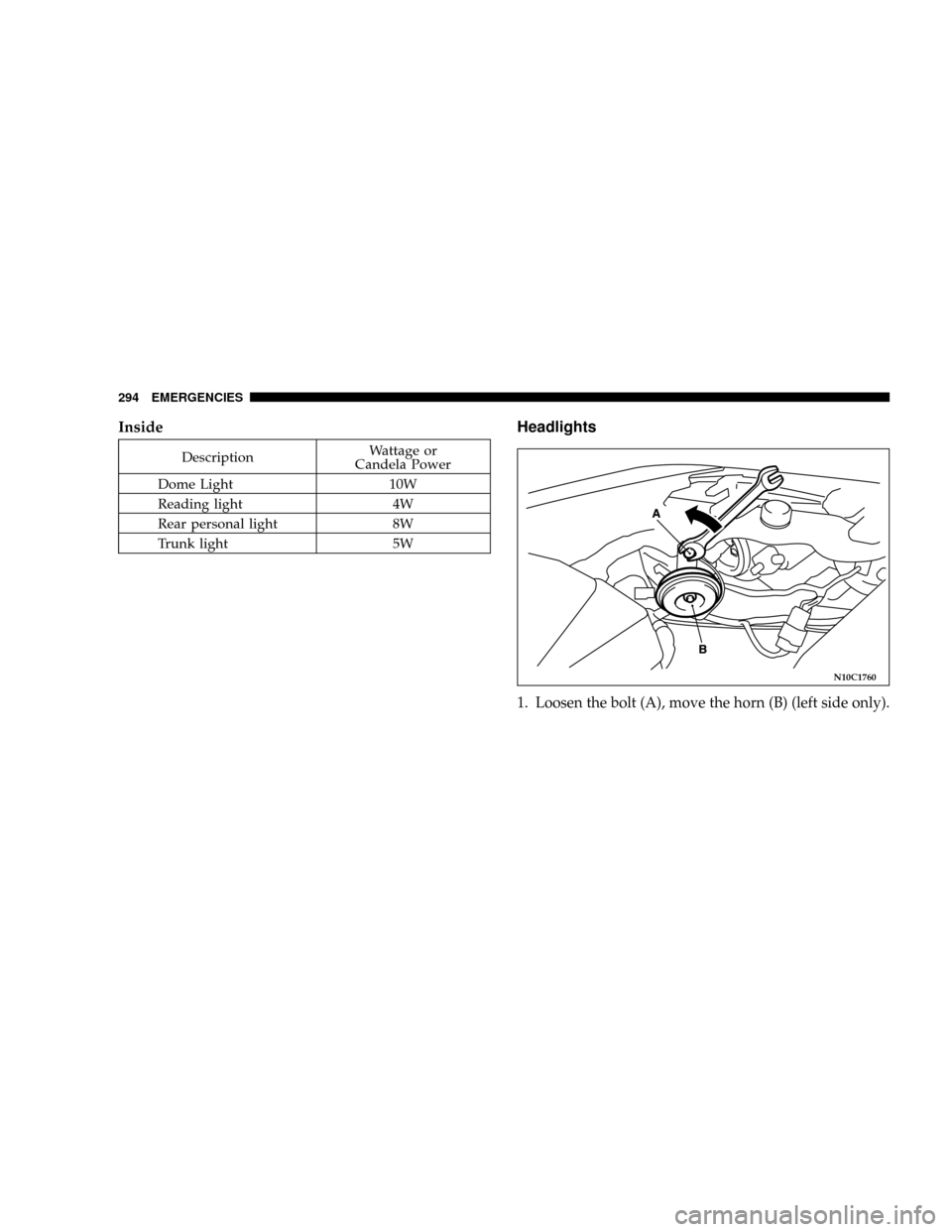

Inside
DescriptionWattage or
Candela Power
Dome Light 10W
Reading light 4W
Rear personal light 8W
Trunk light 5W
Headlights
1. Loosen the bolt (A), move the horn (B) (left side only).
N10C1760
294 EMERGENCIES

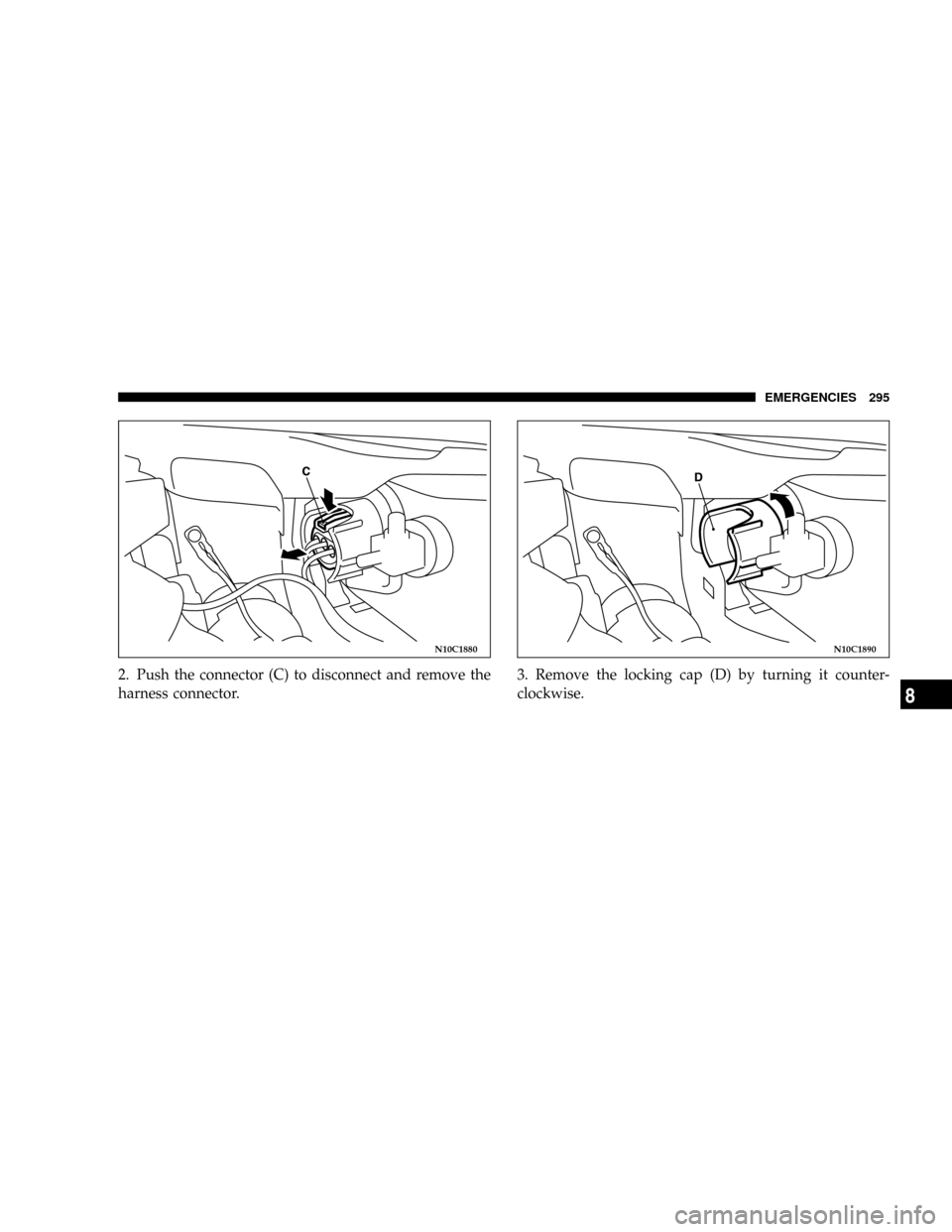

2. Push the connector (C) to disconnect and remove the
harness connector.3. Remove the locking cap (D) by turning it counter-
clockwise.
N10C1880N10C1890
EMERGENCIES 295
8

4. Remove the bulb (E).
CAUTION!
²Never hold the halogen light bulb with a bare
hand, dirty glove, etc. The oil from your hand
could cause the bulb to break the next time the
headlights are operated.
If the glass surface is dirty, it should be cleaned
with alcohol and installed after drying thor-
oughly.
N10C1900
N10C1160
