UNDERSTANDING THE FEATURES OF YOUR VEHICLE 53
3
MIRROR A DJUSTMENT
Interior Mirror (Optional)1. Normal position (DAY)
2. Anti-glare position (NIGHT)
Electrically A djustable Exterior Mirror (Optional)The switch is located in the door lining next to the door
handle.
Mirror adjustment, left (1)
Mirror adjustment, right (2)
When the key is in position 2 in the ignition lock, each
mirror may be adjusted by pressing the adjustment
button.NOTE:
The exterior mirror is heated automatically
(optional equipment) when outdoor temperatures are low.
Freightliner-all.book Pag e 53 Monday , December 1, 2003 2:54 PM

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 57
3

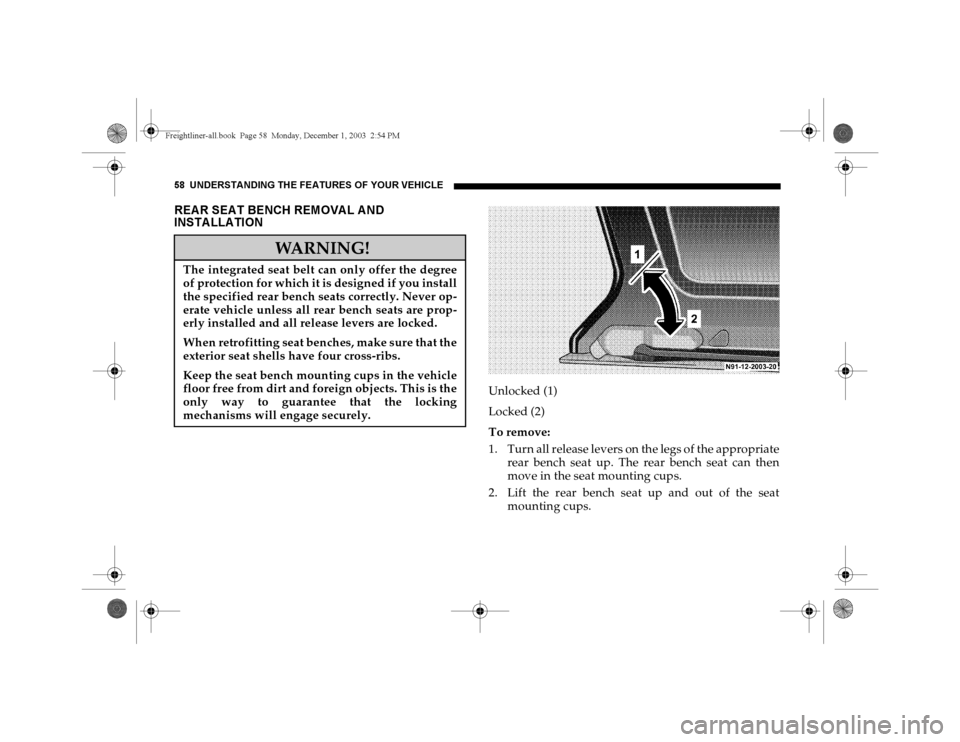

Folding Seat at Partition (Optional)Key (1)
Seat cushion (2)
Fold down the seat cushion of the folding seat.
SEAT HEATER (OPTIONAL)The seat heater switch is located on
the center section of the dashboard.
The seat heater only works when the
key is in position 2 in the ignition
lock .
Low heating output, press top of the seat heater switch.
The left indicator lamp in the switch illuminates.
High heating output, press bottom of seat heater
switch. The right indicator lamp in the switch
illuminates.WARNING!
When folding down the seat cushion, make sure
that nobody can become trapped.
The risk of injury to the front-passenger is
increased in the event of sharp steering
movements or an accident if a key is inserted in
the passenger/cargo area sliding door lock.
Remove the key from the load compartment
sliding door before using the folding seat.
Freightliner-all.book Pag e 57 Monday , December 1, 2003 2:54 PM

58 UNDERSTANDING THE FEATURES OF YOUR VEHICLEREA R SEA T BENCH REMOVA L A ND
INSTALLATION
Unlocked (1)
Locked (2)
To remove:
1. Turn all release levers on the legs of the appropriate
rear bench seat up. The rear bench seat can then
move in the seat mounting cups.
2. Lift the rear bench seat up and out of the seat
mounting cups.
WARNING!
The integrated seat belt can only offer the degree
of protection for which it is designed if you install
the specified rear bench seats correctly. Never op-
erate vehicle unless all rear bench seats are prop-
erly installed and all release levers are locked.
When retrofitting seat benches, make sure that the
exterior seat shells have four cross-ribs.
Keep the seat bench mounting cups in the vehicle
floor free from dirt and foreign objects. This is the
only way to guarantee that the locking
mechanisms will engage securely.
Freightliner-all.book Pag e 58 Monday , December 1, 2003 2:54 PM

60 UNDERSTANDING THE FEATURES OF YOUR VEHICLEHOOD
To open:
1. Pull the release lever (1).
The hood then opens slightly and is restrained by
the safety catch.
WARNING!
When the hood is open, there is a risk of injury due
to very hot engine components.
When the engine is running or the key is in
position 2 in the ignition lock, there is a risk of
injury due to moving engine components and the
electrical system.
The engine is equipped with a transistorized
ignition system. Because of the high voltage it is
dangerous to touch any components (ignition coils,
spark plug sockets, diagnostic socket) of the
ignition system with the engine running, while
starting or if the ignition is on and the engine is
turned manually.
To help prevent severe personal injuries and death,
stay clear of moving parts when the hood is open
and the engine is running.
If you see flames or smoke coming from the engine
compartment, or if the coolant\temperature gauge
indicates that the engine is overheated, do not open
the hood. Move away from vehicle and do not open
the hood until the engine has cooled. If necessary,
call the fire department.
Freightliner-all.book Pag e 60 Monday , December 1, 2003 2:54 PM

62 UNDERSTANDING THE FEATURES OF YOUR VEHICLEHEA DLA MP RA NGE CONTROLSee Section 4, Understanding Your Instrument Panel,
for switch locations.
The range of the headlamps can be
adjusted to the load in the vehicle.
Turn the thumbwheel down to
headlamp beam down.
Turn the thumbwheel up to
headlamp beam up.
When the vehicle is not loaded (driver only), the
thumbwheel must be in position 0.Where necessary, adjust the headlamp range with the
thumbwheel to 82 yards (75 m).
Always keep the headlamp range less than 110 yards
(100 m), so that oncoming traffic is not blinded.
FOG LA MP SWITCH (OPTIONA L)See Section 4, Understanding Your Instrument Panel,
for switch locations.
Lamp switch position õ
To switch on:
Press the upper section of the switch.
To switch off:
Press the lower section.
WARNING!
Be sure the hood is properly closed before driving.
If the hood is not fully latched, it could fly up
when the vehicle is moving and block your for-
ward vision. Be sure all hood latches are latched
fully before driving.
When closing the hood, use extreme caution not to
catch hands or fingers.
Freightliner-all.book Pag e 62 Monday , December 1, 2003 2:54 PM

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 67
3
Lamp switch (3)
CSide lamps, license plate and instrument
lighting
õLow beam headlamps, high beam
headlamps
ƒMarker lamps, right, combination switch
up (1)
Marker lamps, left, combination switch
down (2)High beam headlamps (lamp switch positionõ) (4)
Headlamp flasher (also when turn signals are on) (5)
NOTE: When the key is in the ignition lock in the 0
position and the driver’s or passenger’s door is open, a
warning buzzer sounds, if the vehicle exterior lighting
(except for the marker lamps) has been switched on.
On vehicles with automatic switching-off of high
beam, with the key in 0 position and the lamp switch
position õ on low and high beam, parking lamps
are automatically switched on. When the driver’s or
passenger’s door is opened, a warning buzzer also
sounds.
For high beam (4) and headlamp flasher (5), the
indicator lamp A in the combination instrument
lights up.Freightliner-all.book Pag e 67 Monday , December 1, 2003 2:54 PM

68 UNDERSTANDING THE FEATURES OF YOUR VEHICLEWINDOW OPERA TION
Mechanical Window OperationTo open the window:
Turn the manual window control in a
counterclockwise direction.
To close the window:
Turn the manual window control in a clockwise
direction.
Electric Window Operation (Optional)
The window operation switches are
located on the driver’s and front-
passenger doors.WARNING!
Make certain that no one gets caught when the
side windows are closed.
The key should be removed from the ignition lock
even if the vehicle will only be left for a short time
to prevent situations such as children or
unauthorized persons opening and closing the
windows and becoming caught.
Freightliner-all.book Pag e 68 Monday , December 1, 2003 2:54 PM

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 69
3
Place the key in position 2 in the ignition lock.
To open the window:
Keep switch pressed downward until the window has
reached the desired position.
To close the window:
Keep switch pressed upward until the window has
reached the desired position.
WINDSHIELD WIPER SWITCHIntermittent wipe and rain sensor (optional) (1)
Normal wipe (2)
Rapid wipe (3)
Windshield washer system (4)
