5–72WELECTRICAL WIRING DIAGRAMS
2–2) SIRIUS D4a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P TCMUpper Driver Leg Room
C208 (15 Pin, White)I.P FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C FAT C . A u xBetween Heater Core and Evaporator Core
S202 (Black)I.PBehind Cluster
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G102FrontBehind Right Head Lamp
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1234 of 2643
5–74WELECTRICAL WIRING DIAGRAMS
9. RADIATOR COOLING FAN CIRCUIT

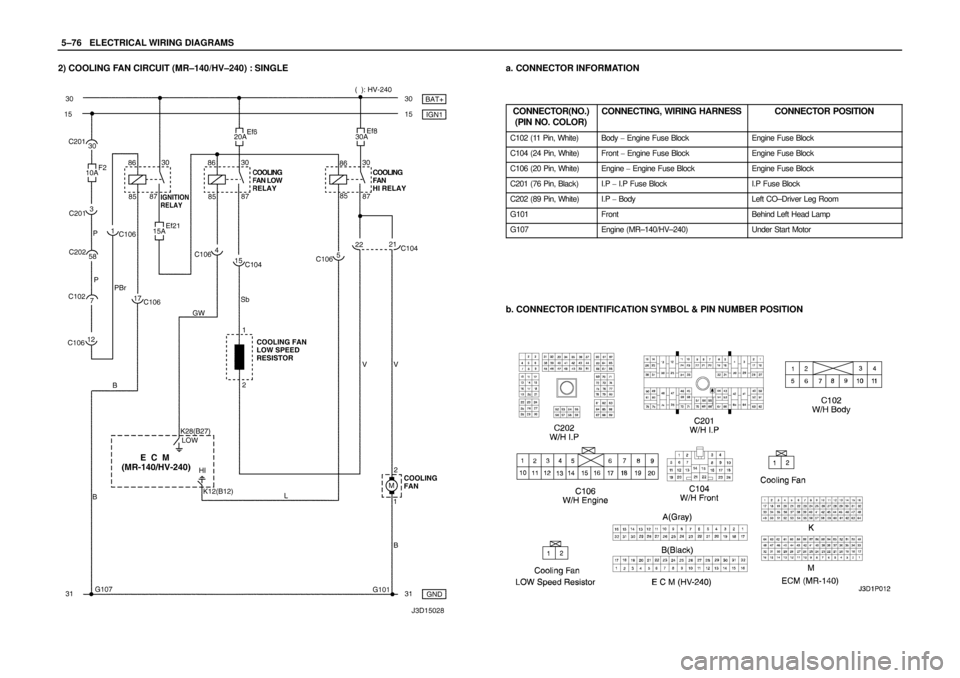

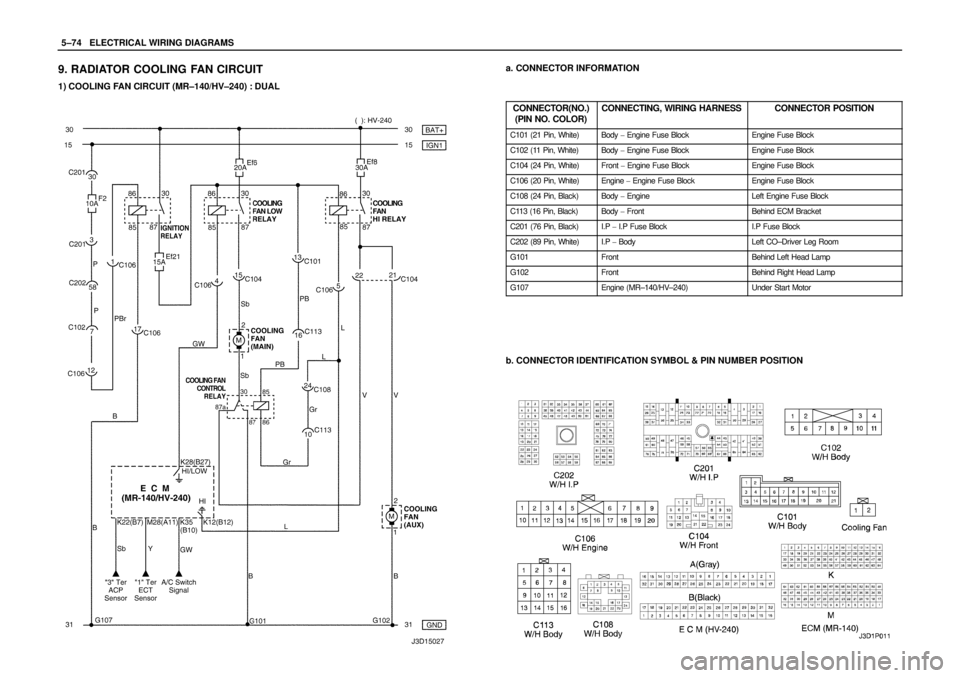

1) COOLING FAN CIRCUIT (MR–140/HV–240) : DUAL
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1236 of 2643
5–76WELECTRICAL WIRING DIAGRAMS

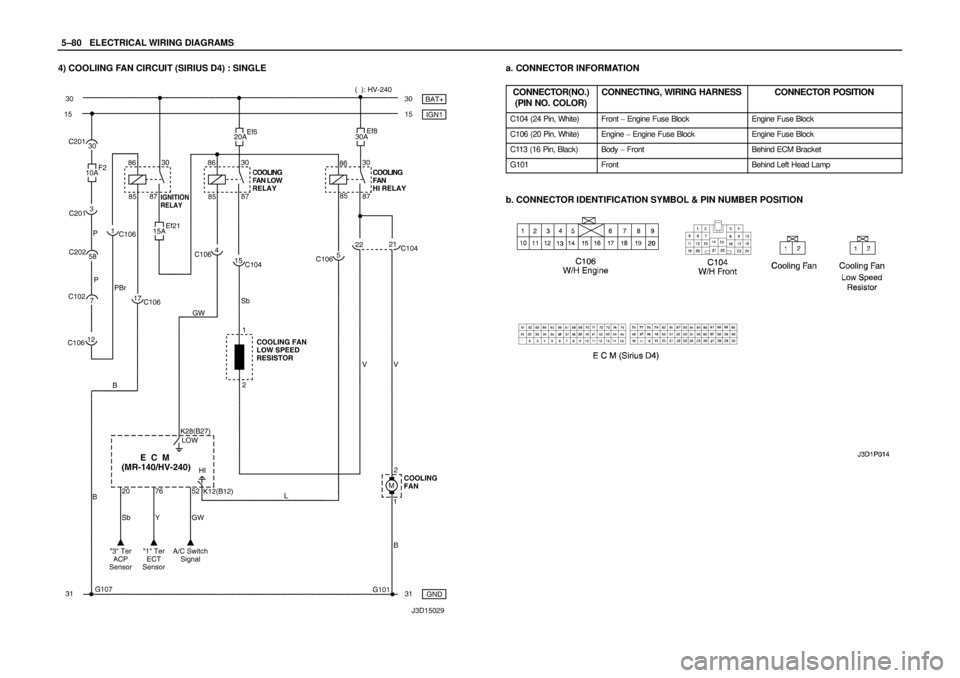

2) COOLING FAN CIRCUIT (MR–140/HV–240) : SINGLEa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1238 of 2643
5–78WELECTRICAL WIRING DIAGRAMS

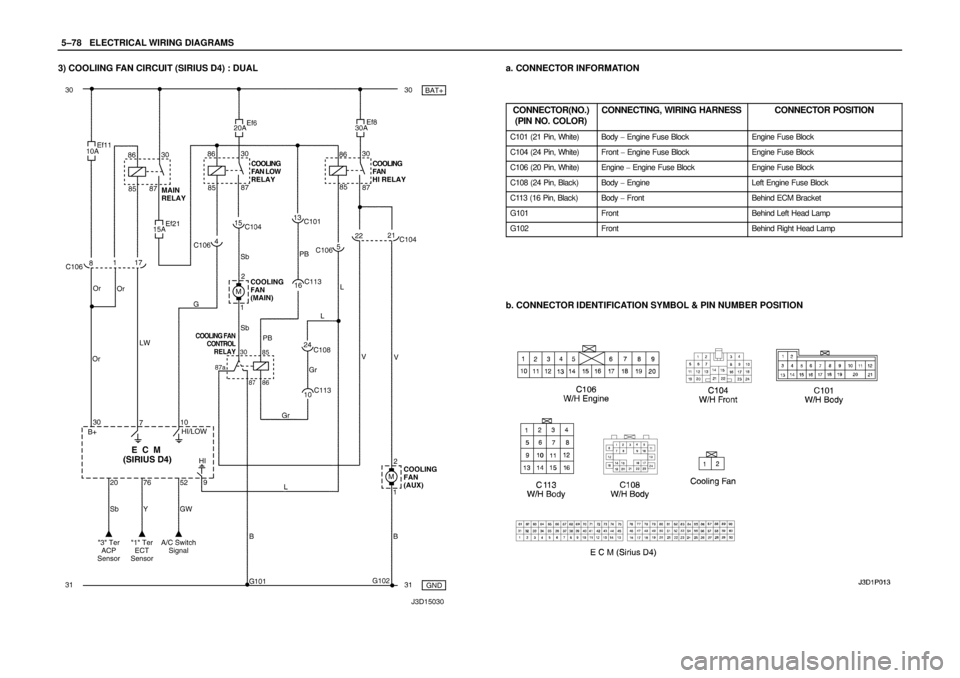

3) COOLIING FAN CIRCUIT (SIRIUS D4) : DUALa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1240 of 2643
5–80WELECTRICAL WIRING DIAGRAMS
4) COOLIING FAN CIRCUIT (SIRIUS D4) : SINGLEa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
G101FrontBehind Left Head Lamp
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1242 of 2643
5–82WELECTRICAL WIRING DIAGRAMS

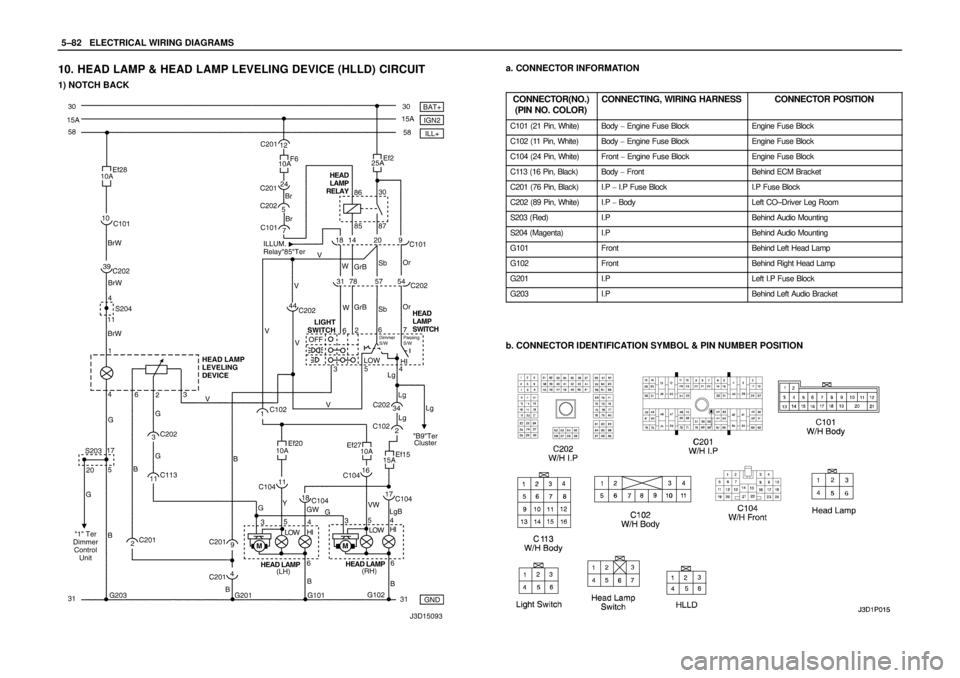

10. HEAD LAMP & HEAD LAMP LEVELING DEVICE (HLLD) CIRCUIT
1) NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1244 of 2643
5–84WELECTRICAL WIRING DIAGRAMS

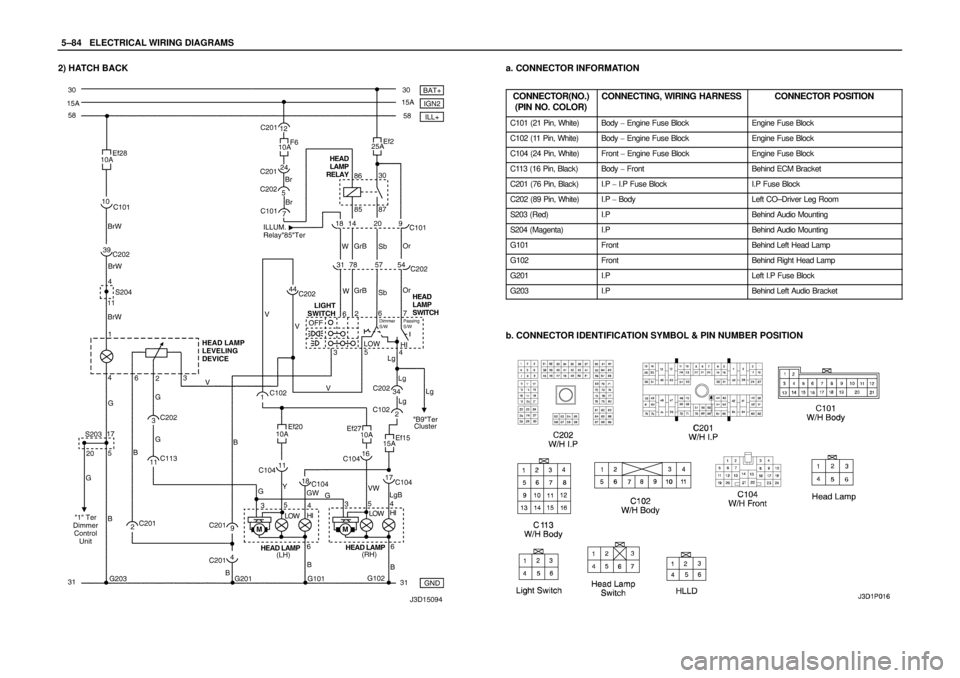

2) HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1246 of 2643
5–86WELECTRICAL WIRING DIAGRAMS
11. ILLUMINATION CIRCUIT
1) ILLUMINATION CIRCUIT – W/O DIMMER CONTROL
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
C208 (15 Pin, White)I.P FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C FAT C . A u xBetween Heater Core and Evaporator Core
C210 (6 Pin, White)I.P ConsoleBelow Console Box
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P033
