5–56WELECTRICAL WIRING DIAGRAMS
6. TCM (TRANSMISSION CONTROL MODULE) : SIRIUS D4

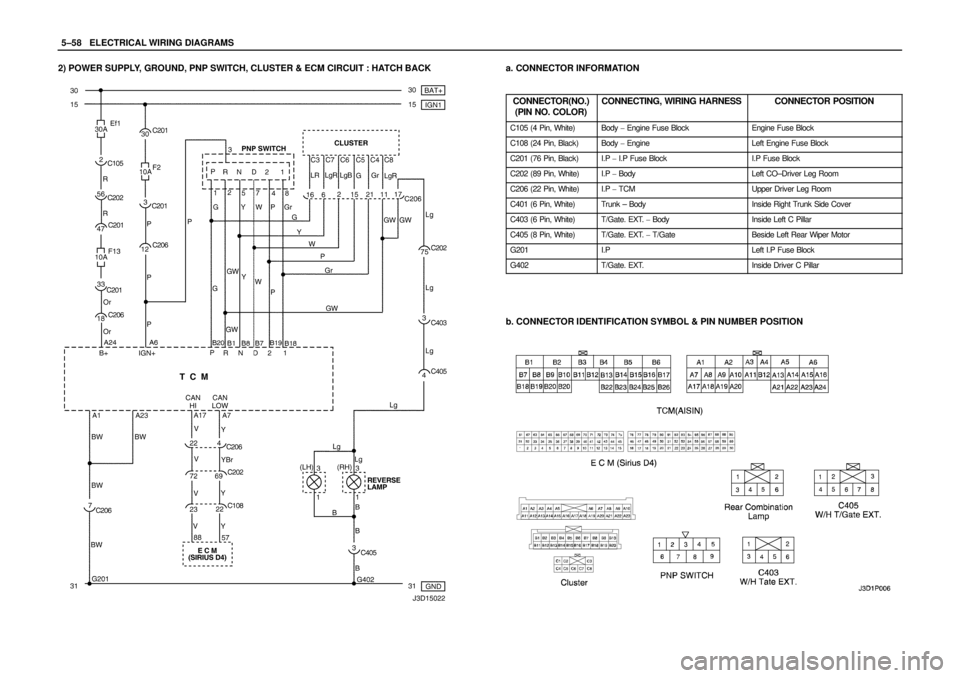

1) POWER SUPPLY, GROUND, PNP SWITCH, CLUSTER & ECM CIRCUIT : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C401 (8 Pin, White)Trunk
BodyInside Right Trunk Side Cover
G201I.PLeft I.P Fuse Block
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P074

5–58WELECTRICAL WIRING DIAGRAMS
2) POWER SUPPLY, GROUND, PNP SWITCH, CLUSTER & ECM CIRCUIT : HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C401 (6 Pin, White)Trunk – BodyInside Right Trunk Side Cover
C403 (6 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
G201I.PLeft I.P Fuse Block
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

5–60WELECTRICAL WIRING DIAGRAMS
3) BRAKE SWITCH, BTSI SOLENOID, ISS SENSOR & TRANSAXLE CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

5–62WELECTRICAL WIRING DIAGRAMS
4) HOLD MODE SWITCH, VSS & DLC CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C210 (6 Pin, White)I.P
ConsoleBelow Console Box
S202 (Black)I.PBehind Cluster
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

5–64WELECTRICAL WIRING DIAGRAMS
7. AIR CONDITIONER

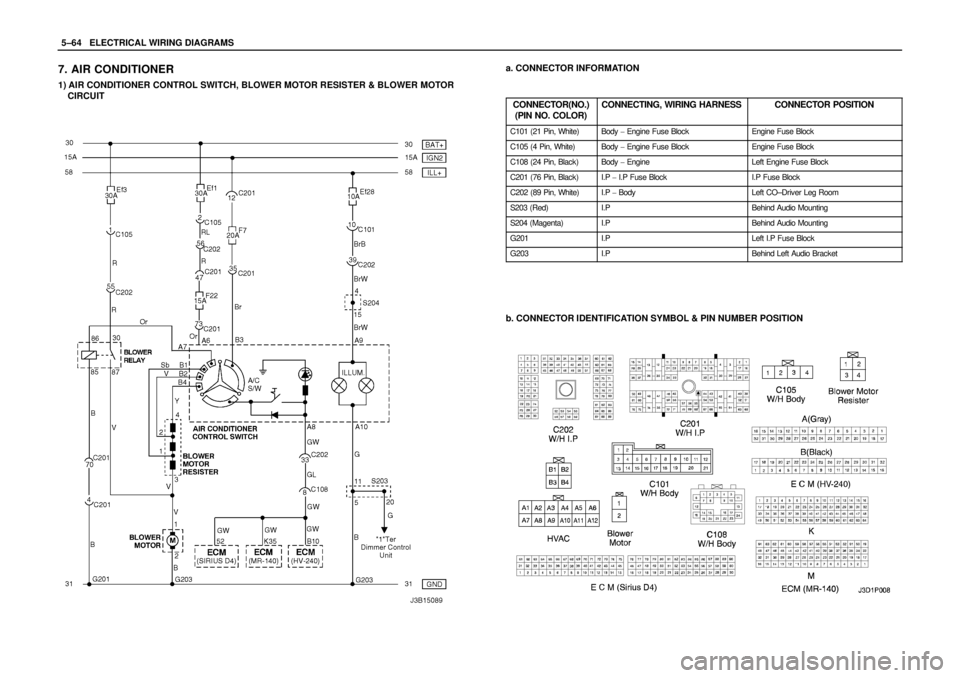

1) AIR CONDITIONER CONTROL SWITCH, BLOWER MOTOR RESISTER & BLOWER MOTOR
CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

5–66WELECTRICAL WIRING DIAGRAMS
2) AIR CONDITIONER CONTROL SWITCH, INTAKE MOTOR & AIR CONDITIONER
COMPRESSOR CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
S203 (Red)I.PBehind Audio Mounting
G102FrontBehind Right Head Lamp
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P026

5–68WELECTRICAL WIRING DIAGRAMS
8. FATC (FULL AUTOMATIC TEMPERATURE CONTROL)
1) BLOWER MOTOR, INTAKE MOTOR, MODE MOTOR, MAX HIGH RELAY & POWER TR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P027

5–70WELECTRICAL WIRING DIAGRAMS
2) SENSOR (AMBIENT, INCAR, SUN & WATER), AIR MIX DOOR MOTOR, A/C COMPRESSOR &
ECM CIRCUIT
2–1) MR–140/HV–240
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
S202 (Black)I.PBehind Cluster
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G102FrontBehind Right Head Lamp
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
