2004 DAEWOO LACETTI fuse diagram

5–40WELECTRICAL WIRING DIAGRAMS
4) MTIA, SENSOR (ECT, KNOCK, IAT, MAP, ACP & O2) & POWER STEERING PRESSURE
SWITCH CIRCUIT : NON EOBDa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P017

5–42WELECTRICAL WIRING DIAGRAMS
5) EEGR VALVE, VR SENSOR, CLUSTER & FUEL PUMP CIRCUIT : EOBDa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P018

5–44WELECTRICAL WIRING DIAGRAMS

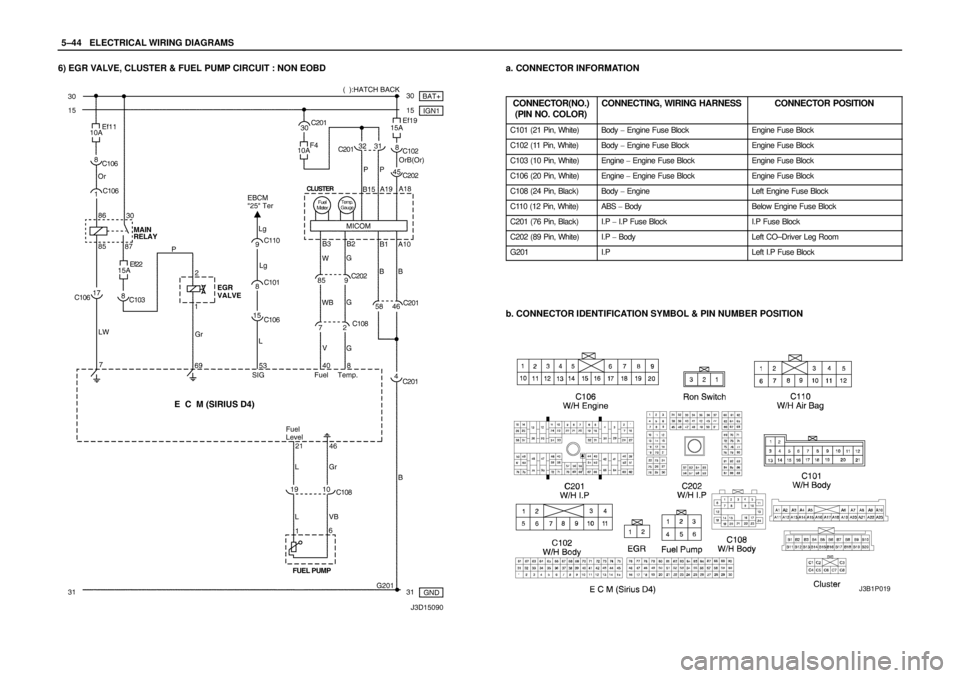

6) EGR VALVE, CLUSTER & FUEL PUMP CIRCUIT : NON EOBDa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P019

5–46WELECTRICAL WIRING DIAGRAMS

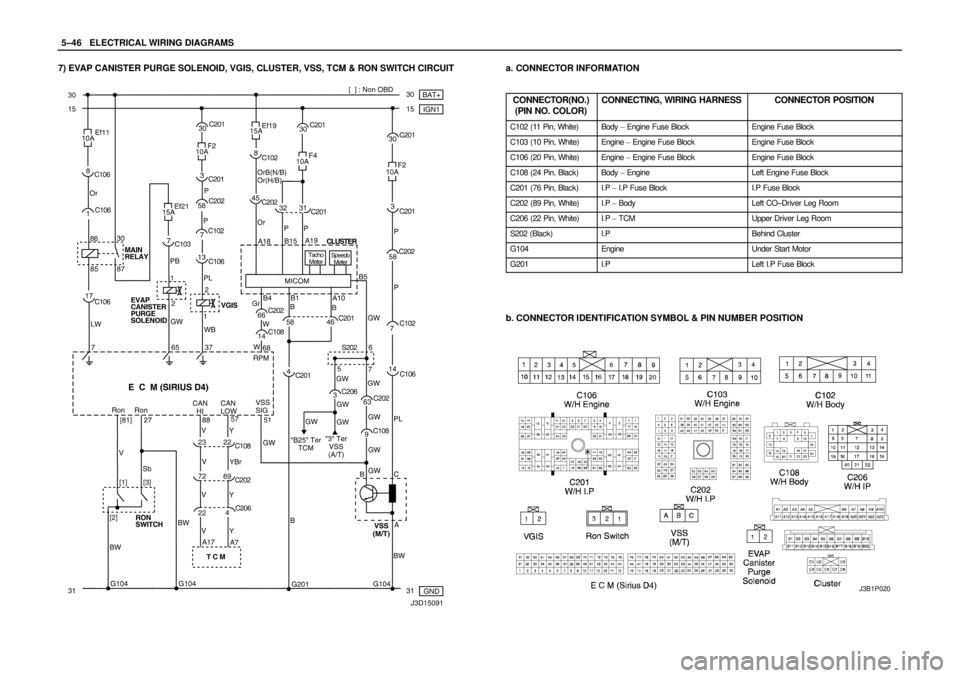

7) EVAP CANISTER PURGE SOLENOID, VGIS, CLUSTER, VSS, TCM & RON SWITCH CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
S202 (Black)I.PBehind Cluster
G104EngineUnder Start Motor
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P020

5–48WELECTRICAL WIRING DIAGRAMS

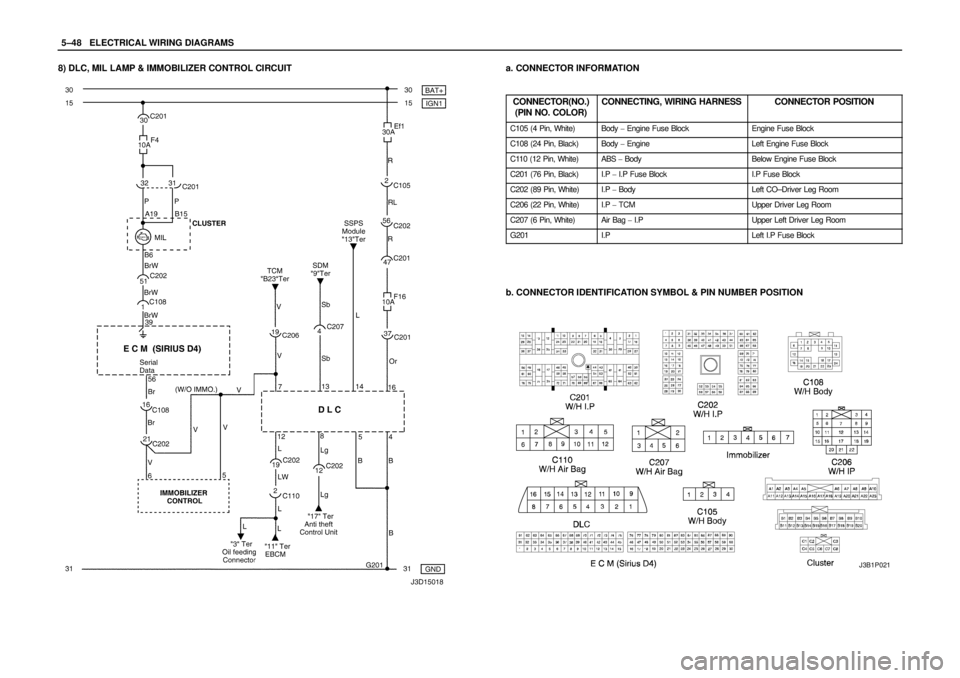

8) DLC, MIL LAMP & IMMOBILIZER CONTROL CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C207 (6 Pin, White)Air Bag
I.PUpper Left Driver Leg Room
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P021

5–50WELECTRICAL WIRING DIAGRAMS

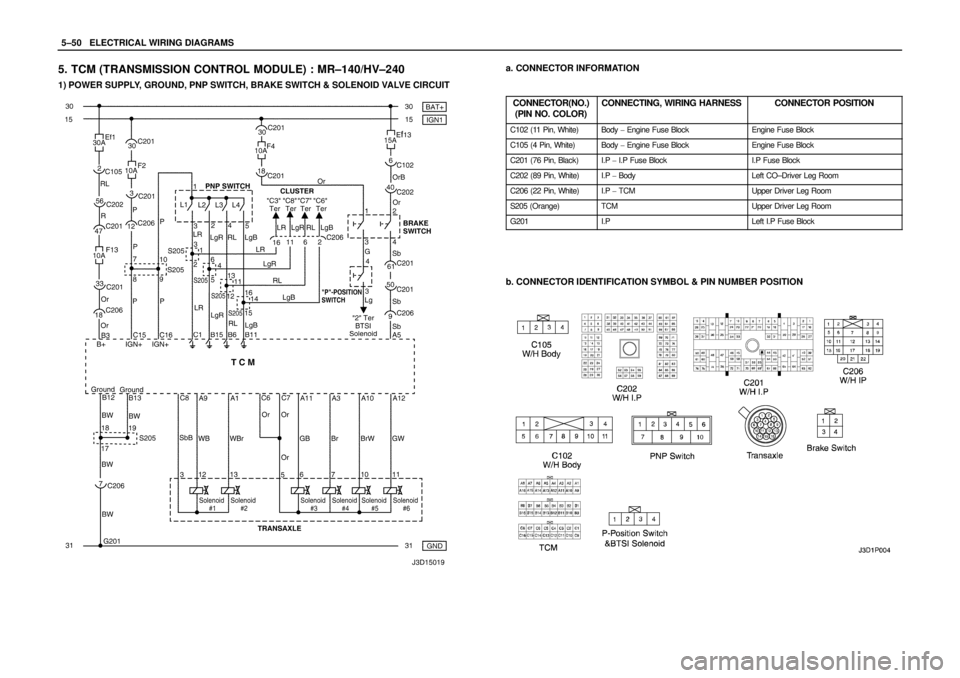

5. TCM (TRANSMISSION CONTROL MODULE) : MR–140/HV–240
1) POWER SUPPLY, GROUND, PNP SWITCH, BRAKE SWITCH & SOLENOID VALVE CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
S205 (Orange)TCMUpper Driver Leg Room
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

5–52WELECTRICAL WIRING DIAGRAMS
2) SENSOR (INPUT SPEED, OUTPUT SPEED & TRANSMISSION FLUID TEMP.), CLUSTER, DLC,
ECM & HOLD MODE SWITCH CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C210 (6 Pin, White)I.P
ConsoleBelow Console Box
S202 (Black)I.PBehind Cluster
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

5–54WELECTRICAL WIRING DIAGRAMS

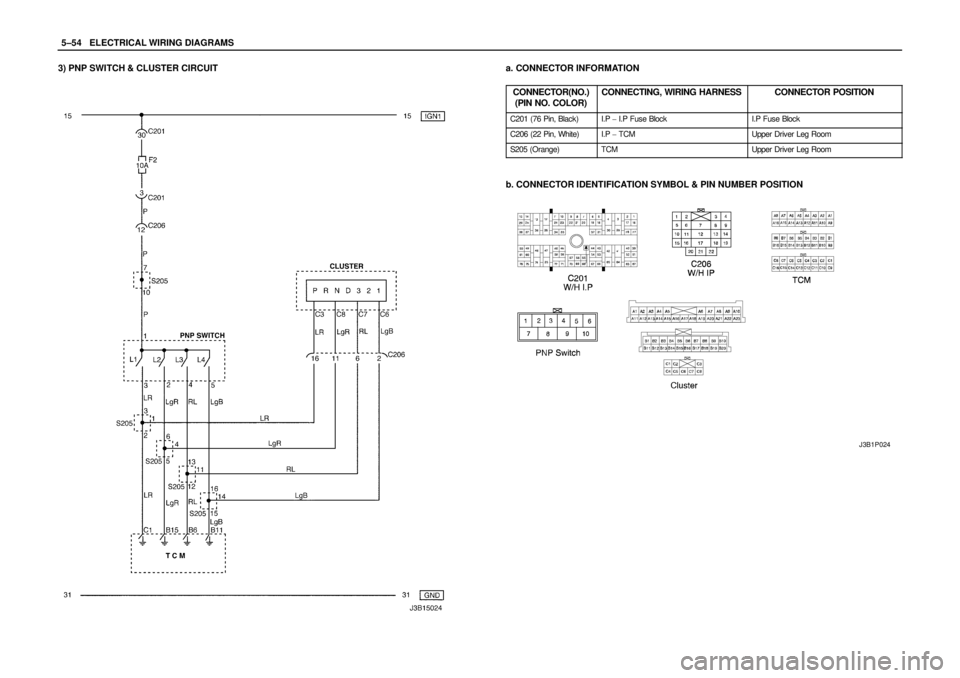

3) PNP SWITCH & CLUSTER CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
S205 (Orange)TCMUpper Driver Leg Room
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P024
