2004 CHEVROLET OPTRA Fuses and circuit breakers

If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when you
signal a turn, check for burned-out bulbs. If the arrow still
does not work, check the fuse. SeeFuses and Circuit
Breakers on page 5-83.
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high beam,
push the turn signal/multifunction lever away from you.
When the high beams are
on, a light on the
instrument panel cluster
also will be on if the
ignition is turned to ON.
To change the headlamps from high beam to low beam,
pull the turn signal lever toward you.
Flash-to-Pass Feature
This feature lets you use your high-beam headlamps to
signal a driver in front of you that you want to pass.
To use it, pull the turn signal/multifunction lever toward
you until the high-beam headlamps come on, then
release the lever to turn them off.
Fog Lamps
If your vehicle has this feature, use your fog lamps for
better visibility in foggy or misty conditions. See
“Fog Lamps” underExterior Lamps on page 3-12for
further information.
3-7

Theft-Deterrent Feature
The theft-deterrent system is designed to discourage
theft of your radio. When the radio and vehicle are
turned off, your radio has a blinking red light to indicate
that the theft-deterrent system is activated.
The theft-deterrent system also activates when the
audio system has been disconnected from the battery.
When this occurs, the AF code and security code
will have to be entered in order to operate your radio.
An identification card stamped with the AF code
and security code will be provided with the vehicle.
Keep it in a safe place, not in the vehicle.
To enter the security code do the following:
1. Turn the ignition to ACC or ON.
2. Turn the radio on. AF or COdE will flash on the
display. If AF flashes on the display, go to Step
2. If COdE flashes on the display, go to Step 4.
3. Enter the AF code by using the preset pushbuttons.
COdE will flash on the display.
4. Enter the security code by using the preset
pushbuttons. When the complete security code is
entered, the code will flash three times.If the security code is not entered correctly, Err will
appear on the display for a few seconds. When
COdE appears back on the display, repeat Step 4.
If the incorrect AF code is entered, an incorrect
frequency level may be chosen and the radio
reception may be affected. If this occurs, reset the
audio system by removing and re-installing the
AUDIO fuse. See “Instrument Panel Fuse Block”
underFuses and Circuit Breakers on page 5-83for
more information. Then repeat Steps 1 through 4.
Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise.
FM
FM stereo will give you the best sound, but FM signals
will reach only about 10 to 40 miles (16 to 65 km).
Tall buildings or hills can interfere with FM signals,
causing the sound to come and go.
3-51

Wheel Alignment and Tire Balance..................5-62
Wheel Replacement......................................5-62
Tire Chains..................................................5-63
If a Tire Goes Flat........................................5-63
Changing a Flat Tire.....................................5-64
Compact Spare Tire......................................5-72
Appearance Care............................................5-73
Cleaning the Inside of Your Vehicle.................5-73
Care of Safety Belts......................................5-76
Weatherstrips...............................................5-76
Cleaning the Outside of Your Vehicle.................5-76
Sheet Metal Damage.....................................5-78
Finish Damage.............................................5-78
Underbody Maintenance................................5-79Chemical Paint Spotting.................................5-79
Vehicle Care/Appearance Materials..................5-79
Vehicle Identication......................................5-81
Vehicle Identification Number (VIN).................5-81
Service Parts Identification Label.....................5-81
Electrical System............................................5-82
Add-On Electrical Equipment..........................5-82
Headlamp Wiring..........................................5-82
Windshield Wiper Fuses................................5-82
Power Windows and Other Power Options.......5-82
Fuses and Circuit Breakers............................5-83
Capacities and Specications..........................5-90
Normal Maintenance Replacement Parts..........5-91
Section 5 Service and Appearance Care
5-2

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-18.
B. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-14.
C. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-14.
D. Brake Fluid/Hydraulic Clutch Fluid Reservoir.
See “Brake Fluid” underBrakes on page 5-35and
Hydraulic Clutch on page 5-20.
E. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-33.F. Engine Coolant Surge Tank. SeeCooling System on
page 5-27.
G. Engine Compartment Fuse Block. See “Engine
Compartment Fuse Block” underFuses and Circuit
Breakers on page 5-83.
H. Battery. SeeBattery on page 5-38.
I. Windshield Washer Fluid Reservoir. SeeWindshield
Washer Fluid on page 5-34.
5-13

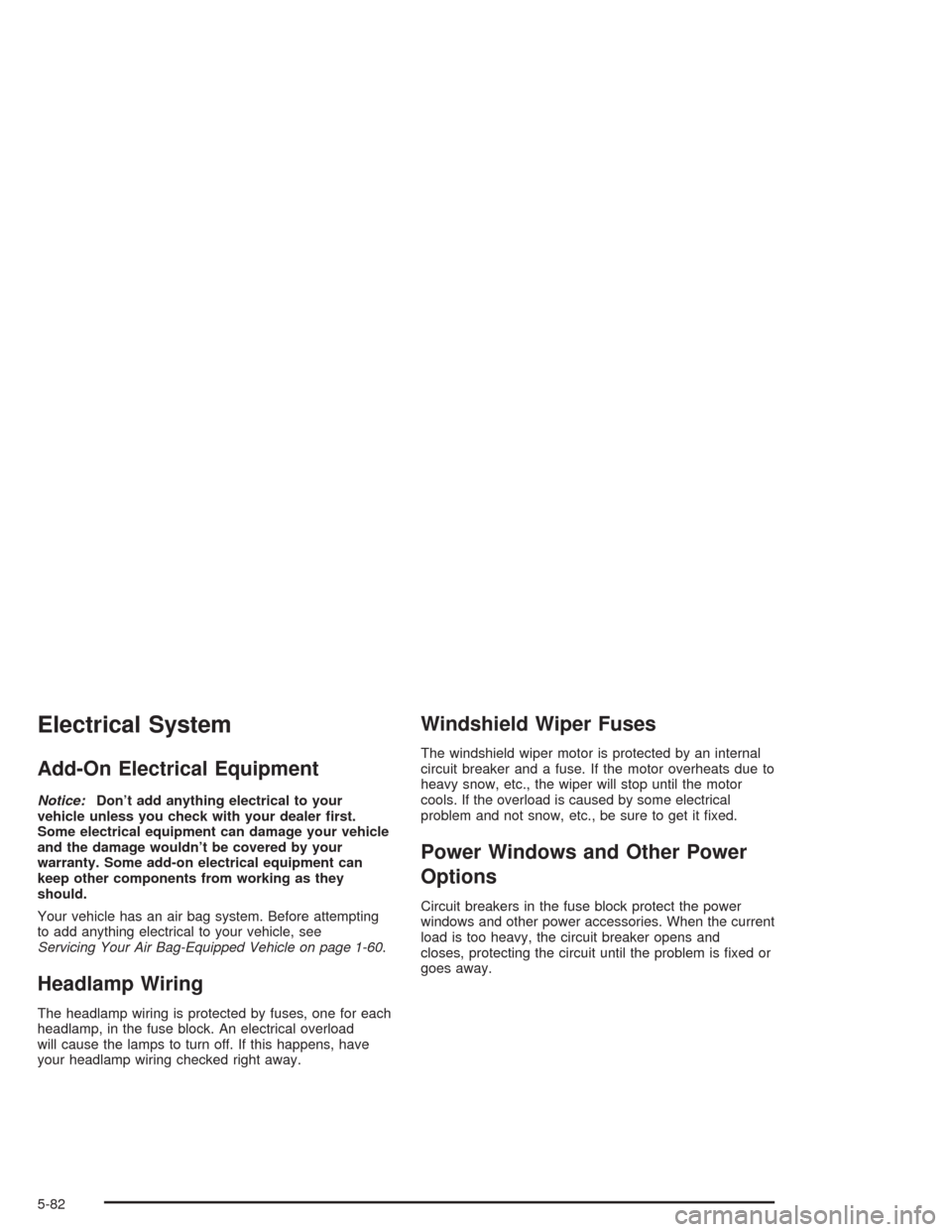

Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as they
should.
Your vehicle has an air bag system. Before attempting
to add anything electrical to your vehicle, see
Servicing Your Air Bag-Equipped Vehicle on page 1-60.
Headlamp Wiring
The headlamp wiring is protected by fuses, one for each
headlamp, in the fuse block. An electrical overload
will cause the lamps to turn off. If this happens, have
your headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem and not snow, etc., be sure to get it fixed.
Power Windows and Other Power
Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and
closes, protecting the circuit until the problem is fixed or
goes away.
5-82

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links in the wiring itself.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
There are spare fuses provided in the engine
compartment fuse block. If you ever have a problem on
the road and do not have a spare fuse, you can borrow
one that has the same amperage. Just pick a feature of
your vehicle that you can get along without — like the
radio or cigarette lighter — and use its fuse, if it is the
correct amperage. Replace it as soon as you can.
There are two fuse blocks in your vehicle: the instrument
panel fuse block and the engine compartment fuse block.
There is a fuse puller located on the engine
compartment fuse block. It can be used to easily
remove fuses from the fuse block.
Instrument Panel Fuse Block
The instrument panel fuse block is located on the end of
the instrument panel, on the driver’s side of the
vehicle. To access the fuses, open the fuse panel door
by pulling out.
To reinstall the door, insert the tabs at the back end
first, then push the door into the instrument panel
to secure it.Sedan shown, Hatchback similar
5-83

D
Daytime Running Lamps (DRL).........................3-13
Daytime Running Lamps Indicator Light.............3-38
Defensive Driving............................................. 4-2
Defogging and Defrosting.................................3-21
Dinghy Towing................................................4-32
Disarming the System.....................................2-17
Doing Your Own Service Work........................... 5-4
Dolly Towing..................................................4-32
Dome Lamp...................................................3-15
Door
Ajar Light...................................................3-38
Central Door Unlocking System....................... 2-8
Door Ajar Reminder....................................... 2-9
Locks.......................................................... 2-7
Power Door Locks......................................... 2-9
Rear Door Security Locks............................... 2-9
Driver
Position, Safety Belt.....................................1-15
Seat Height Adjuster...................................... 1-4
Driving
At Night.....................................................4-14
City...........................................................4-19
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Freeway.....................................................4-20Driving (cont.)
Hill and Mountain Roads..............................4-23
In Rain and on Wet Roads...........................4-16
Winter........................................................4-25
Driving on Snow or Ice....................................4-26
Driving Through Deep Standing Water...............4-18
Driving Through Flowing Water.........................4-18
E
Electrical System
Add-On Equipment......................................5-82
Fuses and Circuit Breakers...........................5-83
Headlamp Wiring.........................................5-82
Power Windows and Other Power Options......5-82
Windshield Wiper Fuses...............................5-82
Emergency Trunk Release Handle.....................2-12
Emissions Inspection and Maintenance
Programs...................................................3-35
Engine
Air Cleaner/Filter.........................................5-18
Battery.......................................................5-38
Check and Service Engine Soon Light............3-33
Coolant......................................................5-21
Coolant Heater............................................2-21
Coolant Temperature Gage...........................3-32
Cooling System Inspection............................6-23
4

Engine (cont.)
Engine Compartment Overview......................5-12
Exhaust.....................................................2-33
Oil .............................................................5-14
Overheating................................................5-24
Starting......................................................2-19
Engine Compartment Fuse Block......................5-86
Engine Coolant Level Check.............................6-18
Engine Oil Additives........................................5-17
Engine Oil Level Check...................................6-18
Event Data Recorders (EDR)............................7-10
Express-Down Window....................................2-15
Exterior Lamps...............................................3-12
F
Filter
Engine Air Cleaner......................................5-18
Finding a Station....................................3-40, 3-44
Finish Care....................................................5-77
Finish Damage...............................................5-78
Five-Speed....................................................2-27
Flash-to-Pass Feature....................................... 3-7
Flat Tire........................................................5-63
Flat Tire, Changing.........................................5-64Fluid
Automatic Transaxle.....................................5-20
Manual Transaxle........................................5-20
Power Steering...........................................5-33
Windshield Washer......................................5-34
FM ...............................................................3-51
Fog Lamp Light..............................................3-37
Fog Lamps..............................................3-7, 3-14
Folding the Seatback........................................ 1-8
Footnotes................................................6-7, 6-13
Front Armrest Storage Area..............................2-39
Front Storage Area.........................................2-38
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container..................... 5-9
Filling Your Tank........................................... 5-7
Fuels in Foreign Countries.............................. 5-7
Gage.........................................................3-39
Gasoline Octane........................................... 5-5
Gasoline Specifications.................................. 5-5
Low Warning Light.......................................3-39
System Inspection.......................................6-23
Fuses
Fuses and Circuit Breakers...........................5-83
Windshield Wiper.........................................5-82
5
