2004 CHEVROLET MALIBU steering

Instrument Panel Fuse Block
Fuses Usage
POWER
MIRRORSPower Mirrors
EPS Electric Power SteeringFuses Usage
RUN/CRANKCruise Control, Electronic
Range Select
HVAC BLOWER
HIGH (Relay)Climate Control System
5-89

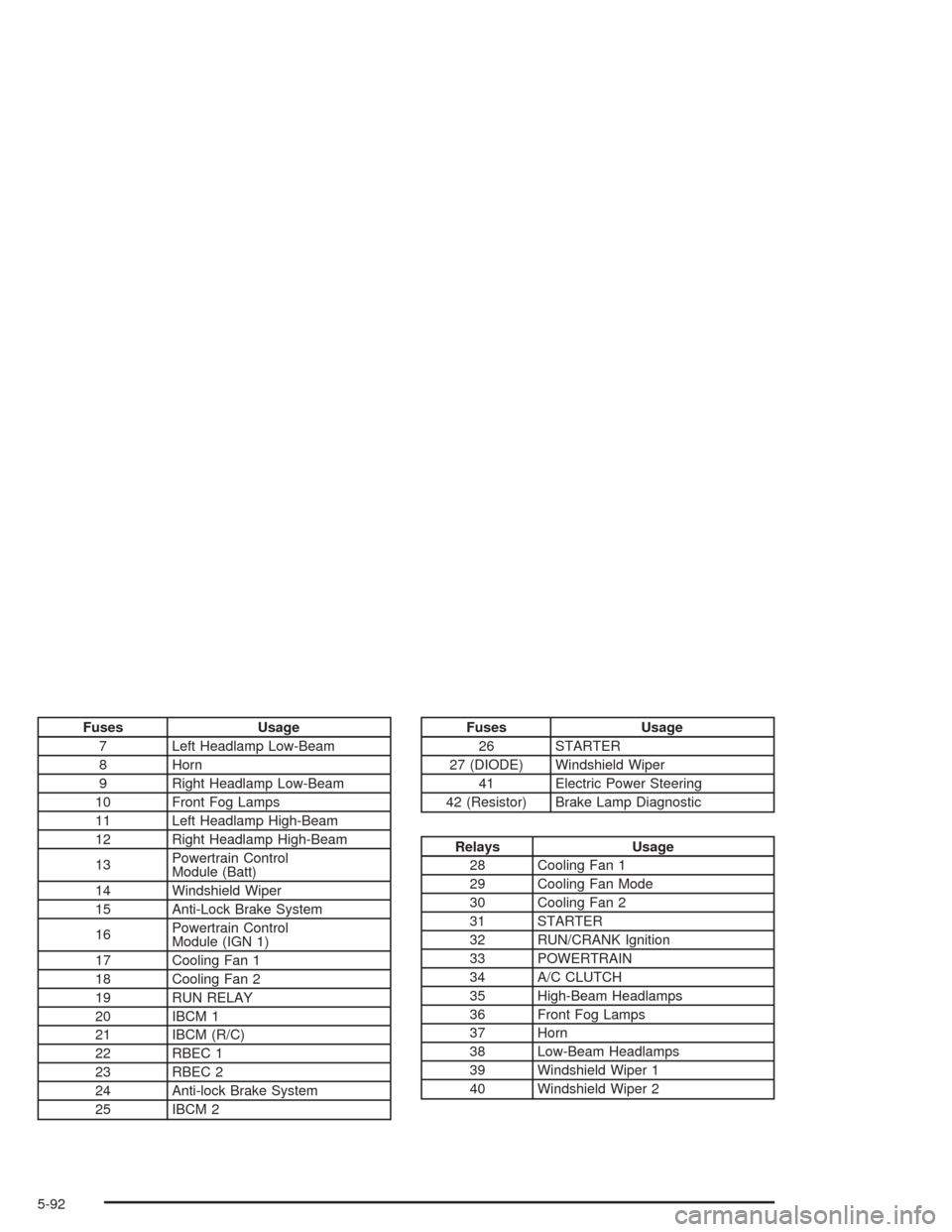

Fuses Usage
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13Powertrain Control
Module (Batt)
14 Windshield Wiper
15 Anti-Lock Brake System
16Powertrain Control
Module (IGN 1)
17 Cooling Fan 1
18 Cooling Fan 2
19 RUN RELAY
20 IBCM 1
21 IBCM (R/C)
22 RBEC 1
23 RBEC 2
24 Anti-lock Brake System
25 IBCM 2Fuses Usage
26 STARTER
27 (DIODE) Windshield Wiper
41 Electric Power Steering
42 (Resistor) Brake Lamp Diagnostic
Relays Usage
28 Cooling Fan 1
29 Cooling Fan Mode
30 Cooling Fan 2
31 STARTER
32 RUN/CRANK Ignition
33 POWERTRAIN
34 A/C CLUTCH
35 High-Beam Headlamps
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamps
39 Windshield Wiper 1
40 Windshield Wiper 2
5-92

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. Reset oil life system. SeeEngine Oil on
page 5-17.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 5-22.An Emission Control Service. See footnote †.••
Rotate tires and check ination pressures and wear. SeeTires on page 5-50.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Inspect throttle system.See footnote (g).•
6-5

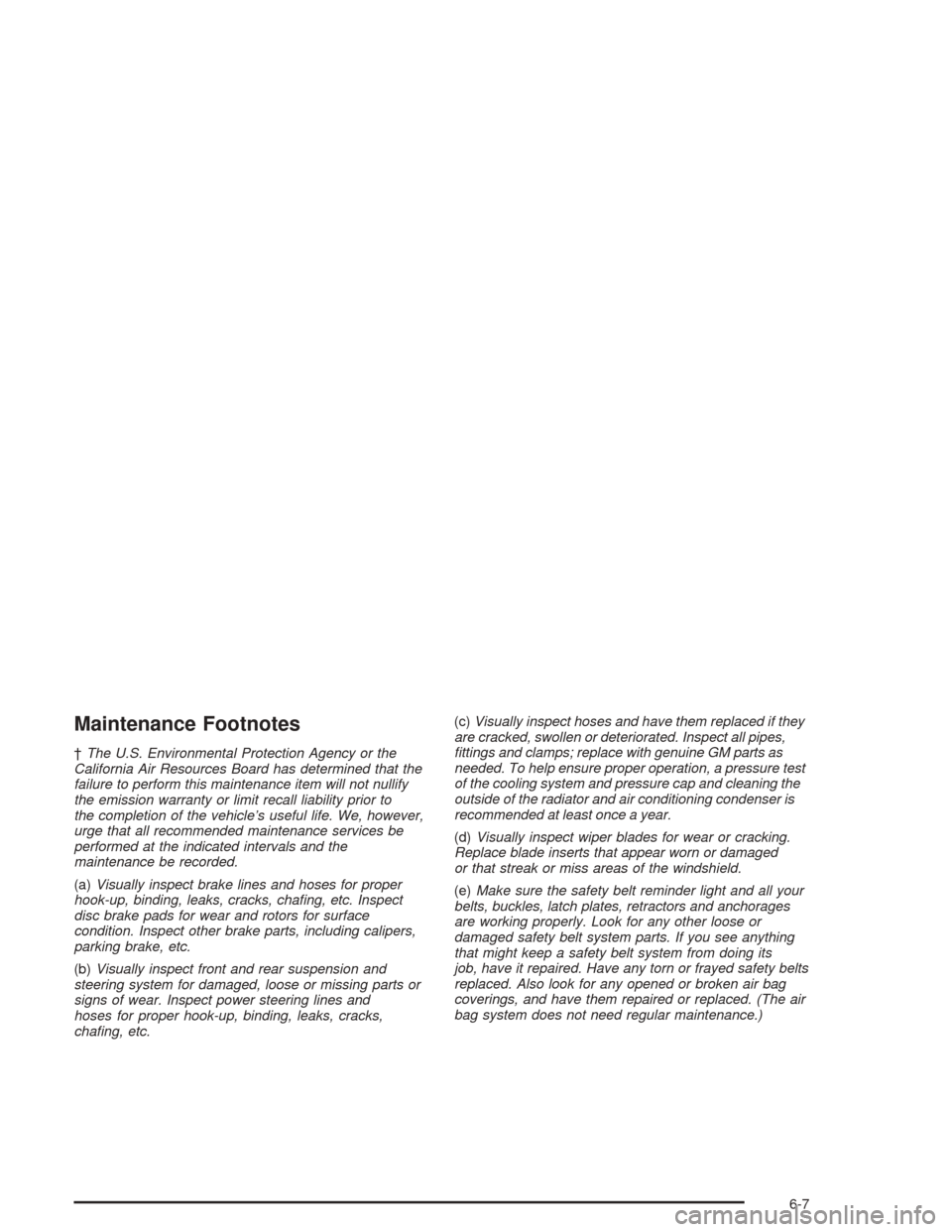

Maintenance Footnotes
†The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
(a)Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chang, etc. Inspect
disc brake pads for wear and rotors for surface
condition. Inspect other brake parts, including calipers,
parking brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose or missing parts or
signs of wear. Inspect power steering lines and
hoses for proper hook-up, binding, leaks, cracks,
chang, etc.(c)Visually inspect hoses and have them replaced if they
are cracked, swollen or deteriorated. Inspect all pipes,
ttings and clamps; replace with genuine GM parts as
needed. To help ensure proper operation, a pressure test
of the cooling system and pressure cap and cleaning the
outside of the radiator and air conditioning condenser is
recommended at least once a year.
(d)Visually inspect wiper blades for wear or cracking.
Replace blade inserts that appear worn or damaged
or that streak or miss areas of the windshield.
(e)Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken air bag
coverings, and have them repaired or replaced. (The air
bag system does not need regular maintenance.)
6-7

Reporting Safety Defects to the
Canadian Government
If you live in Canada, and you believe that your vehicle
has a safety defect, you should immediately notify
Transport Canada, in addition to notifying General
Motors of Canada Limited. You may write to:
Transport Canada
330 Sparks Street
Tower C
Ottawa, Ontario K1A 0N5
Reporting Safety Defects to
General Motors
In addition to notifying NHTSA (or Transport Canada) in
a situation like this, we certainly hope you’ll notify us.
Please call us at 1-800-222-1020, or write:
Chevrolet Motor Division
Chevrolet Customer Assistance Center
P.O. Box 33170
Detroit, MI 48232-5170
In Canada, please call us at 1-800-263-3777 (English)
or 1-800-263-7854 (French). Or, write:
General Motors of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle, suspension,
brakes, electrical, steering, body, etc.
RETAIL SELL PRICE: $120.00
Transmission, Transaxle, Transfer
Case Unit Repair Manual
This manual provides information on unit repair service
procedures, adjustments, and specications for GM
transmissions, transaxles, and transfer cases.
RETAIL SELL PRICE: $50.00
7-12

A
Accessory Power Outlets.................................3-20
Adding Washer Fluid.......................................5-34
Additional Program Information........................... 7-9
Additives, Fuel................................................. 5-7
Add-On Electrical Equipment............................5-87
Adjustable Throttle and Brake Pedal..................2-24
Adjusting the Speakers
(Balance/Fade)....................3-55, 3-62, 3-73, 3-86
Air Bag
Readiness Light..........................................3-34
Air Bag Systems.............................................1-52
How Does an Air Bag Restrain?....................1-58
Servicing Your Air Bag-Equipped Vehicle.........1-60
What Makes an Air Bag Inate?....................1-58
What Will You See After an Air Bag Inates?......1-58
When Should an Air Bag Inate?...................1-57
Where Are the Air Bags?..............................1-54
Air Cleaner/Filter, Engine.................................5-22
Airbag Sensing and Diagnostic Module (SDM).......7-10
AM .............................................................3-116
Antenna, Backglass.......................................3-119
Antenna, Fixed Mast......................................3-118
Antenna, XM™ Satellite Radio Antenna
System.....................................................3-119
Anti-lock Brake System (ABS)............................ 4-7
Anti-Lock Brake, System Warning Light..............3-37Appearance Care............................................5-78
Care of Safety Belts....................................5-81
Chemical Paint Spotting...............................5-84
Cleaning the Inside of Your Vehicle................5-78
Cleaning the Outside of Your Vehicle..............5-81
Finish Damage............................................5-83
Sheet Metal Damage...................................5-83
Underbody Maintenance...............................5-84
Vehicle Care/Appearance Materials................5-84
Weatherstrips..............................................5-81
Arming the System.........................................2-18
Audio Speakers..............................................3-98
Audio System(s).............................................3-52
Audio Steering Wheel Controls....................3-115
Backglass Antenna.....................................3-119
Care of Your Cassette Tape Player...............3-117
Care of Your CD and DVD Player................3-118
Care of Your CDs and DVDs.......................3-118
Fixed Mast Antenna...................................3-118
Radio with Cassette and CD.........................3-69
Radio with CD....................................3-53, 3-58
Radio with Six-Disc CD................................3-82
Rear Seat Audio (RSA).....................3-111, 3-113
Setting the Time for Radios with Radio Data
Systems (RDS)........................................3-53
Setting the Time for Radios without Radio
Data Systems (RDS)................................3-52
1

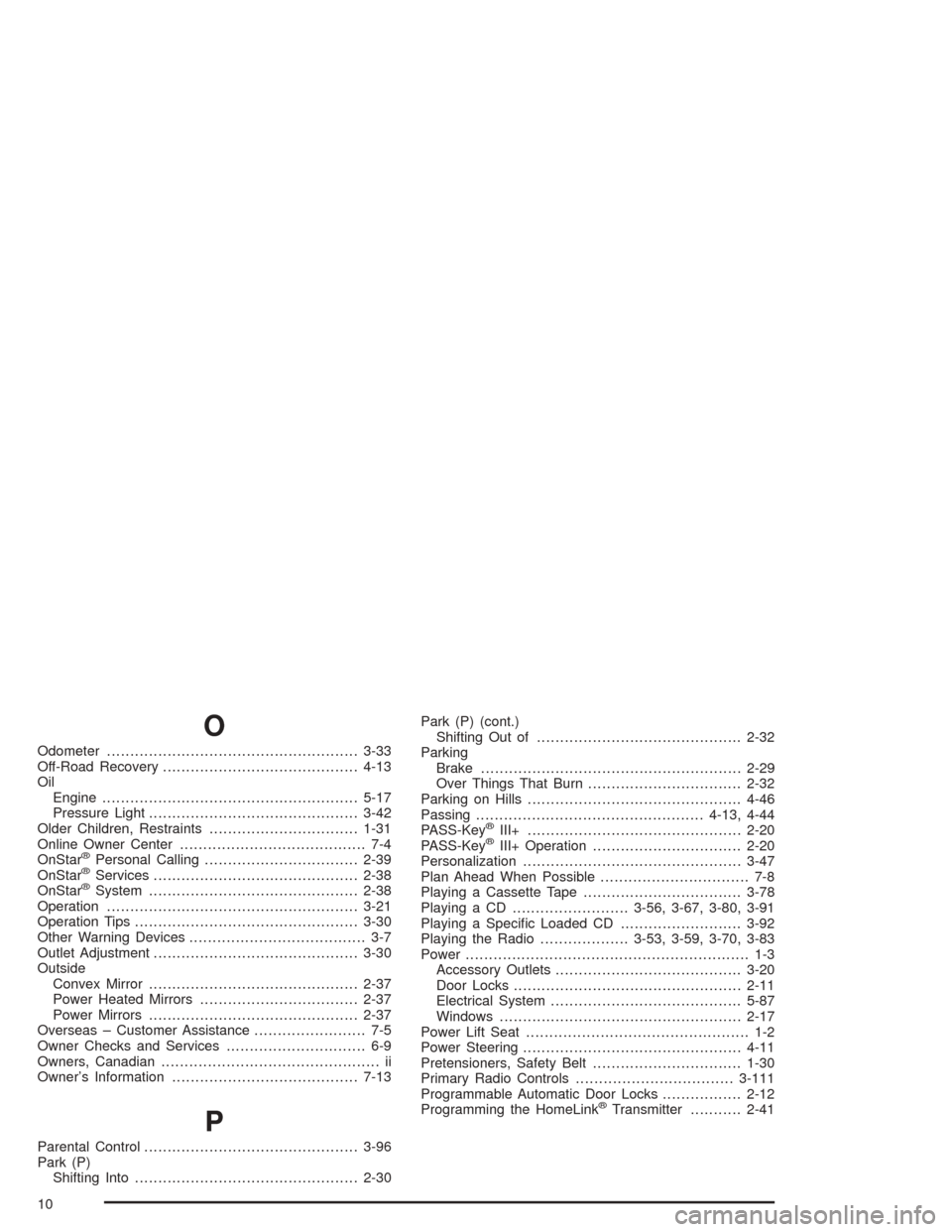

O
Odometer......................................................3-33
Off-Road Recovery..........................................4-13
Oil
Engine.......................................................5-17
Pressure Light.............................................3-42
Older Children, Restraints................................1-31
Online Owner Center........................................ 7-4
OnStar
®Personal Calling.................................2-39
OnStar®Services............................................2-38
OnStar®System.............................................2-38
Operation......................................................3-21
Operation Tips................................................3-30
Other Warning Devices...................................... 3-7
Outlet Adjustment............................................3-30
Outside
Convex Mirror.............................................2-37
Power Heated Mirrors..................................2-37
Power Mirrors.............................................2-37
Overseas – Customer Assistance........................ 7-5
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
Owner’s Information........................................7-13
P
Parental Control..............................................3-96
Park (P)
Shifting Into................................................2-30Park (P) (cont.)
Shifting Out of............................................2-32
Parking
Brake........................................................2-29
Over Things That Burn.................................2-32
Parking on Hills..............................................4-46
Passing.................................................4-13, 4-44
PASS-Key
®III+..............................................2-20
PASS-Key®III+ Operation................................2-20
Personalization...............................................3-47
Plan Ahead When Possible................................ 7-8
Playing a Cassette Tape..................................3-78
Playing a CD.........................3-56, 3-67, 3-80, 3-91
Playing a Specic Loaded CD..........................3-92
Playing the Radio...................3-53, 3-59, 3-70, 3-83
Power............................................................. 1-3
Accessory Outlets........................................3-20
Door Locks.................................................2-11
Electrical System.........................................5-87
Windows....................................................2-17
Power Lift Seat................................................ 1-2
Power Steering...............................................4-11
Pretensioners, Safety Belt................................1-30
Primary Radio Controls..................................3-111
Programmable Automatic Door Locks.................2-12
Programming the HomeLink
®Transmitter...........2-41
10

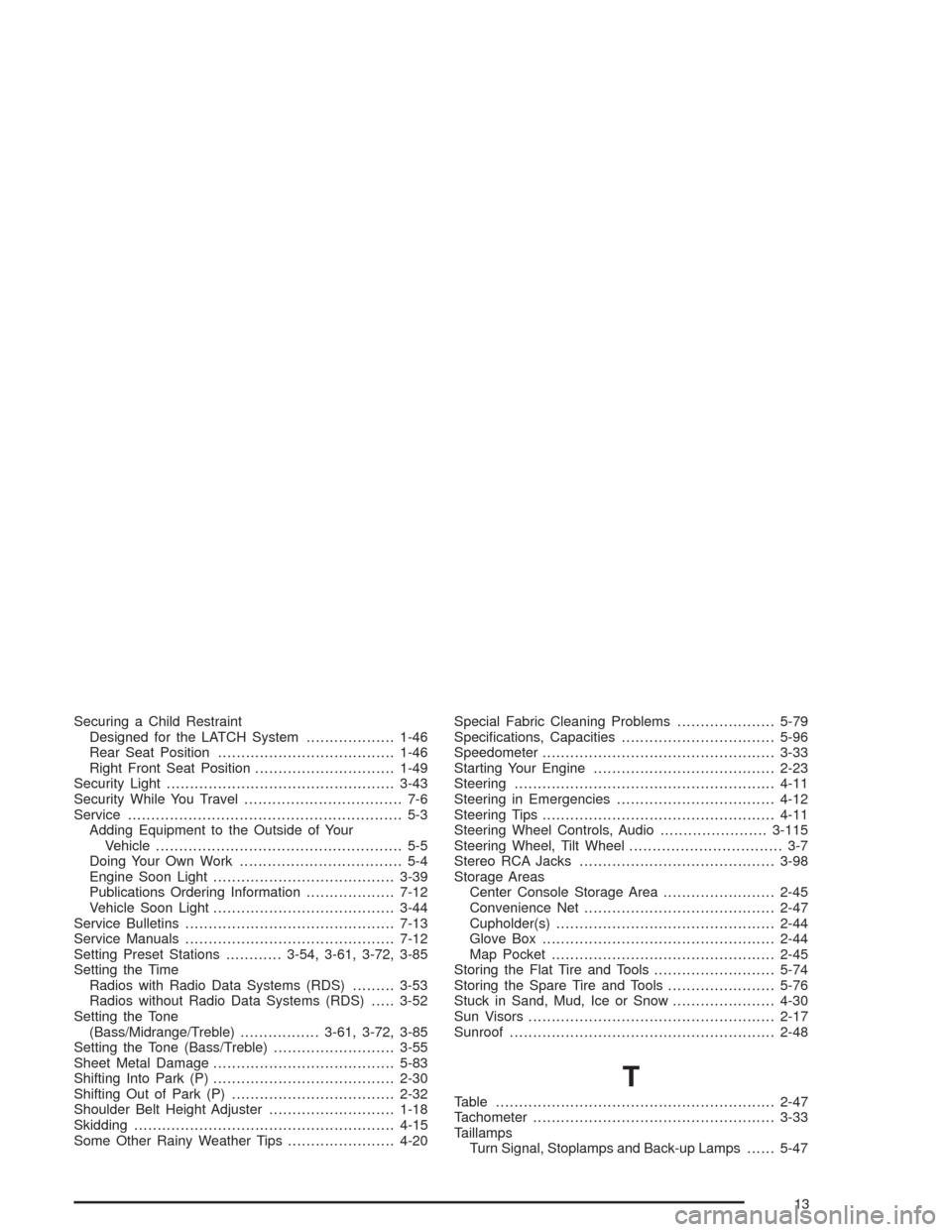

Securing a Child Restraint
Designed for the LATCH System...................1-46
Rear Seat Position......................................1-46
Right Front Seat Position..............................1-49
Security Light.................................................3-43
Security While You Travel.................................. 7-6
Service........................................................... 5-3
Adding Equipment to the Outside of Your
Vehicle..................................................... 5-5
Doing Your Own Work................................... 5-4
Engine Soon Light.......................................3-39
Publications Ordering Information...................7-12
Vehicle Soon Light.......................................3-44
Service Bulletins.............................................7-13
Service Manuals.............................................7-12
Setting Preset Stations............3-54, 3-61, 3-72, 3-85
Setting the Time
Radios with Radio Data Systems (RDS).........3-53
Radios without Radio Data Systems (RDS).....3-52
Setting the Tone
(Bass/Midrange/Treble).................3-61, 3-72, 3-85
Setting the Tone (Bass/Treble)..........................3-55
Sheet Metal Damage.......................................5-83
Shifting Into Park (P).......................................2-30
Shifting Out of Park (P)...................................2-32
Shoulder Belt Height Adjuster...........................1-18
Skidding........................................................4-15
Some Other Rainy Weather Tips.......................4-20Special Fabric Cleaning Problems.....................5-79
Specications, Capacities.................................5-96
Speedometer..................................................3-33
Starting Your Engine.......................................2-23
Steering........................................................4-11
Steering in Emergencies..................................4-12
Steering Tips..................................................4-11
Steering Wheel Controls, Audio.......................3-115
Steering Wheel, Tilt Wheel................................. 3-7
Stereo RCA Jacks..........................................3-98
Storage Areas
Center Console Storage Area........................2-45
Convenience Net.........................................2-47
Cupholder(s)...............................................2-44
Glove Box..................................................2-44
Map Pocket................................................2-45
Storing the Flat Tire and Tools..........................5-74
Storing the Spare Tire and Tools.......................5-76
Stuck in Sand, Mud, Ice or Snow......................4-30
Sun Visors.....................................................2-17
Sunroof.........................................................2-48
T
Table............................................................2-47
Tachometer....................................................3-33
Taillamps
Turn Signal, Stoplamps and Back-up Lamps......5-47
13
