2004 CHEVROLET CLASSIC Owners Manual

Six-Way Power Driver Seat
If your vehicle has this feature, the power seat control is
located on the outboard side of the driver’s seat.To adjust the power seat, do the following:
•Move the seat forward or rearward by pushing the
control toward the front or back of the vehicle.
•Raise or lower the entire seat cushion by holding
the control up or down.
•Raise or lower the front of the seat cushion by
holding the front of the control up or down.
•Raise or lower the rear of the seat cushion by
holding the rear of the control up or down.
1-3

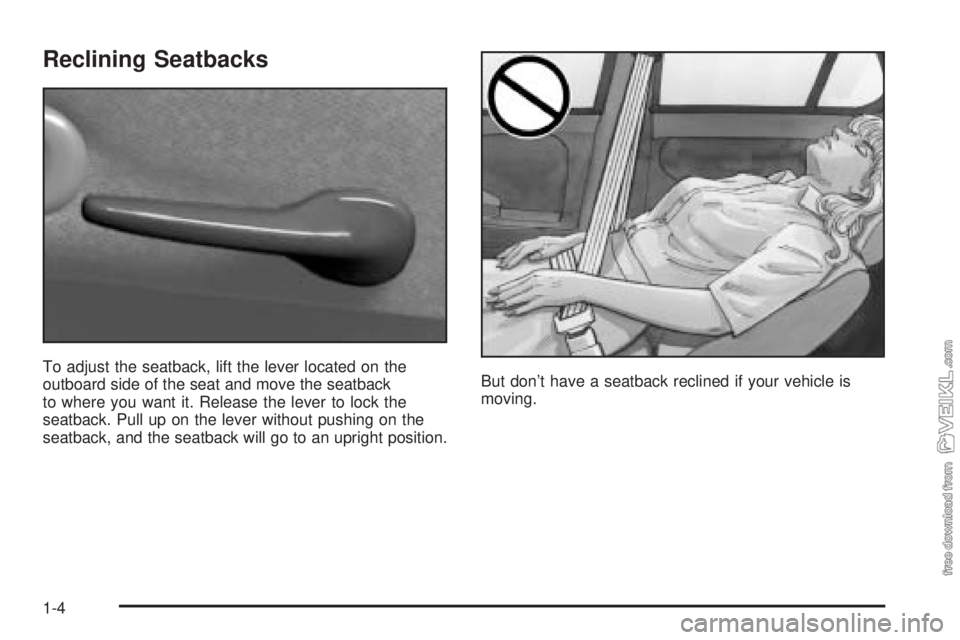

Reclining Seatbacks
To adjust the seatback, lift the lever located on the
outboard side of the seat and move the seatback
to where you want it. Release the lever to lock the
seatback. Pull up on the lever without pushing on the
seatback, and the seatback will go to an upright position.But don’t have a seatback reclined if your vehicle is
moving.
1-4

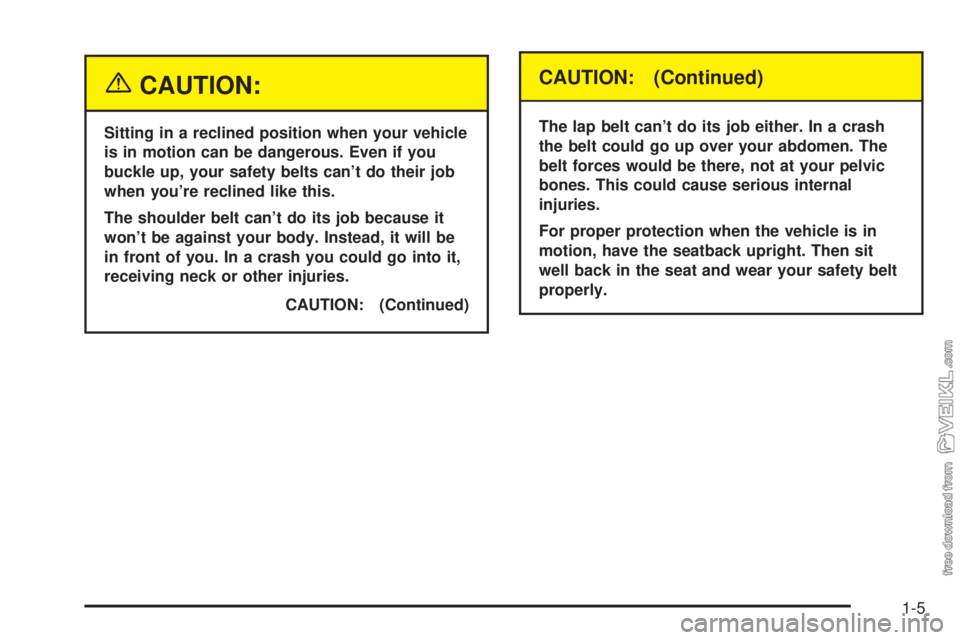

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can’t do their job
when you’re reclined like this.
The shoulder belt can’t do its job because it
won’t be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
CAUTION: (Continued)
CAUTION: (Continued)
The lap belt can’t do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-5

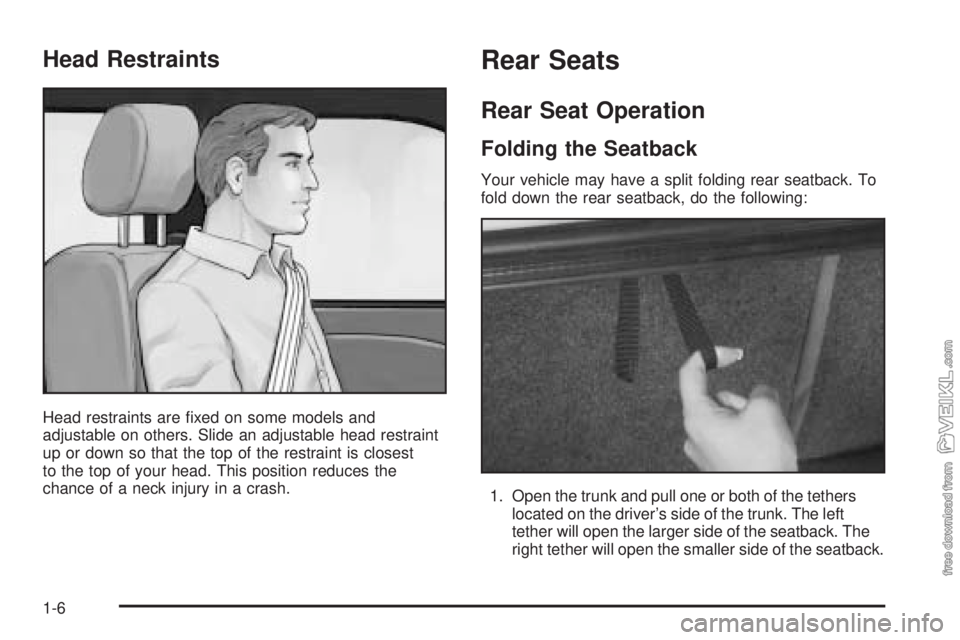

Head Restraints
Head restraints are fixed on some models and
adjustable on others. Slide an adjustable head restraint
up or down so that the top of the restraint is closest
to the top of your head. This position reduces the
chance of a neck injury in a crash.
Rear Seats
Rear Seat Operation
Folding the Seatback
Your vehicle may have a split folding rear seatback. To
fold down the rear seatback, do the following:
1. Open the trunk and pull one or both of the tethers
located on the driver’s side of the trunk. The left
tether will open the larger side of the seatback. The
right tether will open the smaller side of the seatback.
1-6

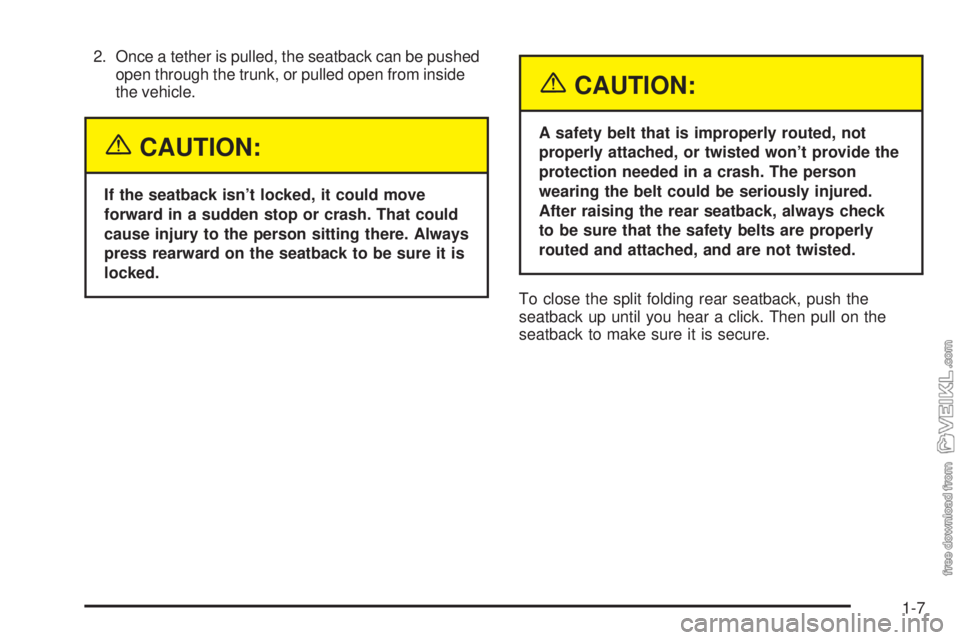

2. Once a tether is pulled, the seatback can be pushed
open through the trunk, or pulled open from inside
the vehicle.
{CAUTION:
If the seatback isn’t locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won’t provide the
protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
To close the split folding rear seatback, push the
seatback up until you hear a click. Then pull on the
seatback to make sure it is secure.
1-7

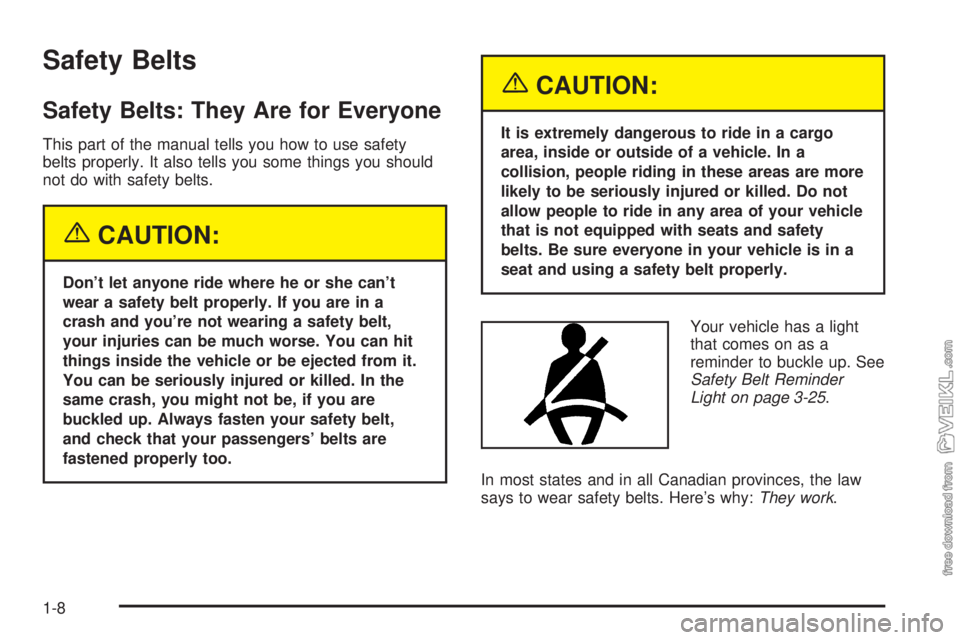

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Don’t let anyone ride where he or she can’t
wear a safety belt properly. If you are in a
crash and you’re not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up. See
Safety Belt Reminder
Light on page 3-25.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here’s why:They work.
1-8

You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it’s just a seat on
wheels.
1-9

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
doesn’t stop.
