2004 BUICK RANDEZVOUS Owner's Manual

Second Row Outside Position Bench SeatSecond Row Center Position Bench Seat without
Third Row Seat
1-59

Your vehicle has top strap anchors already installed for
the rear seating positions. An anchor bar for a top
strap is located at the rear of the seat cushion for each
second row outboard seating position. The anchor
bar for the center position bench seat is located on the
oor behind the second row seats. If the vehicle has
the extended rear convenience center, you need
to remove a plastic plug and look under the convenience
center to nd the anchor bar for the center position
bench seat.
Do not use a child restraint with a top strap in the right
front passenger’s position, because there is no place
to anchor the top strap.
If the vehicle has a third row seat and the seatback is
upright, there is an anchor strap located between the third
row seatback and cushion to anchor the child restraint for
the second row center position bench seat.Second Row Center Position Bench Seat with Third
Row Seat
1-60

If the vehicle has a third row seat and the seatback is
folded, there is an anchor on the back of the third row
seat for the second row center position bench seat.There is also a top strap anchor for third row passenger’s
side outside position. Locate the anchor symbol on the
ap of carpet behind the seat. Lift up the carpet to access
the anchor. Second Row Center Position Bench Seat with Third
Row Seat Folded Down
Third Row Passenger’s Side Outside Position
1-61

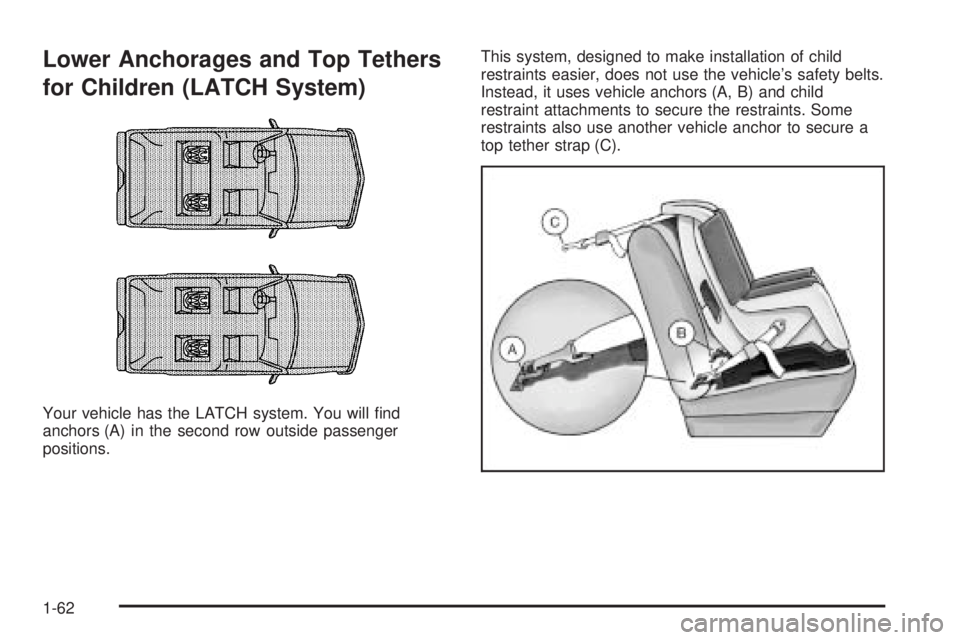

Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You will nd
anchors (A) in the second row outside passenger
positions.This system, designed to make installation of child
restraints easier, does not use the vehicle’s safety belts.
Instead, it uses vehicle anchors (A, B) and child
restraint attachments to secure the restraints. Some
restraints also use another vehicle anchor to secure a
top tether strap (C).
1-62

In order to use the LATCH system in your vehicle, you
need a child restraint designed for that system.To assist you in locating
the lower anchors for this
child restraint system,
each seating position with
the LATCH system has
a label on the seatback.
The labels are located at each lower anchor position,
near the base of the second row outside passenger
positions.
{CAUTION:
If a LATCH-type child restraint isn’t attached to
its anchorage points, the restraint won’t be
able to protect a child sitting there. In a crash,
the child could be seriously injured or killed.
Make sure that a LATCH-type child restraint is
properly installed using the anchorage points,
or use the vehicle’s safety belts to secure the
restraint. See″Securing a Child Restraint in a
Rear Outside Seat Position″in the Index for
information on how to secure a child restraint
in your vehicle using the vehicle’s safety belts.
1-63

Securing a Child Restraint Designed
for the LATCH System
1. Find the anchors for the seating position you want
to use, where the bottom of the seatback meets the
back of the seat cushion.
2. Put the child restraint on the seat.
3. Attach the anchor points on the child restraint to the
anchors in the vehicle. The child restraint
instructions will show you how.
4. If the child restraint is forward-facing, attach the top
strap to the top strap anchor. SeeTop Strap on
page 1-57. Tighten the top strap according to
the child restraint instructions.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
strap from the top tether anchor and then disconnect the
anchor points.
Securing a Child Restraint in a Rear
Outside Seat Position
1-64

If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-62. SeeTop Strap
on page 1-57if the child restraint has one.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Put the restraint on the seat
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
Tilt the latch plate to adjust the belt if needed.
1-65

3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. To tighten the belt, pull up on the shoulder belt
while you push down on the child restraint. If
you are using a forward-facing child restraint, you
may nd it helpful to use your knee to push down on
the child restraint as you tighten the belt.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-66
