The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
A/CbuttonortouchingtheA/C
icon on the models with navigation
system. A/C ON will be displayed
on the screen.
Make sure the temperature is set
to maximum heat.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side
panels.
Set the temperature to maximum.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed. Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control buttons.
Press the A/C button to show the
A/C screen.
Select the desired mode by
touching the MODE icon, and set
the f an to the desired speed by
touching the or icon.
Adjustthewarmthwiththe
temperature control buttons ( or
).
1.
2.
3.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3. 67
Vehicles without Navigation System
Vehicles without Navigation System
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Using the A /C
Using the Heater
Ventilation
106

The Automatic Climate Control
system can adjust the f an speed and
airflow levels to maintain the interior
temperature you select.Press the AUTO button.
Set the desired temperature with
the temperature control buttons.
You will see FULL AUTO in the
system’s display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature. In FULL AUTO
the rear A/C control panel cannot be
used. In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain
automatically controlled.
Manually selecting a f unction causes
thewordFULLinthedisplaytogo
out.
Press the OFF button. However, a
lack of air f low can cause the
windows to fog up. It is
recommended that you keep the f an
on at all times so stale air and
moisture do not build up in the
interior and cause fogging.
If you set the temperature to its
lower or its upper limit, the system
runs at f ull cooling or heating only. It
does not regulate the interior
temperature.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator will not come
on in U.S. vehicles.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select Fresh Air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. 1.
2.
1.
2.
3.
Comf ort and Convenience Feat ures
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
Manual Operation
To Turn Everything Of f
Using A utomatic Climate Control
108

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Press the RR A/C MANUAL button
to enable the rear A/C control panel.
The light in the button will come on.
A passenger in the second row can
then use the temperature control dial,
f an speed dial, and mode buttons to
adjust the temperature and airflow to
their pref erence. This is limited by
the system’s minimum and
maximum temperature.
Comf ort and Convenience Feat ures
Rear Climate Control, Climate Control Sensors
Sunlight and T emperature
Sensors
Using the Rear A /C Unit
109
SUNLIGHT SENSOR TEMPERATURE SENSOR
TEMPERATURE CONTROL DIAL
MODE BUTTONS
FAN SPEED CONTROL DIAL

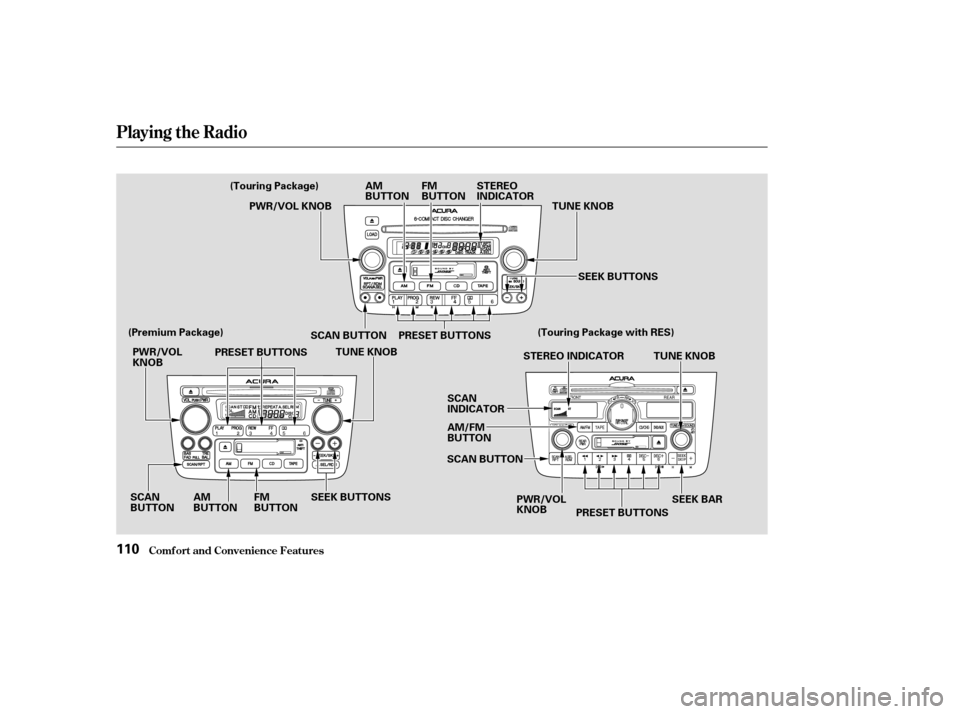

Playing the Radio
Comf ort and Convenience Feat ures110
SCAN BUTTON PRESET BUTTONS
PWR/VOL
KNOB
PWR/VOL
KNOBPRESET BUTTONS TUNE KNOB
TUNE KNOB
SEEK BUTTONS
PWR/VOL KNOB
SCAN BUTTONSCAN
INDICATOR
STEREO INDICATOR
AM/FM
BUTTON SEEK BAR
AM
BUTTON
STEREO
INDICATOR
FM
BUTTON
(Touring Package)
(Premium Package) (Touring Package with RES)
AM
BUTTON FM
BUTTONSEEK BUTTONS
SCAN
BUTTON PRESET BUTTONS
TUNE KNOB

µµ
´µ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and f requency that the
radio was last turned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency. The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or SEEK button, then
release it.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station for about 5 seconds.
If you do nothing, the system will
then scan f or the next strong station
andplayitfor5seconds.Whenit
plays a station that you want to listen
to, press the SCAN button again. Each preset button can
store one f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
You can use any of f ive methods to
f ind radio stations on the selected
band:
the
preset buttons, and . 1.
2.
3.
4.
CONT INUED
To Play the Radio
TUNESEEK
SCAN
Preset
To Select a Station TUNE,SEEK,SCAN, AUTO SELECT
Playing the Radio
Comf ort and Convenience Feat ures111

µµµ
µ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select f eature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed if Auto
Select cannot f ind a strong station
f or every preset button.
If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN f unction to f ind stations, then
store them in the preset buttons as
described previously. press the
A. SEL button. This restores the
presets you originally set.
Adjust the Balance, or side-
to-side strength of the sound.
Adjust the Fader, or the
f ront-to-back strength of the sound.
AdjusttheTrebleinthe
sound.
Adjust the Bass in the sound.
Push the control knob to get it to pop
out. Turn the appropriate knob to
adjust the Bass or Treble level. Pull
the knob out f arther to adjust the
FaderorBalance.Pushtheknob
back in when you are f inished. Press the TUNE knob repeatedly to
display Bass (BAS). Treble (TRE),
Balance (BAL), and Fader (FAD),
setting. Turn the TUNE knob to
adjust the setting. The indicators on
the display will show you the
adjustable range. The system will
return to the audio display in about 5
seconds.To turn of f Auto Select,
Without Touring Package With Touring Package
Playing the Radio
Comf ort and Convenience Feat ures
AUTO SELECT
Adjusting the Sound
BAL
FAD
TRE
BAS
112

Playing a CD
Comf ort and Convenience Feat ures115
CD SLOTCD BUTTON
PWR/VOL KNOB
CD EJECT BUTTON
SKIP BUTTONS
SKIP BAR
CD LOAD BUTTON
RANDOM
BUTTON
REPEAT BUTTON
CD BUTTON
PWR/VOL
KNOB (Touring Package with RES) CD SLOT CD EJECT BUTTON
RANDOM BUTTON
REPEAT
BUTTON
PWR/VOL
KNOB CD SLOT SKIP BUTTONS
(Premium Package) (Touring Package)
REPEAT BUTTON RANDOM BUTTON
CD BUTTON
CD
EJECT
BUTTON

µµ
´
CONT INUED
To select the CD changer, press the
CD button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the appropriate
preset buttons (1 6). On the model
with Rear Entertainment System,
use the preset 5 (DISC ) button to
select previous disc, or the preset 6
(DISC ) button to select the next
disc in sequence.
If you select an empty slot in the
magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot. This
continues until it f inds a CD to load
and play. When you see LOAd in the display,
insert the disc into the CD slot.
Insert it only abut half way, the
drive will pull it in the rest of the
way. You will again see the dashes
in the display as the CD is loaded.
When LOAd appears again in the
display, insert the next disc into
the CD slot. Do not try to insert a
disc until LOAd appears. You
could damage the audio unit.
Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
If you are not loading CDs into all six
positions, press the Load button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
On the lef t side of the display, the
CD Loaded indicator f or an empty
position will begin blinking. To load only one CD, press and
release the Load button. Press and hold the Load button
until you hear a beep and see
‘‘----’’inthedisplay,thenrelease
the button.
You cannot load and play 3-inch (8-
cm) discs in this system. The audio system on Touring model
has an in-dash CD changer that
holdsuptosixdiscs.
To load CDs or operate CD changer,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.
1.
2. 3.
4.
5.
On Touring Model
Comf ort and Convenience Feat ures
Operating the In-Dash CD
Changer
L oading CDs in the Changer
CD Changer
117
