2003 YAMAHA YZF-R6 Owners Manual

TABLE OF CONTENTS
1 GIVE SAFETY THE RIGHT OF WAY
1
2 DESCRIPTION
2
3 INSTRUMENT AND CONTROL FUNCTIONS
3
4 PRE-OPERATION CHECKS
4
5 OPERATION AND IMPORTANT RIDING POINTS
5
6 PERIODIC MAINTENANCE AND MINOR REPAIR
6
7 MOTORCYCLE CARE AND STORAGE
7
8 SPECIFICATIONS
8
9 CONSUMER INFORMATION
9
INDEX
EAU00009
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

GIVE SAFETY THE RIGHT OF WAY
1
GIVE SAFETY THE RIGHT OF WAY ................................................ 1-1
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

1
1-1
1-GIVE SAFETY THE RIGHT OF WAY
EAU00021
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and
freedom. However, they also impose certain limits, which you must accept; even the best motorcycle
does not ignore the laws of physics.
Regular care and maintenance are essential for preserving value and operating condition of your
motorcycle. Moreover, what is true for the motorcycle is also true for the rider: good performance
depends on being in good shape. Riding under the influence of medication, drugs and alcohol is, of
course, out of the question. Motorcycle riders—more than car drivers—must always be at their mental
and physical best. Under the influence of even small amounts of alcohol, there is a tendency to take
dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and
passengers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant
synthetic materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet.
Optimum protective wear, however, should not encourage carelessness. Although full-coverage
helmets and suits, in particular, create an illusion of total safety and protection, motorcyclists will
always be vulnerable. Riders who lack critical self-control run the risk of going too fast and are apt to
take chances. This is even more dangerous in wet weather. The good motorcyclist rides safely,
predictably and defensively—avoiding all dangers, including those caused by others.
Enjoy your ride!
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

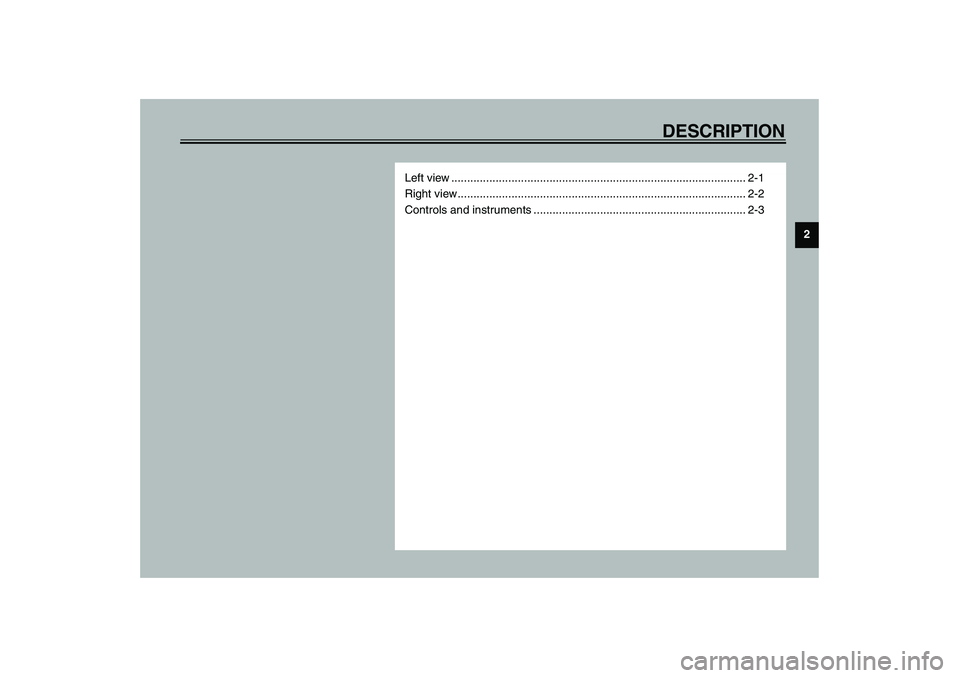

DESCRIPTION
2
Left view ............................................................................................. 2-1
Right view ........................................................................................... 2-2
Controls and instruments ................................................................... 2-3
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

2-1
2
EAU00026
2-DESCRIPTION Left view1. Front fork rebound damping force
adjusting screw (page 3-24)
2. Front fork spring preload adjusting bolt (page 3-23)
3. Fuse box 2 (page 6-40)
4. Coolant reservoir (page 6-14)
5. Shock absorber assembly spring
preload adjusting ring (page 3-25)
6. Shock absorber assembly compression
damping force adjusting screw (page 3-26)7. Owner’s tool kit (page 6-1)
8. Shock absorber assembly rebound
damping force adjusting screw (page 3-26)
9. Shift pedal (page 3-15)
10. Engine oil drain bolt (page 6-11)
11. Engine oil filter cartridge (page 6-11)
12. Front fork compression damping force
adjusting screw (page 3-24)
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

DESCRIPTION
2-2
2
Right view13. Luggage strap holder (page 3-27)
14. Helmet holder (page 3-21)
15. Fuse box 1 (page 6-40)
16. Main fuse (page 6-40)
17. Battery (page 6-38)
18. Throttle stop screw (page 6-23)
19. Air filter element (page 6-19)20. Front brake fluid reservoir (page 6-31)
21. Radiator cap (page 6-16)
22. Coolant drain bolt (page 6-16)
23. Engine oil filler cap (page 6-10)
24. Brake pedal (page 3-16)
25. Engine oil dipstick (page 6-10)
26. Rear brake fluid reservoir (page 6-31)
U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

DESCRIPTION
2-3
2
Controls and instruments1. Clutch lever (page 3-15)
2. Left handlebar switches (page 3-13)
3. Multi-function display (page 3-8)
4. Main switch/steering lock (page 3-2)
5. Tachometer (page 3-13)6. Right handlebar switches (page 3-14)
7. Throttle grip (page 6-23)
8. Brake lever (page 3-16)
U5SLE0.book Page 3 Wednesday, September 11, 2002 11:46 AM
