2003 YAMAHA YZF-R6 Owners Manual

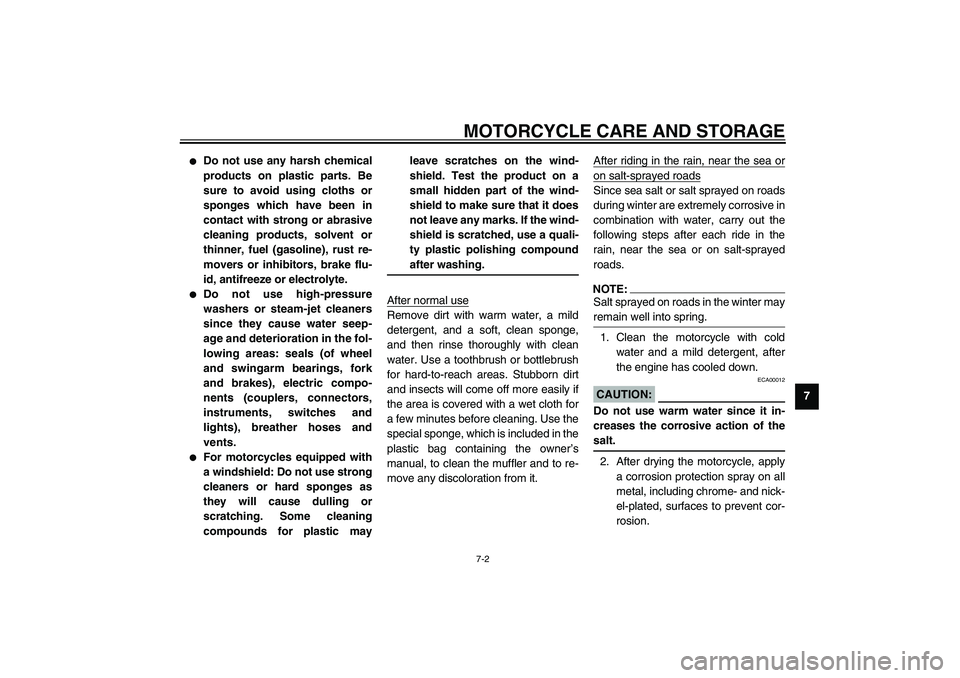

MOTORCYCLE CARE AND STORAGE
7-2
7


Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure
washers or steam-jet cleaners
since they cause water seep-
age and deterioration in the fol-
lowing areas: seals (of wheel
and swingarm bearings, fork
and brakes), electric compo-
nents (couplers, connectors,
instruments, switches and
lights), breather hoses and
vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning
compounds for plastic mayleave scratches on the wind-
shield. Test the product on a
small hidden part of the wind-
shield to make sure that it does
not leave any marks. If the wind-
shield is scratched, use a quali-
ty plastic polishing compound
after washing.
_After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning. Use the
special sponge, which is included in the
plastic bag containing the owner’s
manual, to clean the muffler and to re-
move any discoloration from it.After riding in the rain, near the sea or
on salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:_ Salt sprayed on roads in the winter may
remain well into spring. _1. Clean the motorcycle with cold
water and a mild detergent, after
the engine has cooled down.
ECA00012
CAUTION:_ Do not use warm water since it in-
creases the corrosive action of the
salt. _2. After drying the motorcycle, apply
a corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces to prevent cor-
rosion.
U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

MOTORCYCLE CARE AND STORAGE
7-3
7After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
EWA00001
WARNING
_

Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent.


Before operating the motor-
cycle, test its braking perfor-
mance and cornering behavior.
_
ECA00013
CAUTION:_

Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wear
away the paint.
_NOTE:_ Consult a Yamaha dealer for advice on
what products to use. _
U5SLE0.book Page 3 Wednesday, September 11, 2002 11:46 AM

MOTORCYCLE CARE AND STORAGE
7-4
7
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00014
CAUTION:_

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
_
Long-term
Before storing your motorcycle for
several months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine
oil into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
EWA00003
WARNING
_ To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over. _4. Lubricate all control cables and
the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
U5SLE0.book Page 4 Wednesday, September 11, 2002 11:46 AM

MOTORCYCLE CARE AND STORAGE
7-5
76. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place (less
than 0°C or more than 30°C). For
more information on storing the
battery, see page 6-39.
NOTE:_ Make any necessary repairs before
storing the motorcycle. _U5SLE0.book Page 5 Wednesday, September 11, 2002 11:46 AM

SPECIFICATIONS
8
Specifications .................................................................................... 8-1
Conversion table ............................................................................... 8-5
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
Model YZF-R6
Dimensions
Overall length 2,025 mm
Overall width 690 mm
Overall height 1,090 mm
Seat height 820 mm
Wheelbase 1,380 mm
Ground clearance 135 mm
Minimum turning radius 3,400 mm
Basic weight (with oil and full
fuel tank)
182 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 600 cm
3
Bore × stroke 65.5 × 44.5 mm
Compression ratio 12.4:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter cartridge
replacement 2.4 L
With oil filter car tridge
replacement 2.6 L
Total amount (dry engine) 3.4 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:In order to prevent clutch slippage (since the engine oil also
lubricates the clutch), do not mix any chemical additives. Do
not use oils with a diesel specification of “CD” or oils of a
higher quality than specified. In addition, do not use oils la-
beled “ENERGY CONSERVING II” or higher.
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

SPECIFICATIONS
8-2
8
Cooling system capacity
(total amount)
2.15 L
Air filterWet element
Fuel
Type PREMIUM UNLEADED
GASOLINE ONLY
Fuel tank capacity 17 L
Amount remaining when the
fuel level warning light comes
on 3.5 L
Electric fuel injection
ModelINP-250/4
Manufacturer NIPPON INJECTOR
Spark plug
Manufacturer/type NGK / CR9EK, CR10EK
Gap 0.6–0.7 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.955
Secondary reduction system Chain drive
Secondary reduction ratio 3.000
Number of drive chain
sprocket teeth (front/rear) 16/48
Transmission type Constant-mesh 6-speed
Operation Left footGear ratio
1st 2.846
2nd 1.947
3rd 1.556
4th 1.333
5th 1.190
6th 1.083
Chassis
Frame type Diamond
Caster angle 24°
Trail 86 mm
Tires
Front
Type Tubeless tire
Size 120/60 ZR17 M/C (55 W)
Manufacturer/model Michelin / Pilot SPORT N
Dunlop / D208F L
Rear
Type Tubeless tire
Size 180/55 ZR17 M/C (73 W)
Manufacturer/model Michelin / Pilot SPORT B
Dunlop / D208 L
U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

SPECIFICATIONS
8-3
8
Maximum load* 193 kg
Tire air pressure (measured on
cold tires)
Up to 90 kg*
Front 250 kPa (2.50 kgf/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
90 kg–maximum*
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 290 kPa (2.90 kgf/cm2, 2.90 bar)
High-speed riding*
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 M/C × MT 3.50
Rear
Type Cast wheel
Size 17 M/C × MT 5.50Brakes
Fr o n t
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (link suspension)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 120 mm
Rear 120 mm
Electrical system
Ignition system DC-C.D.I.
Charging system
Model A.C. magneto
Standard output 14 V, 300 W@ 5,000 r/min
