2003 YAMAHA XVS1100A check engine

2-1
2
EAU00026
2-DESCRIPTIONLeft view1. Shift pedal (page 3-8)
2. Fuel cock (page 3-11)
3. Shock absorber assembly spring preload adjusting ring (page 3-17)
4. Helmet holder (page 3-14)
5. Storage compartment (page 3-15)
6. Owner’s tool kit (page 6-1)
7. Fuses (page 6-27)
8. Engine oil level check window (page 6-8)
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU03034
Indicator and warning lights
EAU04877
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:_ Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function. _
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU00057
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU04585
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not
come on for a few seconds, then go off,
have a Yamaha dealer check the elec-
trical circuit.
1. Oil level warning light “”
2. Neutral indicator light “”
3. Turn signal indicator light “”
4. Engine trouble warning light “”
5. Immobilizer system indicator light “”
6. High beam indicator light “”
U5KSE4.book Page 4 Wednesday, September 11, 2002 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU04991*
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After
24 hours have passed, the indicator
light will stop flashing, however the im-
mobilizer system is still enabled.
NOTE:_ This model is also equipped with a self-
diagnosis device for the immobilizer
system. If the immobilizer system is de-
fective, the indicator light will start
flashing. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system. However, if the indicator
light slowly flashes five times, and then
quickly flashes two times repeatedly,
this error could be caused by signal in-
terference. If this occurs, try the follow-
ing. _1. Use the code re-registering key to
start the engine.
NOTE:_ Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting. _2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Oil level warning light “”
2. Neutral indicator light “”
3. Turn signal indicator light “”
4. Engine trouble warning light “”
5. Immobilizer system indicator light “”
6. High beam indicator light “”U5KSE4.book Page 5 Wednesday, September 11, 2002 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
EAU00330
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
motorcycle upright.NOTE:@ The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.) @
EW000044
WARNING
@ The motorcycle must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up), oth-
erwise the sidestand could contact
the ground and distract the opera-
tor, resulting in a possible loss of
control. Yamaha’s ignition circuit
cut-off system has been designed to
assist the operator in fulfilling the
responsibility of raising the side-
stand before starting off. Therefore,
check this system regularly as de-
scribed below and have a Yamaha
dealer repair it if it does not function
properly. @
EAU03720
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch
lever is pulled, but the sidestand is
still down.


It cuts the running engine when
the transmission is in gear and the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EW000045
WARNING
_ If a malfunction is noted, have a
Yamaha dealer check the system
before riding. _
U5KSE4.book Page 19 Wednesday, September 11, 2002 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
CD-01E
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “”.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
NO
NOTE:This check is most reliable if performed with
a warmed-up engine.
YESYES NO
The system is OK.
The motorcycle can be ridden.
YES NO
U5KSE4.book Page 20 Wednesday, September 11, 2002 11:55 AM

4-1
4
EAU01114

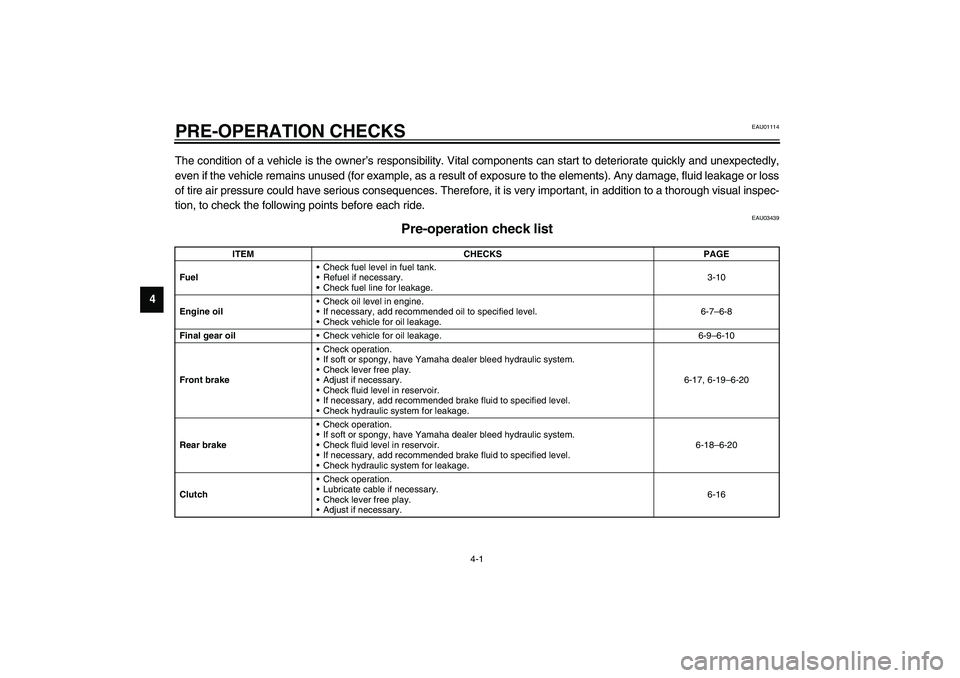

4-PRE-OPERATION CHECKSThe condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
EAU03439
Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-10
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-7–6-8
Final gear oilCheck vehicle for oil leakage. 6-9–6-10
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check lever free play.
Adjust if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-17, 6-19–6-20
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-18–6-20
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-16
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM

5-1
5
EAU00372
5-OPERATION AND IMPORTANT RIDING POINTS
EAU00373
WARNING
@

Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
@
EAU04976
Starting a cold engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EW000054
WARNING
_

Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-19.


Never ride with the sidestand
down.
_
1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
3. Shift the transmission into the neu-
tral position.NOTE:_ When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-
cuit. _
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM

OPERATION AND IMPORTANT RIDING POINTS
5-2
5 4. Turn the starter (choke) on and
completely close the throttle. (See
page 3-12 for starter (choke) oper-
ation.)
5. Start the engine by pushing the
start switch.
NOTE:_ If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt. _
ECA00149
CAUTION:_

The oil level warning light
should come on when the key is
turned to “ON”, and then go off
after two to three seconds. If the
oil level warning light flickers or
remains on after starting, imme-
diately stop the engine, and
then check the engine oil level
and the vehicle for oil leakage. If
necessary, add engine oil, and
then check the warning light
again. If the warning light does
not come on when turning the
key to “ON”, or if it does not go
off after starting the engine with
sufficient engine oil, have a
Yamaha dealer check the elec-
trical circuit.


The engine trouble warning
light should also come on when
the key is turned to “ON”. If the
warning light does not come on
when the key is turned to “ON”,
flashes or remains on after
starting the engine, have a
Yamaha dealer check the elec-
trical circuit.


The immobilizer system indica-
tor light should come on when
the key is turned to “ON”, and
then go off after a few seconds.
If the indicator light does not
come on when the key is turned
to “ON”, then go off, have a
Yamaha dealer check the elec-
trical circuit.
_6. After starting the engine, move the
starter (choke) back halfway.
U5KSE4.book Page 2 Wednesday, September 11, 2002 11:55 AM
