2003 YAMAHA TMAX Owners Manual

7-4
SCOOTER CARE AND STORAGE
7
Storage
Storage
Short-term
Always store your scooter in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00015
cC
8
8
Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity
to seep in and cause rust.
8 8
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your scooter for sever-
al months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-
bers by loosening the drain bolts;
this will prevent fuel deposits
from building up. Pour the
drained fuel into the fuel tank.
3. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
4. Perform the following steps to
protect the cylinders, piston
rings, etc. from corrosion.a. Remove the spark plug caps
and the spark plugs.
b. Pour a teaspoonful of engine
oil into the spark plug bores.
c. Install the spark plug caps
onto the spark plugs, and then
place the spark plugs on the
cylinder head so that the elec-
trodes are grounded. (This will
limit sparking during the next
step.)
d. Turn the engine over several
times with the starter. (This
will coat the cylinder walls with
oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
EWA00003
w
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turn-
ing the engine over.
5GJ-28199-E2 9/9/02 9:15 AM Page 87

7-5
SCOOTER CARE AND STORAGE
75. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
6. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground.
Alternatively, turn the wheels a
little every month in order to pre-
vent the tires from becoming
degraded in one spot.
7. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.8. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery
in an excessively cold or warm
place (less than 0 °C or more
than 30 °C). For more informa-
tion on storing the battery, see
page 6-33.
NOTE:
Make any necessary repairs before
storing the scooter.
5GJ-28199-E2 9/9/02 9:15 AM Page 88

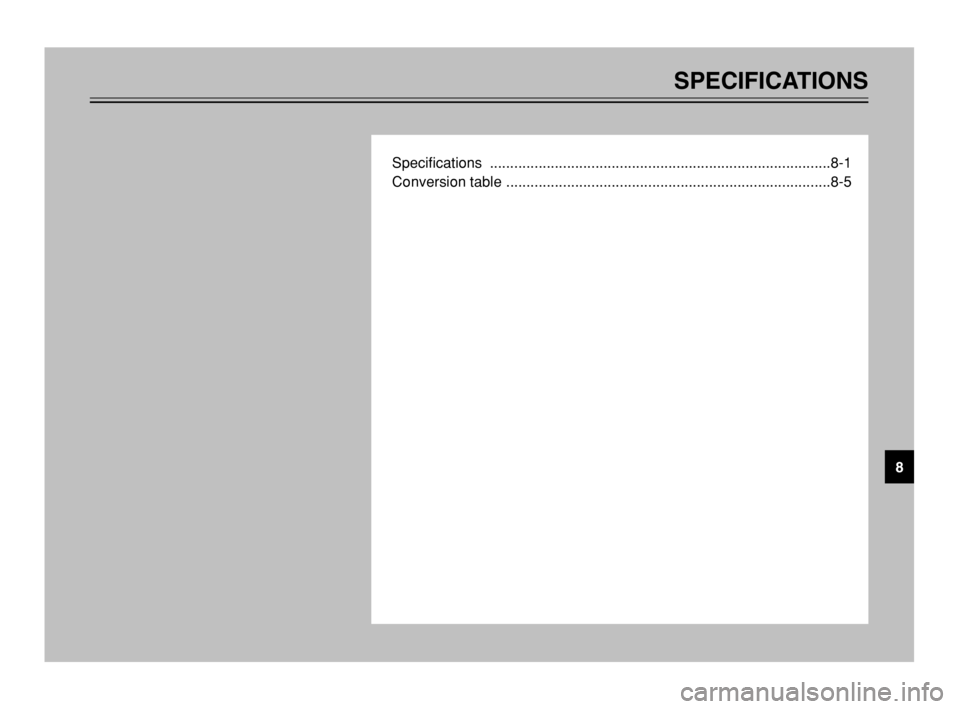

SPECIFICATIONS
Specifications ....................................................................................8-1
Conversion table ................................................................................8-5
8
5GJ-28199-E2 9/9/02 9:15 AM Page 89

8-1
EAU01038
SPECIFICATIONS
8
Specifications
SpecificationsModel XP500
Dimensions
Overall length 2,235 mm
Overall width 775 mm
Overall height 1,410 mm
Seat height 795 mm
Wheelbase 1,575 mm
Ground clearance 130 mm
Minimum turning radius 2,800 mm
Basic weight (with oil and full
fuel tank)217 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward inclined 2–cylinder
Displacement 499 cm
3
Bore ×Stroke 66.0 ×73.0 mm
Compression ratio 10.1:1
Starting system Electric starter
Lubrication system Dry sumpEngine oil
Type SAE 10W-30 or 10W-40
Recommended engine oil
classification API Service SE, SF, SG
type or higher
cC
In order to prevent clutch slippage (since the engine oil also
lubricates the clutch), do not mix any chemical additives. Do
not use oils with a diesel specification of “CD” or oils of a
higher quality than specified. In addition, do not use oils
labeled “ENERGY CONSERVING
II” or higher.
Quantity
Without oil filter cartridge
replacement 2.8 L
With oil filter cartridge
replacement 2.9 L
Total amount (dry engine) 3.6 L
Chain drive oil
Type SAE 80API “GL-4” hypoid
gear oil
Total amount 0.7 L
5GJ-28199-E2 9/9/02 9:15 AM Page 90

8-2
SPECIFICATIONS
8
Radiator capacity
(including all routes)1.5 L
Air filterDry element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 14 L
Carburetor
Manufacturer MIKUNI
Model × quantity BS30 × 2
Spark plug
Manufacturer/model × quantity NGK/CR7E × 2
Spark plug gap 0.7–0.8 mm
Clutch typeWet, multiple-disc automatic
Transmission
Primary reduction system Helical gear/spur gear
Primary reduction ratio 52/32 ×36/22 (2.659)
Secondary reduction system Chain drive
Secondary reduction ratio 41/25 ×40/29 (2.262)
Transmission type V-belt automatic
Operation Centrifugal automatic typeChassis
Frame type Diamond
Caster angle 28°
Trail 95 mm
Tires
Front
Type Tubeless
Size 120/70-14M/C 55S
Manufacturer/ DUNLOP/D305FA
model BRIDGESTONE/HOOP B03
Rear
Type Tubeless
Size 150/70-14M/C 66S
Manufacturer/ DUNLOP/D305
model BRIDGESTONE/HOOP B02
Maximum load* 183 kg
Air pressure (cold tire)
up to 90 kg load*
Front200 kPa (2.00 kgf/cm
2, 2.00 bar)
Rear 225 kPa (2.25 kgf/cm
2, 2.25 bar)
90 kg load–maximum
load*
Front225 kPa (2.25 kgf/cm
2, 2.25 bar)
Rear 250 kPa (2.50 kgf/cm
2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
5GJ-28199-E2 9/9/02 9:15 AM Page 91

8-3
SPECIFICATIONS
8
Wheels
Front
Type Cast wheel
Size 14 M/C ×MT3.50
Rear
Type Cast wheel
Size 14 M/C ×MT4.50
Brakes
Front
Type Single disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Left hand
Fluid DOT 4Suspension
Front Telescopic fork
Rear Swingarm
Spring/shock absorbers
Front Coil spring/oil damper
Rear Coil spring/gas-oil damper
Wheel travel
Front 120 mm
Rear 120 mm
Electrical
Ignition system Transistorized coil ignition
(digital)
Charging system
Type A.C. magneto
Standard output 14 V, 310W @ 5,000 r/min
Battery
Type GT9B-4
Voltage, capacity 12 V, 8 Ah
Headlight bulb typeHalogen
Bulb voltage, wattage ×quantity
Headlight 12 V, 60/55 W ×1
12 V, 55 W ×1
5GJ-28199-E2 9/9/02 9:15 AM Page 92

8-4
SPECIFICATIONS
8
Tail/brake light 12 V, 5/21 W ×2
Front turn signal light 12 V, 5/21 W ×2
Rear turn signal light 12 V, 21 W ×2
Auxiliary light 12 V, 5 W ×2
License plate light 12 V, 5 W ×1
Meter lighting 12 V, 1.7 W ×3
High beam indicator light 12 V, 1.7 W ×1
Oil change indicator light 12 V, 1.7 W ×1
Turn indicator light 12 V, 3.4 W ×2
V-belt replacement
indicator light 12 V, 1.7 W ×1
Fuses
Main fuse 30 A
Signaling system fuse 15 A
Headlight fuse 15 A
Ignition fuse 10 A
Radiator fan fuse 15 A
Hazard fuse 10 A
Clock fuse (backup fuse) 10 A
5GJ-28199-E2 9/9/02 9:15 AM Page 93

8-5
SPECIFICATIONS
8
EAU04513
Conversion table
Conversion table
All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:
METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lbf
in·lbf
ft·lbf
in·lbf
Weightkg
g
× 2.205× 0.03527lb
oz
Speed km/h
× 0.6214 mi/h
Distancekm
m
m
cm
mm
× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm3)
cc (cm3)
L (liter)
L (liter)× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kgf/cm
2
°C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lbf/in
2)
