WARNING!
l Bumper-attached trailer hitches must not be used on Volvo's, nor should \
safety chains be attached
to the bumper.
l Trailer hitches attaching to the vehicle rear axle must not be used.
l Never connect a trailer's hydraulic brake system directly to the vehicle\
brake system, nor a trailer's
lighting system directly to the vehicle lighting system. Consult your ne\
arest authorized Volvo retailer
for correct installation.
l When towing a trailer, the trailer's safety wire must be correctly faste\
ned to the hole or hook
provided in the trailer hitch on the car. The safety wire should never b\
e fastened to or wound around
the drawbar ball.
NOTE:
l When parking the car with a trailer on a hill, apply the parking brake before putting the gear selector
in (P)ark. When starting on a hill, put the gear selector in (D)rive\
before releasing the parking brake.
l If you use the manual (Geartronic) shift positions while towing a trai\
ler, make sure the gear you select
does not put too much strain on the engine (using too high a gear).
l The drawbar assembly/trailer hitch may be certified for trailers that ar\
e heavier than the car is
designed to tow. Please adhere to Volvo's recommended trailer weights.
* When driving for prolonged periods at temperatures above 86° F (30\
° C), the maximum recommended
weight is 2000 lbs (900 kg).

pg. 102 Detachable trailer hitch (accessory) - installing/removing


A - ball holder, B - locking bolt, C - cotter pin, D - hitch assembly
Installing the ball holder
file:///K|/ownersdocs/2003/2003_XC70/03xc70_06b.htm (5 of 10)12/30/200\
6 4:18:00 PM

2003 VOLVO XC70
1. If necessary, remove the cotter pin from the locking bolt and slide t\
he locking bolt out of the hitch
assembly.
2. Slide the ball holder into the hitch assembly.
3. Align the hole in the ball holder with the one in the hitch assembly.\

4. Slide the locking bolt through the hitch assembly/ball holder.
5. Insert the cotter pin in the hole at the end of the locking bolt.
Removing the ball holder
1. Remove the cotter pin from the locking bolt and slide the locking bol\
t out of the ball holder/hitch
assembly.
2. Pull the ball holder out of the hitch assembly.
NOTE: A cover for the hitch assembly can be purchased from your Volvo retaile\
r.

pg. 103 Jump starting

Jump starting
Follow these instructions to jump start your car's dead battery or to ju\
mp start another car's dead battery
using your car. Although your car's battery is located under the floor o\
f the cargo area, jumper cables
should be connected in the engine compartment, to the points shown in the illustrations.
If the 12-volt auxiliary battery to be used is in another car, check tha\
t the cars are not touching to prevent
premature completion of a negative circuit. Be sure to follow jump start\
ing instructions provided for the
other vehicle.
To jump start your car:
l Switch off the ignition.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_06b.htm (6 of 10)12/30/200\
6 4:18:00 PM

2003 VOLVO XC70
Cold weather precautions
If you wish to check your car before the approach of cold weather, the f\
ollowing advice is worth noting:
l Make sure that the engine coolant contains 50 percent antifreeze. Any ot\
her mixture will reduce
freeze protection. This gives protection against freezing down to -31°\
F (-35°C). See section "Coolant".
The use of "recycled" antifreeze is not approved by Volvo. Different typ\
es of antifreeze must not
be mixed.
l Volvo recommends using only genuine Volvo antifreeze in your car's radia\
tor. Your local Volvo
retailer stocks plenty of Volvo engine coolant to protect your car durin\
g cold weather.
l Try to keep the fuel tank well filled - this prevents the formation of condensation in the tank. \
In
addition, in extremely cold weather conditions it is worthwhile to add f\
uel line de-icer before refueling.
l The viscosity of the engine oil is important. Oil with low viscosity (thinner oil) improves cold-
weather starting as well as decreasing fuel consumption while the engine\
is warming up. For winter use,
5W-30 oil, particularly the synthetic type *, is recommended. Be sure to\
use good quality oil but do not
use this cold-weather oil for hard driving or in warm weather. See section "Engine oil" for more
information.
l The load placed on the battery is greater during the winter since the windshield wipers, lighting, etc\
.
are used more often. Moreover, the capacity of the battery decreases as \
the temperature drops. In very
cold weather, a poorly charged battery can freeze and be damaged. It is \
therefore advisable to check the
state of charge more frequently and spray an anti-rust oil on the batter\
y posts.
l Volvo recommends the use of snow tires on all four wheels for winter dri\
ving - see section "Wheels
and tires".
l To prevent the washer fluid reservoir from freezing, add washer solvents\
containing antifreeze (see
page 130 for the location of the washer fluid reservoir). This is important sin\
ce dirt is often splashed on
the windshield during winter driving, requiring the frequent use of the \
washers and wipers. The Volvo
Washer Solvent should be diluted as follows:
Down to 14° F (-10° C): 1 part washer solvent and 4 parts water \
Down to 5° F (-15° C): 1 part washer solvent and 3 parts water
Down to 0° F (-18° C): 1 part washer solvent and 2 parts water
Down to -18° F (-28° C): 1 part washer solvent and 1 part water \
l Use Volvo Teflon Lock Spray in the locks.
NOTE: Avoid the use of de-icing sprays as they can cause damage to the locks.
W Winter/Wet driving mode - enhanced vehicle traction
l Mode W will only function if the gear selector is in the (D)rive posit\
ion.
l Press the button at the base of the gear selector to engage/disengage th\
is driving mode (see
illustration).
l An LED in the button will light up to indicate that W is engaged and this will also be displayed in the
instrument panel (see
page 27).
l This mode may be selected for starting/moving off on slippery roads.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_06b.htm (8 of 10)12/30/200\
6 4:18:00 PM

2003 VOLVO XC70
Snow chains
Snow chains can be used on your Volvo with the following restrictions:
l Snow chains should be installed on front wheels only. Use only Volvo app\
roved snow chains.
l Special snow chains must be mounted on 215/55 R16. Consult your Volvo re\
tailer.
l If accessory, aftermarket or "custom" tires and wheels are installed and\
are of a size different than the
original tires and wheels, chains in some cases CANNOT be used. Sufficie\
nt clearances between chains
and brakes, suspension and body components must be maintained. Snow chai\
ns cannot be used on 17"
wheels.
l Some strap-on type chains will interfere with brake components and there\
fore CANNOT be used.
l All Wheel Drive models:Snow chains should only be installed on the front wheels. Only chains
adapted for AWD models should be used.
Consult your Volvo retailer for additional snow chain information.
CAUTION:
l Check local regulations regarding the use of snow chains before installi\
ng.
l Always follow the chain manufacturer's installation instructions careful\
ly. Install chains as tightly as
possible and retighten periodically.
l Never exceed the chain manufacturer's specified maximum speed limit. In \
no case should you exceed
31 mph (50 km/h).
l Avoid bumps, holes or sharp turns when driving with snow chains.
l Vehicle handling can be adversely affected when driving with chains. Avo\
id fast maneuvering and
hard braking. Never allow the wheels to lock up during braking.
Snow tires, studded tires *
Tires for winter use:
Owners who live in or regularly travel through areas with sustained peri\
ods of snow or icy driving
conditions are strongly advised to fit suitable winter tires to help ret\
ain the highest degree of
traction. It is important to install winter tires on all four wheels to help retain traction during cornering,
braking, and accelerating. Failure to do so could reduce traction to an \
unsafe level or adversely affect
handling. Volvo does not recommend tire rotation. However, as with any o\
ther radial tires, if rotated, the
tires must be kept on the same side of the car so that they revolve in t\
he same direction as before
rotation.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_07.htm (3 of 10)12/30/2006\
4:18:01 PM

2003 VOLVO XC70
WARNING!
The temperature grade for this tire is established for a tire that is pr\
operly inflated and not overloaded.
Excessive speed, under-inflation, or excessive loading, either separatel\
y or in combination, can cause
heat buildup and possible tire failure.


pg. 112 Changing wheels


Insert flat end of lug wrench and turn/pull straight out
Changing wheels
The spare wheel is located under the carpet on the cargo area floor. The\
jack and crank are secured in the
wheel recess. There are two jack attachment points on each side of the c\
ar.
To change a wheel:
l Engage the parking brake.
l Put the gear selector in (P)ark.
l Remove the wheel cap (where applicable) using the lug wrench in the to\
ol kit.
l With the car still on the ground, use the lug wrench to loosen the wheel\
bolts 1/2 - 1 turn by exerting
downward pressure. Turn the bolts counterclockwise to loosen.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_07.htm (7 of 10)12/30/2006\
4:18:01 PM

2003 VOLVO XC70

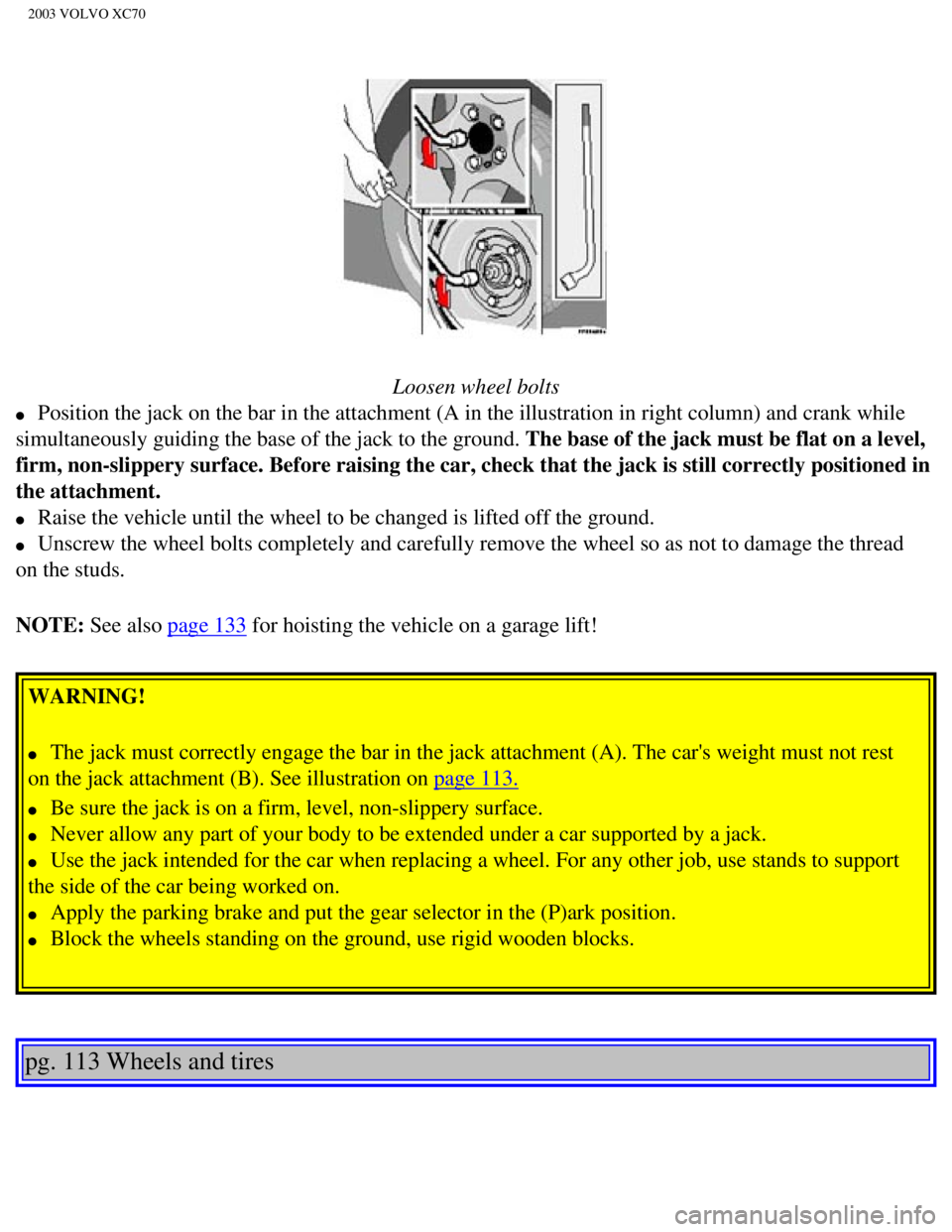

Loosen wheel bolts
l Position the jack on the bar in the attachment (A in the illustration i\
n right column) and crank while
simultaneously guiding the base of the jack to the ground. The base of the jack must be flat on a level,
firm, non-slippery surface. Before raising the car, check that the jack \
is still correctly positioned in
the attachment.
l Raise the vehicle until the wheel to be changed is lifted off the ground\
.
l Unscrew the wheel bolts completely and carefully remove the wheel so as \
not to damage the thread
on the studs.
NOTE: See also
page 133 for hoisting the vehicle on a garage lift!
WARNING!
l The jack must correctly engage the bar in the jack attachment (A). The\
car's weight must not rest
on the jack attachment (B). See illustration on
page 113.
l Be sure the jack is on a firm, level, non-slippery surface.
l Never allow any part of your body to be extended under a car supported b\
y a jack.
l Use the jack intended for the car when replacing a wheel. For any other \
job, use stands to support
the side of the car being worked on.
l Apply the parking brake and put the gear selector in the (P)ark positi\
on.
l Block the wheels standing on the ground, use rigid wooden blocks.


pg. 113 Wheels and tires

file:///K|/ownersdocs/2003/2003_XC70/03xc70_07.htm (8 of 10)12/30/2006\
4:18:01 PM

2003 VOLVO XC70
Location Amperage
1 Low beam headlights 15A
2 High beam headlights 20A
3 Power driver's seat 30A
4 Power passenger's seat 30A
5 -
6 -
7 Heated seat - front left (option) 15A
8 Heated seat - front right (option) 15A
9 ABS/STC/DSTC 5A
10 -
11 -
12 Headlight wipers (certain models) 15A
13 Electric socket 12 V 15A
14 Power passenger's seat 5A
15 Audio system, VNS 5A
16 Audio system 20A
17 Audio amplifier 30A
18 Front fog lights 15A
19 VNS display 10A
20 -
21 Automatic transmission, shiftlock, extended D2 feed 10A
22 Direction indicators 20A
23 Headlight switch module, climate control system, onboard diagnostic c\
onnector, steering
wheel lever modules 5A
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (5 of 21)12/30/200\
6 4:18:03 PM

2003 VOLVO XC70
24 Relay for extended D1 feed: climate control system, power driver's se\
at, driver's info 10A
25 Ignition switch, relay starter motor, SRS, engine control module 10A
26 Climate control system blower 30A
27 -
28 Electronic module - courtesy lighting 10A
29 -
30 Left front/rear parking lights 7.5A
31 Right front/rear parking lights, license plate lights 7.5A
32 Central electrical module, vanity mirror lighting, power steering, gl\
ove compartment
light, interior courtesy lighting 10A
33 Fuel pump 15A
34 Power sun roof 15A
35 Central locking system, power windows - left door mirror 25A
36 Central locking system, power windows - right door mirror 25A
37 Rear power windows, power child safety 30A
38 Alarm siren 5A
* Please be aware that if this fuse is not intact, or if it is removed, \
the alarm will sound.

pg. 119 Fuses in the cargo area
Fuses in the cargo area
The fuses in the cargo area are located on the trim on the left-hand sid\
e. When replacing a blown fuse,
be sure to replace it with a new one of the same color and amperage (wr\
itten on the fuse).
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (6 of 21)12/30/200\
6 4:18:03 PM
