Models with 2-section rear seat
Lower the center seat head restraint if it is raised. Press the release \
button behind the right-hand support.
See illustration above.
Folding the outboard backrests down
Models with 2 or 3-section rear seat
Press the backrest catch to the rear and tip the backrest forward. See t\
he illustration in the right-hand
column.
A - Catch in closed position.
B - Catch in open position.

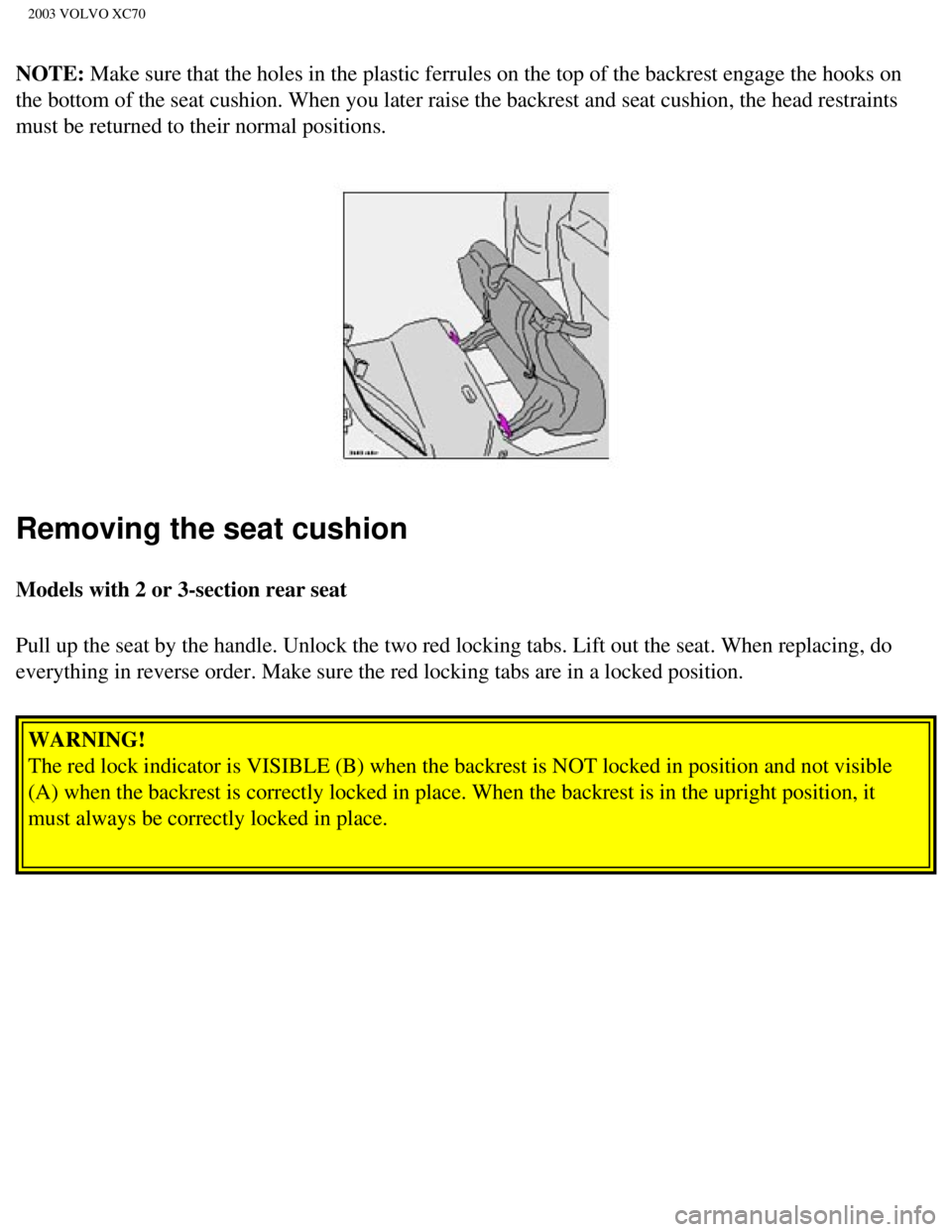

Tipping an outboard backrests forward
WARNING!
The red lock indicator is VISIBLE (B) when the backrest is NOT locked in position and not vi\
sible
(A) when the backrest is correctly locked in place. When the backrest \
is in the upright position, it
must always be correctly locked in place.
When the rear seat is folded down, do not place heavy objects against th\
e backs of the front seats.
This places a severe strain on the folded down backrest of the rear seat\
. Be sure to secure cargo.
Cargo must not be stacked higher than the top of seatbacks. This will re\
duce the possibility of
luggage, etc. becoming projectiles during sudden maneuvers, rapid brakin\
g or an accident.

file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (2 of 21)12/30/200\
6 4:17:57 PM

2003 VOLVO XC70

pg. 64 Rear seat and cargo area

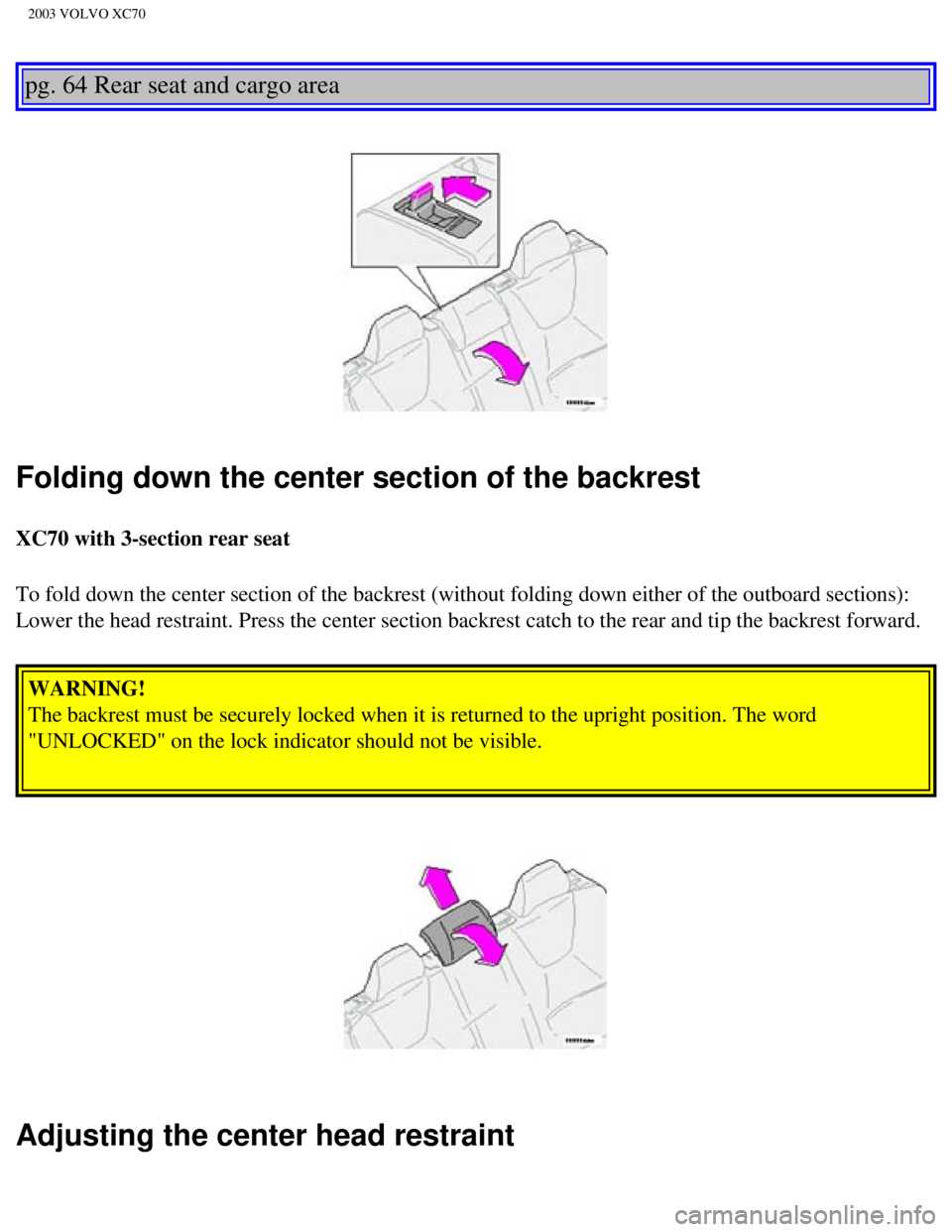

Folding down the center section of the backrest
XC70 with 3-section rear seat
To fold down the center section of the backrest (without folding down e\
ither of the outboard sections):
Lower the head restraint. Press the center section backrest catch to the\
rear and tip the backrest forward.
WARNING!
The backrest must be securely locked when it is returned to the upright \
position. The word
"UNLOCKED" on the lock indicator should not be visible.

Adjusting the center head restraint
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (3 of 21)12/30/200\
6 4:17:57 PM

2003 VOLVO XC70
Removing the center backrest
XC70 with 3-section rear seat
l Press the button at the top of the center section to the rear to release\
the locking mechanism.
l Fold the backrest section slightly forward.
l Pull up on the handle at the upper rear side of the backrest (see illus\
tration above) to release this
section of the backrest from the retaining bar at the base of the backre\
st. Lift out the backrest.
Replacing the center backrest
l Before the center section is put back in place, the right section of the\
backrest must be locked in the
upright position.
l Replace the backrest by pressing the bottom section onto the retaining b\
ar until the backrest clicks
into place.
Please consult your Volvo retailer for information about accessory equip\
ment that can be placed in the
center section of the backrest.

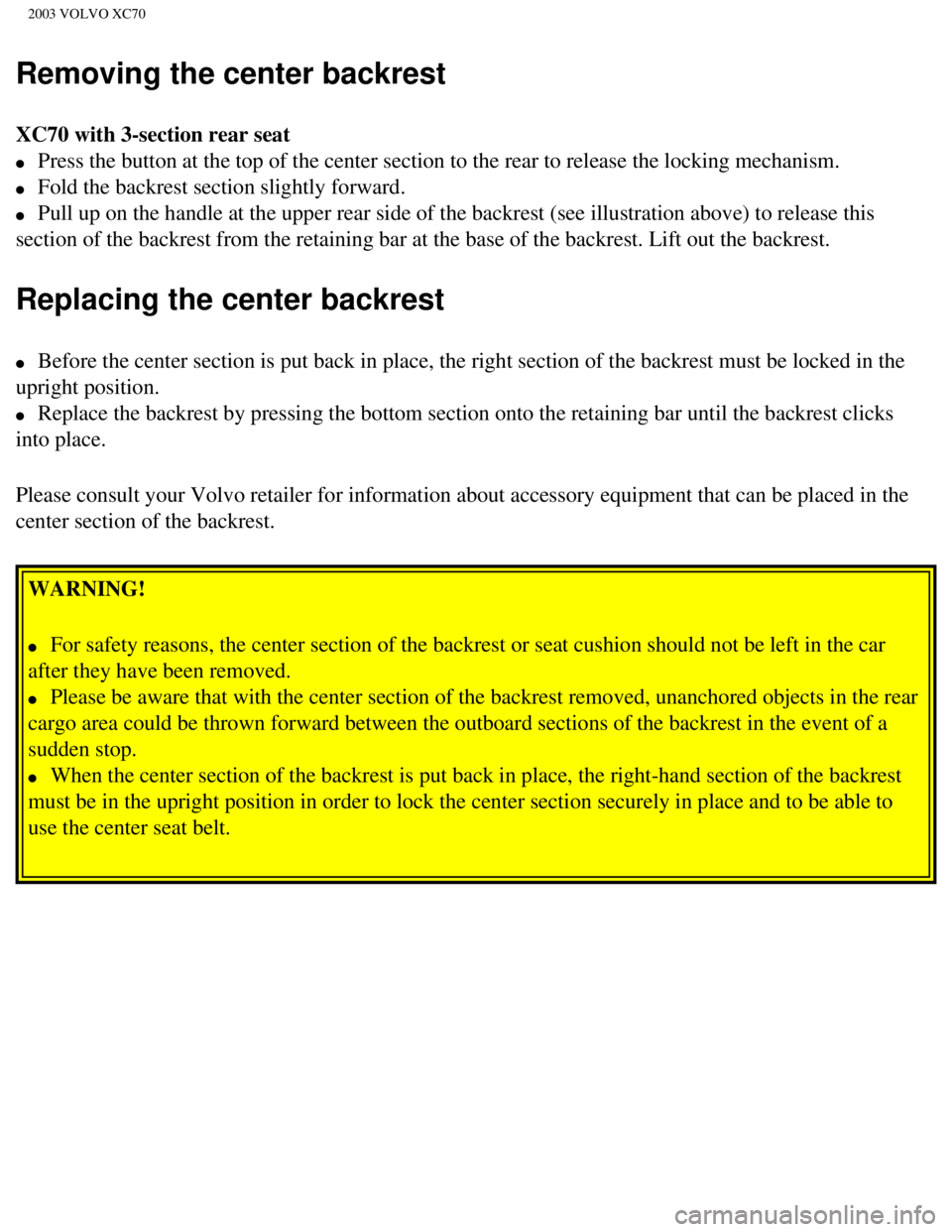

WARNING!
l For safety reasons, the center section of the backrest or seat cushion s\
hould not be left in the car
after they have been removed.
l Please be aware that with the center section of the backrest removed, un\
anchored objects in the rear
cargo area could be thrown forward between the outboard sections of the \
backrest in the event of a
sudden stop.
l When the center section of the backrest is put back in place, the right-\
hand section of the backrest
must be in the upright position in order to lock the center section secu\
rely in place and to be able to
use the center seat belt.

file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (5 of 21)12/30/200\
6 4:17:57 PM

2003 VOLVO XC70

Center armrest
Center armrest
XC70 with 3-section rear seat

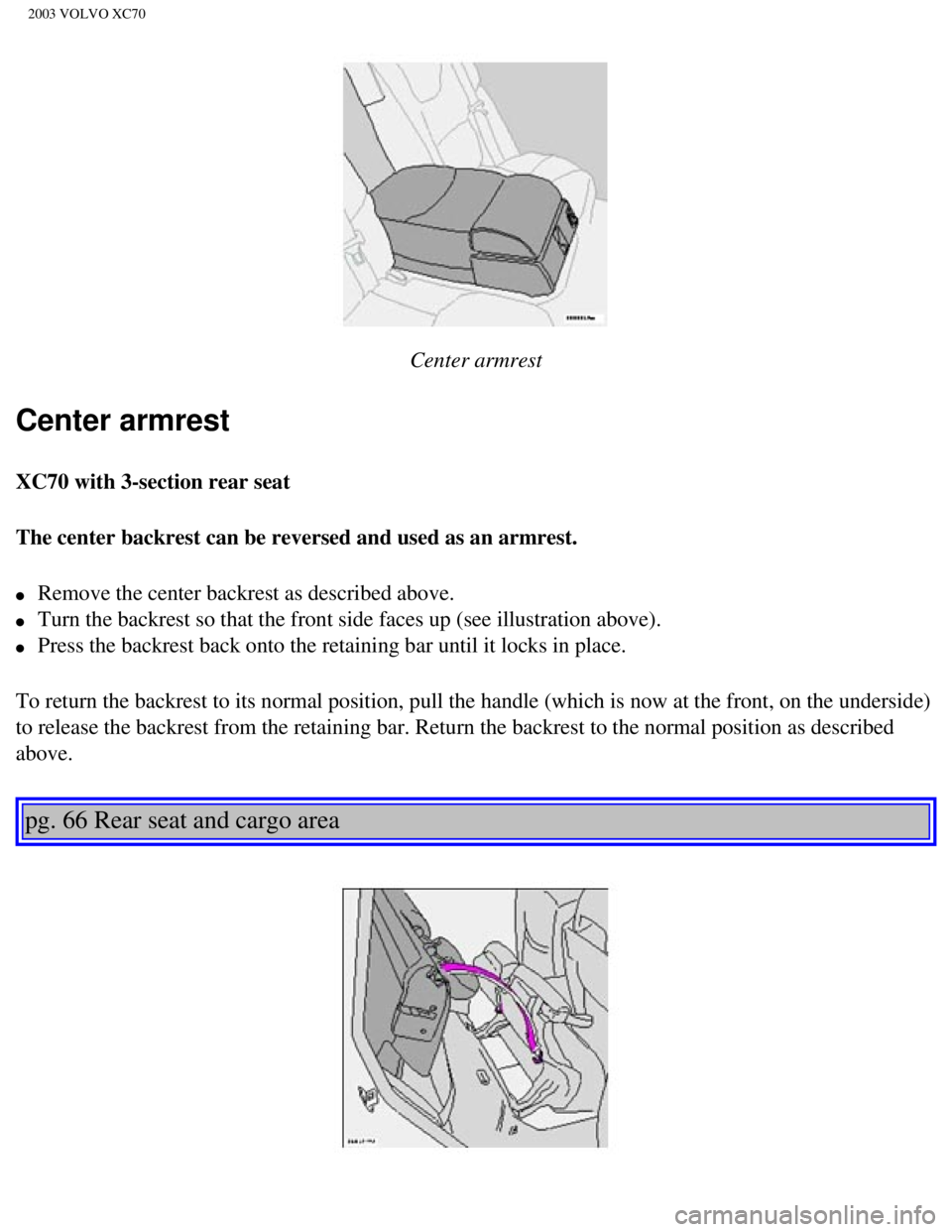

The center backrest can be reversed and used as an armrest.
l Remove the center backrest as described above.
l Turn the backrest so that the front side faces up (see illustration abo\
ve).
l Press the backrest back onto the retaining bar until it locks in place.
To return the backrest to its normal position, pull the handle (which i\
s now at the front, on the underside)
to release the backrest from the retaining bar. Return the backrest to t\
he normal position as described
above.
pg. 66 Rear seat and cargo area

file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (6 of 21)12/30/200\
6 4:17:57 PM

2003 VOLVO XC70
NOTE: Make sure that the holes in the plastic ferrules on the top of the backr\
est engage the hooks on
the bottom of the seat cushion. When you later raise the backrest and se\
at cushion, the head restraints
must be returned to their normal positions.
Removing the seat cushion
Models with 2 or 3-section rear seat
Pull up the seat by the handle. Unlock the two red locking tabs. Lift ou\
t the seat. When replacing, do
everything in reverse order. Make sure the red locking tabs are in a loc\
ked position. WARNING!
The red lock indicator is VISIBLE (B) when the backrest is NOT locked \
in position and not visible
(A) when the backrest is correctly locked in place. When the backrest \
is in the upright position, it
must always be correctly locked in place.

file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (7 of 21)12/30/200\
6 4:17:57 PM

2003 VOLVO XC70

A - Catch in closed position. B - Catch in open position.
Rear seat backrest

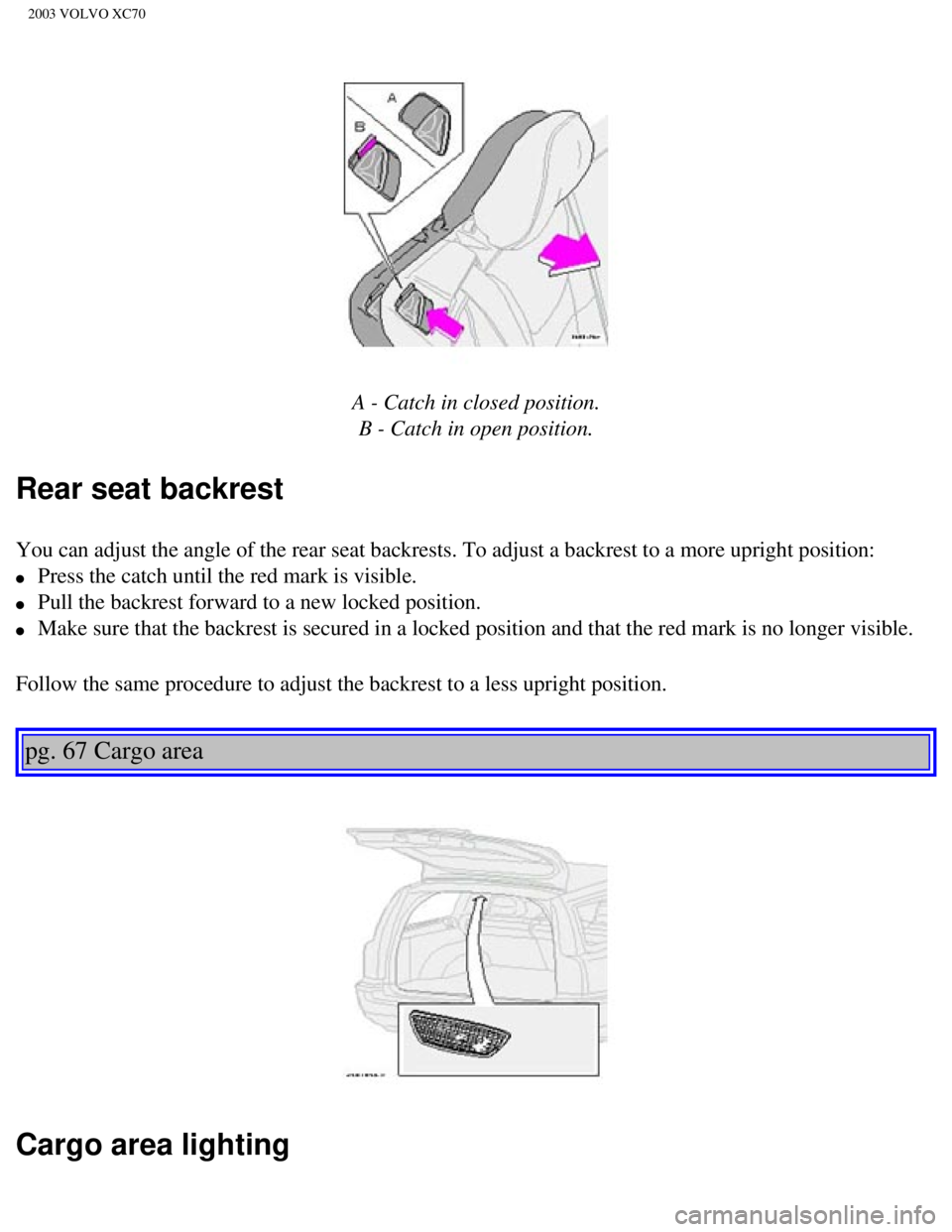

You can adjust the angle of the rear seat backrests. To adjust a backres\
t to a more upright position:
l Press the catch until the red mark is visible.
l Pull the backrest forward to a new locked position.
l Make sure that the backrest is secured in a locked position and that the\
red mark is no longer visible.
Follow the same procedure to adjust the backrest to a less upright posit\
ion.

pg. 67 Cargo area

Cargo area lighting
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (8 of 21)12/30/200\
6 4:17:57 PM

2003 VOLVO XC70

Steel grid
Steel grid (accessory)

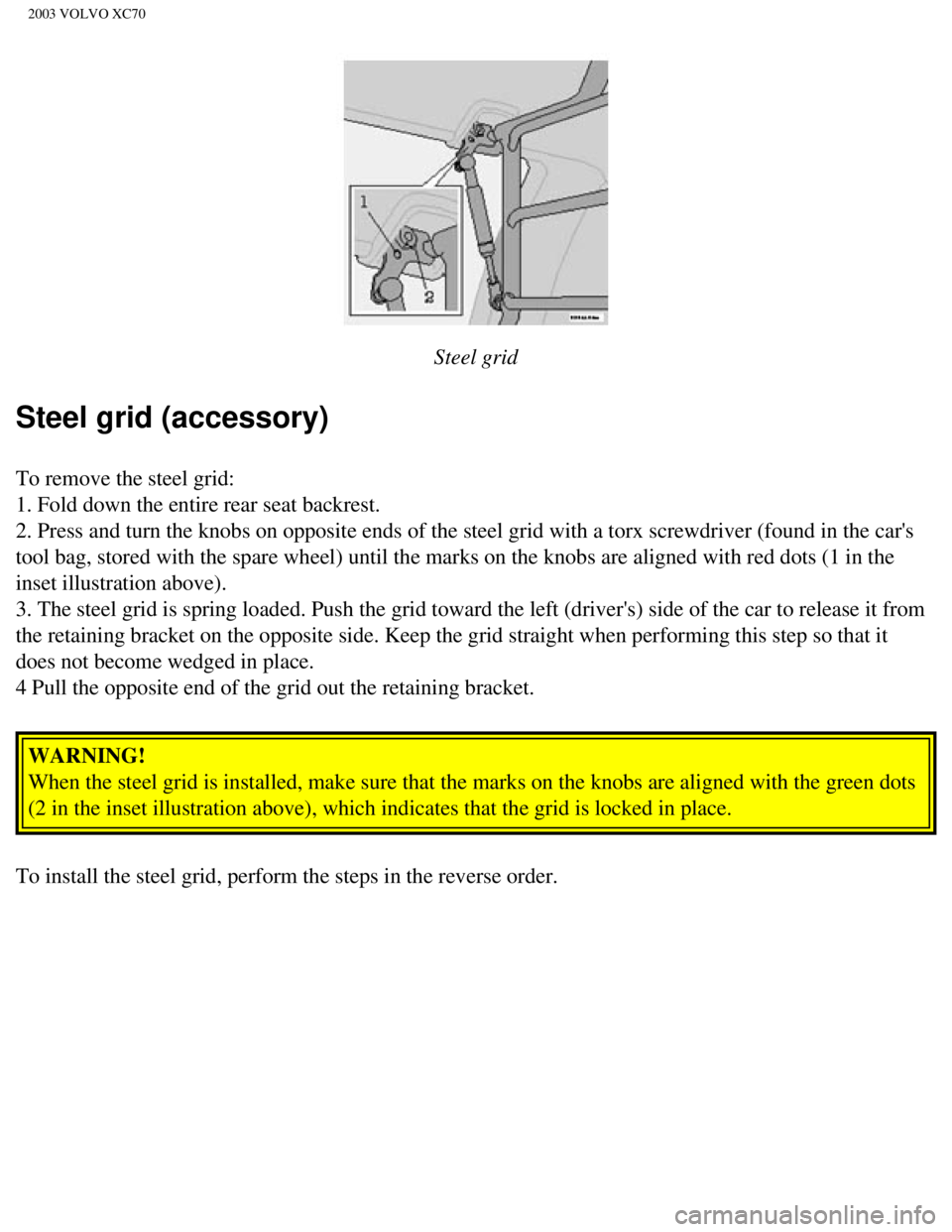

To remove the steel grid:
1. Fold down the entire rear seat backrest.
2. Press and turn the knobs on opposite ends of the steel grid with a to\
rx screwdriver (found in the car's
tool bag, stored with the spare wheel) until the marks on the knobs are\
aligned with red dots (1 in the
inset illustration above).
3. The steel grid is spring loaded. Push the grid toward the left (driv\
er's) side of the car to release it from
the retaining bracket on the opposite side. Keep the grid straight when \
performing this step so that it
does not become wedged in place.
4 Pull the opposite end of the grid out the retaining bracket. WARNING!
When the steel grid is installed, make sure that the marks on the knobs \
are aligned with the green dots
(2 in the inset illustration above), which indicates that the grid is \
locked in place.
To install the steel grid, perform the steps in the reverse order.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (12 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70

Cargo net
Cargo net (option on V70)
Models with 2-section rear seat
Your car can be equipped with a cargo net made of strong nylon fabric th\
at can be unrolled from the rear
seat backrest. After being unrolled, the cargo net self-locks after abou\
t a minute.

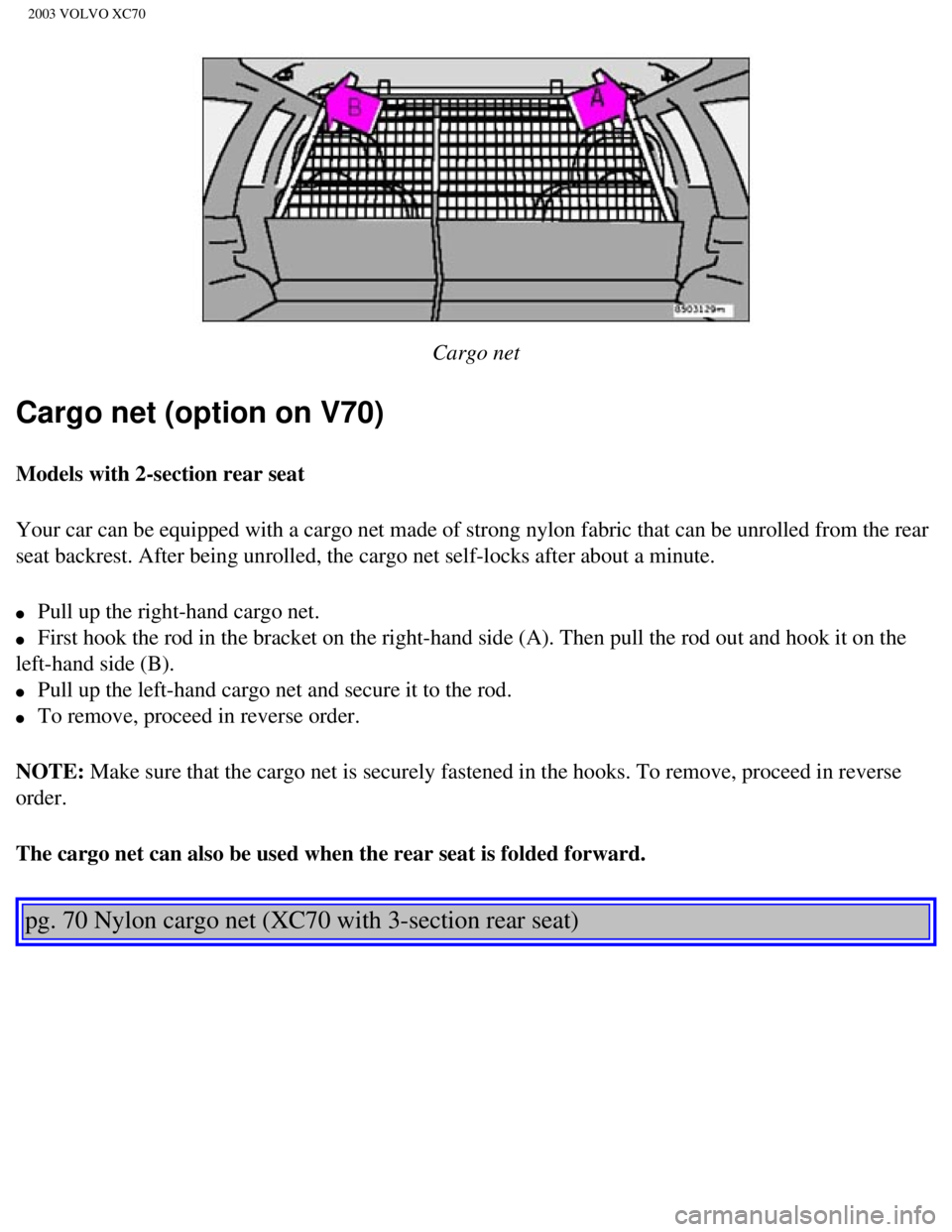

l Pull up the right-hand cargo net.
l First hook the rod in the bracket on the right-hand side (A). Then pul\
l the rod out and hook it on the
left-hand side (B).
l Pull up the left-hand cargo net and secure it to the rod.
l To remove, proceed in reverse order.
NOTE: Make sure that the cargo net is securely fastened in the hooks. To remov\
e, proceed in reverse
order.
The cargo net can also be used when the rear seat is folded forward.

pg. 70 Nylon cargo net (XC70 with 3-section rear seat)

file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (13 of 21)12/30/20\
