2003 VOLVO XC70

A chime will sound if the key is left in the ignition and the driver's d\
oor is opened.
* The gear selector must be in the (P)ark position.
** Please be aware that leaving the key in this position will increase b\
attery drain.
Steering wheel lock
The steering wheel lock might be under tension when the car is parked. T\
urn the steering wheel slightly
to free the ignition key.
In order to help reduce car theft, make sure the steering wheel lock is \
engaged before leaving the
car. WARNING!
Never switch off the ignition (turn the ignition key to position 0) or\
remove the key from the ignition
switch while the car is in motion. This could cause the steering wheel t\
o lock, which would make the
car impossible to steer.


pg. 36 Turn signals

file:///K|/ownersdocs/2003/2003_XC70/03xc70_02b.htm (5 of 18)12/30/200\
6 4:17:54 PM

2003 VOLVO XC70

Sideview mirror controls
Electrically operated sideview mirrors
The mirror control switches are located on the driver's door armrest.
Driver's side: Press the L switch (an LED in the switch will light up) to activate th\
e adjustment control
and then use this control to adjust the driver's door mirror.
Passenger's door: Press the R switch (an LED in the switch will light up) and then use t\
he adjustment
control to adjust the passenger's door mirror.
After you have adjusted the mirror(s), press the L or R switch again (\
the LED will go out) to deactivate
the adjustment control.
Remote central locking and sideview mirror memory If you lock the car and later unlock it with the
same remote control and open the driver's door, the sideview mirrors will au\
tomatically move to the
position they were in when you left the car. This feature will work in t\
he same way with all of the
remote control transmitters (up to 3) that you use with your car.
This feature will not function if you lock your car with the key. WARNING!
The mirrors should always be adjusted prior to driving. Objects seen in \
the wide-angle sideview
mirror are closer than they appear to be.


pg. 42 Sun roof (option)
file:///K|/ownersdocs/2003/2003_XC70/03xc70_02b.htm (15 of 18)12/30/20\
06 4:17:54 PM

2003 VOLVO XC70
Blower control
Turn the control clockwise to increase or counterclockwise to decrease t\
he blower speed. Pressing the
AUTO switch will automatically regulate blower speed and override manual\
adjustment.
NOTE: Turning the blower control counterclockwise as far as possible (an oran\
ge LED next to the
control will light up) will turn both the blower and the air conditioni\
ng off.

pg. 51 Electronic Climate Control (ECC) with Interior Air Quality syst\
em (option)
Interior Air Quality system (option)
Some cars are equipped with a Multifilter and Air quality sensor. The fi\
lter separates gases and particles,
thereby reducing the amounts of odors and contaminants entering the car.\
The Air quality sensor detects
increased levels of contaminants in the outside air. When the Air qualit\
y sensor detects contaminated
outside air, the air intake closes and the air inside the passenger comp\
artment is recirculated, i.e. no
outside air enters the car. The filter also cleans recirculated passenge\
r compartment air. When the Air
quality sensor is activated, the LED AUT comes on in

Operation:
Press to activate the Air quality sensor (normal setting).
Or select one of three functions by pressing
.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_03.htm (8 of 12)12/30/2006\
4:17:55 PM

2003 VOLVO XC70
Electrically operated front seats (option)
From the time the driver's door is unlocked, the driver's seat can be ad\
justed with the ignition off during
a 10 minute period, if the door remains opened. If the door is closed, the seat can be adjusted for 40
seconds.
1 - Power seat control panel
2 - Lumbar support
Turn the control for softer or firmer lumbar support.
Move the seat as far rearward as possible for easiest access to the lumb\
ar support control.
Electrically operated seats with memory function (option)*
Power seat control panel
A Front edge of seat (raise/lower)
B Forward - rearward
C Rear edge of seat (raise/lower)
D Backrest tilt
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04a.htm (2 of 11)12/30/200\
6 4:17:56 PM

2003 VOLVO XC70
WARNING!
l Because the driver's seat can be adjusted with the ignition off, childre\
n should never be left
unattended in the car.
l Movement of the seat can be STOPPED at any time by pressing any button o\
n the power seat
control panel.
l Do not adjust the seat while driving. The seat should be adjusted so tha\
t the brake pedal can be
depressed fully. In addition, position the seat as far rearward as comfo\
rt and control allow.
l The seat rails on the floor must not be obstructed in any way when the s\
eat is in motion.
Programming the memory

Three seat positions can be programmed. To program a seat position:
1 Adjust the seat to the desired position.
2 Hold down the MEM button.
3 While holding down the MEM button, press button 1 to program the curren\
t position of the seat.
Buttons 2 and 3 can be programmed in the same way. To move the seat to a\
programmed position, press
and hold down button 1, 2 or 3 until the seat moves to the preset positi\
on and stops.
As a safety precaution, the seat will stop automatically if the button i\
s released before the seat has
reached the programmed position.
NOTE: The seat has an overload protector which engages if an object blocks the\
movement of the seat.
If this happens, remove the object and wait 20 seconds before operating \
the seat again.
* This option is only available on the driver's seat.

file:///K|/ownersdocs/2003/2003_XC70/03xc70_04a.htm (3 of 11)12/30/200\
6 4:17:56 PM

2003 VOLVO XC70
pg. 57 Front seats
Electrically operated seats - general information
Adjusting the front seats:
The passenger's seat can only be adjusted if the ignition key is in posi\
tion I or II.
Driver's seat: The driver's seat can be adjusted if the ignition key is in position I o\
r II (see
page 35).
However, it can also be adjusted:
l Within 40 seconds after the ignition has been switched off (even if the\
key has been removed from the
ignition switch).
l Within 40 seconds after the driver's door has been unlocked with the key\
or remote control and
opened. The key does not have to be in the ignition switch during this p\
eriod.
Remote keyless entry system and driver's seat
The remote control transmitter also controls the electrically operated d\
river's seat in the following way:
l Adjust the seat to your preferences.
l When you leave your car, lock it using the remote control.
l The next time you unlock the driver's door with the same remote control(the one you used to lock the
doors with) and open the driver's door, the driver's seat will automati\
cally move to the position in which
you left it.
The seat will move to this position even if someone else has adjusted it\
since you last unlocked the car
with the same remote control.
NOTE:
l This feature will work in the same way with all of the remote control tr\
ansmitters (up to 3) that you
use with your car.
l This feature will not function if you lock your car with the key.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04a.htm (4 of 11)12/30/200\
6 4:17:56 PM

2003 VOLVO XC70

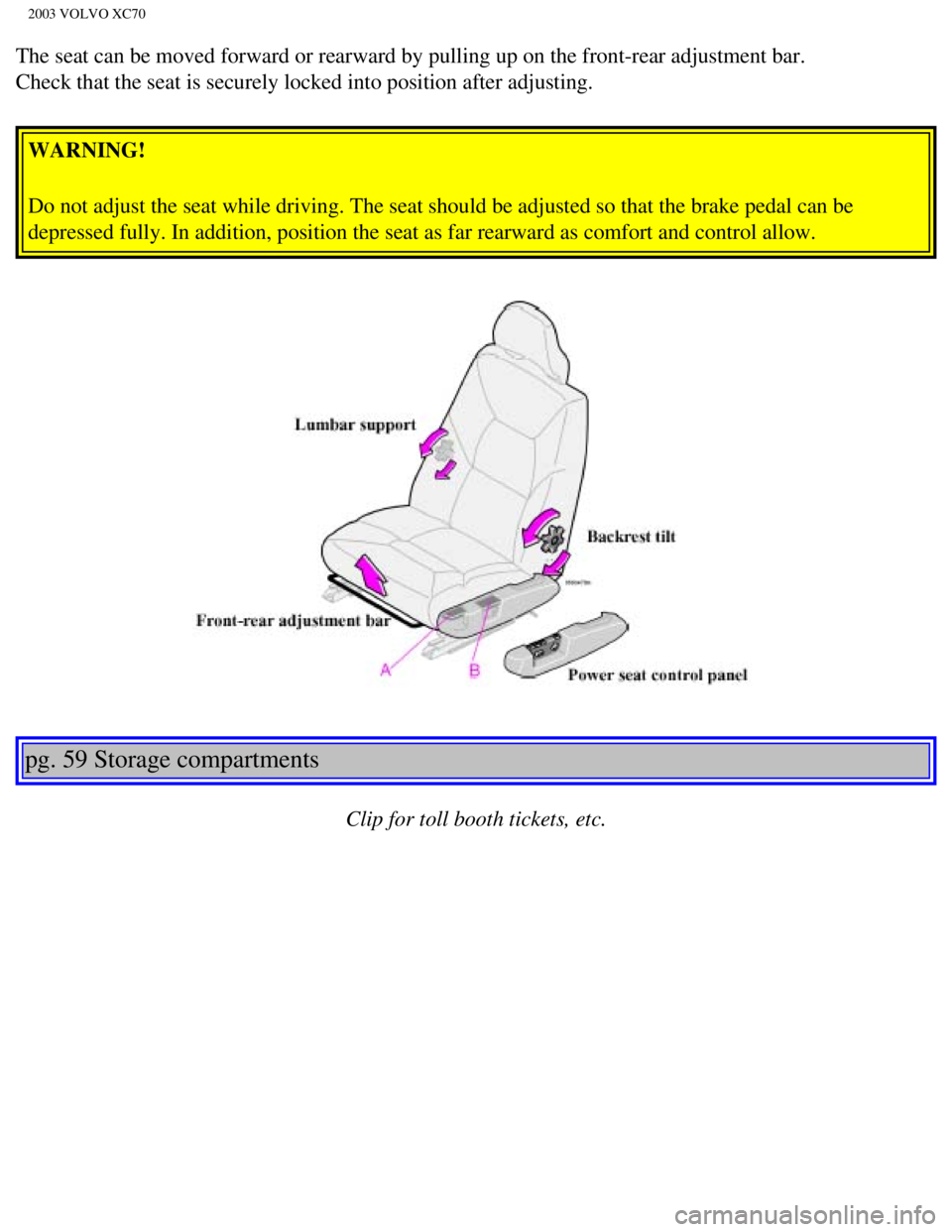

The seat can be moved forward or rearward by pulling up on the front-rea\
r adjustment bar.
Check that the seat is securely locked into position after adjusting. WARNING!
Do not adjust the seat while driving. The seat should be adjusted so tha\
t the brake pedal can be
depressed fully. In addition, position the seat as far rearward as comfo\
rt and control allow.


pg. 59 Storage compartments
Clip for toll booth tickets, etc.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04a.htm (6 of 11)12/30/200\
6 4:17:56 PM

2003 VOLVO XC70
To remove the coin compartment: Press the middle of the compartment whil\
e pulling it straight up.
Storage compartment and armrest
Inside the armrest there is a storage compartment which you may use for \
different personal accessories.
The armrest's lid is twofold.
To open only the upper lid: press the locking mechanism underneath the u\
pper lid and fold the lid
backwards to desired position.
To open the upper and lower lid: lift the lid from underneath upwards an\
d fold to desired position.

pg. 60 Cup holders, Glove compartment

Cup holder in the center console for rear seat passengers
(XC70 only)
This cup holder is only available on the XC70 with a 3-section rear seat\
.
l To use the cup holder, open the cover on the center console and fold it \
rearward. The cup holder and
the cover open together.
l The cup holder and the cover can be closed separately.
NOTE: If the cup holder is subjected to weights above approximately 12 lbs (\
5 kg), it will fold down
slightly to help prevent damage to the hinges.
