2003 VOLVO XC70
2 0 0 3
VOLVO XC70

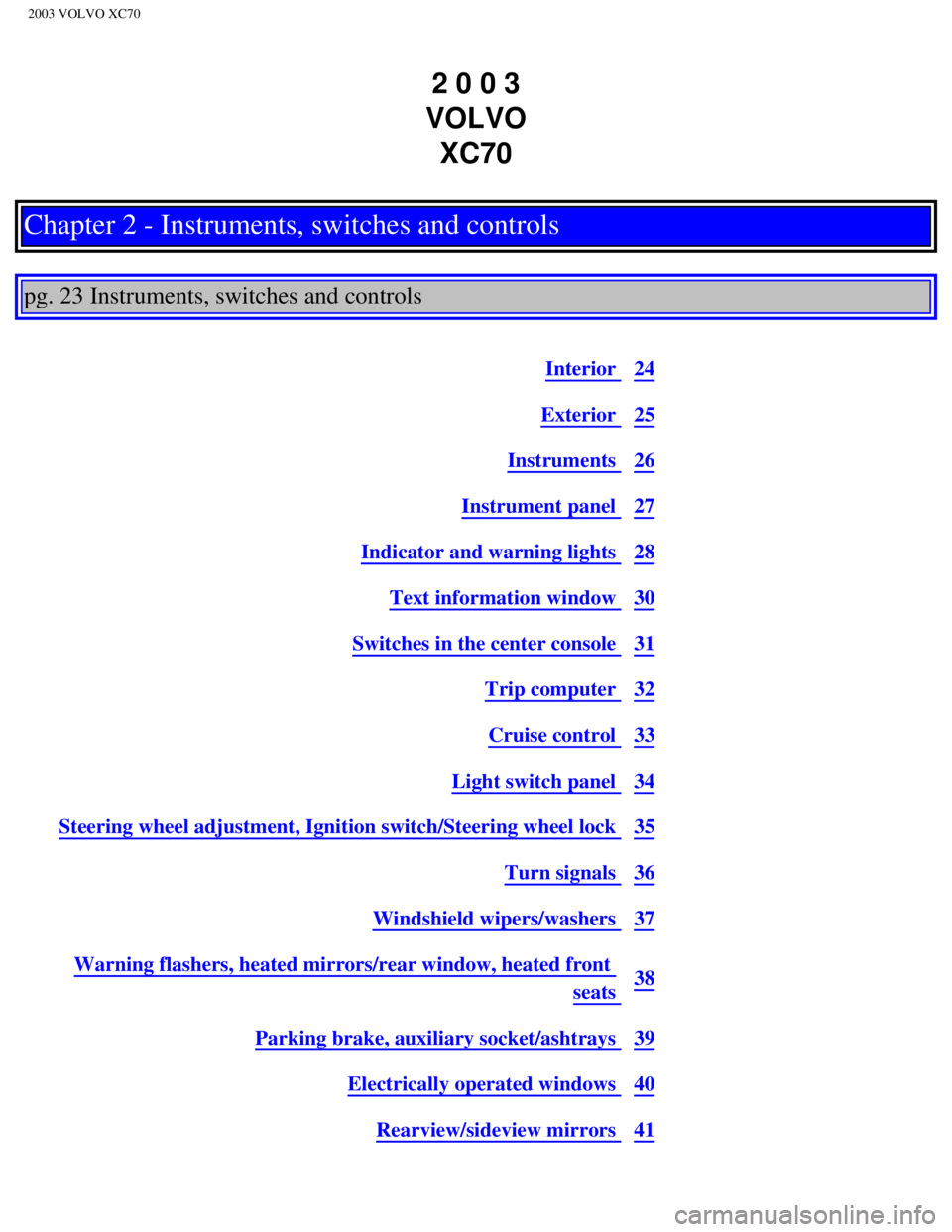

Chapter 2 - Instruments, switches and controls


pg. 23 Instruments, switches and controls

Interior 24
Exterior 25
Instruments 26
Instrument panel 27
Indicator and warning lights 28
Text information window 30
Switches in the center console 31
Trip computer 32
Cruise control 33
Light switch panel 34
Steering wheel adjustment, Ignition switch/Steering wheel lock 35
Turn signals 36
Windshield wipers/washers 37
Warning flashers, heated mirrors/rear window, heated front
seats 38
Parking brake, auxiliary socket/ashtrays 39
Electrically operated windows 40
Rearview/sideview mirrors 41
file:///K|/ownersdocs/2003/2003_XC70/03xc70_02a.htm (1 of 13)12/30/200\
6 4:17:53 PM

2003 VOLVO XC70
pg. 38 Warning flashers, Heated mirrors/rear window, Heated front seats

Hazard warning flashers
The four-way flasher should be used to indicate that the vehicle has bec\
ome a traffic hazard. To activate
the flashers, press the triangular button in the center dash. Press the \
button again to turn off the flashers.
NOTE: Regulations regarding the use of the hazard warning flasher may vary, de\
pending on where you
live.
Heated sideview mirrors/rear window
Press the switch to start heating the rear window and sideview mirrors t\
o remove ice or condensation.
An LED in the switch will light up.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_02b.htm (9 of 18)12/30/200\
6 4:17:54 PM

2003 VOLVO XC70
A timer automatically switches off the heating to the sideview mirrors a\
fter approximately 6 minutes and
to the rear window after approximately 12 minutes. The LED will go out c\
orrespondingly.
Heated front seats (option)
The front seat heating can be switched on and off as required.
l Press the switch once for maximum seat heating. Both LEDs in the switch \
will be lit.
l Press the switch a second time for comfort heating. One LED in the switc\
h will be lit.
l Press the switch a third time to turn the heating off completely.
The seat heating for the passenger seat should be switched off when the \
seat is not occupied.

pg. 39 Parking brake, Auxiliary socket, Ashtrays

Parking brake (hand brake)
The lever is situated between the front seats. The brake is applied to t\
he rear wheels. The indicator light
in the instrument panel will light up to indicate when the parking brake\
is applied. Apply the parking
file:///K|/ownersdocs/2003/2003_XC70/03xc70_02b.htm (10 of 18)12/30/20\
06 4:17:54 PM

2003 VOLVO XC70
If the LED in the switch is OFF: The rear door windows can be raised or lowered with the buttons on
the rear door armrests or with the buttons on the driver's door armrest.\
If the LED in the switch is ON: The rear door windows can only be raised or lowered with the buttons
on the driver's door armrest.

pg. 41 Rearview/sideview mirrors

Rearview mirror
A Normal position
B Night position, reduces glare from following headlights
Autodim function (option)
The autodim function reacts to headlights from following traffic and aut\
omatically reduces glare.
NOTE: This function is automatically switched off when the gear selector is pl\
aced in the Reverse
position.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_02b.htm (14 of 18)12/30/20\
06 4:17:54 PM

2003 VOLVO XC70
Defroster
This function demists/de-ices the windshield and front side windows. The\
LED in the switch will light
up to indicate that the defrost function is engaged. Blower speed increa\
ses automatically and the air in
the passenger compartment is dehumidified. Recirculation will not functi\
on while defrost is engaged.
Heated rear window/sideview mirrors
This function demists/de-ices the rear window and sideview mirrors. The \
LED in the switch will light up
to indicate that the heating function is engaged. See
page 38 for additional information on this function.
CAUTION:
Never use ice scrapers made of metal as they can easily scratch the mirr\
or surface.

pg. 50 Electronic Climate Control (ECC) - manual settings
Recirculation (see also page 48)
Press this switch to engage the recirculation function (air in the pass\
enger compartment recirculates - no
fresh air enters the compartment). The LED in the switch will light up \
to indicate that the function is
engaged.
l Use this function if the outside air is contaminated with exhaust gases,\
smoke, etc or to heat/cool the
car quickly.
l Recirculation should not be used for more than 15 minutes. If your windows begin to fog or mist,
make sure that the recirculation function is switched off.
l Selecting Defroster automatically switches recirculation off.
l Timer mode activation: (Cars with Interior Air Quality system have no timer mode) Press and \
hold
the recirculation button for at least 3 seconds to activate a recirculat\
ion timer mode. The amber LED in
the recirculation button will flash 5 times to show that the timer mode \
is being activated. In the time
mode, each time the recirculation button is pressed, the climate control\
system will recirculate the air in
file:///K|/ownersdocs/2003/2003_XC70/03xc70_03.htm (6 of 12)12/30/2006\
4:17:55 PM

2003 VOLVO XC70
A/C - ON/OFF
The air conditioning function is engaged by pressing ON and disengaged b\
y pressing OFF. When you
select Defroster
, the air conditioning is automatically engaged if the fan is not set to\
position 0.
Heated front seats (option)
Please see page 38 for more information on this function.
Heated rear window/sideview mirrors
This function demists/de-ices the rear window and sideview mirrors. The \
LED in the switch will light up
to indicate that the heating function is engaged. See
page 38 for additional information on this function.
CAUTION:
Never use ice scrapers made of metal as they can easily scratch the mirr\
or surface.
Recirculation
Recirculation can be used to shut out stale air, exhaust, etc. from the \
passenger compartment. The air in
the passenger compartment is then recirculated, i. e. no air from outsid\
e the car is taken into the car
when this function is activated. Recirculation (together with the air c\
onditioning system) cools the
passenger compartment more quickly in warm weather.
If you allow the air in the car to recirculate, there is a risk of icing\
and fogging, especially in winter. The
timer function minimizes the risk of ice, misting and stale air.
Activate the timer function as follows:
file:///K|/ownersdocs/2003/2003_XC70/03xc70_03.htm (10 of 12)12/30/200\
6 4:17:55 PM

2003 VOLVO XC70
The courtesy light stays on for 10 minutes if one of the doors is left o\
pen after the car is unlocked. The
courtesy light switches off if:
l The engine is started.
l The car is locked from the outside with the key or remote control.
The interior courtesy light can be switched on or off at any time by pre\
ssing the center button in the
panel above the rearview mirror. When switched on with the engine off, t\
he light will stay on for 10
minutes. When switched on with the engine running, the light will stay o\
n indefinitely. The light may be
switched off at any time by pressing the center button a second time.
The courtesy light timer periods can be changed. Consult your Volvo reta\
iler.
Overriding the Interior Courtesy Lights
Normally if a car door is left open with the engine turned off, the inte\
rior courtesy light will stay on for
10 minutes.
If a car door is left open or the interior courtesy lights are turned on\
while the engine is left running, the
interior courtesy lights will stay on indefinitely.
At times, you may wish to be assured that the courtesy lights will stay \
off regardless of door or tailgate
position.
To switch off the interior and tailgate courtesy lights indefinitely, pr\
ess and hold the center button in the
panel above the rearview mirror for 3 seconds. The courtesy lights will \
go off and remain off until the
center button is pressed again.

Rear reading lights
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (20 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
G
Gas cap
86
Gasoline
84
Gear indicator
27
Geartronic (automatic transmission)
92, 93
Generator
148
Generator warning light
28
H
Hand brake
39
Handgrip - XC70
55, 73
Handling
95
Hazard warning flashers
38
Head restraint (center) - 3-section rear seat
64
Head restraint - center rear
3
Headlight bulbs - replacing
120
Headlight wiper blades - replacing
140
Headlights
34
Heated front seats
38
Heated rear window
38
Heated sideview mirrors
38
Heating
48-51
Hoisting the car
133
Holder for grocery bags
67
Home Safe System
76
HomeLink®
167-169
Hood - opening
134
I
Ignition switch
35
Immobilizer (start inhibitor)
76, 87
Indicator lights
28, 29
Inflatable curtain (IC)
9
Instrument illumination
34
