2003 TOYOTA PRIUS Owners Manual

2
2.Instrument panel overview
1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Running mode selector lever
6. Power door lock switches
7. Power window switches
8. Glove box
9. Auxiliary boxes
10. Tilt steering lock release lever 11. Hood lock release lever
12. Parking brake pedal
13. Window lock switch
11p003b

3
1. Headlight and turn signal switch
2. Wiper and washer switch
3. Rear window defogger switch
4. Trip meter reset button
5. Emergency flasher switch
6. Multiinformation display
7. km/h or MPH button
8. Security indicator light
9. Clock
10. Car audio 11. Air conditioning controls
12. Auxiliary box
13. Power outlet
14. Ignition switch
15. Cruise control switch
16. Power rear view mirror control switch
17. Instrument panel light control dial
11p001g

4

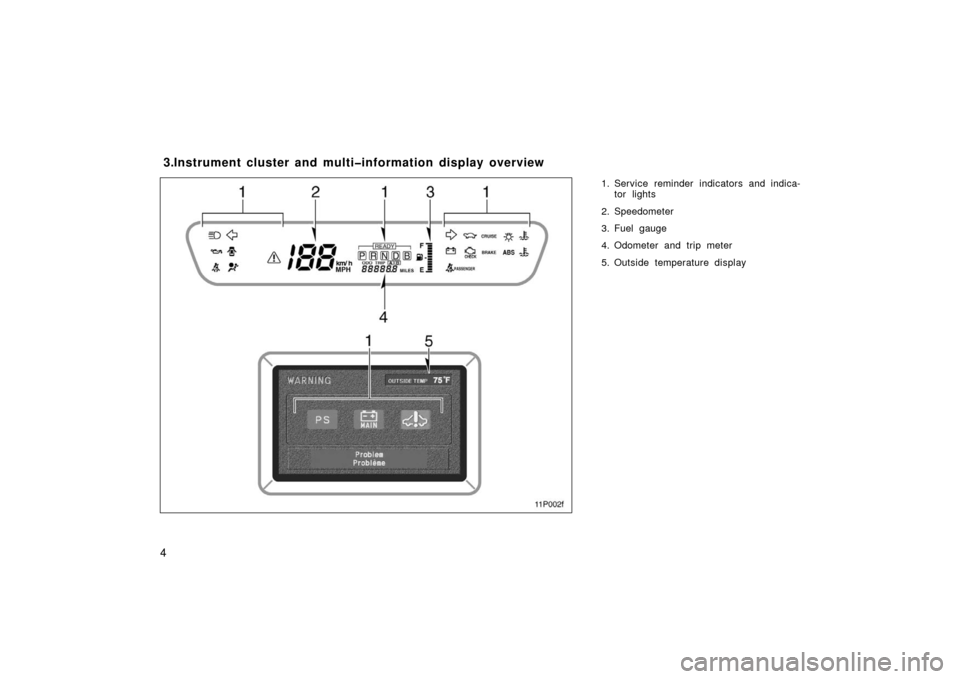

1. Service reminder indicators and indica-tor lights
2. Speedometer
3. Fuel gauge
4. Odometer and trip meter
5. Outside temperature display
3.Instrument cluster and multiinformation display overview
11p002f

5
4.Indicator symbols on the instrument panel and Multiinformation display
or
orBrake system warning light∗1
Discharge warning light∗1
Seat belt reminder light∗1
Front passenger ’s seat belt reminder light∗1
Malfunction indicator lamp∗1
Low coolant temperature indicator light
(in blue)∗1
High coolant temperature warning light (in red)∗1
Low fuel level indicator light∗1
Low engine oil pressure warning light∗1
Open door warning light∗1
Master warning light∗1
Antilock brake system warning light∗1
Headlight high beam indicator light
Headlight indicator light Turn signal indicator lights SRS warning light
∗1

6
Tail light indicator light
Output control warning light
∗1
Cruise control indicator light∗3
Running mode position indicator light
Driving ready light
Hybrid system warning light
∗2
Power steering warning light∗2
Hybrid vehicle battery warning light∗2
∗1: For details, see ”Service reminder indicators and warning
buzzers— —Instrument cluster” on page 92 in Section 24.
∗2: For details, see “Service reminder indicators and warning
buzzers— —Multiinformation display” on page 99 in Section
24.
∗3: If this light flashes, see ”Cruise control” on page 109 in
Section 25.

7
FEATURES ON NEW TOYOTA VEHICLE
5.Toyota hybrid system
Toyota hybrid system8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Toyota hybrid system operating condition n8. . . . . . . . . . . . . . . . . . . . . .
Starting your vehicle 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
For efficient use of your vehicle 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Precautions for use 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
SECTION 1– 2

8
Toyota hybrid system combines the
gasoline engine and the electric motor
power to improve the fuel economy
largely and minimize the emissions as
well as to provide higher power perfor-
mance than the ordinary gasolinepow-
ered vehicles.
Depending on the driving condition, the
vehicle runs on the best combination of;
Gasoline engine power
Electric motor power generated by
the gasoline engine
Electric motor power of the hybrid
vehicle battery
Furthermore, the energy is effectively used
in the following ways:
When stopping the vehicle, the gaso-
line engine is automatically stopped.
When decreasing the speed by apply-
ing the brakes, electricity converted
from the turning force of the wheels is
stored in the hybrid vehicle battery.
(This is called regenerative brake.) Since the battery is charged by the
gasoline engine as needed, it does not
require charging from the outside like
an electric vehicle.
In this way, greatly improved fuel economy
and reduced emissions are attained.
If you do not use the vehicle for a long
time (2 weeks or more),
the hybrid ve-
hicle battery and auxiliary battery will dis-
charge and their condition is liable to de-
cline. Therefore, in order to make up for
discharging, charge them once in every 2
weeks for about 30 minutes by starting
the hybrid system with all electrical com-
ponents turned off. Basic operations are described below. Be-
sides, Toyota hybrid system performs vari-
ous controls depending on the operating
condition, such as at the time of hybrid
system starting, at the time of charging
should be required, at the time of the air
conditioning is in use, etc.
6.Toyota hybrid system
7.Toyota hybrid system
operating condition

9
12p016a
Electric power
in use
When starting or backing up, etc., the
gasoline engine efficiency worsens, so
the vehicle runs on electric power from
hybrid vehicle battery.
12p017a
Gasoline power
in use
During normal driving, the vehicle runs
mainly on gasoline power. However, the
electric motor, using electric power gener-
ated by the gasoline engine, makes up for
any deficiency of gasoline power.
The vehicle controls the optimum ratio of
the gasoline and electric power to help
save energy more effectively.
12p018a
Electric and gasoline
power in use
When driving at full throttle, electric
power is further applied from the hybrid
vehicle battery. Vehicle performance impro-
ves.
