2003 TOYOTA PRIUS Owners Manual

98
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Either of the following conditions may
occur, but does not indicate the mal-
function:
The light may stay on for about 60
seconds after the ignition key is turned
to the “ON” position. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if
it turns off after a few seconds.
(j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ACC” or
“ON” position. After about 6 seconds,
the light will go off. This means the
system of the airbag and front seat belt
pretensioners are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side airbag sensors, front seat belt
pretensioner assemblies, warning light, in-
terconnecting wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turn to the “ACC” or
“ON” position or remains on.
The light comes on or flashes while
driving. (k) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(l) Low Fuel Level Indicator Light
This light blinks when the fuel level in the
tank becomes very low. Fill up the tank
as soon as possible.
At the first blinking of the light, the mes-
sage appears on the display to remind the
driver to fill fuel.
Contact your Toyota dealer in the fol-
lowing cases:
All the segments blink.
The “E” mark and the segments indi-
cating remaining fuel blink.
(m) High Coolant Temperature Warning Light
The light operates to warn that the hybrid
system is almost over heating.
The light will come on when the ignition
key is turned to the “ON” position. After
a few seconds, the light will go off.
If it comes on while you are driving, stop
the vehicle and check your hybrid system.
For detailed instructions, see “If your ve-
hicle overheats” on page 176 in Section
5.

99
NOTICE
Continued driving with the light on
could result in the overheating of hy-
brid system.
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position.
(o) Shift position reminder buzzer
This buzzer will sound if the driver ’s door
is opened in the following conditions:
The hybrid system is on.
The parking brake is applied.
The selector lever is in a position other
than “P”.CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level indica-
tor light)
1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ACC”. The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to “START”. At this time, all the bulbs are checked in
selfdiagnosis mode.
All the service reminder indicators ex-
cept the open door warning light and
SRS warning light should come on. The
“ABS” warning light goes off after a
few seconds. There may be the case that the “ABS”
warning light stays on for about 60 sec-
onds after the ignition key is turned to the
“ON” position. It is normal if it goes out
after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

100
24p006b

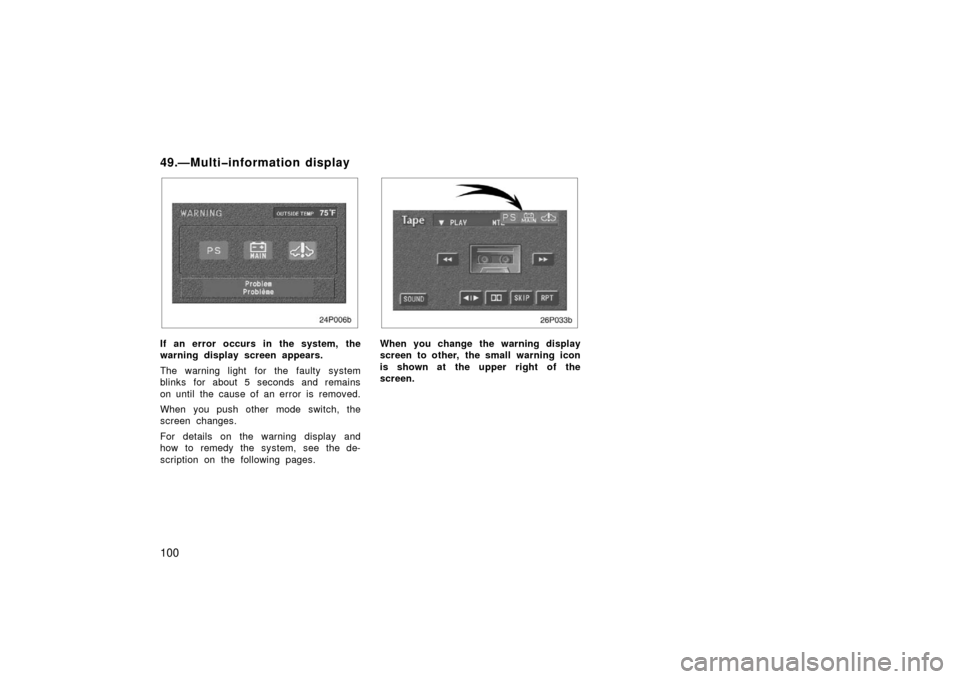

If an error occurs in the system, the
warning display screen appears.
The warning light for the faulty system
blinks for about 5 seconds and remains
on until the cause of an error is removed.
When you push other mode switch, the
screen changes.
For details on the warning display and
how to remedy the system, see the de-
scription on the following pages.
26p033b
When you change the warning display
screen to other, the small warning icon
is shown at the upper right of the
screen.
49.—Multiinformation display

101
If the indicator comes on...Do this.
(a)Take vehicle to Toyota dealer.
(b)Stop and check.
(c)Take vehicle to Toyota dealer immediately.

102
(a) Power Steering System WarningLight
This light comes on when the power
steering control system fails.
If the vehicle starts moving on the decline
before the ignition is turned on, turning
the ignition switch to “ON” will light up
this light. At this time, you may feel the
steering wheel heavy.
If this occurs, stop your vehicle complete-
ly, turn the ignition switch to “ACC” or
“LOCK” and start the hybrid system again.
CAUTION
If this light comes on, take your ve-
hicle to the Toyota dealer as soon as
possible. In this case, you may feel
the heavy steering wheel maneuver-
ing. Drive your vehicle while gripping
the steering wheel firmly.
(b) Hybrid Vehicle Battery Warning Light
This light comes on in the following
cases.
a. The hybrid vehicle battery voltage
drops with the running mode selector lever
left in “N” position.
The system works properly if you put the
running mode selector lever to “P” position
and the light goes off.
b. The fuel tank is completely empty. (See
“Fuel gauge” in this section for instruc-
tions.)
c. The hybrid vehicle battery is dis-
charged.
If this light comes on with the “READY”
light on in case of c., stop your vehicle
in a safe place and contact your Toyota
dealer. (c) Hybrid System Warning Light ()
This light comes on if there is a problem
in the electric motor, inverter unit, hybrid
vehicle battery, etc.
If this light is on, stop your vehicle in a
safe place immediately and contact your
Toyota dealer.
Even if the hybrid system warning light
comes on, you could increase the speed
a little temporarily by depressing the ac-
celerator pedal. Immediately pull up your
vehicle at a safe place and contact your
Toyota dealer.

103

104
OPERATION OF INSTRUMENTS AND
CONTROLS
50.Ignition switch, Transmission and Parking brake
Ignition switch with steering lock105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hybrid transaxlee 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Parking brake 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 2– 5

105
25p001c
“START”—The hybrid system is ready
to operate.
Turn the key to the “START” position and
hold the ignition switch at this position for
about a few seconds until the “READY”
light comes on and a beep sounds. (If the
ambient temperature is low such as during
winter conditions, it may take time until
the “READY” light is on.” The key will
return to the “ON” position when released.
Being different from ordinary vehicles, you
cannot start your vehicle with the running
mode selector lever in “N” position.
“ON”—The hybrid system starts to run
when the accelerator pedal is depressed
with the “READY” light and all accesso-
ries on.This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the hybrid system is off.
If you leave your key in the “ACC” posi-
tion for a while, put the running mode
selector lever in “P” position.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
“LOCK”—The hybrid system is off and
the steering wheel is locked. The key
can be removed only at this position.
You must push in the key to turn it from
“ACC” to the “LOCK” position. The selec-
tor lever must be put in the “P” position
before pushing the key.
Vehicles with hybrid vehicle immobiliser
system–Once you remove the key, the hy-
brid vehicle immobiliser system is auto-
matically set. (See “Hybrid vehicle immobi-
liser system” on page 20 in Section 21.)
When starting the hybrid system, the key
may seem stuck at the “LOCK” position.
To free it, first be sure the key is pushed
all the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the “ACC” or
“ON” position for a long time when
the hybrid system is off. The auxiliary
battery will discharge.
Ignition switch with steering
lock51.
