2003 TOYOTA PRIUS Owners Manual

66
22p035a
CAUTION
Never put a rearfacing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.
22p045c
Do not put a child restraint system
on the rear seat if it interferes with
the lock mechanism of the front
seats. This can cause death or seri-
ous injury to the child and front
passenger in case of sudden brak-
ing or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
22p037a
1. Run the lap and shoulder belt throughor around the baby seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

67
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
22p038a
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
22p039a
3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

68
22p040a
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
22p041b
4. To remove the baby seat, press thebucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
22p042a
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
struction about the applicable child’s
age and size as well as directions for
installing the child restraint system.

69

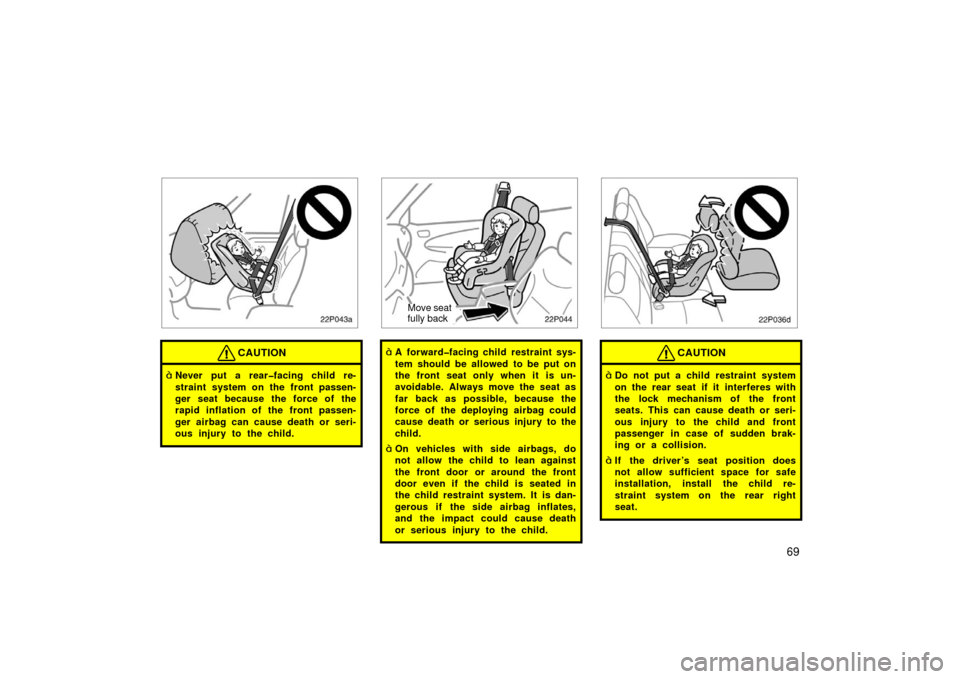

22p043a
CAUTION
Never put a rearfacing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.
22p044
Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
22p036d
CAUTION
Do not put a child restraint system
on the rear seat if it interferes with
the lock mechanism of the front
seats. This can cause death or seri-
ous injury to the child and front
passenger in case of sudden brak-
ing or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.

70

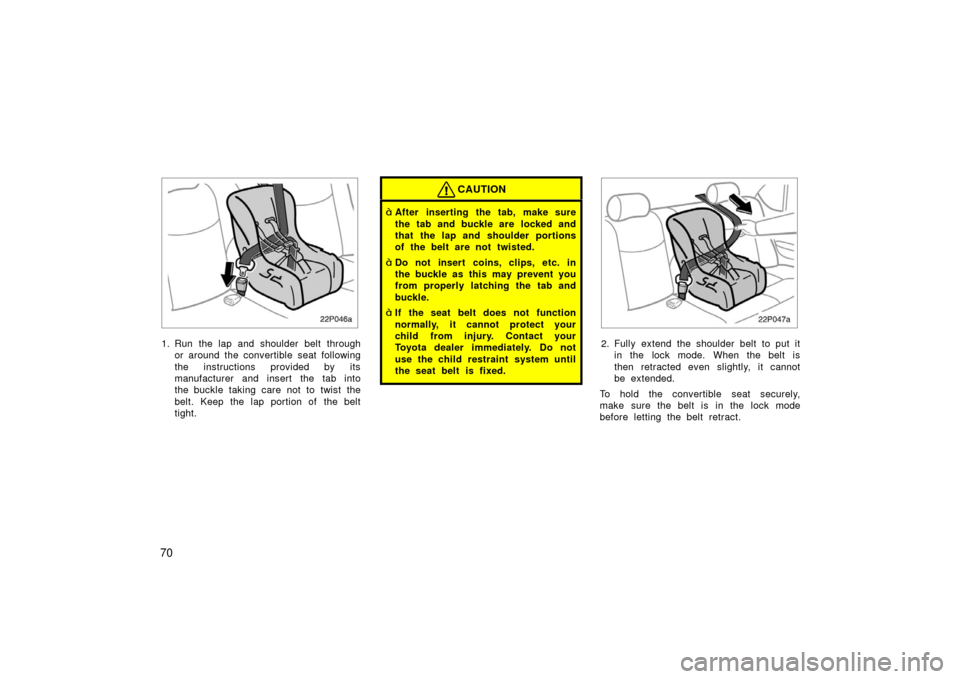

22p046a
1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
22p047a
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

71

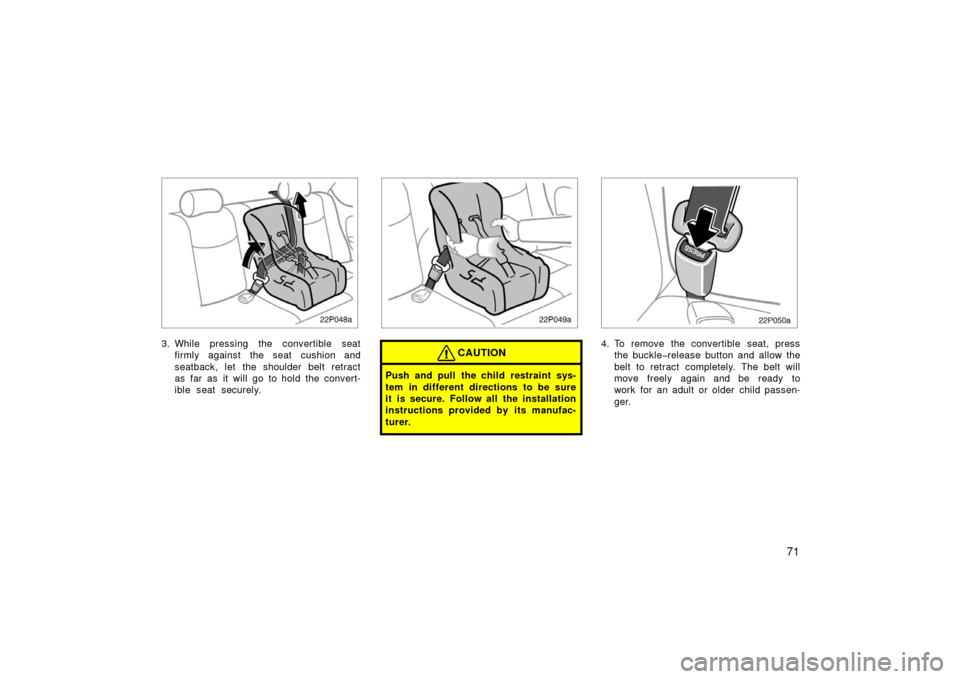

22p048a
3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
22p049a
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
22p050a
4. To remove the convertible seat, pressthe bucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

72

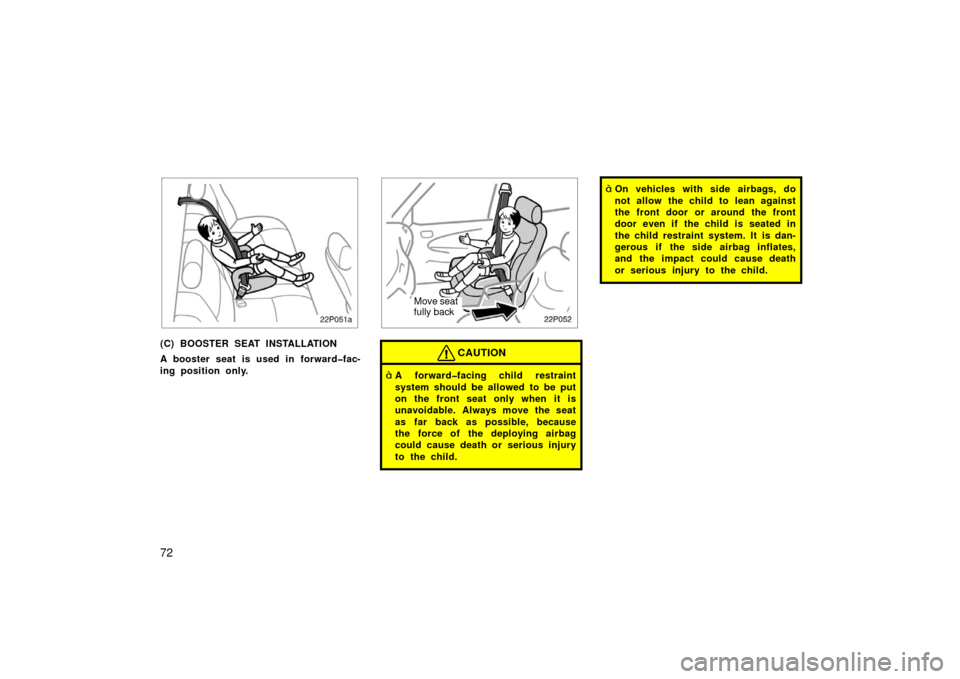

22p051a
(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forwardfac-
ing position only.
22p052
Move seat
fully back
CAUTION
A forwardfacing child restraint
system should be allowed to be put
on the front seat only when it is
unavoidable. Always move the seat
as far back as possible, because
the force of the deploying airbag
could cause death or serious injury
to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.

73

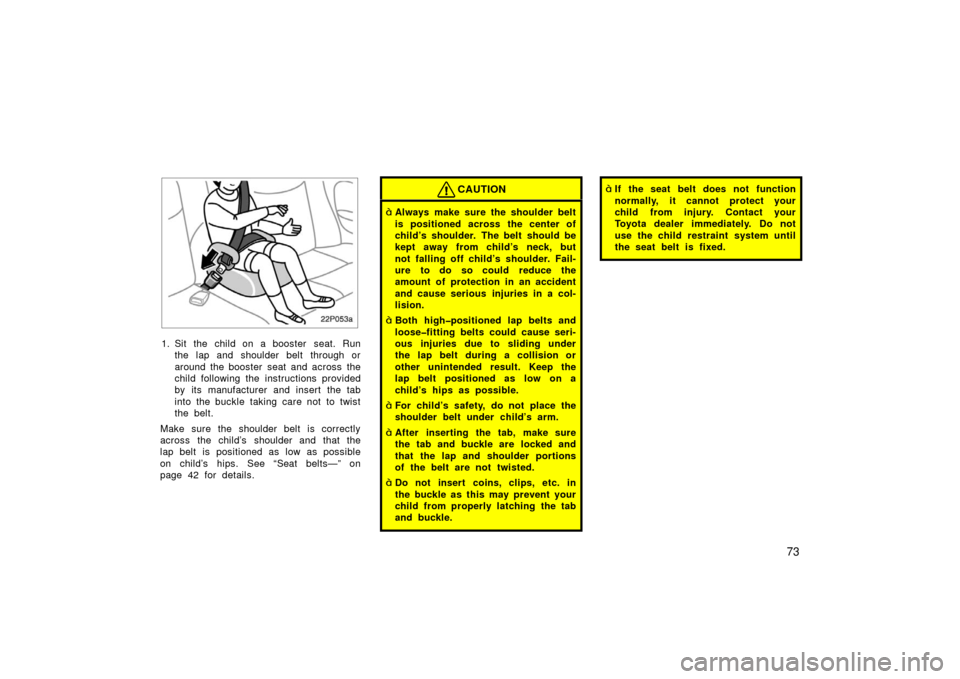

22p053a
1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts—” on
page 42 for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
