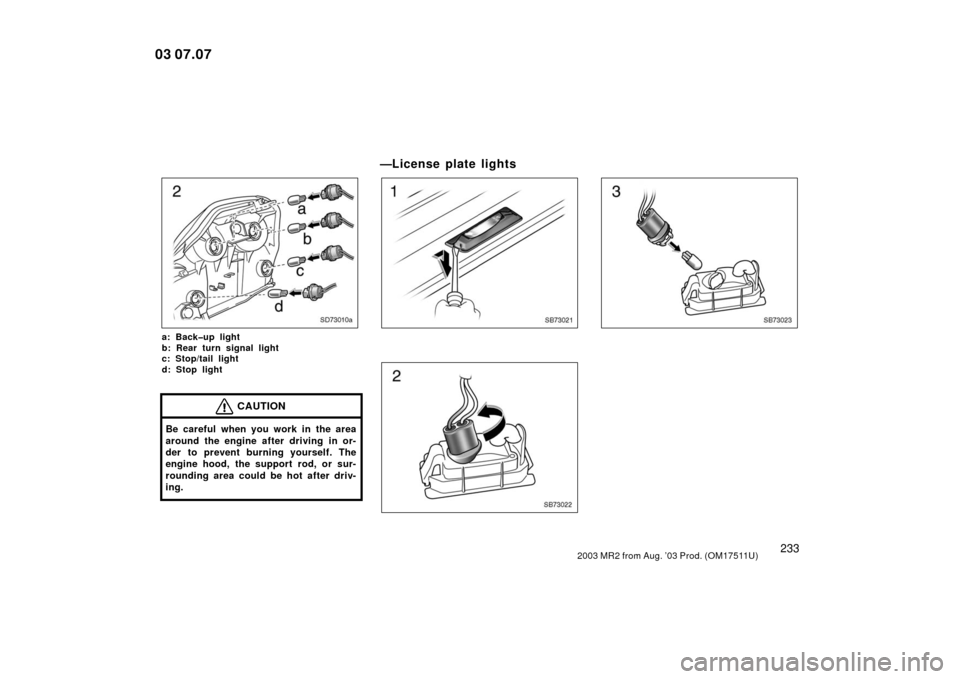

—Rear turn signal, stop/tail,
stop and backup lights

2332003 MR2 from Aug. ’03 Prod. (OM17511U)
SD73010a
a: Backup light
b: Rear turn signal light
c: Stop/tail light
d: Stop light
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.
—License plate lights
SB73021
SB73022
SB73023
03 07.07

2342003 MR2 from Aug. ’03 Prod. (OM17511U)
—High mounted stop light
SB73062
SB73052
SB73060
SB73057
SB73058
SB73059
03 07.07

2352003 MR2 from Aug. ’03 Prod. (OM17511U)
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.
03 07.07

2362003 MR2 from Aug. ’03 Prod. (OM17511U)
03 07.07

2372003 MR2 from Aug. ’03 Prod. (OM17511U)
SPECIFICATIONS
Specifications
Dimensions and weight238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
03 07.07
SECTION 8

2382003 MR2 from Aug. ’03 Prod. (OM17511U)
Dimensions and weight
Overall length mm (in.) 3885 (153.0)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1240 (48.8)
∗
Wheelbase mm (in.) 2450 (96.5)
Front tread mm (in.) 1475 (58.1)
Rear tread mm (in.) 1460 (57.5)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 193 (425)
∗: Unladen vehicle
Engine
Model: 1ZZFE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 79.0  91.5 (3.11  3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 48 (12.7, 10.6)
03 07.07

2392003 MR2 from Aug. ’03 Prod. (OM17511U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm (in.): 1.1 (0.043) ENGINE LUBRICATION
Oil capacity (drain and ref
ill),
L (qt., Imp. qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
“Toyota Genuine Motor Oil” is f illed in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and viscos-
ity. Oil grade:
API grade SL “EnergyConserving” or
ILSAC multigrade engine oil.
Recommended oil viscosity: SAE 5W30
OIL008
Outside temperature
Please contact your Toyota dealer for fur-
ther details.
