2003 TOYOTA MATRIX Navigation Manual

Corolla_MATRIX_Navi_U (L/O 0208)
i2003 MY COROLLA MATRIX (OM12774U)
Foreword
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this
manual stored in your vehicle at all times.
The Toyota Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives
satellite si gnals from the Global Positioning System (GPS) operated by the U. S. Department of Defense. Using these signals and other
vehicle sensors, the system can show you where you are and assist you in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The syste m is
designed to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses the maps of DENSO bas ed on
NavTech maps and GDT maps. The calculated routes are neither the shortest routes nor routes without traffic congestion. Your ow n
personal local knowledge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes about 50 point of interest categories to allow you to easily select destinations such as
restaurants and hotels. If a destination is not in the database, you can enter the street address or a major intersection close to it and
the system will route you there. The system will provide both a visual map and audio instructions. The audio instructions will announce
the distance and direction to go when you are approaching a fork or intersection. These voice instructions will help you keep y our eyes
on the road and are timed to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ab ility to perform
properly. The accuracy of the vehicle’s position depends on the satellite c ondition, road configuration, vehicle condition or
other circumstances. For more information on the limitations of the system, refer to pages 45 through 47.
 200 2 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.

Corolla_MATRIX_Navi_U (L/O 0208)
ii2003 MY COROLLA MATRIX (OM12774U)
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in
order to avoid or reduce the risk of
damage to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
Initial screen
0NAN003
When you start the engine or turn the
ignition switch to “ACC”, the initial “VOICE
NAVIGATION” screen appears and the
system begins operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.
After a few seconds, the “CAUTION”
screen appears.
0NAN001
Please read it and follow the instruc-
tions.
If a screen other than for the navigation
system is displayed, the current screen
would change to the “CAUTION” screen
by pushing the
“NAV” button.
When you push the
“ENT” button to
indicate
“I agree” switch on the dis-
play, the next screen appears.

Corolla_MATRIX_Navi_U (L/O 0208)
iii2003 MY COROLLA MATRIX (OM12774U)
On this screen, you can select the lan-
guage shown on the screen. Select your
desired switch on the screen.“Eng”: English
“Fr”: French
You can also select the language by the
following procedure.
4NAN003
1. Push the “SETUP” button. Push
the
“Language” button to display
the “CAUTION” screen.
0NAN001
2. Select your desired language and push the
“ENT” button.
“Eng”: English
“Fr”: French
3. Select
“I agree” switch and push
the
“ENT” button.

Corolla_MATRIX_Navi_U (L/O 0208)
iv2003 MY COROLLA MATRIX (OM12774U)
Safety Instruction
0NAN001
To use your system as safely as possible,
follow all the safety tips shown below.
This system is intended to assist you in
reaching your destination and, if used
properly, can do so. You, as the driver,
are solely responsible for the safe opera-
tion of your vehicle and the safety of your
passengers.
Do not use any feature of this system to
the extent it distracts you from safe driv-
ing. Your first priority while you are driving
should always be the safe operation of
your vehicle. While you are driving, be
sure to observe all traffic regulations.Before attempting to use this system while
you are driving, learn how to use it and
become thoroughly familiar with it. Read
the entire “Navigation System Owner’s
Manual” to make sure you understand the
system. Do not allow others to use this
system until they have read and under-
stood these and other instructions in this
manual.
For your safety, some functions may be-
come inoperable when you start driving.
Unavailable switches are dimmed. You can
input your destination and select your
route only when the vehicle is not moving.
CAUTION
For safety, the driver should not
operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an acci-
dent.
While you are driving, be sure to
follow the traffic regulations and
keep the road condition in mind. If
a traffic sign on the road has been
changed, route guidance may pro-
vide wrong information such as the
direction of a one way street.

Corolla_MATRIX_Navi_U (L/O 0208)
v2003 MY COROLLA MATRIX (OM12774U)
While you are driving, listen to the voice
instructions as much as possible and
glance at the screen briefly and only when
it is safe. However, do not totally rely on
voice guidance. Use it just for your infor-
mation. If the system cannot determine
your current position correctly, there is a
possibility of incorrect, late or non−voice
guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street
closures, etc.) frequently change. There-
fore, before you follow any instruction
from the system, look to see whether you
can comply with the instruction safely and
legally.
This system cannot warn you about such
things as the safety of an area, condition
of streets, and availability of emer gency
services. If you are unsure about the
safety of an area, do not drive into it.
Under no circumstances is this system
a substitute for the driver’s personal
judgement. We recommend that you obtain updated
map data, when it becomes available, in
order to help use the system as effective-
ly and safely as possible.
Use this system only in locations where
it is legal to do so. Some countries/prov-
inces may have laws prohibiting video
screens within sight of the driver.

Corolla_MATRIX_Navi_U (L/O 0208)
vi2003 MY COROLLA MATRIX (OM12774U)
Symbols, Switches and Buttons
Northup symbol and scale of map
Indicates north on the map. The
figure also indicates the map scale.
For details, see pages 42 through
43.
“PWR/VOL” knob
Push this knob to turn the
navigation system on and off. For
details, see page 2.
“NAV” button
Push this button to turn the
navigation screen on. When this
button is pressed while the
navigation screen is displayed, it
functions in the same way as the
“MAP” button.
“GPS” mark
(Global Positioning System)
Whenever your vehicle is receiving
signals from the GPS, this mark is
displayed. For details, see page 45.
“SETUP” button
Push this button to display the
“Setup” screen. This screen allows
you to make adjustments or correct
settings of various options and
functions.
“ENT” button/select and scroll lever
In case of selecting the function and
letters or moving cursor, press the
lever to one direction out of 8
directions. In case of deciding the
function after selecting it on the
screen, push the lever as a button. Eject button
Push this button to eject a
DVD
−ROM. DVDROM slot
Put a map data DVD
−ROM into
the slot.
“MAP” button
Push this button to repeat a
guidance voice, cancel the map
scroll and start a guidance. For
details, see page 31.
“DEST” button
Push this button to display the
“Destinations” screen. For details,
see page 4.
“MENU” button
Push this button to display the
“Menu” screen. This screen allows
you to make adjustments or
correct settings of various options
and functions.
Zoom in button
This button magnifies the map
scale. For details, see page 42.
Zoom out button
This button reduces the map scale.
For details, see page 42.
“BACK” button
Push this button when to call out
the previous screen.
Clock
The digital clock indicates the time.
For details, see page 90.
Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. The direction will be
indicated when your vehicle is off
the route. For details, see page 26.
Operation guide
To display the switch
function on each screen.
Current vehicle position mark
To indicate the current position.
For details, see page 31.

Corolla_MATRIX_Navi_U (L/O 0208)
vii2003 MY COROLLA MATRIX (OM12774U)
Changing the map
directionNZ02622
When the dual screen is displayed, the
left screen can be switched to “North−
up”/“Heading −up”.
Display of Point of
Interest
NZ02623
Symbols such as restaurants and hotels,
etc. can be displayed on the screen. For
details, see page 38. Changing the route
guidance
NZ02624
When you select this switch, the “Change
route” screen will appear. For details, see
page 26.Quick Registration
of marked point
NZ02625
To register the current vehicle position as
a marked point. For details, see page 55.

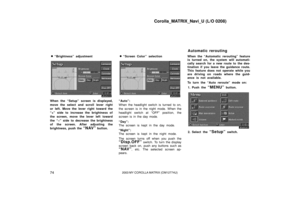

Changing the map
direction and Point
of Interest display
on the right screenNZ02626
When the map display is shown on the
dual screens, select this to call out the
editing menu (screen) on the right screen.“Headingup”
symbol and scale of
map
On the map, the vehicle travel direction is
up. The red arrow indicates the north.
INFORMATION
The display may be tinged in purple
due to the reflection of sunlight, but
this is not a malfunction.
 The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
