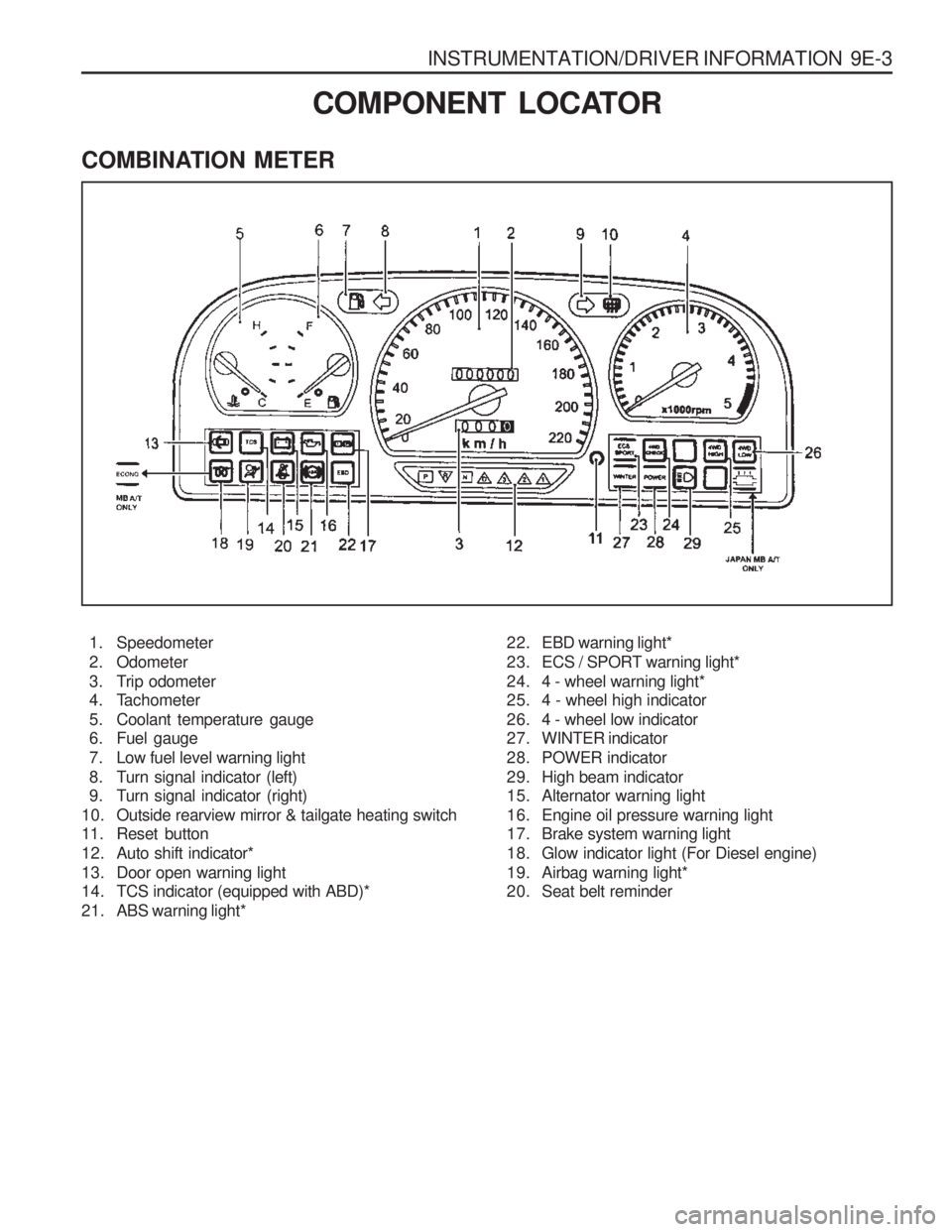

INSTRUMENTATION/DRIVER INFORMATION 9E-3
COMBINATION METER
COMPONENT LOCATOR
1. Speedometer
2. Odometer
3. Trip odometer
4. Tachometer
5. Coolant temperature gauge
6. Fuel gauge
7. Low fuel level warning light
8. Turn signal indicator (left)
9. Turn signal indicator (right)
10. Outside rearview mirror & tailgate heating switch
11. Reset button
12. Auto shift indicator*
13. Door open warning light
14. TCS indicator (equipped with ABD)*
21. ABS warning light* 22. EBD warning light*
23. ECS / SPORT warning light*
24. 4 - wheel warning light*
25. 4 - wheel high indicator
26. 4 - wheel low indicator
27. WINTER indicator
28. POWER indicator
29. High beam indicator
15. Alternator warning light
16. Engine oil pressure warning light
17. Brake system warning light
18. Glow indicator light (For Diesel engine)
19. Airbag warning light*
20. Seat belt reminder

CONTROL UNITS AND SYSTEM 9U-3
FUNCTION DESCRIPTION
STICS Operating Functions
NO.Application Deseription
1 Wiper INT sensing vehicle speed By operating INT time control volume, variable time will be changed within 1.5 - 20 seconds.
2 Washer relating wiper Wiper begins to operate within 0.6 - 1 sec when the washer switch is ON and it operates 3 times after the washer switch is OFF while the IGN2 switch in ON.
3 Dimming room lamp
When room lamp is coupled with door, it turns on if door is opened. After closing the door it maintains 2 seconds of lightingand dims off whithin 3 seconds.
4 Time delayed power window control Power window can be operated within 30 seconds after turning
the IGN1 switch from ON to OFF. If driver ’s/passenger ’s door is
opened within the 30 seconds, time will be prolonged for more 30 seconds from that moment.
5 Rear defogger timer The rear defogger will be operated for 12 min. by turning ON the defogger switch while engine is running.
Defogger will be stopped by pushing the switch again.
The defogger will be operated 6 min, if push ON the switch within10 min. after 12 min. of operation.
6
Seat belt warning The warning lamp will be turned on for about 6 sec. with an intermittent chime bell when the IGN. switch is ON unlessfastening the seat belt.
7 Parking brake warning
The indicator lamp will flash if drive while the parking brake is applied.
8 Tail lamp lighting warning When the driver ’s door is opened while the tail lamp is still ON,
the buzzer operates intermittently. In this condition, the door will be automatically unlocked when it locked.
9 Door ajar warning
The indicator lamp will be blinking when the door is not closed completely and driving.
10 IGN key reminder
The chime will be operated intermittently if the driver ’s door is
opened while the IGN key is still remaining in the ignition switch. In this condition, the door will be automatically unlocked when itlocked.
11 Central door lock All doors will be locked/unlocked by locking/unlocking the driver ’s or passenger ’s door.

9U-6 CONTROL UNITS AND SYSTEM
5. Rear defogger timerT1 : 12±2 min.
T2 : within 10±1 min.
T3 : 6±1 min.
6. Seat belt warning timer T1 : 6±1 sec.
T2 : 0.3±0.1 sec.
T3 : 0.6±0.1 sec.
7. Parking brake warning T1 : 0.3±0.1 sec.
T2 : 0.3±0.1 sec. V1 : 3km/h - 5km/h
8. Tail lamp lighting warning
When the driver ’s door is opened after removing the IGN
key while the tail lamp switch is still ON, the buzzer should be operated.
T1 : 0.3±0.1 sec.
T2 : 0.3±0.1 sec.

2 ) GSL BTRE A/T ..................................................................................................................................................... 5-140
30. CLUSTER ............................................................................................................................... ... 5-142
1) SPEED METER, TACHO METER, TEMP GAUGE, FUEL GAUGE CIRCUIT ................................................ 5-142
2) WARNING LAMP(BA TTERY CHARGE, BRAKE, OIL PRESSURE, SEAT BELT, AIR BAG) CIRCUIT ....... 5-144
3) WARNING LAMP(ABS, EBD, TCS, 4WD, ECS), INDICATOR LAMP(4H, 4L, POWER)CIRCUIT ................. 5-146
4) WARNING LAMP(PREHEA T’G, DOOR OPEN), INDICATOR LAMP(ECONOMIC, DEFROSTER, WINTER,
T/SIGNAL, FOG, HIGH BEAM) CIRCUIT .............................................................................................. ..............5-148
5) ILLUMINATION, PRND INDICATOR LAMP CIRCUIT(BTRE A/T) ..................................................................... 5-150
6) ILLUMINATION, PRND INDICATOR LAMP CIRCUIT(E23 MB A/T) .................................................................. 5-152
7) ILLUMINATION, PRND INDICATOR LAMP CIRCUIT(E32 MB A/T) .................................................................. 5-154
31. STICS ....................................................................................................................... .................. 5-156
1) POWER SUPPLY, GROUND, CHIME BELL, BUZZER, WARNING LAMP(PARK'G BRAKE, SEAT BELT)
CIRCUIT ...................................................................................................................................................................... 5-156
2) FRONT WIPER CIRCUIT ...................................................................................................................................... 5-158
3) LAMP(ROOM, MAP, LUGGAGE), DOOR SWITCH CIRCUIT ............................................................................ 5-160
4) CENTRAL DOOR LOCK CIRCUIT ....................................................................................................................... 5-162
5) DEFROSTER,DLC CIRCUIT ............................................................................................................................... ..5-164
6) POWER WINDOW CIRCUIT ............................................................................................................................... .5-166
32. REKES, AUTO-DIMMING ROOM MIRROR CIRCUIT ............................................................ 5-168
33. SUN ROOF CIRCUIT ............................................................................................................ .... 5-170
34. REAR WIPER CIRCUIT .......................................................................................................... .. 5-172
35. ELECTRIC OSRV MIRROR CIRCUIT ..................................................................................... 5-174
36. DIGITAL CLOCK, SEAT BELT TENSION REDUCER CIRCUIT ........................................... 5-176
37. HORN, CIGAR LIGHTER CIRCUIT ......................................................................................... 5-178
38. POWER SEAT CIRCUIT ........................................................................................................... 5-180

5-144 ELECTRICAL WIRING DIAGRAMS
