1B3-158 OM600 ENGINE MECHANICAL
CRANKSHAFT SPROCKET
Preceding Work : Removal of oil panRemoval of timing case cover
1 12-Sided Stretch Bolt (M11) .. Check, 25Nm + 90 °
2 Washer
3 Camshaft Sprocket
4 Timing Chain
5 Bearing Pin
6 Bearing Pin
7 Oil Pump
8 Oil Pump Sprocket
9 Oil Pump Chain
10 Washer 11 Bolt
............................................................ 25Nm
12 Crankshaft Sprocket
13 Crankshaft
15 Key
16 Guide Rail
17 Spring
18 Bushing
19 Tensioning Lever

1B3-160 OM600 ENGINE MECHANICAL
10. Remove the crankshaft sprocket (12) by using a puller(20).
Puller 102 589 05 33 00
5. Place alignment marks (arrow) on the timing chain (4) and
crankshaft sprocket (12).
6. Remove the woodruff key(15).
7. Place alignment marks (arrow) on the timing chain (4) and camshaft sprocket (3).
8. Remove the chain tensioner.
9. Remove the bolt (1) and then remove the washer (2) and camshaft sprocket (3).

OM600 ENGINE MECHANICAL 1B3-161
Installation Procedure
1. Put the same alignment mark on the new crankshaftsprocket as in the old sprocket. Notice Check the timing chain, camshaft sprocket, injection pump timing sprocket, oil pump chain and oil pump sprocket for
wear and replace if necessary.
2. Install the new crankshaft sprocket (12) by using a drift (21). Notice Align the groove of sprocket and woodruff key (arrow)
exactly. Drift 116 589 07 15 00
3. Fit the timing chain (4) on the crankshaft sprocket (12). Notice Align the alignment marks (arrow) on the chain and sprocket.
4. Install the camshaft sprocket (3).
Tightening Torque 25 Nm + 90 °
Notice Pay attention on the alignment marks and dowel pin (arrow).

1B3-162 OM600 ENGINE MECHANICALNotice If the max. length ‘L’ of the stretch bolt exceeds 53.6mm,
replace it.
5. Fit the oil pump chain (9) on the crankshaft sprocket (12) and insert the oil pump sprocket (8) into the oil pump chain and then install it on the oil pump. Notice The curved side of the oil pump sprocket should face the oil pump.
6. Insert the woodruff key (15).
7. Install the guide rail (16). Attach the spring (17) to guide rail and to tensioning lever together onto the bearing pins (5,6). Notice Ensure that the spring is correctly located in the guide rail (arrow).

OM600 ENGINE CONTROLS 1F3-5
VACUUM CONTROL SYSTEM TEST
2 Engine Cut-Off Valve (Ignition Key Switch)
3 Auto-locking Hub Solenoid Valve
4 Engine Stop Valve Unit
5 PLA Vacuum Unit (Idle Speed Adjustment)
6 Engine
7 Vacuum Pump830
° Thermovalve
9 Fuel Injection Pump
10 Filter with Restriction
11 Check V alve
12 Modulating Pressure Line (Automatic T/M)
Test Data
Idle Speed Increase Permissible Pressure Drop of System At least 100 rpm at approx. 500mbr
400 - 500mbar approx. 1 min.

AUTOMATIC TRANSMISSION 5A-77
Action
Check cable for open / short.
Check connection of other connectors.
Check voltage between terminal 4 and 11 of TCU.
- Standard value : when the A/C compressor is ON : 12V
when the A/C compressor is OFF : 0V
Check cable for open / short,
Check connection of other connectors.
Check voltage between terminal 1 and 12 of TCU.
- Standard value : when the kick down switch is ON : 12V
when the kick down switch is OFF : 0V
Fully depress accelerator pedal for 5 seconds(ignition key is ON).
Release accelerator pedal.
Depress brake pedal and start the engine in ‘P’ position.
Depress brake pedal and idle the engine for 5 seconds in ‘D’
position.
Shift into ‘D’ position and determine fault code for throttle initial-
ization.
Complete the initialization.
Check cable for open / short.
Check connection of other connectors.
Check resistance between terminal 1 and 34 of TCU(when theconnector is disconnected).
- Standard value : 26 - 30
Check solenoid.
Check cable for open / short.
Check connection of other connectors,
Check resistance between terminal 1 and 40 of TCU (when theconnector is disconnected).
- Standard value : 26 - 30
Check solenoid.
Check cable for open / short.
Check connection of other connectors.
Check resistance between terminal 1 and 41 of TCU (when theconnector is disconnected).
- Standard value : 26 - 30
Check solenoid.
Check cable for open / short.
Check connection of other connectors.
Check resistance between terminal 1 and 33 of TCU (when theconnector is disconnected),
- Standard value : 26 - 30
Possible Cause
Air conditioner switch
Kick down switch Pedal
Vehicle ID
VPS offset
Throttle position sensor
initialization
Solenoid 1 Solenoid 2Solenoid 3Solenoid 4
Symptom
P1710 P1712P1713 P1714P1715P1716 P1733 P1734P1735 P1736

5B-28 MANUAL TRANSMISSION

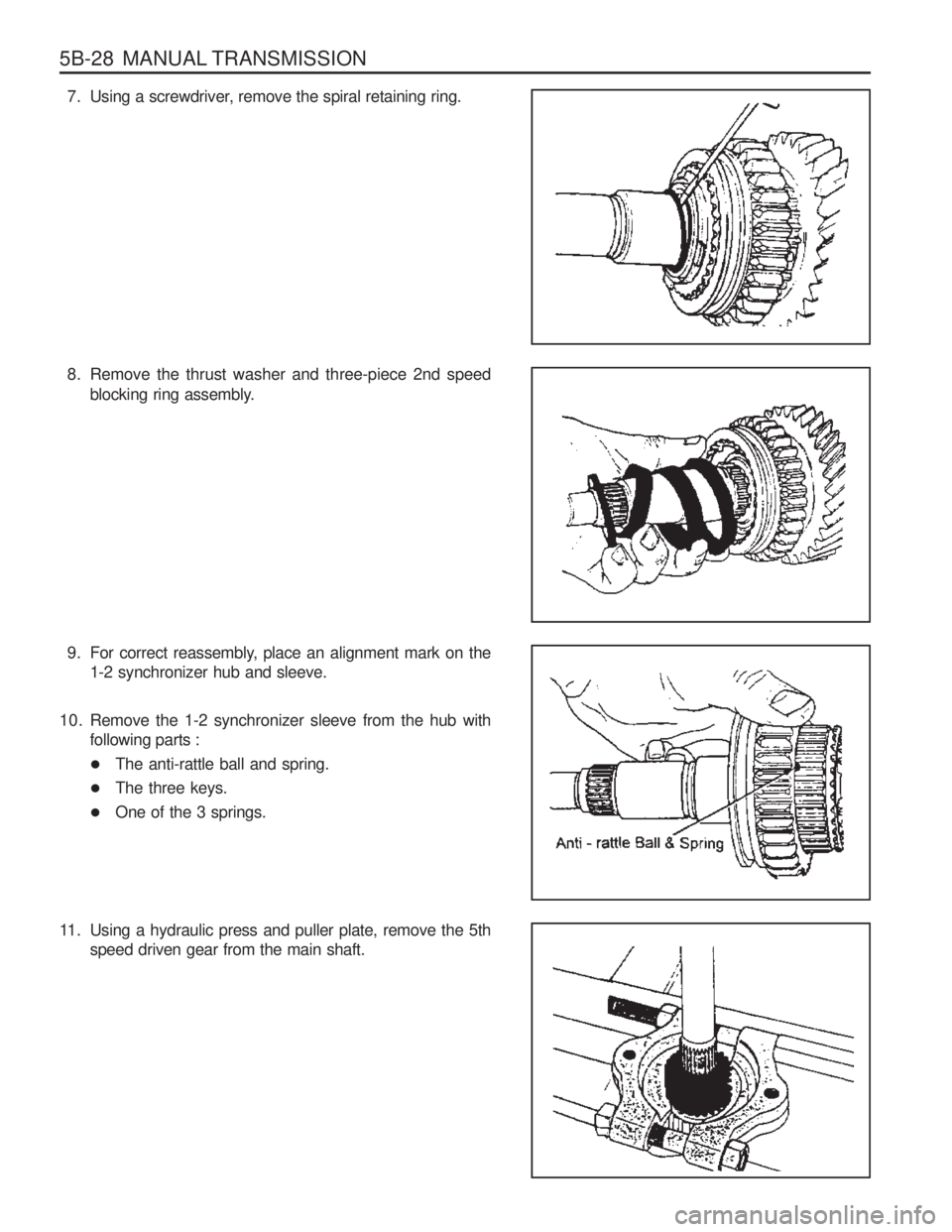

7. Using a screwdriver, remove the spiral retaining ring.
8. Remove the thrust washer and three-piece 2nd speedblocking ring assembly.
9. For correct reassembly, place an alignment mark on the 1-2 synchronizer hub and sleeve.
10. Remove the 1-2 synchronizer sleeve from the hub with following parts :
The anti-rattle ball and spring.
The three keys.
One of the 3 springs.
11. Using a hydraulic press and puller plate, remove the 5th speed driven gear from the main shaft.

5B-30 MANUAL TRANSMISSION
Assembly Procedure
1. When assemble the synchronizer, make sure that the hubsand sleeves are matched and the 3 keys are installed
properly. Also align blocking rings with keys during installation. Notice
Before assembly, coat all parts with lubricant. In case of the paper-lined blocking rings, soak them in Dexron II/III before
installation.
2. Assemble the following parts : 1st speed blocking ring.
Alignment pin and 1st speed gear bearing race.
1st speed gear and its bearing.
3. Install the rear bearing assembly to the main shaft.
4. Using a hydraulic press and installer, press the 5th driven gear onto the main shaft. While the main shaft is still on the press bed, install the 5th driven gear snap ring. If the snap
ring does not fit completely, continue pressing the 5th driven
gear.
5. Install the following parts : 2nd speed blocking ring assembly.
Thrust washer for the blocking ring inner cone.
Spiral retaining ring (Use special tools).
2nd speed gear spacer, bearing and gear.
2nd gear thrust washer and snap ring.
3rd speed gear spacer, bearing and gear.
3rd speed blocking ring.
