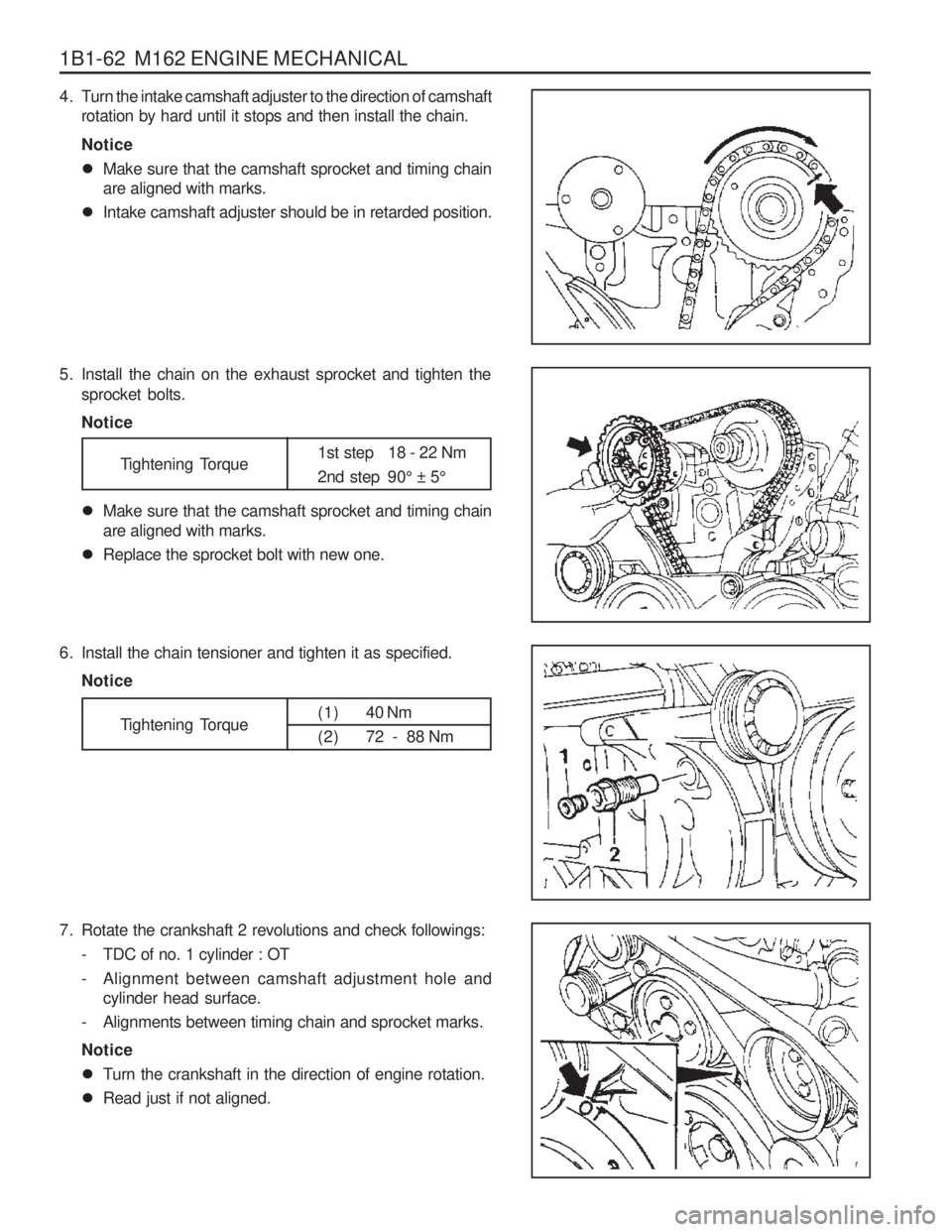

1B1-62 M162 ENGINE MECHANICAL
4. Turn the intake camshaft adjuster to the direction of camshaftrotation by hard until it stops and then install the chain. Notice
Make sure that the camshaft sprocket and timing chain are aligned with marks.
Intake camshaft adjuster should be in retarded position.
5. Install the chain on the exhaust sprocket and tighten the sprocket bolts. Notice
7. Rotate the crankshaft 2 revolutions and check followings: - TDC of no. 1 cylinder : OT
- Alignment between camshaft adjustment hole andcylinder head surface.
- Alignments between timing chain and sprocket marks. Notice
Turn the crankshaft in the direction of engine rotation.
Read just if not aligned.
6. Install the chain tensioner and tighten it as specified.
Notice

Make sure that the camshaft sprocket and timing chain are aligned with marks.
Replace the sprocket bolt with new one.
Tightening Torque 1st step 18 - 22 Nm
2nd step 90
° ± 5 °
Tightening Torque (1) 40 Nm
(2) 72 - 88 Nm

M162 ENGINE MECHANICAL 1B1-65
Adjustment Procedure
1. Position the No.1 cylinder to BTDC 30° .
2. Remove the chain tensioner.
3. Remove the exhaust camshaft sprocket.
4. Align the intake and exhaust camshaft flange hole with the cylinder head upper surface.
Intake Side : 3 o ’clock direction
Exhaust Side : 9 o ’clock direction
5. Secure the intake and exhaust camshaft.
6. Position the piston of No.1 cylinder at TDC (OT) by turning the crankshaft.
7. Turn the camshaft adjuster of the intake camshaft to the left as much as possible (cam adjuster ‘retarded ’ position).
8. Install the chain to the intake camshaft sprocket.
Notice
Timing chain must be placed on the guide rail in gear case
cover.
Tools Required 104 589 01 01 00
Spanner
Inspection
1. Position the No.1 cylinder piston to TDC (OT) by turning the crankshaft. Notice When the OT mark on vibration damper is aligned with timing
gear case cover, the intake and exhaust cam of cylinderwill make the slope to the center and will face up. In this
way, the adjustment hole of the intake and exhaust camshaft will match in line with the cylinder head upper end, at 3
o’clock, and 9 o ’clock direction each other.
2. Check the timing as below procedure; - Check if the camshaft adjustment hole is positioned to 3 o’clock direction at the intake side and to 9 o ’clock
direction at the exhaust side, respectively and align withthe cylinder head mating surface.
- At this condition, check if the OT mark on vibration damper aligns with the marker on the timing gear case.

1B1-66 M162 ENGINE MECHANICAL
11. Check the camshaft timing.The sprocket bolt is designed to be used only once, so replace with new one.
10. Install the chain tensioner.
Installation Notice Tightening Torque
1st step 18 - 22 Nm
2nd step 90
° ± 5 °
9. Install the chain to the exhaust camshaft sprocket and
install it to the camshaft. Installation Notice (Sprocket Bolt)
TighteningTorque Screw Plug
40 Nm
Tensioner Assembly
72 - 88 Nm

M162 ENGINE MECHANICAL 1B1-67
VALVE SPRING
Preceding Work : Removal of camshaftRemoval of spark plug
1 Valve Tappet Assembly
2 Valve Cotter
3 Upper Retainer
4 Valve Spring..........Check, Replace if necessary
5 Valve Stem Seal
6 Lower Retainer 7 Connecting Hose
8 Thrust Piece
9 Slide
10 Adjust Bolt
11 Lever Pusher
12 Supporting Bar

M162 ENGINE MECHANICAL 1B1-69
8. Install the lever pusher (11) and the thrust piece (8) to theslide (9).
13. Remove the valve cotter (2) using either the pincette (13) or magnetic finger. Lever Pusher 111 589 18 61 00
Magnetic Finger 116 589 06 63 00
9. Mount the thrust piece (8) vertically to the valve spring
retainer (3).
10. Make the thrust piece (8) and the slide (9) perpendicular to each other.
11. Secure the slide (9) by turning the adjust bolt (10).
12. Press the valve spring (4) by using the lever pusher (11).
14. Remove the upper retainer (3) and the valve spring (4).
15. Remove the valve stem seal and replace if necessary.
Notice
Check the valve stem seal and replace if necessary.
16. Remove the lower retainer (6).
NoticeCheck the retainer for damages and replace with a new
one if necessary.
17. Installation should follow the removal procedure in the reverse order.

M162 ENGINE MECHANICAL 1B1-71
VALVE STEM SEAL Preceding Work : Removal of valve spring
1 Drift (Special Tool)
2 Valve Stem Seal
3 Protective Sleeve
Drift 119 589 00 43 00
Pliers 104 589 00 37 00
Tools Required
104 589 00 37 00 Pliers
119 589 00 43 00
Drift
Replacement Procedure
1. Remove the valve stem seal (2) using the pliers. Notice Check the valve stem seal for damage and replace if
necessary.
2. Coat the valve stem seal with oil and assemble it with the protective sleeve.
3. Insert the valve stem seal by pressing it with the drift.

1B1-72 M162 ENGINE MECHANICAL
CHAIN TENSIONER1 Screw Plug ................................................ 40 Nm
2 Seal
3 Filler Pin
4 Compression Spring 5 Snap Ring
6 Thrust Pin
7 Chain Tensioner Housing
.....................72-88 Nm
8 Seal
Removal Procedure
1. Position the No.1 cylinder to TDC (OT). Notice Remove the oil filler cap at adjustment position, and check whether the intake camshaft cam ’s lobe (arrow) stays in the
upper side.
2. Cover the alternator with a clean cloth.
3. Release the tension by unscrewing the screw plug once.
NoticeIn case that the tension is reduced by unscrewing the screw
plug, reinstall after completely removing the chain tensioner.If the chain tensioner is tightened again without completely reducing its tension, then the detent spring doesn ’t return
to the original position and the tension gets excedded.

1B1-74 M162 ENGINE MECHANICAL
4. Lightly apply the grease to the seal (2) and install the screwplug (1). Installation Notice
Sectional View
1 Screw Plug
2 Ball (Nonreturn Valve)
3 Compression Spring
4 Ball Guide
5 Seal (Aluminum)
6 Filler Pin
7 Compression Spring
8 Snap Ring
9 Thrust Pin
10 Ball (Nonreturn Valve) 11 Compression Spring
12 Thrust Piece 13 Chain Tensioner Housing
14 Seal
15 Timing Gear Case Cover
16 Cylinder Head
17 Bolt / Washer
18 Tensioning Rail
19 Cylinder Head Gasket
20 Timing Chain
21 Tensioning Rail Base (Sliding Surface)
A Oil Supply Hole
B Chain Tensioner Oil Storage Hole
5. Check for leaks by operating the engine.
Tightening Torque 40 Nm
