2003 SSANGYONG MUSSO display

5D2-22 TRANSFER CASE (TOD)
Check function of TOD control unit.
1. Even A1, A2, A3 and A4 test, if you could not find defect,it is required to replace TOD control unit on basis of below phenomena.
a. ”4WD CHECK ” lamp illuminates continuously when
ignition “ON ”.
b. Shift is not possible even 4H/4L switch operation.
c. Upon diagnosis by Scan-100, it displays on “impossible communication with TOD control unit ”
or fault code “1714, 1715, 1716 ”.
- Do occur the above defects? Ye s
No Replace TOD control unit Normal system
A5 Test Stage / Contents
Result
Stage T est Contents and Procedure Specified Value
/Yes/No Countermeasure

TRANSFER CASE (TOD) 5D2-23
Error of signal in engine throttle position ; fault code 1715, 1716
Phenomenon
1. Upon diagnosis by SCAN-100, it display on 1715,
1716 codes.
Cause
1. Bad communication line between E/G ECU and CAN.
2. Defect of TOD control unit.
3. Defect of E/G ECU.
Check connection status of connector through CAN communication line.
1. Check connection of connector.
- Does connector connect correctly between TOD
control unit and E/G ECU?
2. In case of bad connection, connect correctly then
perform the follows ;
a . Delete the memorized fault code using SCANNER.
b. Ignition “OFF ”.
c. Ignition “ON ”.
d. Diagnose by SCANNER.
- Does it display fault codes “1715 ” or “1716 ”. Ye s
No
B1
Ye sNo
Check connection status of CAN communication line towards E/G ECU.
1. Ignition “OFF ”.
2. Disconnect 30 pin connector towards TOD control unit.
3. Measure resistance between pin No.22 and 23 in wiring connector using multi-tester.
- Specified value
- Measured value is within specified range?
B2
115-125
Ye s
No
Check connection status of CAN communication line towards TOD control unit.
1. Ignition “OFF ”.
2. Disconnect coupling of E/G ECU (gray, 1-60 pin).
3. Measure resistance between pin No.37 and 38 in coupling using multi-tester.
- Specified value
- Measured value is within specified range?
B3
115-125
Ye s
No
Test Stage / Contents
Result
Stage T est Contents and Procedure Specified Value
/Yes/No Countermeasure
Perform B2 stage Perform B1-2 stage Perform B2 stage Normal system
Perform B3 STAGE Perform B4 stage, check and replace E/ G ECU
Perform B5 STAGE Replace TOD control unit

5D2-24 TRANSFER CASE (TOD)
Ye sNo
B4
B5
Ye s
No
B6 4.75-5.25Vdc
Ye s
No
B7 0.3-0.9Vdc 4.6-4.9Vdc
Ye s
No
4.6-4.9Vdc0.3-0.9Vdc Ye s
No
Test Stage / Contents
Result
Stage T est Contents and Procedure Specified Value
/Yes/No Countermeasure
Check CAN communication line by diagnosis of E/G ECU.
1. Diagnose E/G ECU with SCANNER.
2. Does it display on fault code
“27 ” ?
Check power supply and signal output on throttle valve position sensor (potentiometer) 1,2.
1. Diagnose E/G ECU with SCANNER. - Fault codes : 104, 105, 108, 109, 119, 185 Does it display on above code ?
Check power supply (5V) of throttle valve position sensor.
1. Ignition “ON ”
2. Measure voltage between pin 112(+) and 84(-) keeping coupling connection status using multi - tester.
- Specified value
- Measured value is within specified range ?
Check output signal from throttle position sensor 1 and 2.
1. Keep E/G idle status.
2. Measure output voltage between pin 87 (+) and 84 (-) keeping E/G ECU coupling connection status using multi-
tester. (potentiometer 1)
- Specified value min. acc. Pedal max. acc. Pedal
- Measured value is within specified range ?
3. Measure output voltage between pin 85 (+) and 84 (-) keeping E/G ECU coupling connection status using multi-
tester. (potentiometer 2)
- Specified value min. acc. Pedal
max. acc. Pedal
- Measured value is within specified range ? Replace TOD control unit Replace throttle bodyactuator or check cable
Perform B1, B2, B3 stagesPerform B5 stage Perform B6 stage Replace TOD control unit or perform A1- A5 stages Perform B7 stage Replace E/G ECU or perform B1-2 stage after checking cable. Perform B7-3 stage Replace throttle body actuator or check cable.

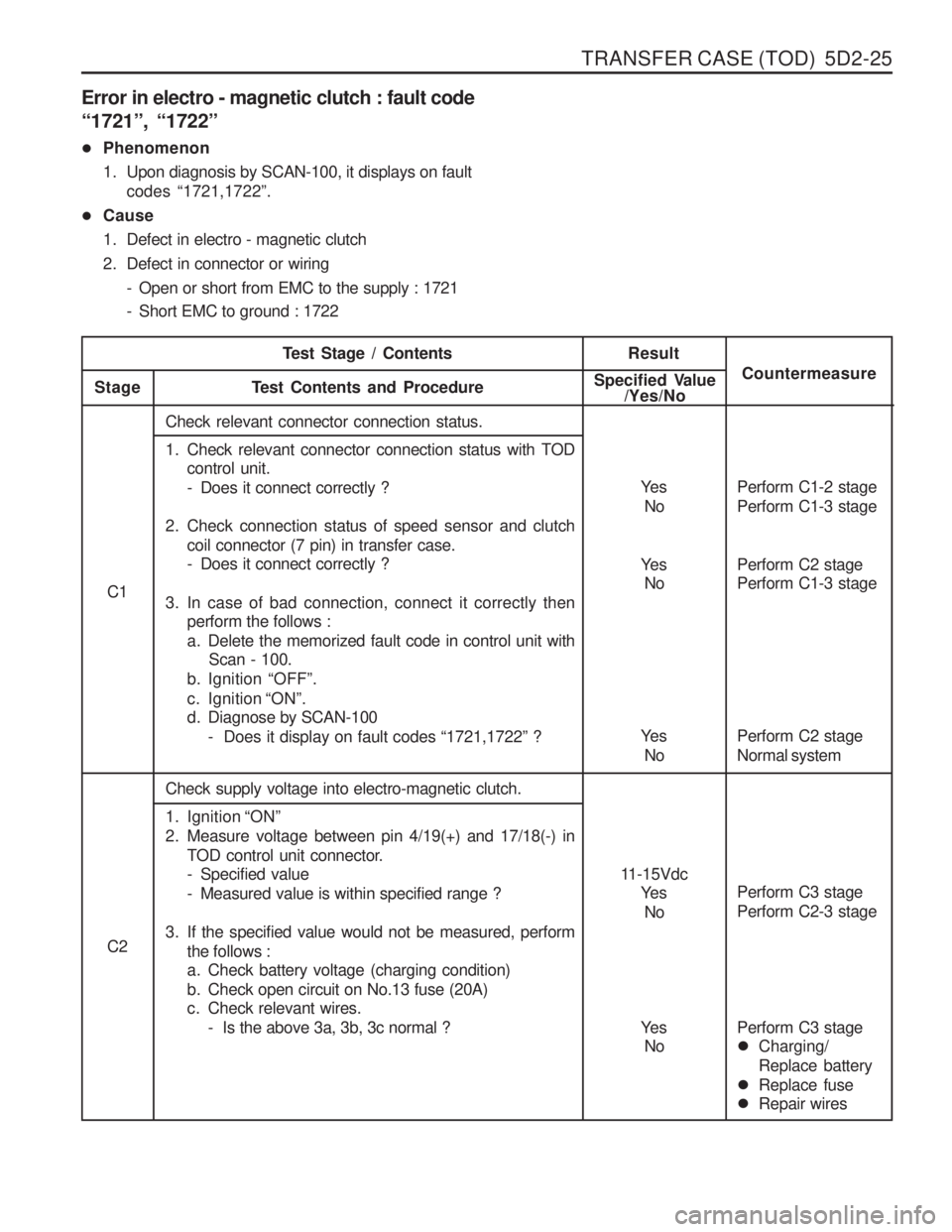

TRANSFER CASE (TOD) 5D2-25
Error in electro - magnetic clutch : fault code “1721 ”, “1722 ”
Phenomenon
1. Upon diagnosis by SCAN-100, it displays on fault
codes “1721,1722 ”.
Cause
1. Defect in electro - magnetic clutch
2. Defect in connector or wiring
- Open or short from EMC to the supply : 1721
- Short EMC to ground : 1722
Ye sNo
C1
Ye sNo
Ye s
No
11-15Vdc Ye s
No
C2
Ye sNo
Test Stage / ContentsResult
Stage T est Contents and Procedure Specified Value
/Yes/No Countermeasure
Check relevant connector connection status.
1. Check relevant connector connection status with TOD
control unit.
- Does it connect correctly ?
2. Check connection status of speed sensor and clutch coil connector (7 pin) in transfer case.
- Does it connect correctly ?
3. In case of bad connection, connect it correctly then perform the follows :
a. Delete the memorized fault code in control unit withScan - 100.
b. Ignition “OFF ”.
c. Ignition “ON ”.
d. Diagnose by SCAN-100
- Does it display on fault codes “1721,1722 ” ?
Check supply voltage into electro-magnetic clutch.
1. Ignition “ON ”
2. Measure voltage between pin 4/19(+) and 17/18(-) in TOD control unit connector.
- Specified value
- Measured value is within specified range ?
3. If the specified value would not be measured, perform the follows :
a. Check battery voltage (charging condition)
b. Check open circuit on No.13 fuse (20A)
c. Check relevant wires.
- Is the above 3a, 3b, 3c normal ? Perform C1-2 stage Perform C1-3 stage Perform C2 stage Normal system
Perform C2 stage Perform C1-3 stage Perform C3 stage Perform C2-3 stage Perform C3 stage

Charging/ Replace battery
Replace fuse
Repair wires

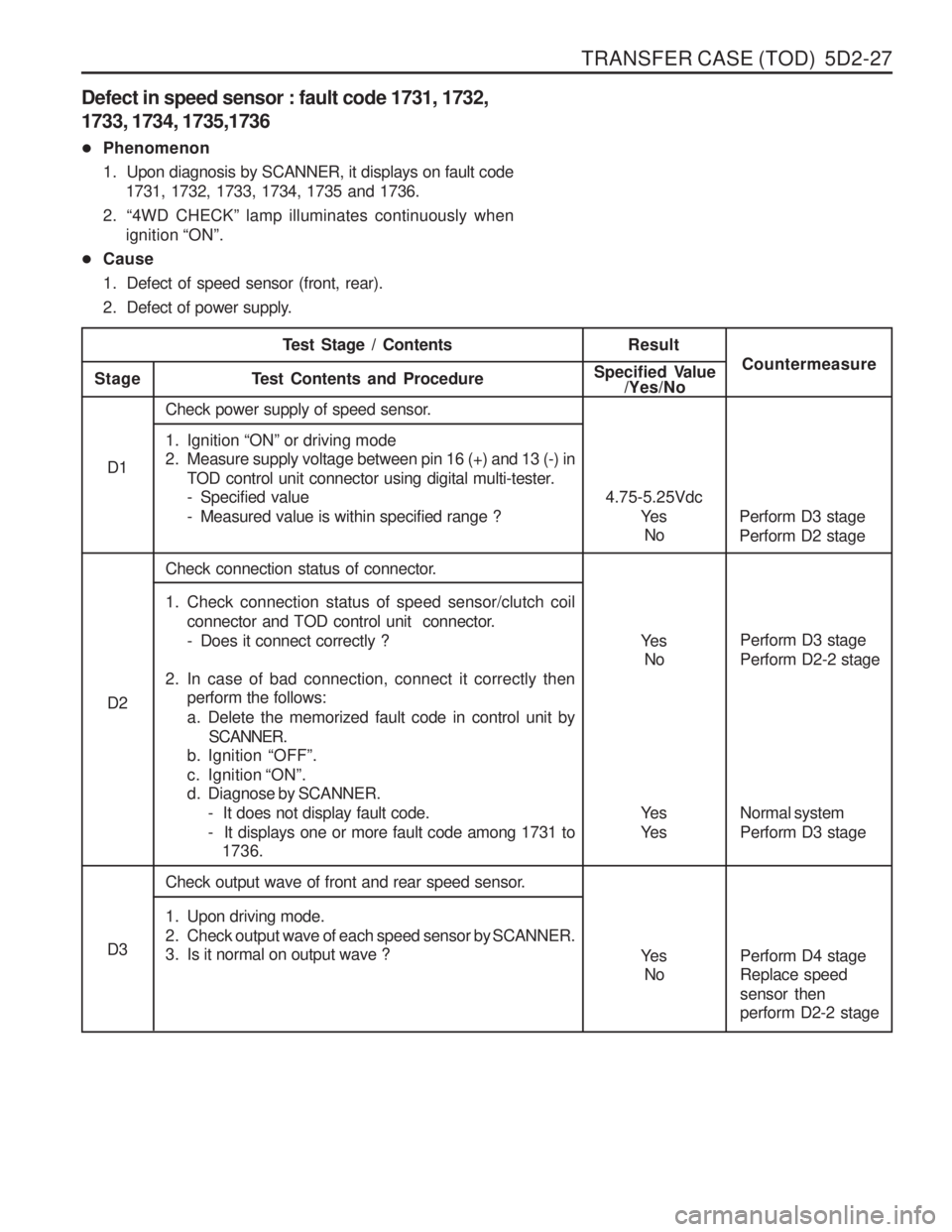

TRANSFER CASE (TOD) 5D2-27
Defect in speed sensor : fault code 1731, 1732, 1733, 1734, 1735,1736
Phenomenon
1. Upon diagnosis by SCANNER, it displays on fault code
1731, 1732, 1733, 1734, 1735 and 1736.
2. “4WD CHECK ” lamp illuminates continuously when
ignition “ON ”.
Cause
1. Defect of speed sensor (front, rear).
2. Defect of power supply.
4.75-5.25Vdc
Ye sNo
D1
Ye s
No
D2
Ye s
Ye s
Ye sNo
D3 Test Stage / Contents
Result
Stage T est Contents and Procedure Specified Value
/Yes/No Countermeasure
Check power supply of speed sensor.
1. Ignition
“ON ” or driving mode
2. Measure supply voltage between pin 16 (+) and 13 (-) in
TOD control unit connector using digital multi-tester.
- Specified value
- Measured value is within specified range ?
Check connection status of connector.
1. Check connection status of speed sensor/clutch coil connector and TOD control unit connector.
- Does it connect correctly ?
2. In case of bad connection, connect it correctly then perform the follows:
a. Delete the memorized fault code in control unit by
SCANNER.
b. Ignition “OFF ”.
c. Ignition “ON ”.
d. Diagnose by SCANNER.
- It does not display fault code.- It displays one or more fault code among 1731 to1736.
Check output wave of front and rear speed sensor.
1. Upon driving mode.
2. Check output wave of each speed sensor by SCANNER.
3. Is it normal on output wave ? Perform D3 stage Perform D2 stage
Perform D3 stagePerform D2-2 stage Normal system Perform D3 stage Perform D4 stage Replace speed sensor then perform D2-2 stage

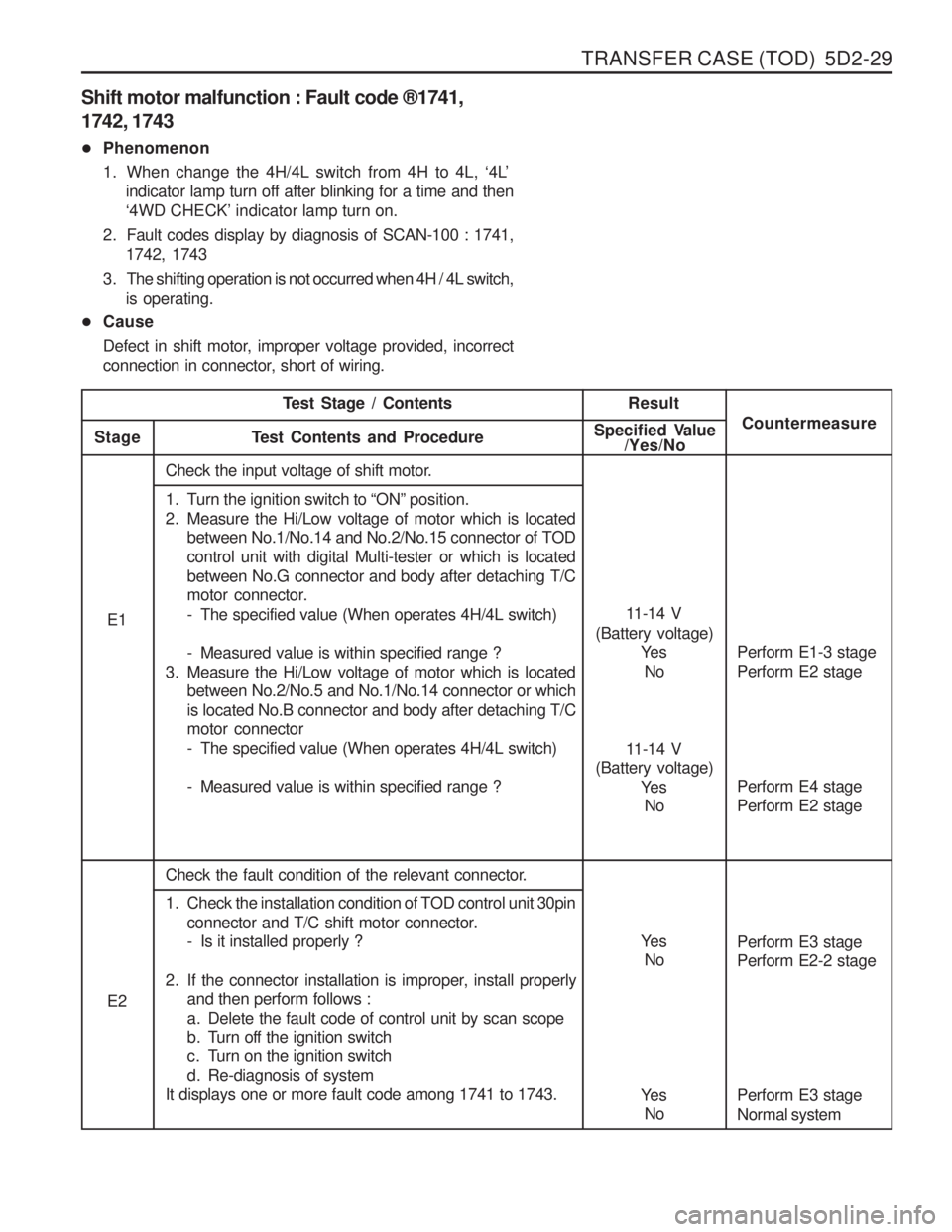

TRANSFER CASE (TOD) 5D2-29
Shift motor malfunction : Fault code ® 1741,
1742, 1743
Phenomenon
1. When change the 4H/4L switch from 4H to 4L, ‘4L ’
indicator lamp turn off after blinking for a time and then ‘ 4WD CHECK ’ indicator lamp turn on.
2. Fault codes display by diagnosis of SCAN-100 : 1741, 1742, 1743
3. The shifting operation is not occurred when 4H / 4L switch, is operating.
Cause
Defect in shift motor, improper voltage provided, incorrect
connection in connector, short of wiring.
11-14 V
(Battery voltage) Ye s
No
E1
11-14 V
(Battery voltage)
Ye sNo
Ye sNo
E2
Ye sNo
Test Stage / Contents
Result
Stage T est Contents and Procedure Specified Value
/Yes/No Countermeasure
Check the input voltage of shift motor.
1. Turn the ignition switch to
“ON ” position.
2. Measure the Hi/Low voltage of motor which is located between No.1/No.14 and No.2/No.15 connector of TOD control unit with digital Multi-tester or which is locatedbetween No.G connector and body after detaching T/C
motor connector.
- The specified value (When operates 4H/4L switch)
- Measured value is within specified range ?
3. Measure the Hi/Low voltage of motor which is located between No.2/No.5 and No.1/No.14 connector or which is located No.B connector and body after detaching T/C motor connector
- The specified value (When operates 4H/4L switch)
- Measured value is within specified range ?
Check the fault condition of the relevant connector.
1. Check the installation condition of TOD control unit 30pin connector and T/C shift motor connector.
- Is it installed properly ?
2. If the connector installation is improper, install properly and then perform follows :
a. Delete the fault code of control unit by scan scope
b. Turn off the ignition switch
c. Turn on the ignition switch
d. Re-diagnosis of system
It displays one or more fault code among 1741 to 1743. Perform E1-3 stagePerform E2 stage Perform E4 stage Perform E2 stage Perform E3 stage Perform E2-2 stage Perform E3 stage Normal system

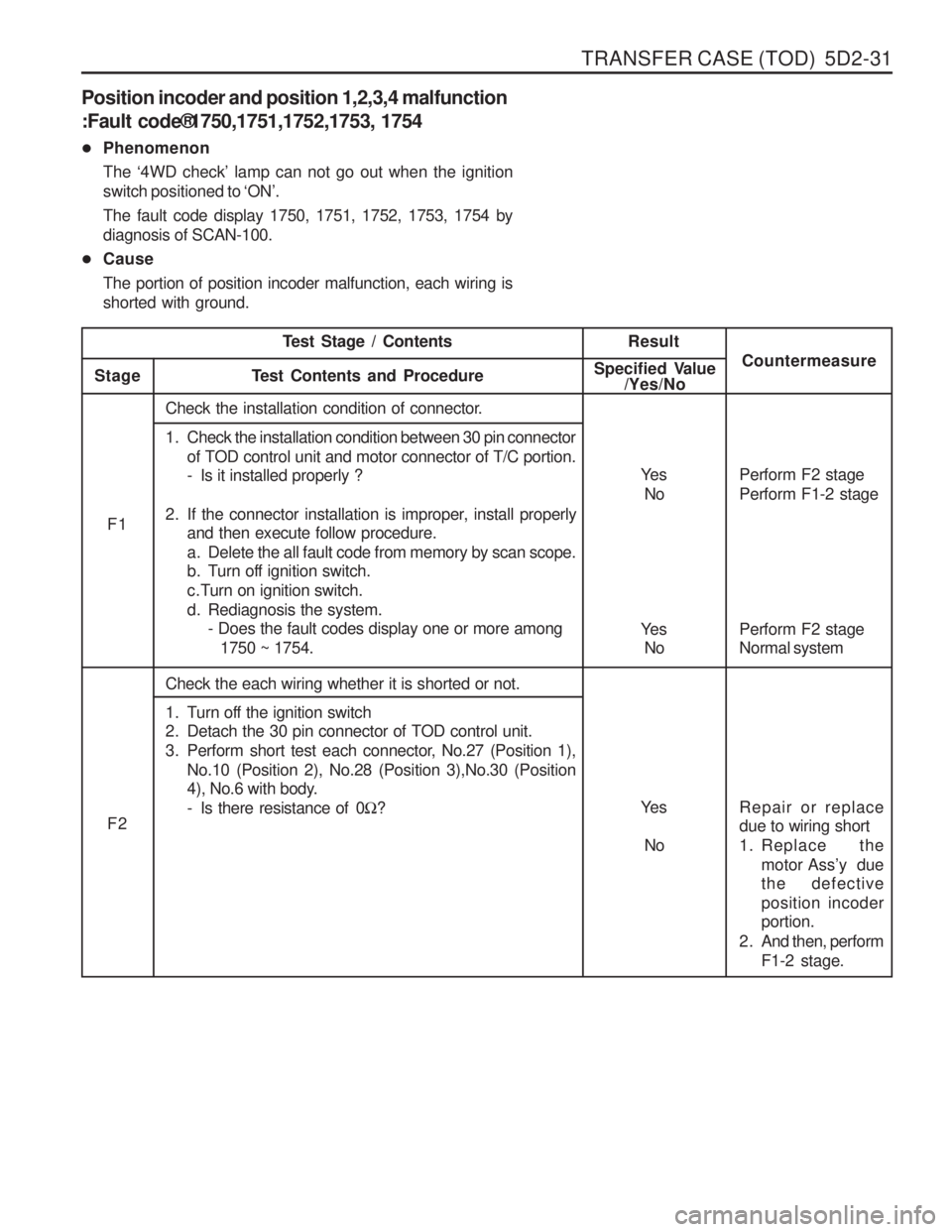

TRANSFER CASE (TOD) 5D2-31
Position incoder and position 1,2,3,4 malfunction :Fault code®1750,1751,1752,1753, 1754
Phenomenon The ‘4WD check ’ lamp can not go out when the ignition
switch positioned to ‘ON ’.
The fault code display 1750, 1751, 1752, 1753, 1754 by diagnosis of SCAN-100.
Cause The portion of position incoder malfunction, each wiring is shorted with ground.
Ye s
No
F1
Ye s No
Ye s
No
F2 Test Stage / Contents
Result
Stage T est Contents and Procedure Specified Value
/Yes/No Countermeasure
Check the installation condition of connector.
1. Check the installation condition between 30 pin connector
of TOD control unit and motor connector of T/C portion.
- Is it installed properly ?
2. If the connector installation is improper, install properly and then execute follow procedure.
a. Delete the all fault code from memory by scan scope.
b. Turn off ignition switch.
c.Turn on ignition switch.
d. Rediagnosis the system.- Does the fault codes display one or more among
1750 ~ 1754. Check the each wiring whether it is shorted or not.
1. Turn off the ignition switch
2. Detach the 30 pin connector of TOD control unit.
3. Perform short test each connector, No.27 (Position 1), No.10 (Position 2), No.28 (Position 3),No.30 (Position
4), No.6 with body.
- Is there resistance of 0 ? Perform F2 stagePerform F1-2 stage Perform F2 stage Normal system Repair or replace due to wiring short
1. Replace the
motor Ass ’y due
the defectiveposition incoder portion.
2. And then, perform F1-2 stage.

FATC-HAVC 7D-7
FUNCTION DESCRIPTION 1. AUTO switch
By pressing the AUTO switch, set temperature, AUTO, fan speed, air source, air flow mode will be
appeared on the VFD display.
Following items will be controlled automaticallyaccording to set temperature. - Mode and intake door
- Temperature door- Blower fan speed- Compressor ON/OFF control
When AUTO switch is released, other functions will be controlled automatically except for manually selected switches.
2. MODE switch
By pressing the MODE switch while the AUTO switch is turned ON, AUTO indicator light will go off and air flow mode will be controlled manually in the order of VENT B/L FLR MIX VENT.
3. OFF switch
Press this switch and the airconditioner system will
be turned OFF.
4. Temperature UP/DOWN switch
This switch is a switch increasing or decreasing set temperature and position of the temperature doorwill be automatically controlled according to set temperature and outlet temperature will be controlled
by adjusting blending ratio of cold and hot air.
By operating the switch, set temperature will beincreased/decreased by 0.5 °C.
Set temperature range is 17 - 32 °C.
Max. cold function will be performed at set temperatureof 17 °C and max. hot function will be performed at
set temperature of 32 °C.
When pressed more than 1 second, it will beautomatically UP/DOWN by interval of 0.28 sec. after1 second.
When it changed 17.5 °C17 °C, 31.5 °C32 °C and
DOWN switch is pressed after 17 °C or UP switch is
pressed after 32 °C, there will be operating sounds 3
times during 0.1 sec. 5. DEFROST switch

By pressing this switch, DEF will turn on and mode
door will be fixed at DEF.
Recirculation/fresh air switch will be fixed as FRESH.
When airconditioner is turned ON and ambienttemperature is less than 1.5 °C, the airconditioner
will be turned off.
Selection of airconditioner OFF is possible by manual.
6. A/C switch
The airconditioner system will be turned ON or OFF by pressing this switch.
7. Recirculation fresh air switch
Air intake will be automatically switched to recirculationor fresh air (REC FRE) by pressing this switch.
8. Blower switch (UP/DOWN)
Blower speed can be controlled by manual and if fan UP/DOWN switch is pressed when AUTO mode isselected, fan speed will UP/DOWN based on currentfan level.
When 6 segments are turned on, it is max. HI operation.
When pressed more than 1 second, it will beautomatically UP/DOWN by interval of 0.28 sec. after 1 second.
When segment is changed stage 2 stage 1 (LO),
stage 5 stage 6 (HI) and HI switch is pressed in HI
status or DOWN switch is pressed in LO status, therewill be operating sounds 3 times during 0.1 sec.
When switch is operated in OFF status, it will be operated as stage 1 (1 segment display).
