2003 PONTIAC GRAND PRIX roof

The 2003 Pontiac Grand Prix Owner Manual a
Seats and Restpaint Systems ........................... ? -1
Front Seats ............................................... 1-2
Safety Belts
.............................................. 1-7
Child Restraints
....................................... 1-29
Supplemental Restraint System
(SRS) ......... 1-51
Restraint System Check
............................ 1-58
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-8
Windows
................................................. 2-1 3
Theft-Deterrent Systems
............................ 2-1 5
Starting and Operating Your Vehicle
........... 2-19
Mirrors
.................................................... 2-33
Onstar@ System
...................................... 2-38
Storage Areas
......................................... 2-40
Sunroof
.................................................. 2-42
Vehicle Personalization
............................. 2-43
Instrument Panel Overview
.......................... 3-2
Climate Controls
...................................... 3-20
Warning Lights, Gages and Indicators
......... 3-23
Driver Information Center (DIC)
.................. 3-38
Trip Computer
......................................... 3-40
Audio System(s)
....................................... 3-44
Features and Controls ..................................... 2-1
Instrument Panel ............................................. 3-1
~rivingi yoerr Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
................................................... 4-33
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
............... 5-10
Headlamp Aiming
..................................... 5-59
Bulb Replacement
.................................... 5-60
Windshield Wiper Blade Replacement
......... 5-67
Tires
...................................................... 5-68
Appearance Care
..................................... 5-88
Vehicle Identification
................................. 5-96
Electrical System
...................................... 5-97
Capacities and Specifications
................... 5-1 02
Normal Maintenance Replacement Parts .... 5-1 04
Maintenance Schedule ........................... ,6-1 ..
Maintenance Schedule ................................ 6-2
Customer Assistance Information .................... 7-1
Customer Assistance Information
.................. 7-2
Service and Appearance Care .......................... 5-1
Reporting Safety Defects
......................... 7-9
Index ........................................ ..... 1

Section 2 Features and Controls
Keys ............................................................... 2.3
Remote Keyless Entry System
......................... 2.4
Remote Keyless Entry System Operation ........... 2.5
Doors and Locks ............................................. 2-8
Door Locks
.................................................... 2-8
Power Door Locks
.......................................... 2-9
Last Door Closed Locking
................................ 2-9
Programmable Automatic Door Locks
.............. 2-10
Lockout Protection
........................................ 2-10
Leaving Your Vehicle
.................................... 2-1 1
Trunk
.......................................................... 2-1 1
Windows ........................................................ 2.13
Power Windows
............................................ 2-14
Sun Visors
................................................... 2.14
Theft-Deterrent Systems .................................. 2.15
Content Theft-Deterrent
................................. 2.15
PASS-Key@
Ill .......................................... 2.16
PASS-Key@
Ill Operation ........................... 2-17
Starting and Operating Your Vehicle ............... -2-1 9
New Vehicle Break-In
.................................... 2-19
Ignition Positions
.......................................... 2.19
Starting Your Engine
..................................... 2-20
Engine Coolant Heater
.................................. 2-23
Automatic Transaxle Operation
....................... 2.24 Shifting Into
Park
(P) ..................................... 2-28
Parking Over Things That Burn
....................... 2-30
Shifting
Out
of Park (PI ................................. 2-30
Engine Exhaust ............................................ 2-31
Running Your Engine While You Are Parked
.... 2-32
Mirrors ........................................................... 2-33
Manual Rearview Mirror
................................ -2-33
Automatic Dimming Rearview Mirror with
Onstar@, Compass and Temperature
Automatic Dimming Rearview Mirror with
Compass and Temperature Display
.............. 2-34
Outside Power Mirrors
................................... 2-37
Outside Convex Mirror
................................... 2-37
OnStar@ System ............................................. 2-38
Storage Areas .... -2-40
Glove Box
................................................... 2-40
Overhead Console
........................................ 2-40
Center Console Storage Area
......................... 2-40
Assist Handles
............................................. 2-41
Purse or Litter Bag Holder
............................. 2-41
Rear Storage Area
........................................ 2-41
Convenience Net
.......................................... 2-41
Trunk Access Panel
...................................... 2-41
Display
.................................................... 2-33
....................................
Parking Brake .............................................. 2-27 Sunroof .................. ........... ............. 2.42
2-1

Notice: If your key seems stuck in LOCK and you
can’t turn it, be sure you are using the correct key;
if
so, is it all the way in? Turn the key only with
your hand. Using a tool to force it could break the
key or the ignition switch. If none
of these works,
then your vehicle needs service.
B (LOCK): This position locks the ignition, steering
wheel and transaxle. It’s a theft-deterrent feature. It’s also
the only position from which you can remove the key.
C (OFF): This position lets you turn off the engine but
still turn the steering wheel. It doesn’t lock the
steering wheel like LOCK. Use
OFF if you must have
the vehicle pushed or towed.
D (RUN): This position is where the key returns to after
you start the vehicle. With the engine
off, you can use
RUN to display some of the warning and indicator lights.
E (START): This position starts the engine.
A warning chime will sound
if you open the driver’s door
while the ignition is in
OFF, LOCK or ACCESSORY
and the key is in the ignition.
Retained Accessory Power (RAP)
With Retained Accessory Power, (RAP), the power
windows, audio system and sunroof will continue to work
up to
10 minutes after the ignition key is turned to
OFF and none of the doors are opened.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position - that’s a
safety feature. To restart while you’re already moving,
use NEUTRAL
(N) only.
Nofice: Don’t try to shift to PARK (P) if your
vehicle is moving.
If you do, you could damage the
transaxle. Shift to
PARK (P) only when your
vehicle is stopped.
Shift Lock Release
This vehicle is equipped with an electric shift lock
release system. The shift lock release is designed to
do the following:
Prevent ignition key removal unless the shift lever is
in PARK (P) with the shift lever button fully released.
Prevent movement of the shift lever out of PARK (P)
unless the ignition is in a position other than
OFF or
LOCK. The shift lock release is always functional
except in the case
of a dead or low voltage
(less than
9 V) battery.
2-20

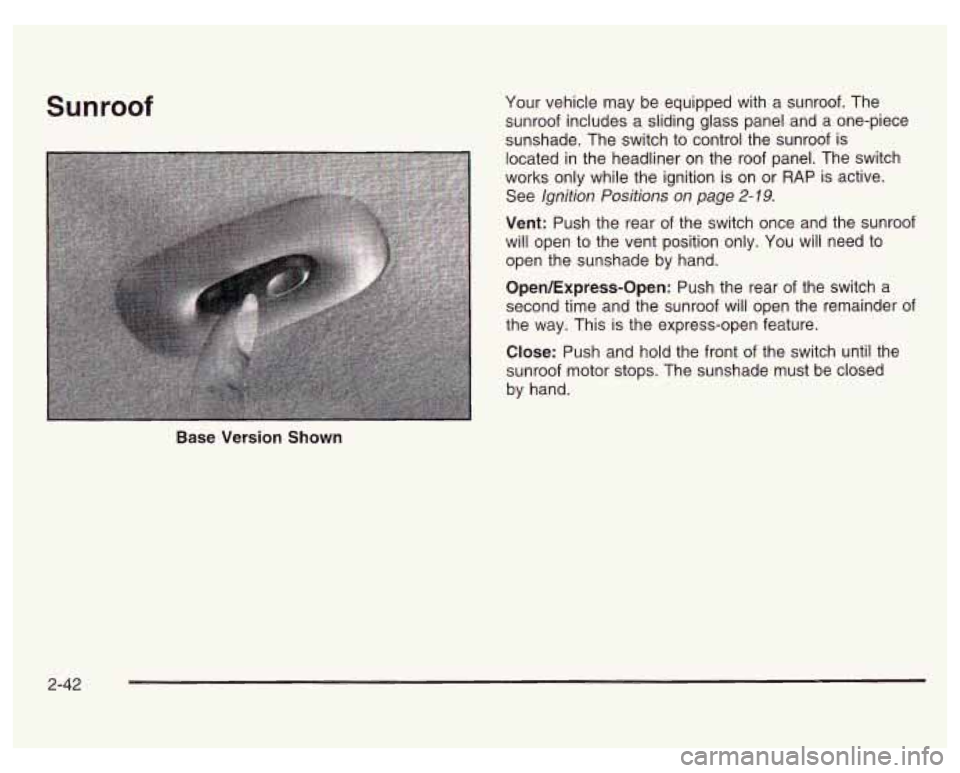

Sunroof Your vehicle may be equipped with a sunroof. The
sunroof includes a sliding glass panel and a one-piece
sunshade. The switch to control the sunroof is
located in the headliner on the roof panel. The switch
works only while the ignition is on or
RAP is active.
See Ignition Positions on page
2- 19.
Vent: Push the rear of the switch once and the sunroof
will open to the vent position only. You will need to
open the sunshade by hand.
Open/Express-Open: Push the rear of the switch a
second time and the sunroof will open the remainder of
the way. This is the express-open feature.
Close: Push and hold the front of the switch until the
sunroof motor stops. The sunshade must be closed
by hand.
Base Version Shown
2-42

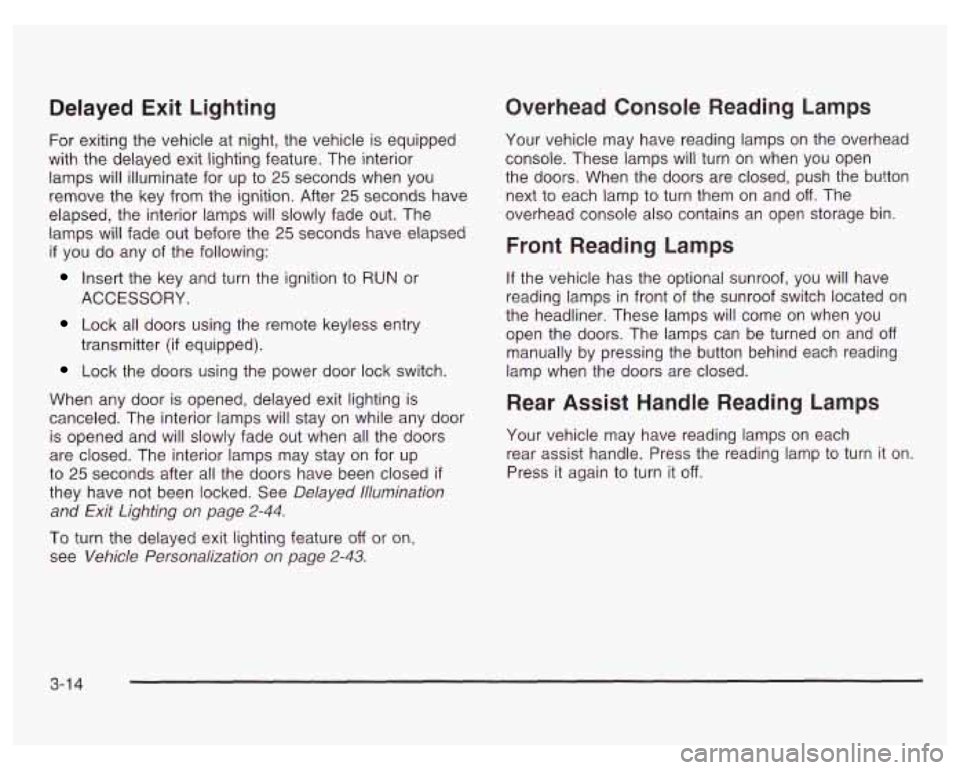

Delayed Exit Lighting
For exiting the vehicle at night, the vehicle is equipped
with the delayed exit lighting feature. The interior
lamps will illuminate for up to
25 seconds when you
remove the key from the ignition. After
25 seconds have
elapsed, the interior lamps will slowly fade out. The
lamps will fade out before the
25 seconds have elapsed
if you do any of the following:
Insert the key and turn the ignition to RUN or
ACCESSORY.
Lock all doors using the remote keyless entry
Lock the doors using the power door lock switch.
transmitter
(if equipped).
When any door is opened, delayed exit lighting is
canceled. The interior lamps will stay on while any door
is opened and will slowly fade out when all the doors
are closed. The interior lamps may stay on for up
to
25 seconds after all the doors have been closed if
they have not been locked. See Delayed Illumination
and Exit lighting on page
2-44.
Overhead Console Reading Lamps
Your vehicle may have reading lamps on the overhead
console. These lamps will turn on when you open
the doors. When the doors are closed, push the button
next to each lamp
to turn them on and off. The
overhead console also contains an open storage bin.
Front Reading Lamps
If the vehicle has the optional sunroof, you will have
reading lamps in front of the sunroof switch located on
the headliner. These lamps will come on when you
open the doors. The lamps can be turned on and
off
manually by pressing the button behind each reading
lamp when the doors are closed.
Rear Assist Handle Reading Lamps
Your vehicle may have reading lamps on each
rear assist handle. Press the reading lamp
to turn it on.
Press it again to turn it
off.
To turn the delayed exit lighting feature off or on,
see Vehicle Personalization on page
2-43.
3-1 4

Instrument Panel Fuse Block
Some fuses are in a fuse block located inside of the
glove box behind a small bin on the right side.
To open,
pull the cover out. The fuse block is inside. On the
back edge of this cover is a fuse usage chart.
To reinstall the bin, position the lower end and turn the
top into position. Press on the sides until it snaps
into place.
CIRCUIT
BREAKERS
(HEADLAMPI
I
I I MALLPGM I MALL I WIPER I I STR WHL
ILLUM I 'TT:rL SUNROOF RADIO
PASSKEY
111
CRUISE
I PWR LOCK
HAZARD
r
FUSE USAGE CHARTI I
STOP LAMP
I/P-IGN HSEATILUM
PWR MIR
ONSTAR
SIR
HVAC
CTRL
R DEFOG
HVAC
HI
TURN
BTSl
DICIHVAC
For More Information. See Owner's Manual
Circuit
Usage
Breakers
HEADLAMP Headlamps
SEAT Power Seat, Power Lumbar
BLANK Blank
PWR WDO Power Windows
I BLANK Bian k
BLANK Blank
BLANK Blank
5-98

Circuit
Breakers
MALL PGM
MALL
WIPER STR WHL
ILLUM
BLANK
STR WHL
CTRL
SUNROOF RADIO
BLANK
RADIO AMP
PWR LOCK
HSEAT/LUM
I Usage
Mall Module - Program
Mall Module
~~ ~~
-
Wipers
Steering Wheel Illumination
Blank
Steering Wheel Control
Sunroof
Radio
R DEFOG Rear Window Defogger
PASS KEY
Ill PASS-Key@ I II Security System
~~ ~
lRAP I Retained Accessow Power I
ONSTAR Onstar@
System
BLANK Blank
SIR Supplemental
Inflatable Restraint
(Air Baa)
BTSl
I
Automatic Transaxle Shift Lock
Control
5-99

Steering ........................................................ 4-1 3
Steering in Emergencies
.................................. 4-14
Steering, Suspension and Front Drive Axle Boot
and Seal Inspection
..................................... 6-13
Steering
Tips .................................................. 4-13
Steering Wheel Controls, Audio
......................... 3-56
Storage Areas Center Console Storage Area
........................ 2-40
Convenience Net
......................................... 2-41
Glove Box
.................................................. 2-40
Overhead Console
....................................... 2-40
Purse or Litter Bag Holder
............................ 2-41
Rear Storage Area
....................................... 2-41
Trunk Access Panel
..................................... 2-41
Storing the Flat Tire and Tools
.......................... 5-85
Storing the Spare Tire and Tools
....................... 5-86
Stuck in Sand, Mud, Ice or Snow
...................... 4-32
Sun Visors
................................... ........... 2-14
Sunglasses Storage Compartment
.................. 2-40
Sunroof
......................................................... 2-42
Supplemental Restraint System
(SRS) ............... 1-51
How Does an Air Bag Restrain?
.................... 1-55
Servicing Your Air Bag-Equipped Vehicle
......... 1-57
What Makes an Air Bag Inflate?
.................... 1-55
What Will You See After an Air Bag
Inflates?
.................................................. 1-56
When Should an Air Bag Inflate?
................... 1-55
Where Are the Air Bags?
.............................. 1-53
T
Tachometer .................................................... 3-25
Taillamps Sidemarker
and Back-up Lamps .................... 5-64
TCS Warning Light
.......................................... 3-29
Temperature Display
................................ 2.34. 2-35
Theft.Deterrent. Radio
..................................... 3-54
Theft-Deterrent Systems
................................... 2-15
Content Theft-Deterrent
................................ 2-15
PASS-Key@
Ill ............................................. 2-16
Throttle System Inspection
............................... 6-14
Tilt Wheel
........................................................ 3-4
Tire Inflation Check
........................................... 6-9
Tires
..................................................... 5-68, 5-93
Buying New Tires
........................................ 5-71
Chains ....................................................... 5-75
Changing a Flat Tire
.................................... 5-76
Compact Spare Tire
..................................... 5-87
If a Tire Goes Flat
....................................... 5-76
Inflation
-- Tire Pressure ............................... 5-68
Inspection and Rotation
................................ 5-69
Uniform Tire Quality Grading
......................... 5-72
Wheel Alignment and Tire Balance
................. 5-73
Wheel Replacement
..................................... 5-73
When It
Is Time for New Tires ...................... 5-70
PASS-Key@
Ill Operation .............................. 2-17
13
