2003 Peugeot 206 SW Dag display

26-05-2003
YOUR 206 IN DETAIL

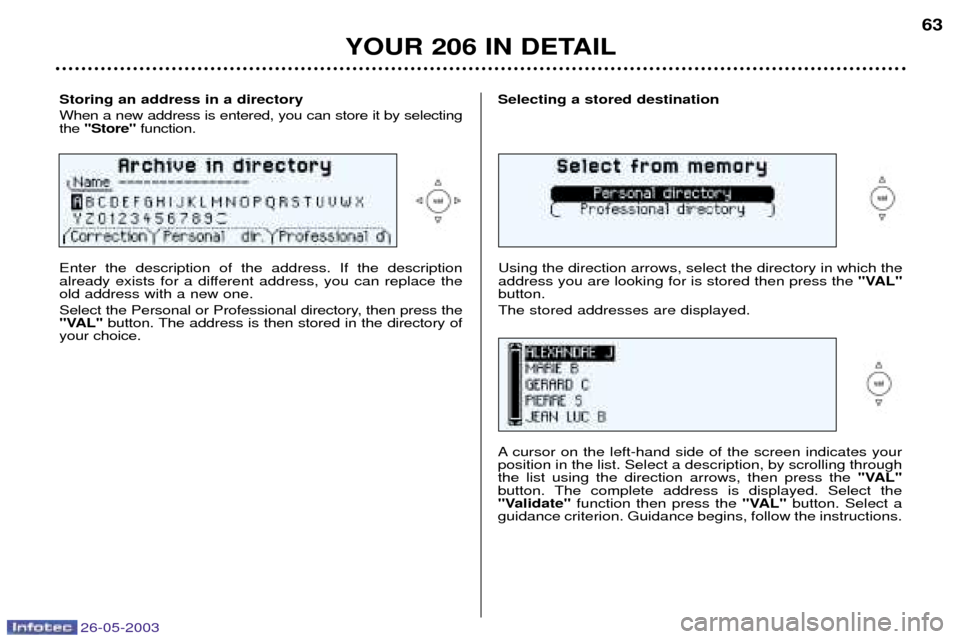

Storing an address in a directory When a new address is entered, you can store it by selecting the "Store" function.Selecting a stored destination
Enter the description of the address. If the description
already exists for a different address, you can replace theold address with a new one.
Select the Personal or Professional directory, then press the
"VAL"button. The address is then stored in the directory of
your choice. Using the direction arrows, select the directory in which theaddress you are looking for is stored then press the
"VAL"
button. The stored addresses are displayed.
A cursor on the left-hand side of the screen indicates your position in the list. Select a description, by scrolling throughthe list using the direction arrows, then press the "VAL"
button. The complete address is displayed. Select the
"Validate" function then press the "VAL"button. Select a
guidance criterion. Guidance begins, follow the instructions.
63

26-05-2003
YOUR 206 IN DETAIL
64
Display configuration From the general menu, the
"Configure display"menu
gives access to the following parameters:
Ð Adjustment of the display brightness;
Ð Adjustment of the date and time;
Ð Selection of the language of the display and voice infor- mation (English, German, Spanish, French, Italian, Dutch);
Ð Adjustment of formats and units. This enables you to choose between Km/h or mph and degrees Celsius orFahrenheit and to modify the format for the hours (12 or24 hour mode).Navigation options From the navigation/guidance menu, the "Navigation
options" menu offers the following options:
Ð Management of the directories. It enables an address stored under a description to be renamed or deleted. To do this, select the directory and the description to bechanged;
Ð Voice synthesis volume adjustment;
Ð Deletion of all data stored in the two directories;
Ð Stopping or resuming of guidance. Two messages may be displayed depending on the previous status: "Resume guidance" or "Stop guidance" .

26-05-2003
YOUR 206 IN DETAIL65

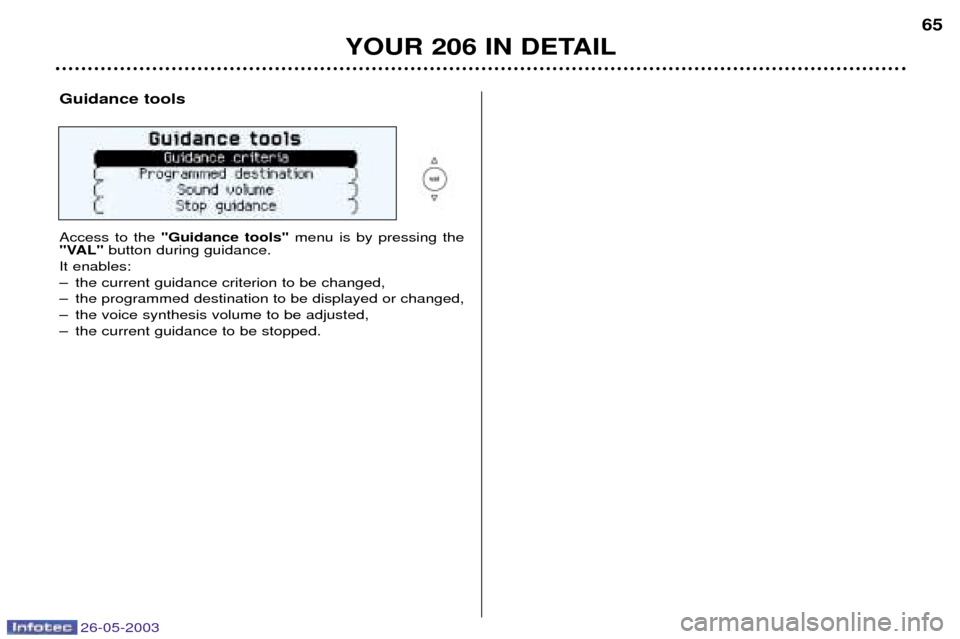

Guidance tools Access to the
"Guidance tools" menu is by pressing the
"VAL" button during guidance.
It enables:
Ð the current guidance criterion to be changed,
Ð the programmed destination to be displayed or changed,
Ð the voice synthesis volume to be adjusted,
Ð the current guidance to be stopped.

26-05-2003
YOUR 206 IN DETAIL
72
Automatic operation
1. Temperature adjustment
The chosen temperature is displayed. Press the up anddown arrows to change it.
A setting around 21 ¡Cenables a comfortable tem-perature to be obtained. 2. Automatic comfort programme
Press the
AUTObutton. The sys-
tem automatically adjusts theatmosphere inside the vehicle inaccordance with the temperature
that you have chosen. To do this, it controls the
temperature, the flow, the distribution and theintake of air as well as the air conditioning.Note: for your comfort, the settings are retained
between two start-ups of your vehicle if the tem-perature in the passenger compartment has notchanged significantly; otherwise, operationresumes in automatic mode.
3. Automatic visibility programme
In some cases, the auto-matic comfort programme
may not be sufficient for de-icing or demisting of the
windows (humidity, several passen-gers, ice etc.). In this case, select theautomatic visibility programme to
clear the windows quickly.
To exit this programme and return to the automatic comfort programme,press the AUTObutton.
AUTOMATIC AIR CONDITIONING

26-05-2003
YOUR 206 IN DETAIL73
5. Air distribution
Pressing this button sever- al times in successionenables the air flow to bedirected in turn towards:
Ð the windscreen (de-icing or demisting),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the centre and side vents and the footwells,
Ð the centre and side vents.
7. Air intake
Press this button for recircu-
lation of the interior air.Recirculation, shown on the
display, enables the passen-
ger compartment to be insulated fromexterior odours and smoke.
Avoid prolonged recirculation of interi-
or air. To do this, press the buttonagain to resume automatic manage-
ment of the intake of air. Note: To prevent condensation on the
inside of the vehicle in cold or wet
weather, you are advised to avoidusing this mode.
4. Air conditioning
Press this button to switch
off the air conditioning. Thesymbol ECOis displayed.
Automatic operation of the
air conditioning is resumed when the
button is pressed again. The symbolA/C is displayed. 8. Switching the system off
The OFF button enables
the entire system to be
switched off.
Temperature-related com-
fort is no longer guaranteed.Pressing the OFF, AUTO , or visi-
bility button again reactivates the
system with the values set before it
was switched off.
9. Demisting the rear screen Press this button to demistthe rear screen and themirrors. Demisting switches
off automatically. It is pos-
sible to stop operation of the
demisting before it is switched offautomatically by pressing the buttonagain. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month,
to keep it in good working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the
AUTObutton
returns the system to completelyautomatic operation.
6. Air flowThe flow of air can beincreased or reducedby pressing buttons+or Ðrespectively.
Notes It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
To prevent condensation on the inside of the vehicle in cold or wet
weather, you are advised to avoidusing the ECOmode.

26-05-2003
YOUR 206 IN DETAIL87
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message ''Remote con-
trol battery low'' on the multi-func-
tion display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt bat-tery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to switch on the ignition and operate the passengerair bag disarming switch and the fuelfiller cap, as well as independentlyoperate the locks on the front doors. Central locking The keys allow you to lock or unlock the doors and tailgate from the frontdoors. If one of the doors, the tailgate
(206 SW) or the rear screen
(206 SW) is open, the central lockingdoes not work. The remote control This performs the same functions as
the key, at a distance. Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button Bto unlock the vehicle.
This is confirmed by the rapid flashing of the direction indicators.
206 SW: Press and hold button Bto
unlock the vehicle and open the rear screen. Note: If the vehicle is locked and
unlocking is activated inadvertently, unless the doors are opened within30 seconds, the vehicle will lockautomatically (206 SW).
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not towork and the remote control wouldthen have to be reprogrammed. Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
press button A. The courtesy
lights come on and the direction indicators flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote controlis now working again.

26-05-2003
YOUR 206 IN DETAIL89
THE DOORS The front doors The rear doors (206 SW) Opening the doors from outside CHILD SAFETY LOCK On each rear door this prevents opening of the door from the inside.
Turn switch
1a quarter turn using
the ignition key.
"Door open" warning
With the engine running
, you are
warned if a door is not shut properly by an audible signal and a messageor graphic on the multifunction dis-
play, indicating the door in question. Note: if your vehicle is not fitted with
central locking, a rear door which is not shut properly is not indicated byan audible signal, a message or a
graphic on the multifunction display. In addition, when the vehicle is
moving , if the courtesy light button
is in the "lighting on opening a door" position, the courtesy light flashes.
Opening the doors from inside Locking from inside
Without central locking
To lock, press button A. The button
locks the door in question. The button on the driver's door locks
the door, the tailgate and the rearscreen (206 SW).
With central locking
To lock, press button A.
Locking one of the front doors locks the front and rear doors, the tailgateand the rear screen (206 SW). On the rear doors, the button only locks the door in question. Unlocking from inside
To unlock, pull button Aor operate
the handle.

26-05-2003
YOUR 206 IN DETAIL91
TAILGATE RELEASE (saloon and 206 RC) This enables the tailgate to be unlocked in the event of a centrallocking fault:
Ð fold back the rear seats to gain access to the boot from inside the vehicle,
Ð pull the tailgate trim to release it,
Ð pull the opening catch 1upwards.
SUNROOF (saloon and 206 RC)
To open Press part Bof the switch. The sun-
roof will open in the intermediate
(comfort) position. To open com-
pletely, press part Bagain.
To close Press part Aof the switch. The sun-
roof will close in the intermediate
(comfort) position. To close com-
pletely, press part Aagain.
Panoramic sunroof screen
To move it to your chosen position, press part Aor Bof the switch.
The lighting is activated on opening the tailgate or the rearscreen. Notes: the tailgate and the rear
screen lock automatically while driv- ing (above 6 mph (10 km/h)) andunlock when one of the doors isopened. When the rear windscreen wiper is in a wiping position, the rear screencan only be opned at the end of thecycle. Close the rear screen using the windscreen wiper arm or by press-ing the centre of the glass.
"Tailgate/rear screen open" warning
With the engine running , if the
tailgate or the rear screen is not properly closed, you are warned byan audible signal and a message
"Tailgate open" or a diagram on
the multifunction display. In addition, while driving , if the
courtesy light button is in the "ligh- ting on opening the tailgate or rearscreen" position, the courtesy lightflashes.
