1. CHECK POWER SUPPLY CIRCUIT FOR UNIFIED METER AND A/C AMP.

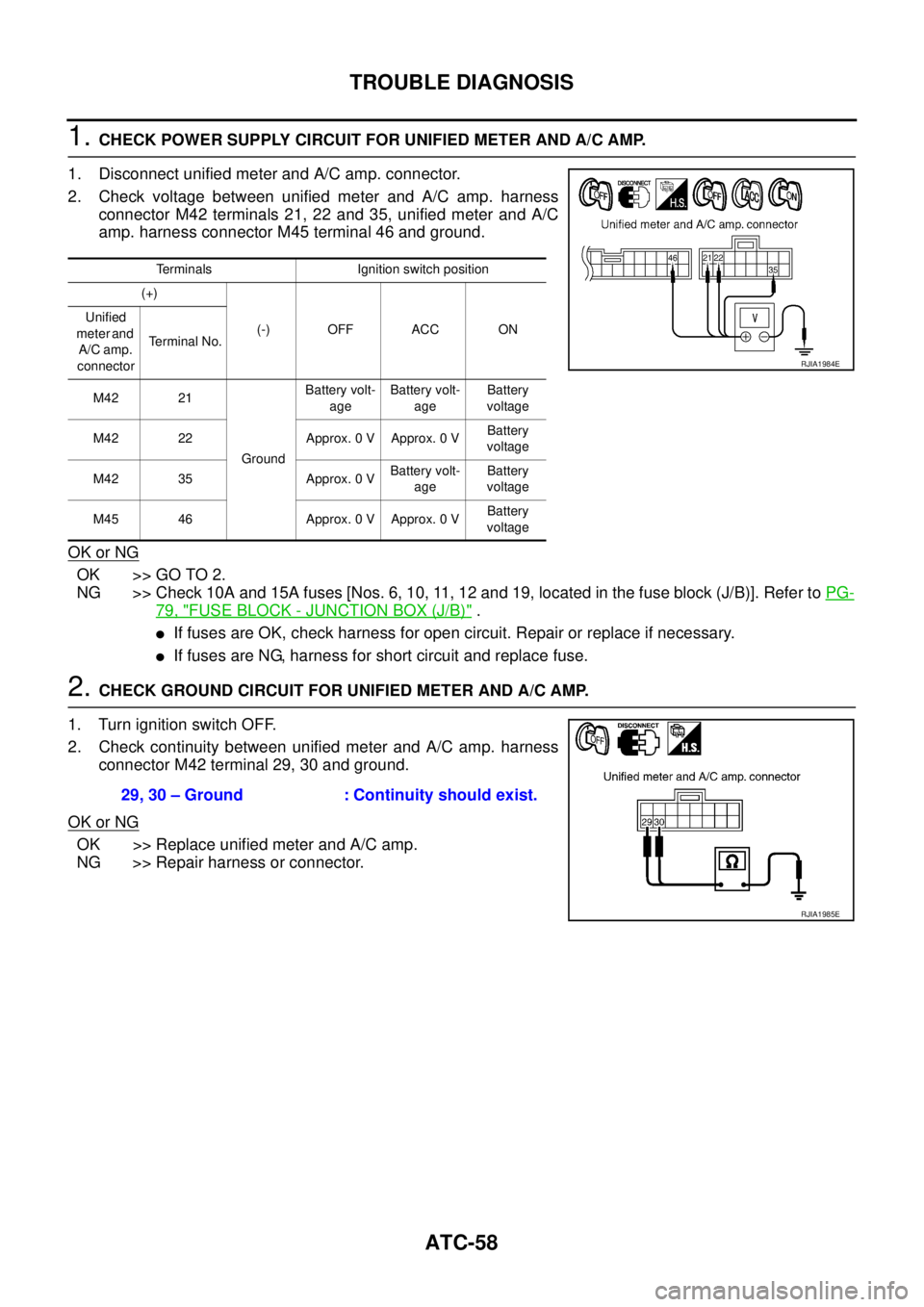

1. Disconnect unified meter and A/C amp. connector.
2. Check voltage between unified meter and A/C amp. harness
connector M42 terminals 21, 22 and 35, unified meter and A/C
amp. harness connector M45 terminal 46 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check 10A and 15A fuses [Nos. 6, 10, 11, 12 and 19, located in the fuse block (J/B)]. Refer to PG-
79, "FUSE BLOCK - JUNCTION BOX (J/B)" .

If fuses are OK, check harness for open circuit. Repair or replace if necessary.

If fuses are NG, harness for short circuit and replace fuse.
2. CHECK GROUND CIRCUIT FOR UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Check continuity between unified meter and A/C amp. harness
connector M42 terminal 29, 30 and ground.
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness or connector.
Terminals Ignition switch position
(+)
(-) OFF ACC ON Unified
meter and
A/C amp.
connectorTerminal No.
M42 21
GroundBattery volt-
ageBattery volt-
ageBattery
voltage
M42 22 Approx. 0 V Approx. 0 VBattery
voltage
M42 35 Approx. 0 VBattery volt-
ageBattery
voltage
M45 46 Approx. 0 V Approx. 0 VBattery
voltage
RJIA1984E
29, 30 – Ground : Continuity should exist.
RJIA1985E

INTELLIGENT KEY SYSTEM
BL-69
C
D
E
F
G
H
J
K
L
MA
B
BL

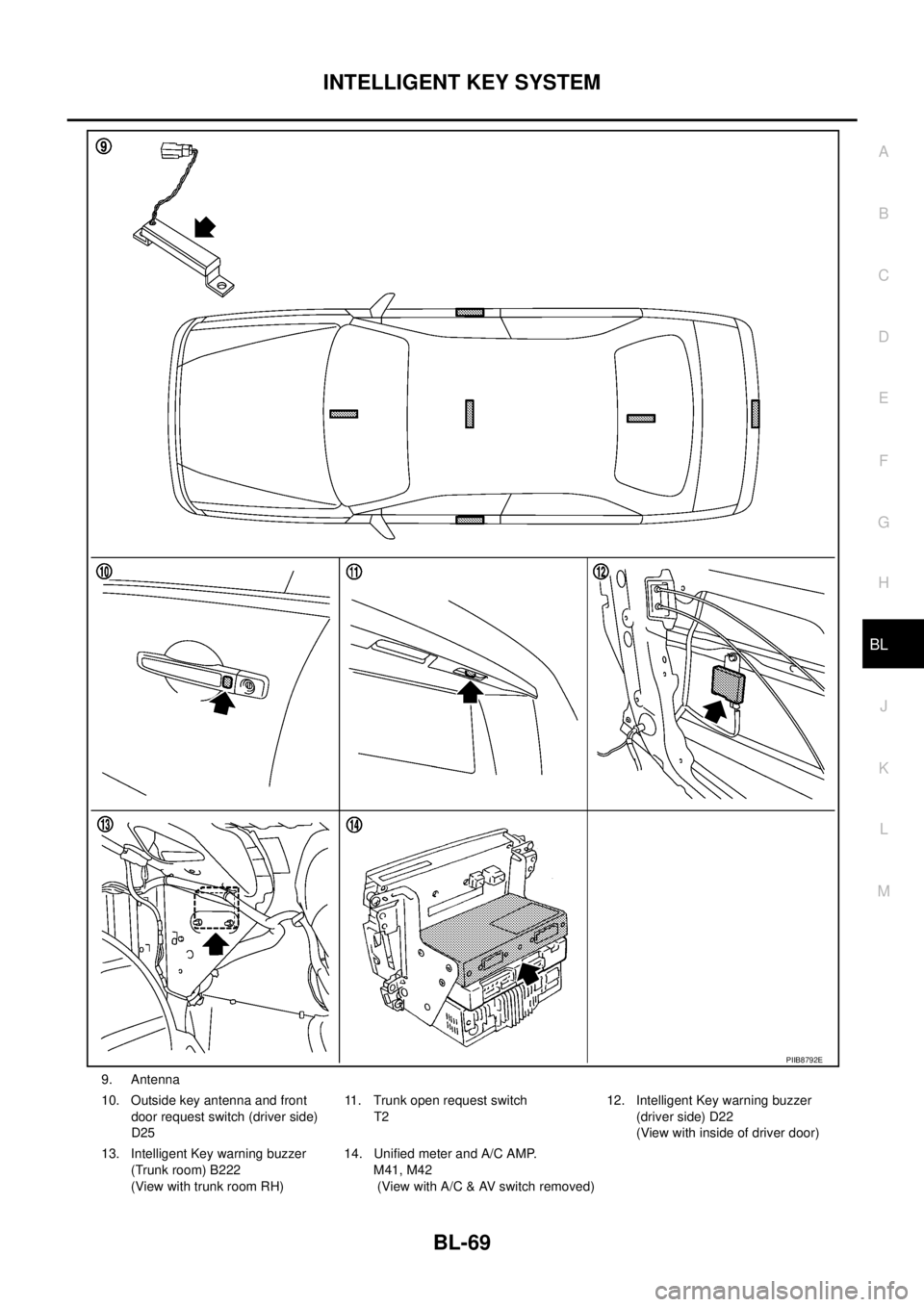

9. Antenna
10. Outside key antenna and front
door request switch (driver side)
D2511. Trunk open request switch
T212. Intelligent Key warning buzzer
(driver side) D22
(View with inside of driver door)
13. Intelligent Key warning buzzer
(Trunk room) B222
(View with trunk room RH)14. Unified meter and A/C AMP.
M41, M42
(View with A/C & AV switch removed)
PIIB8792E

DI-18
COMBINATION METERS

Power Supply and Ground Circuit InspectionBKS001S7
1. CHECK FUSE
Check combination meter and unified meter and A/C amp. fuses for blown-out.
OK or NG
OK >> GO TO 2.
NG >> Be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER
SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT

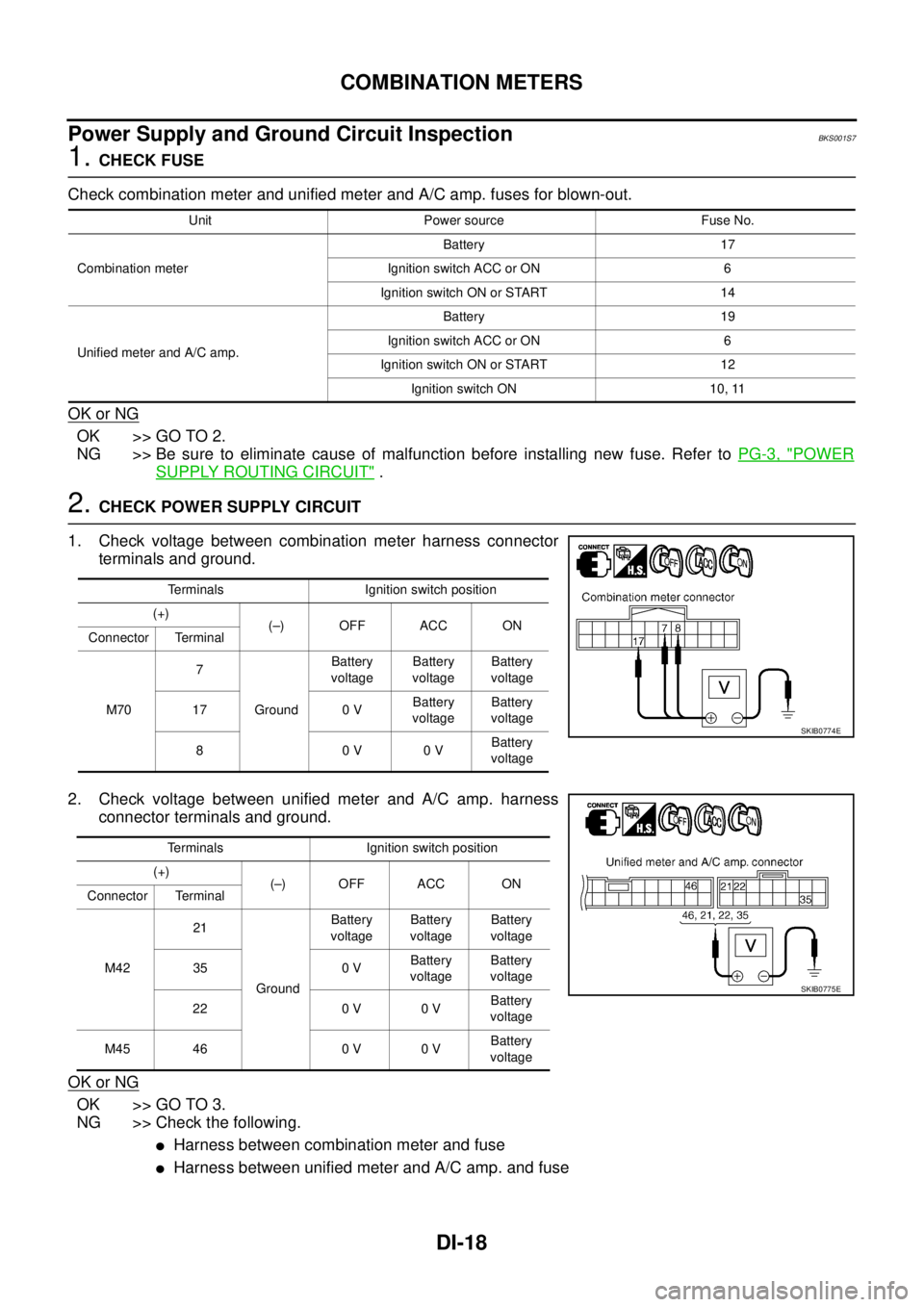

1. Check voltage between combination meter harness connector
terminals and ground.
2. Check voltage between unified meter and A/C amp. harness
connector terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> Check the following.

Harness between combination meter and fuse

Harness between unified meter and A/C amp. and fuse
Unit Power source Fuse No.
Combination meter Battery 17
Ignition switch ACC or ON 6
Ignition switch ON or START 14
Unified meter and A/C amp.Battery 19
Ignition switch ACC or ON 6
Ignition switch ON or START 12
Ignition switch ON 10, 11
Terminals Ignition switch position
(+)
(–) OFF ACC ON
Connector Terminal
M707
GroundBattery
voltageBattery
voltageBattery
voltage
17 0 VBattery
voltageBattery
voltage
8 0 V 0 VBattery
voltage
SKIB0774E
Terminals Ignition switch position
(+)
(–) OFF ACC ON
Connector Terminal
M4221
GroundBattery
voltageBattery
voltageBattery
voltage
35 0 VBattery
voltageBattery
voltage
22 0 V 0 VBattery
voltage
M45 46 0 V 0 VBattery
voltage
SKIB0775E

COMBINATION METERS
DI-19
C
D
E
F
G
H
I
J
L
MA
B
DI

3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector
M70 terminals 10, 11, 12 and ground.
4. Check continuity between unified meter and A/C amp. harness
connector M42 terminal 29, 30 and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.10 – Ground
: Continuity should exist. 11 – Ground
12 – Ground
SKIA8715E
29 – Ground
: Continuity should exist.
30 – Ground
SKIA5202E

DI-20
COMBINATION METERS

Vehicle Speed Signal InspectionBKS001S8
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Perform the ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-57, "
CONSULT-II Func-
tions" (with VDC system) or BRC-17, "CONSULT-II Functions (ABS)" (without VDC system).
Self
-diagnostic results content
No malfunction detected>>GO TO 2.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
2. CHECK UNIFIED METER AND A/C AMP. OUTPUT SIGNAL
1. Start engine and drive vehicle at approximately 40 km/h (25 MPH).

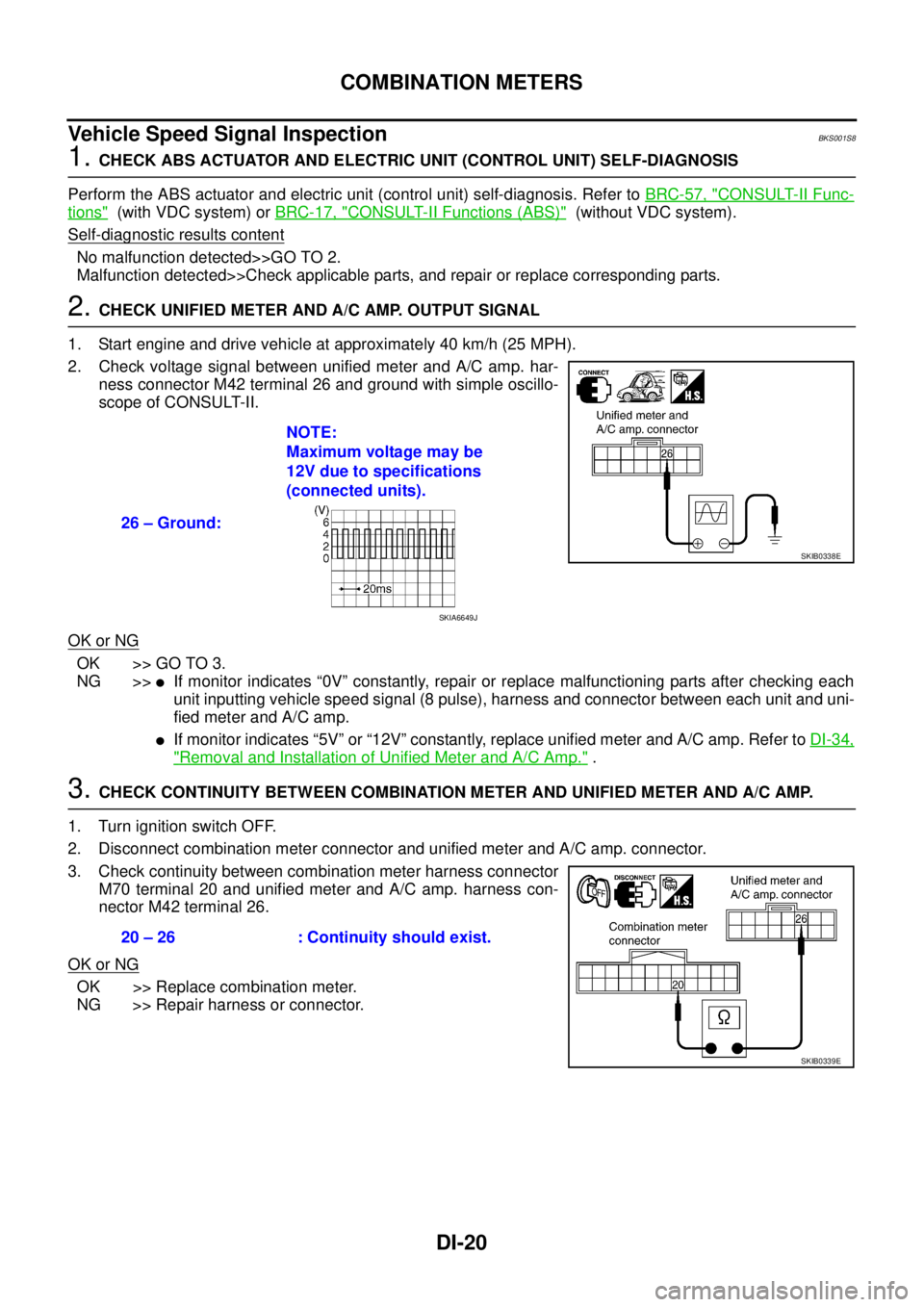

2. Check voltage signal between unified meter and A/C amp. har-
ness connector M42 terminal 26 and ground with simple oscillo-
scope of CONSULT-II.
OK or NG
OK >> GO TO 3.
NG >>

If monitor indicates “0V” constantly, repair or replace malfunctioning parts after checking each
unit inputting vehicle speed signal (8 pulse), harness and connector between each unit and uni-
fied meter and A/C amp.

If monitor indicates “5V” or “12V” constantly, replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C Amp." .
3. CHECK CONTINUITY BETWEEN COMBINATION METER AND UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector
M70 terminal 20 and unified meter and A/C amp. harness con-
nector M42 terminal 26.
OK or NG
OK >> Replace combination meter.
NG >> Repair harness or connector.26 – Ground:NOTE:
Maximum voltage may be
12V due to specifications
(connected units).
SKIB0338E
SKIA6649J
20 – 26 : Continuity should exist.
SKIB0339E

COMBINATION METERS
DI-23
C
D
E
F
G
H
I
J
L
MA
B
DI

3. CHECK FUEL LEVEL SENSOR SIGNAL CIRCUIT
1. Disconnect unified meter and A/C amp. connector and fuel level sensor unit and fuel pump connector.
2. Check continuity between unified meter and A/C amp. harness
connector M42 terminal 28 and fuel level sensor unit and fuel
pump harness connector B223 terminal 2.
3. Check continuity between unified meter and A/C amp. harness
connector M42 terminal 28 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK FUEL LEVEL SENSOR GROUND CIRCUIT
1. Check continuity between fuel level sensor unit and fuel pump
harness connector B223 terminal 5 and unified meter and A/C
amp. harness connector M42 terminal 36.
2. Check continuity between fuel level sensor unit and fuel pump
harness connector B223 terminal 5 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK INSTALLATION CONDITION
Check fuel level sensor unit and fuel pump installation, and check whether the float arm interferes or binds
with any of the internal components in the fuel tank.
OK or NG
OK >> Replace unified meter and A/C amp. Refer to DI-34, "Removal and Installation of Unified Meter
and A/C Amp." .
NG >> Install the fuel level sensor unit and fuel pump properly.
Fuel Gauge Does Not Move to FULL positionBKS001SG
1. QUESTION 1
Does it take a long time for the pointer to move to FULL position?
YES >> GO TO 2.
NO >> GO TO 3.
2. QUESTION 2
Was the vehicle fueled with the ignition switch ON?
YES >> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move
to FULL position because of the characteristic of the fuel gauge.
NO >> GO TO 3.28 – 2 : Continuity should exist.
28 – Ground : Continuity should not exist.
SKIA8723E
5 – 36 : Continuity should exist.
5 – Ground : Continuity should not exist.
SKIB0036E

EC-240
[QR]
DTC P1706 PNP SWITCH

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS005GY
1. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector M42.
3. Turn ignition switch ON.

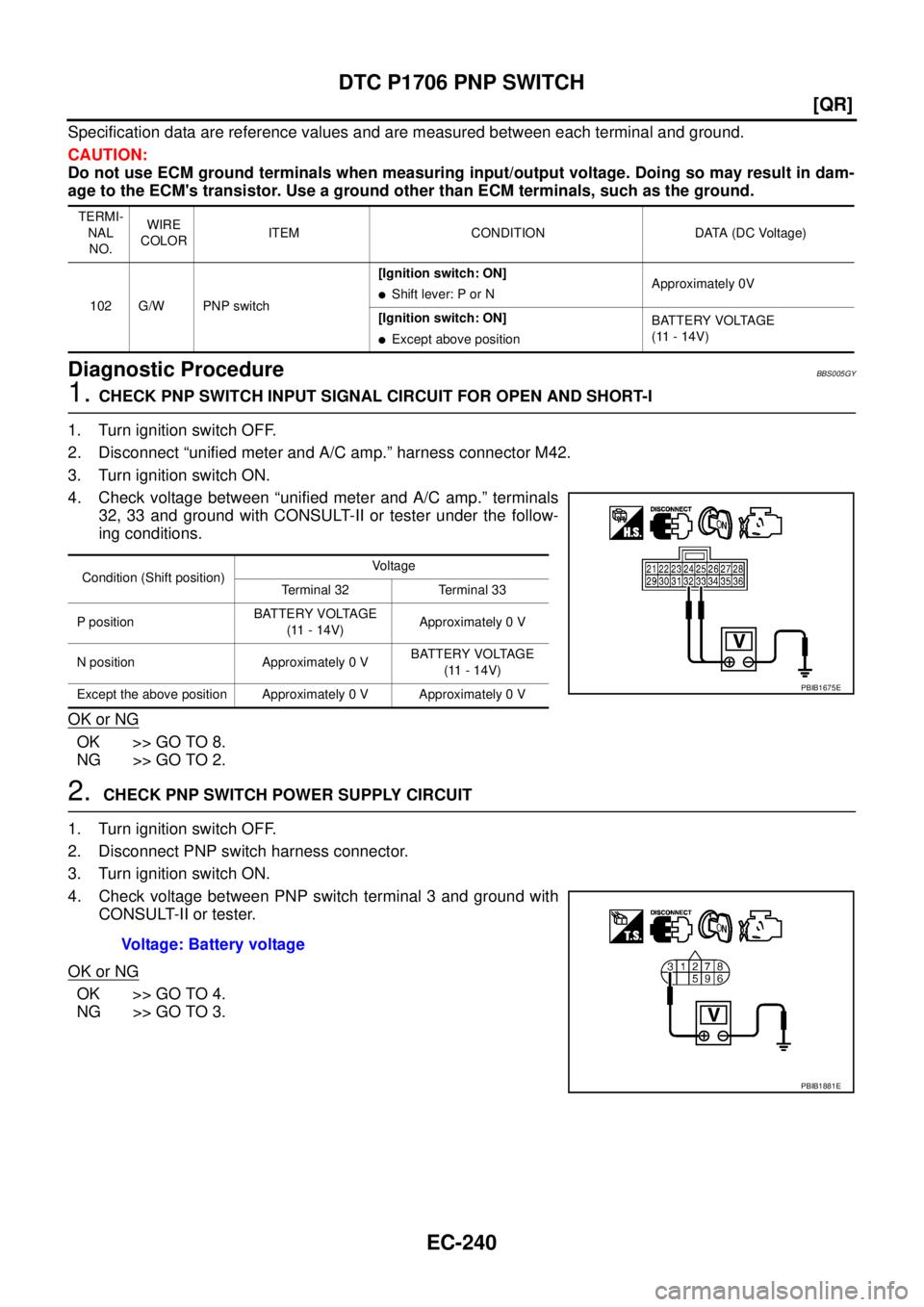

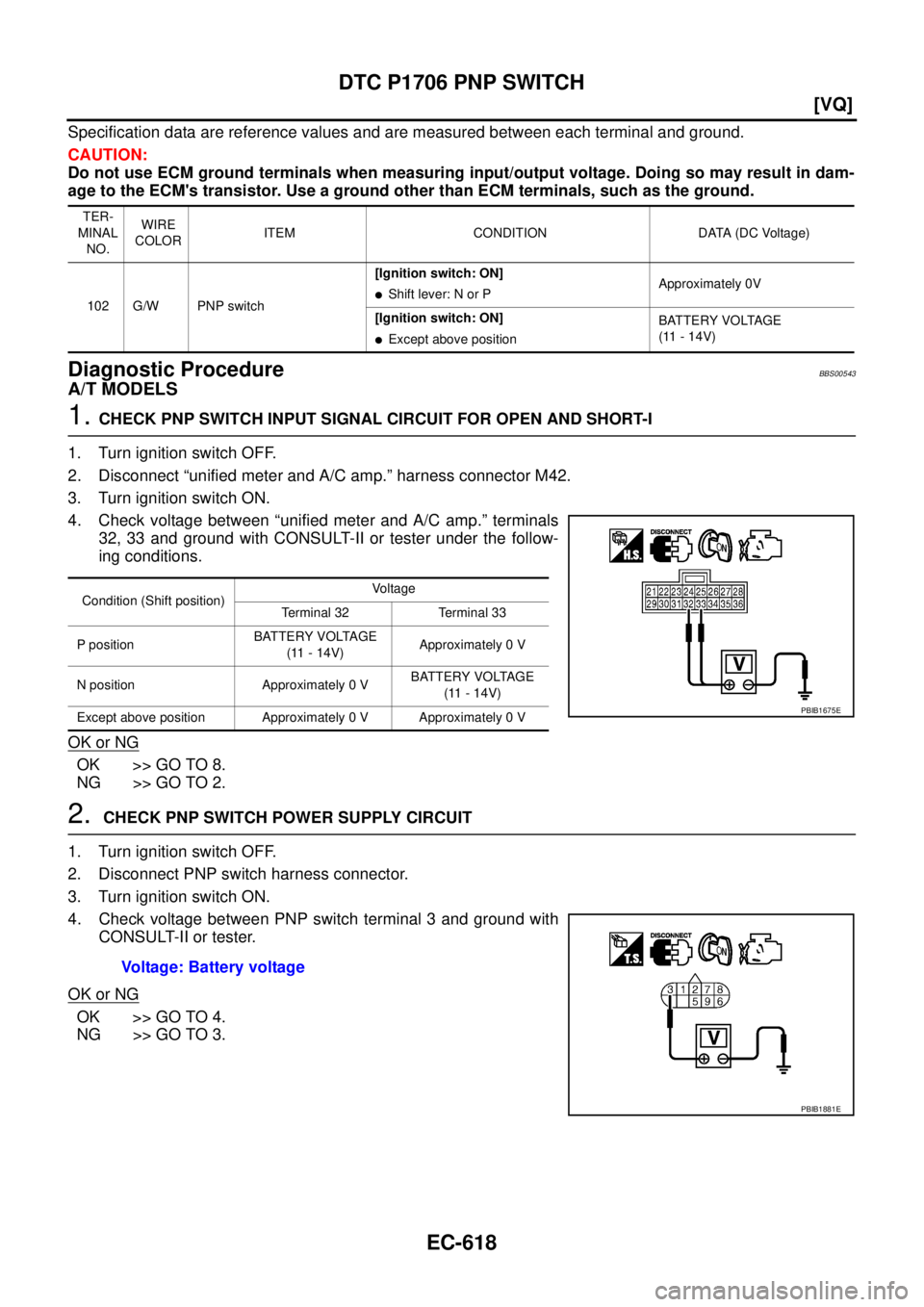

4. Check voltage between “unified meter and A/C amp.” terminals
32, 33 and ground with CONSULT-II or tester under the follow-
ing conditions.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK PNP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between PNP switch terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/W PNP switch[Ignition switch: ON]

Shift lever: P or NApproximately 0V
[Ignition switch: ON]

Except above positionBATTERY VOLTAGE
(11 - 14V)
Condition (Shift position)Voltage
Te r m i n a l 3 2 Te r m i n a l 3 3
P positionBATTERY VOLTAGE
(11 - 14V)Approximately 0 V
N position Approximately 0 VBATTERY VOLTAGE
(11 - 14V)
Except the above position Approximately 0 V Approximately 0 V
PBIB1675E
Voltage: Battery voltage
PBIB1881E

EC-618
[VQ]
DTC P1706 PNP SWITCH

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS00543
A/T MODELS
1. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector M42.
3. Turn ignition switch ON.
4. Check voltage between “unified meter and A/C amp.” terminals
32, 33 and ground with CONSULT-II or tester under the follow-
ing conditions.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK PNP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between PNP switch terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/W PNP switch[Ignition switch: ON]

Shift lever: N or PApproximately 0V
[Ignition switch: ON]

Except above positionBATTERY VOLTAGE
(11 - 14V)
Condition (Shift position)Voltage
Te r m i n a l 3 2 Te r m i n a l 3 3
P positionBATTERY VOLTAGE
(11 - 14V)Approximately 0 V
N position Approximately 0 VBATTERY VOLTAGE
(11 - 14V)
Except above position Approximately 0 V Approximately 0 V
PBIB1675E
Voltage: Battery voltage
PBIB1881E
