IAT SENSOR

Component InspectionBBS0055M
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between mass air flow sensor terminals 1 and
2 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature
sensor).
Removal and InstallationBBS0055N
MASS AIR FLOW SENSOR
Refer to EM-131, "AIR CLEANER AND AIR DUCT" .
Intake air temperature °C (°F) Resistance kΩ
25 (77) 1.800 - 2.200
PBIB1604E
SEF012P

EC-748
[VQ]
REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSORPFP:92136
Component DescriptionBBS0056Z

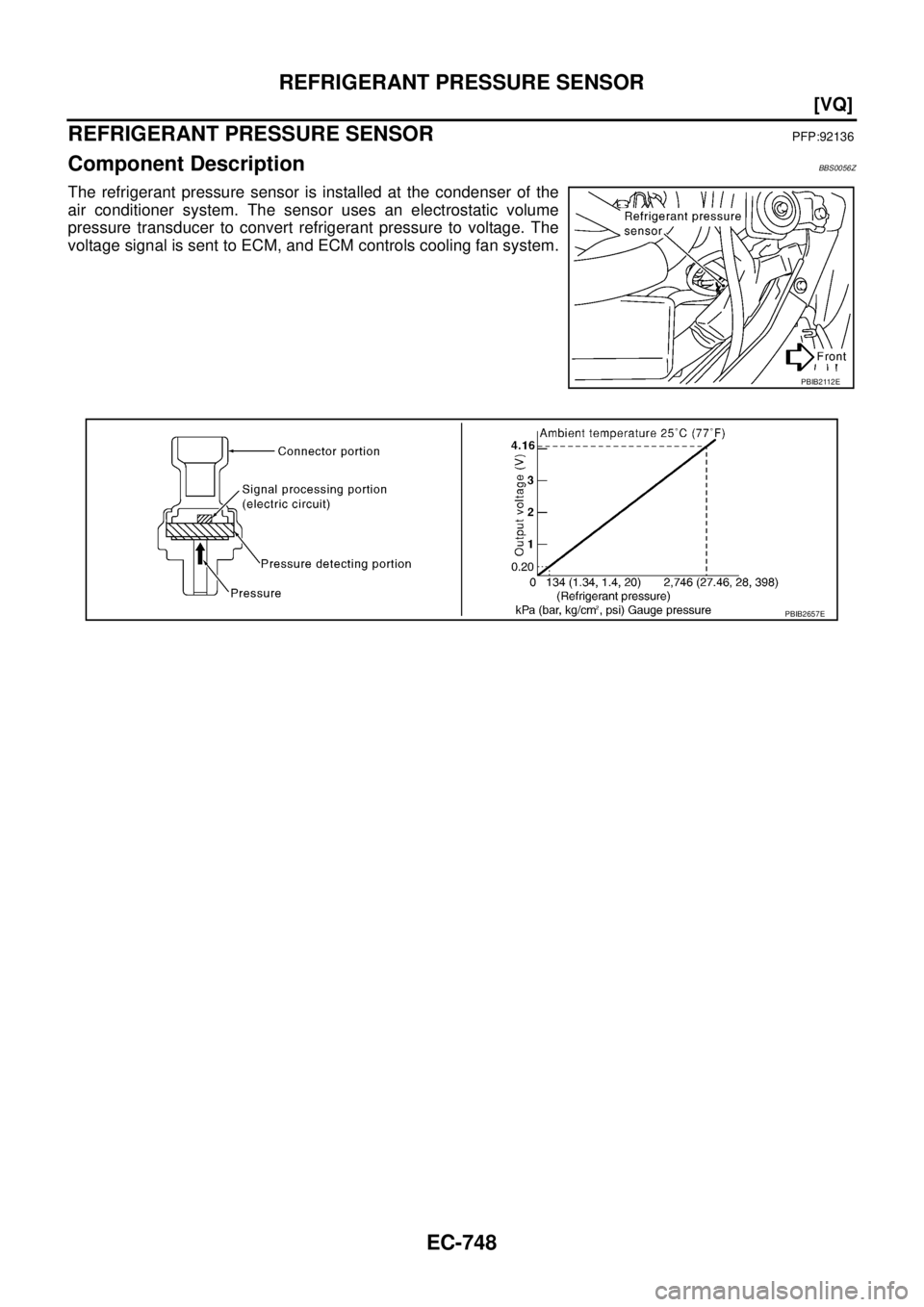

The refrigerant pressure sensor is installed at the condenser of the
air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrigerant pressure to voltage. The
voltage signal is sent to ECM, and ECM controls cooling fan system.
PBIB2112E
PBIB2657E

REFRIGERANT PRESSURE SENSOR
EC-749
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

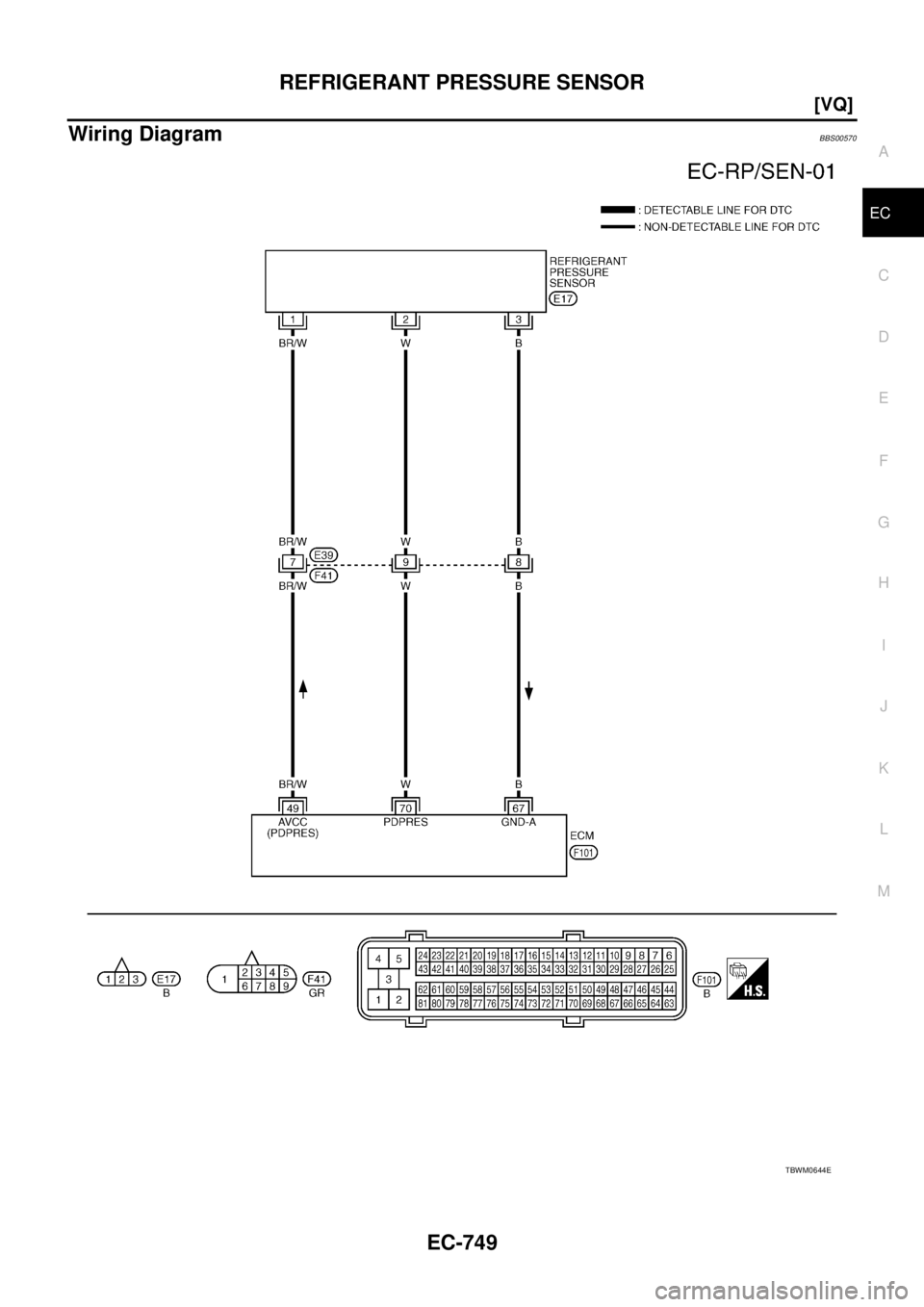

Wiring DiagramBBS00570
TBWM0644E

EC-750
[VQ]
REFRIGERANT PRESSURE SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS00571
1. CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower fan switch ON.
3. Check voltage between ECM terminal 70 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK GROUND CONNECTIONS
1. Turn A/C switch and blower fan switch OFF.
2. Turn ignition switch OFF.
3. Loosen and retighten two ground screws on the body.
Refer to EC-457, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
49 BR/WSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
67 B Sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
70 W Refrigerant pressure sensor[Engine is running]

Warm-up condition

Both A/C switch and blower fan switch: ON
(Compressor operates.)1.0 - 4.0V
Voltage: 1.0 - 4.0V
PBIB1188E
PBIB2160E

REFRIGERANT PRESSURE SENSOR
EC-751
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

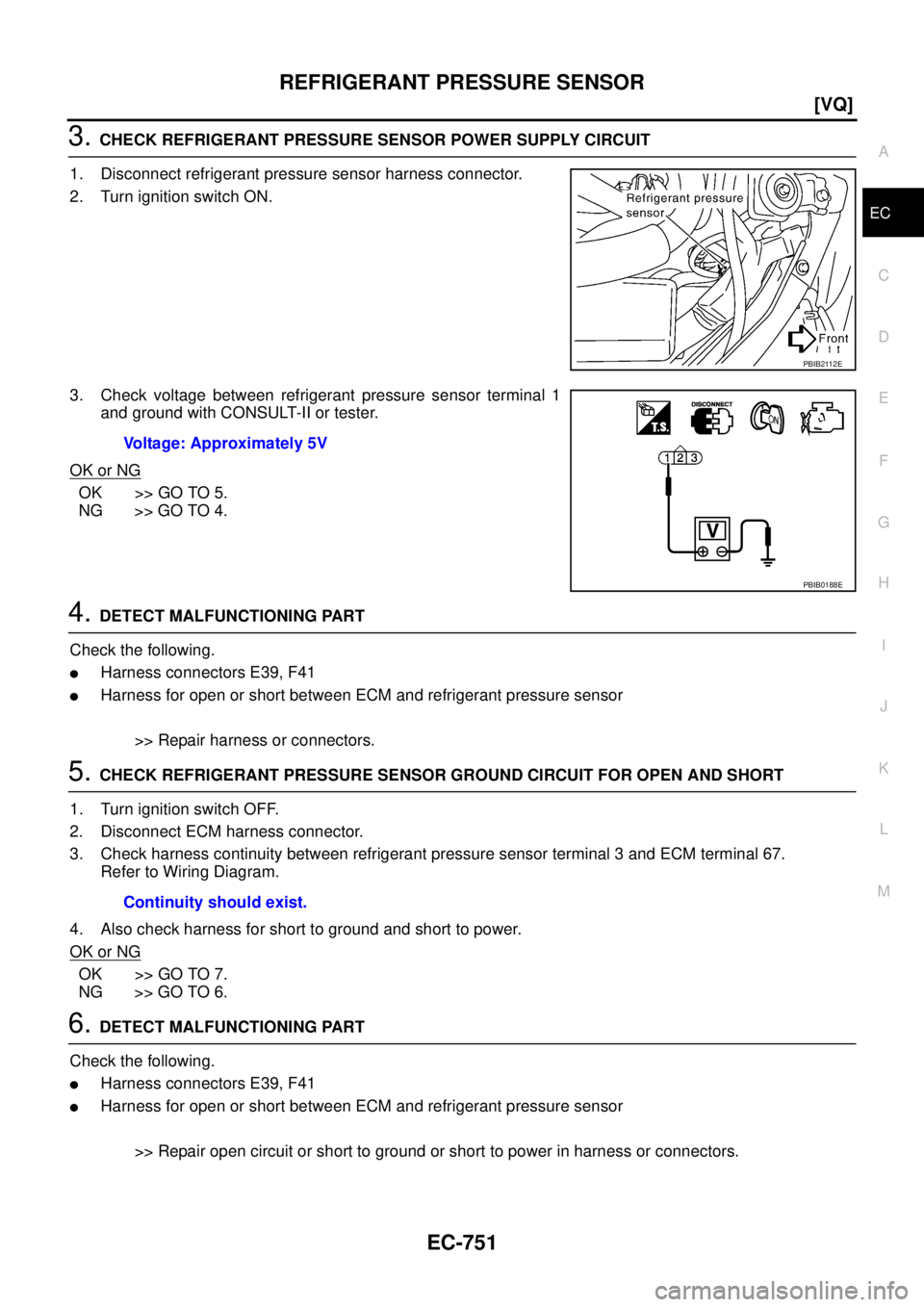

3. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between refrigerant pressure sensor terminal 1
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E39, F41

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair harness or connectors.
5. CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between refrigerant pressure sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E39, F41

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2112E
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.

EC-752
[VQ]
REFRIGERANT PRESSURE SENSOR

7. CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 70 and refrigerant pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E39, F41

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationBBS00572
REFRIGERANT PRESSURE SENSOR
Refer to ATC-144, "Removal and Installation of Refrigerant Pressure Sensor" . Continuity should exist.

VIAS
EC-753
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

VIASPFP:14956
DescriptionBBS00565
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
When the engine is running at medium speed, the ECM sends the ON signal to the VIAS control solenoid
valve. This signal introduces the intake manifold vacuum into the power valve actuator and therefore closes
the power valve.
Under this condition, the effective intake manifold length is equivalent to the total length of passage A and pas-
sage B. This long intake manifold provides increased amount of intake air, which results in improved suction
efficiency and higher torque.
When engine is running at low or high speed, the ECM sends the OFF signal to the VIAS control solenoid
valve and the power valve is opened.
Under this condition, the effective intake manifold length is equivalent to the length of passage B. This short-
ened intake manifold length results in enhanced engine output due to reduced suction resistance under high
speeds.
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake manifold collector and used to
control the suction passage of the variable induction air control sys-
tem. It is set in the fully closed or fully opened position by the power
valve actuator operated by the vacuum stored in the surge tank. The
vacuum in the surge tank is controlled by the VIAS control solenoid
valve.
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
VIAS control VIAS control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
PBIB1822E
PBIB2108E

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-765
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureBBS0057G
Idle Speed and Ignition TimingBBS0057H
*: Under the following conditions:

Air conditioner switch: OFF

Electric load: OFF (Lights, heater fan & rear window defogger)

Steering wheel: Kept in straight-ahead position
Mass Air Flow SensorBBS0057I
*: Engine is warmed up to normal operating temperature and running under no load.
Intake Air Temperature SensorBBS0057J
Engine Coolant Temperature SensorBBS0057K
Heated Oxygen Sensor 1 HeaterBBS0057L
Heated Oxygen sensor 2 HeaterBBS0057M
Crankshaft Position Sensor (POS)BBS0057N
Refer to EC-523, "Component Inspection" .
Camshaft Position Sensor (PHASE)BBS0057O
Refer to EC-532, "Component Inspection" .
Throttle Control MotorBBS0057P
Fuel InjectorBBS0057Q
Fuel pressure at idling kPa (bar, kg/cm2 , psi)Approximately 350 (3.5, 3.57, 51)
Target idle speed No load* (in P or N position)VQ23DE: 700 ± 50 rpm
VQ35DE: 625 ± 50 rpm
Air conditioner: ONIn P or N position VQ23DE: 750 rpm or more
VQ35DE: 700 rpm or more
Ignition timing In P or N position 15 ± 5° BTDC
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle0.9 - 1.1V (VQ23DE engine)*
1.0 - 1.3V (VQ35DE engine)*
Temperature °C (°F) Resistance kΩ
25 (77)1.800 - 2.200
80 (176)0.283 - 0.359
Temperature °C (°F)Resistance kΩ
20 (68)2.1 - 2.9
50 (122)0.68 - 1.00
90 (194)0.236 - 0.260
Resistance [at 25°C (77°F)] 3.3 - 4.0Ω
Resistance [at 25°C (77°F)] 5.0 - 7.0Ω
Resistance [at 25°C (77°F)] Approximately 1 - 15Ω
Resistance [at 10 - 60°C (50 - 140°F)]VQ23DE: 13.5 - 17.5Ω
VQ35DE: 11.1 - 14.5Ω
