ENGINE COOLANT
CO-35
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to CO-36, "
FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.
If water drain plugs on cylinder block are removed, close and tighten them. Refer to EM-233,
"ASSEMBLY" .
2. Make sure that each hose clamp has been firmly tightened.
3. Remove air duct assembly. Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
4. Disconnect heater hose (left side of vehicle) at the position in
the figure.

Enhance heater hose as high as possible.
5. Fill radiator and reservoir tank to specified level.
CAUTION:
Never adhere the engine coolant to electronic equipments
(alternator etc.).

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use NISSAN Genuine Engine Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-14, "
RECOMMENDED FLUIDS AND LUBRICANTS".

When engine coolant overflows disconnected heater hose, connect heater hose, and continue filling the
engine coolant.
6. Install air duct assembly. Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
7. Install radiator cap.Radiator drain plug:
: 1.2 N·m (0.12 kg-m, 11 in-lb)
PBIC2810E
Engine coolant capacity
(With reservoir tank at “MAX” level)
: Approx. 8.2 (7-1/4 lmp qt) [VQ23DE]
: Approx. 8.8 (7-3/4 lmp qt) [VQ35DE]SMA182B
Reservoir tank engine coolant capacity
(At “MAX” level)
: 0.8 (3/4 lmp qt)
SMA412B

CO-36
[VQ]
ENGINE COOLANT

8. Warm up until opening thermostat. Standard for warming-up time is approximately 10 minutes at 3000
rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat engine.
9. Stop engine and cool down to less than approximately 50°C (122°F).

Cool down using fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
10. Refill reservoir tank to “MAX” level line with engine coolant.
11. Repeat steps 3 through 9 two or more times with radiator cap installed until engine coolant level no longer
drops.
12. Check cooling system for leaks with engine running.
13. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
14. Repeat step 13 three times.
15. If sound is heard, bleed air from cooling system by repeating step 3 through 9 until engine coolant level no
longer drops.
FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.
If cylinder block water drain plugs are removed, close and tighten them. Refer to EM-233, "
ASSEM-
BLY" .
2. Remove air duct assembly. Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Disconnect heater hose (left side of vehicle) at the position in
the figure.

Enhance heater hose as high as possible.
4. Fill radiator and reservoir tank with water and install radiator cap.

When engine coolant overflows disconnected heater hose, connect heater hose, and continue filling the
engine coolant.
5. Install air duct assembly. Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
6. Run engine and warm it up to normal operating temperature.
7. Rev engine two or three times under no-load.
8. Stop engine and wait until it cools down.
9. Drain water from the system. Refer to CO-34, "
DRAINING ENGINE COOLANT" .
10. Repeat steps 1 through 9 until clear water begins to drain from radiator.Radiator drain plug:
: 1.2 N·m (0.12 kg-m, 11 in-lb)
PBIC2810E

RADIATOR
CO-37
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

RADIATORPFP:21400
Removal and InstallationBBS004X0

Refer to GI-10, "Components" for symbol marks in the figure.
WARNING:
Do not remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine
coolant escaping from radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter of a turn to
release built-up pressure. Carefully remove radiator cap by turning it all the way.
REMOVAL
1. Remove undercover.
2. Drain engine coolant from radiator. Refer to CO-34, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
3. Remove air duct (inlet). Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
4. Disconnect harness connector from fan motors, and move harness to aside.
1. Reservoir tank 2. Reservoir tank cap 3. Reservoir tank hose
4. Mounting bracket 5. Mounting rubber (upper) 6. Radiator cap
7. Radiator 8. Radiator hose (upper) 9. Mounting rubber (lower)
10.A/T fluid cooler hose (VQ23DE)
CVT fluid cooler hose (VQ35DE)11. Radiator drain plug 12. O-ring
13. Radiator hose (lower) 14. Radiator cooling fan assembly
A.To water inlet and thermoatat assem-
blyB. To water outlet C. To transaxle
PBIC4711E

CO-38
[VQ]
RADIATOR

5. Disconnect A/T fluid cooler hoses (VQ23DE), or CVT fluid cooler hoses (VQ35DE).

Install plug to avoid leakage of A/T fluid or CVT fluid.
6. Remove radiator hoses (upper and lower) and reservoir tank hose.
7. Remove reservoir tank.
8. Remove battery and battery tray, and move fuse and fusible link block to aside. Refer to SC-4, "
BAT-
TERY" .
9. Remove mounting brackets to lift up and remove radiator and radiator cooling fan assembly.
CAUTION:
Do not damage or scratch A/C condenser and radiator core when removing.
10. Remove radiator cooling fan assembly from radiator.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301] and radiator cap
tester (commercial service tool). Refer to CO-34, "
LEAK CHECK" .

Start and warm up engine. Visually check if there is no leaks of engine coolant and A/T fluid.
Checking Radiator CapBBS005AW

Check valve seat of radiator cap.
–Check if valve seat is swollen to the extent that the edge of the
plunger cannot be seen when watching it vertically from the top.
–Check if valve seat has no soil and damage.

Pull negative-pressure valve to open it, and make sure that it is
completely closed when released.
–Make sure that there is no dirt or damage on the valve seat of
radiator cap negative-pressure valve.
–Make sure that there are no unusualness in the opening and
closing conditions of negative-pressure valve.

Check radiator cap relief pressure.
–When connecting radiator cap to the radiator cap tester (com-
mercial service tool) and the radiator cap tester adapter (SST),
apply engine coolant to the cap seal surface.

Replace radiator cap if there is an unusualness related to the above three.
PBIC2816E
SMA967B
Standard:
78 - 98 kPa (0.78 - 0.98bar, 0.8 - 1.0 kg/cm
2 , 11 - 14 psi)
Limit:
59 kPa (0.59bar, 0.6 kg/cm
2 , 9 psi)
SLC755AC

CO-44
[VQ]
COOLING FAN

COOLING FANPFP:21140
Removal and InstallationBBS004X4
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-34, "Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
2. Remove air duct (inlet). Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Disconnect radiator hose (upper) at radiator side. Refer to CO-37, "
RADIATOR" .
4. Disconnect harness connector from fan motors, and move harness to aside.
5. Remove battery and battery tray, and move fuse and fusible link block to aside. Refer to SC-4, "
BAT-
TERY" .
6. Remove mounting bolts to lift up and remove radiator cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Installation is the reverse order of removal.

Cooling fans are controlled by ECM. For details, refer to EC-575, "DTC P1217 ENGINE OVER TEMPER-
ATURE" .

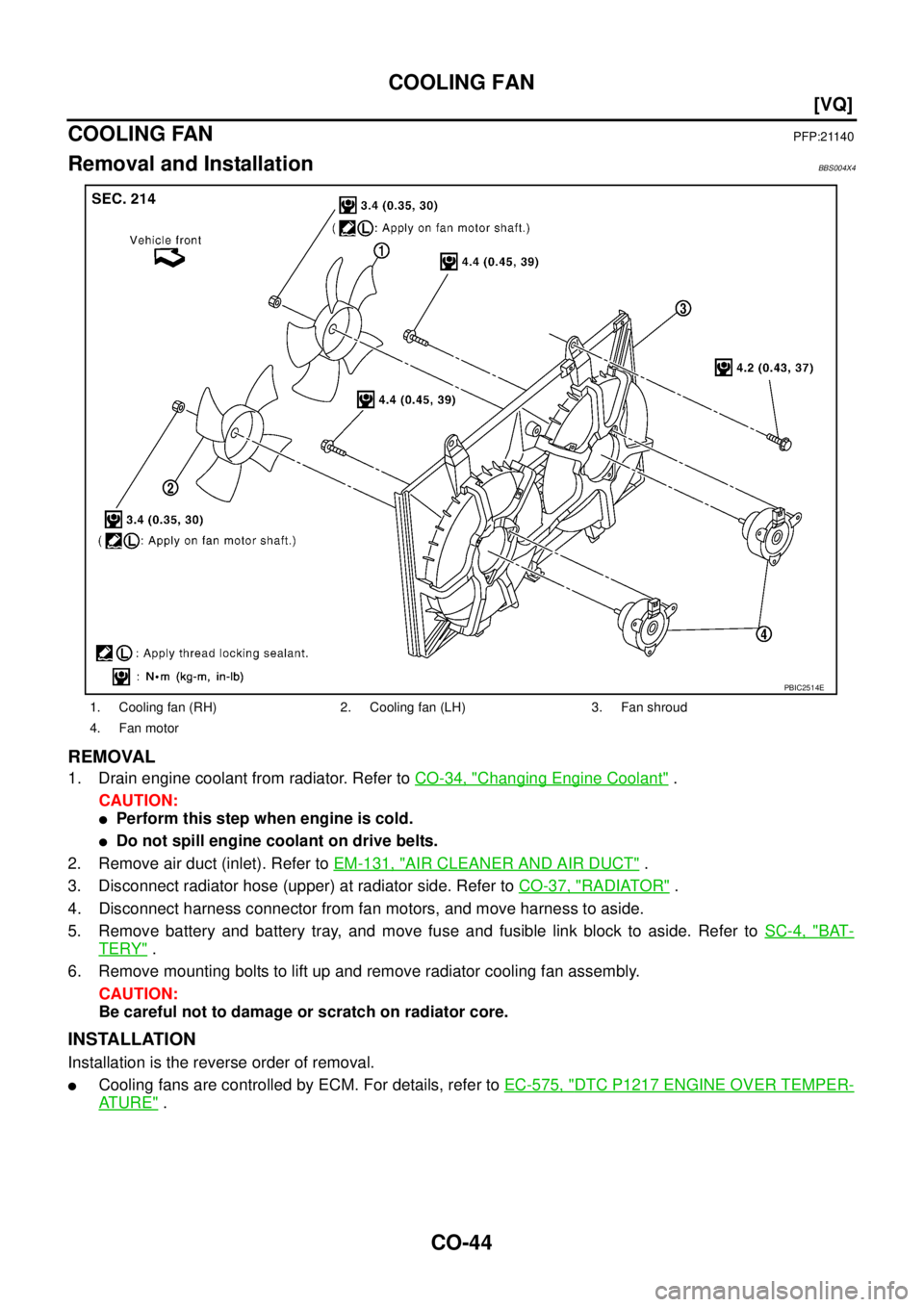

1. Cooling fan (RH) 2. Cooling fan (LH) 3. Fan shroud
4. Fan motor
PBIC2514E

CO-46
[VQ]
WATER PUMP

WATE R P U M PPFP:21020
Removal and InstallationBBS004X6
CAUTION:

When removing water pump assembly, be careful not to get engine coolant on drive belts.

Water pump cannot be disassembled and should be replaced as a unit.

After installing water pump, connect hose and clamp securely, then check for leaks using radiator
cap tester (commercial service tool) and radiator cap tester adapter [SST: EG17650301].
REMOVAL
1. Remove engine cover. Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .
2. Remove air duct (inlet). Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Remove undercover and splash guard (RH).
4. Drain engine coolant from radiator. Refer to CO-34, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
5. Remove drive belts. Refer to EM-128, "
DRIVE BELTS" .
6. Remove reservoir tank of radiator. Refer to CO-37, "
RADIATOR" .
7. Remove reservoir tank of power steering oil pump with piping connected, and move it to aside.
8. Support oil pan (lower) bottom with transmission jack.
9. Remove engine mounting insulator (RH) and engine mounting bracket (RH). Refer to EM-223, "
ENGINE
ASSEMBLY" .
1. Water pump 2. Timing chain tensioner (primary) 3. Chain tensioner cover
4. Water drain plug (front) 5. Water pump cover 6. O-ring
7. O-ring
PBIC2515E

WATER PUMP
CO-47
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

10. Remove water drain plug (front) on water pump side of cylinder
block to drain engine coolant from engine inside.
11. Remove chain tensioner cover and water pump cover from front timing chain case.

U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ] o r e q u i v a l e n t t o o l t o c u t l i q u i d g a s k e t f o r r e m o v e .
12. Remove idler pulley and bracket. Refer to EM-173, "
TIMING CHAIN" .
13. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt.
b. Loosen upper mounting bolt slowly, and then turn timing chain
tensioner (primary) on the mounting bolt so that plunger is fully
expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Remove upper mounting bolt, and then remove timing chain ten-
sioner (primary).
CAUTION:
Be careful not to drop mounting bolts inside timing chain
case.
14. Remove water pump as follows:
a. Remove three water pump mounting bolts. Secure a gap
between water pump gear and timing chain, by turning crank-
shaft pulley counterclockwise until timing chain looseness on
water pump sprocket becomes maximum.
b. Screw M8 bolts [pitch: 1.25 mm (0.049 in) length: Approx. 50
mm (1.97 in)] into water pumps upper and lower mounting bolt
holes until they reach timing chain case. Then, alternately
tighten each bolt for a half turn, and pull out water pump.
CAUTION:

Pull straight out while preventing vane from contacting
socket in installation area.

Remove water pump without causing sprocket to contact
timing chain.
c. Remove M8 bolts and O-rings from water pump.
CAUTION:
Do not disassemble water pump.
INSPECTION AFTER REMOVAL

Check for badly rusted or corroded water pump body assembly.
PBIC2516E
PBIC3562E
PBIC1193E
JLC357B

CO-48
[VQ]
WATER PUMP


Check for rough operation due to excessive end play.

Replace water pump, if necessary.
INSTALLATION
1. Install new O-rings to water pump.

Apply engine oil and engine coolant to O-rings as shown in
the figure.

Locate O-ring with white paint mark to engine front side.
2. Install water pump.
CAUTION:
Do not allow timing chain case to nip O-rings when install-
ing water pump.

Make sure that timing chain and water pump sprocket are
engaged.

Insert water pump by tightening mounting bolts alternately
and evenly.
3. Install the timing chain tensioner (primary) with the following procedure:
a. Pull plunger stopper tab up (or turn lever downward) so as to
remove plunger stopper tab from the ratchet of plunger.
NOTE:
Plunger stopper tab and lever are synchronized.
b. Push plunger into the inside of tensioner body.
c. Hold plunger in the fully compressed position by engaging
plunger stopper tab with the tip of ratchet.
d. To secure lever, insert stopper pin through hole of lever into ten-
sioner body hole.

The lever parts and the tab are synchronized. Therefore, the
plunger will be secured under this condition.
NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.
SLC943A
PBIC1397E
SLC031B
PBIC3568E
