2003 NISSAN MURANO Owners Manual

equipped tire size. Other types may damage
your vehicle. Use chain tensioners when recom-
mended by the tire chain manufacturer to ensure
a tight fit. Loose end links of the tire chain must
be secured or removed to prevent the possibility
of whipping action damage to the fenders or
undercarriage. If possible, avoid fully loading
your vehicle when using tire chains. In addition,
drive at a reduced speed. Otherwise, your ve-
hicle may be damaged and/or vehicle handling
and performance may be adversely affected.

Never install tire chains on a T-type
spare tire.

Do not use the chains on dry roads.
Tire chains must be installed only on the
front wheels and not on the rear wheels.
Do not drive with tire chains on paved roads
which are clear of snow. Driving with chains in
such conditions can cause damage to the vari-
ous mechanisms of the vehicle due to some
overstress.
CHANGING WHEELS AND TIRES
Tire rotationNISSAN recommends that tires be rotated every
7,500 miles (12,000 km).
Wheel nut tightening torque:
80 ft-lb (108 N⋅m)
See “Flat tire” in the “6. In case of emergency”
section for tire replacing procedures.

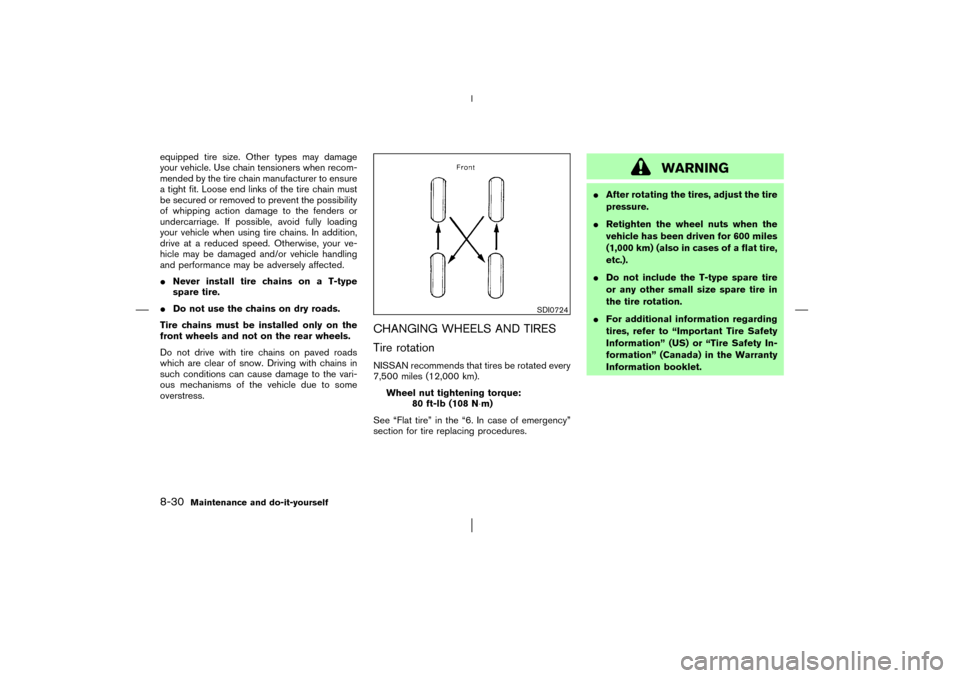

WARNING

After rotating the tires, adjust the tire
pressure.

Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).

Do not include the T-type spare tire
or any other small size spare tire in
the tire rotation.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information booklet.
SDI0724
8-30
Maintenance and do-it-yourself


03.1.28/Z50-D/V5.0


Tire wear and damage
WARNING

Tires should be periodically in-
spected for wear, cracking, bulging,
or objects caught in the tread. If ex-
cessive wear, cracks, bulging, or
deep cuts are found, the tire should
be replaced.

The original tires have a built-in tread
wear indicator. When the wearindicator is visible, the tire should be
replaced.

Improper service for a spare tire may
result in serious personal injury. If it
is necessary to repair the spare tire,
contact your NISSAN dealer.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information booklet.
Replacing wheels and tiresWhen replacing a tire, use the same size, speed
rating and load carrying capacity as originally
equipped. See “Specifications” in the “9. Tech-
nical and consumer information” section for rec-
ommended types and sizes of tires and wheels.
WARNING

The use of tires other than those
recommended or the mixed use of
tires of different brands, construction(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking, handling, ground clearance,
body-to-tire clearance, tire chain
clearance, speedometer calibration,
headlight aim and bumper height.
Some of these effects may lead to
accidents and could result in serious
personal injury.

If the wheels are changed for any
reason, always replace with wheels
which have the same offset dimen-
sion. Wheels of a different offset
could cause early tire wear, possibly
degraded vehicle handling character-
istics and/or interference with the
brake discs. Such interference can
lead to decreased braking efficiency
and/or early brake pad wear.

When a spare tire is mounted or a
wheel is replaced, the pressure of
that tire will not be indicated and not
be monitored by the low tire pressure
warning system. Contact your
NISSAN dealer as soon as possible
MDI0004
Maintenance and do-it-yourself
8-31


03.1.28/Z50-D/V5.0

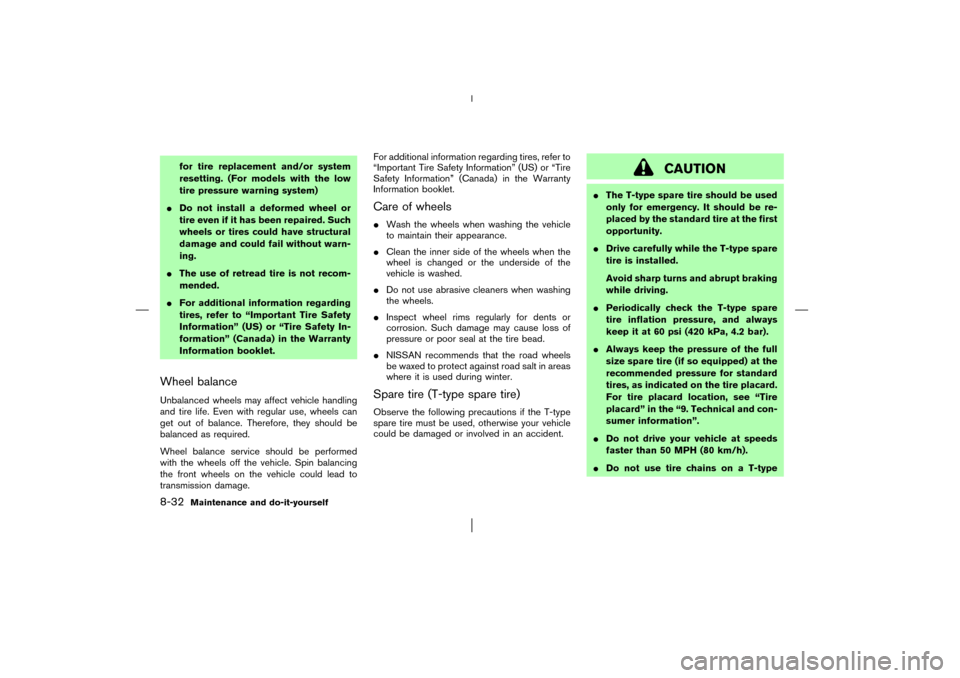

for tire replacement and/or system
resetting. (For models with the low
tire pressure warning system)

Do not install a deformed wheel or
tire even if it has been repaired. Such
wheels or tires could have structural
damage and could fail without warn-
ing.

The use of retread tire is not recom-
mended.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information booklet.
Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
the front wheels on the vehicle could lead to
transmission damage.For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information booklet.
Care of wheels
Wash the wheels when washing the vehicle
to maintain their appearance.

Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.

Do not use abrasive cleaners when washing
the wheels.

Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.

NISSAN recommends that the road wheels
be waxed to protect against road salt in areas
where it is used during winter.Spare tire (T-type spare tire)Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
CAUTION

The T-type spare tire should be used
only for emergency. It should be re-
placed by the standard tire at the first
opportunity.

Drive carefully while the T-type spare
tire is installed.
Avoid sharp turns and abrupt braking
while driving.

Periodically check the T-type spare
tire inflation pressure, and always
keep it at 60 psi (420 kPa, 4.2 bar).

Always keep the pressure of the full
size spare tire (if so equipped) at the
recommended pressure for standard
tires, as indicated on the tire placard.
For tire placard location, see “Tire
placard” in the “9. Technical and con-
sumer information”.

Do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).

Do not use tire chains on a T-type
8-32
Maintenance and do-it-yourself


03.1.28/Z50-D/V5.0


spare tire. Tire chains will not fit
properly on the T-type spare tire and
may cause damage to the vehicle.

When driving on roads covered with
snow or ice, the T-type spare tire
should be used on the rear wheel and
the original tire used on the front
wheels (drive wheels). Use tire chains
only on the front two original tires.

Tire tread of the T-type spare tire will
wear at a faster rate than the original
tire. Replace the T-type spare tire as
soon as the tread wear indicators
appear.

Because the T-type spare tire is
smaller than the original tire, ground
clearance is reduced. To avoid dam-
age to the vehicle do not drive over
obstacles. Also do not drive the ve-
hicle through an automatic car wash
since it may get caught.

Do not use the T-type spare tire on
other vehicles.

Do not use more than one T-typespare tire at the same time.

Do not tow a trailer while the T-type
spare tire is installed.
Maintenance and do-it-yourself
8-33


03.1.28/Z50-D/V5.0


MEMO8-34
Maintenance and do-it-yourself


03.1.28/Z50-D/V5.0


MEMO
Maintenance and do-it-yourself
8-35


03.1.28/Z50-D/V5.0


MEMO8-36
Maintenance and do-it-yourself


03.1.28/Z50-D/V5.0


9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-3
Engine oil and oil filter recommendation.................... 9-5
Recommended SAE viscosity number ....................... 9-6
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-6
Specifications.......................................................................... 9-7
Engine ................................................................................. 9-7
Wheels and tires .............................................................. 9-9
Dimensions and weights ................................................ 9-9
When traveling or registering your vehicle in another
country.................................................................................... 9-10
Vehicle identification ........................................................... 9-10
Vehicle identification number (VIN) plate ................ 9-10
Vehicle identification number (Chassis number) ... 9-10
Engine serial number .................................................... 9-11
F.M.V.S.S. certification label ....................................... 9-11
Emission control information label ............................ 9-11
Tire placard ..................................................................... 9-12
Air conditioner specification label ............................. 9-12Installing front license plate .............................................. 9-13
Vehicle loading information ............................................... 9-14
Terms ................................................................................ 9-14
Determining vehicle load capacity ............................ 9-14
Loading tips .................................................................... 9-15
Payload weight capacity .............................................. 9-15
Measurement of weights ............................................. 9-15
Towing a trailer .................................................................... 9-16
Maximum load limits ...................................................... 9-16
Towing load/specification chart ................................. 9-18
Towing safety.................................................................. 9-18
Uniform tire quality grading............................................... 9-21
Emission control system warranty ................................... 9-22
Reporting safety defects (US only) ................................ 9-22
Readiness for inspection/maintenance (I/M) test (US
only) ........................................................................................ 9-22
Owner’s Manual/Service Manual order
information .......................................................................... 9-24
In the event of a collision ............................................ 9-24
