2003 NISSAN MURANO Owners Manual

Malfunction indicator lamp on steady — An
emission control system and/or CVT mal-
function has been detected. Turn the ignition
key to OFF and check the fuel filler cap. If the
fuel filler cap is loose or missing, tighten or
install the cap and continue to drive the
vehicle. The
lamp should turn off after a
few driving trips. If the
lamp does not
turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.

Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Security indicator light
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position. This function
indicates the security systems equipped on the
vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, but this
is normal.The light will blink on for a few seconds after the
VDC system stops limiting wheel spin.
The slip indicator light also comes on when you
turn the ignition key to ON. The light will turn off
after about 2 seconds if the system is opera-
tional. If the light does not come on or go off,
have the traction control system checked by your
NISSAN dealer.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle dynamic control (VDC)
off indicator light (if so
equipped)
After turning the ignition key to the ON position,
the light will illuminate. The light will turn off in
about 2 seconds if the vehicle dynamic control
(VDC) system is operational.
The light comes on when the vehicle dynamic
control (VDC) off switch is pushed to OFF. This
indicates the vehicle dynamic control system
and traction control system are not operating.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicle
2-14
Instruments and controls


03.1.28/Z50-D/V5.0


dynamic control system’s fail-safe mode is op-
erating, that is the system may not be functioning
properly. Have the system checked by your
NISSAN dealer. If an abnormality occurs in the
system, the vehicle dynamic control system
function will be canceled but the vehicle is still
driveable. For additional information, see “Ve-
hicle dynamic control (VDC) system” in the “5.
Starting and driving” section of this manual.AUDIBLE REMINDERS
Key reminder chimeThe chime will sound if the driver’s side door is
opened while the key is left in the ignition switch
(ignition switch is turned to OFF or ACC).
Remove the key and take it with you when
leaving the vehicle.Light reminder chimeThe chime will sound when the driver’s door is
opened with the headlight switch on unless the
ignition key is in the ON position.
Make sure to turn the light switch off when you
leave the vehicle.Seat belt warning chimeThe chime will sound for about 6 seconds unless
the drivers seat belt is securely fastened.
Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
Your vehicle has two types of security systems,
as follows:

Vehicle Security System

Nissan Vehicle Immobilizer System
The security condition will be shown by the
security indicator light in the meter panel.
VEHICLE SECURITY SYSTEMThe vehicle security system provides visual and
audio alarm signals if parts of the vehicle are
disturbed.
SIC2133
SECURITY SYSTEMS
Instruments and controls
2-15


03.1.28/Z50-D/V5.0


How to activate the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2. Remove the key from the ignition switch.
3. Close and lock all doors and hood.
Lock all doors by pressing the LOCK button
on the keyfobor using the key. When using
the keyfob, the hazard indicators flash twice
to indicate all doors are locked.
4. Confirm that the SECURITY indicator light inthe meter comes on. The SECURITY indica-
tor light glows for about 30 seconds and then
blinks. The system is now activated. If, during
this 30 second time period, the door is
unlocked by the key or the keyfob, or the
ignition key is turned to ACC or ON, the
system will not activate.

Even when the driver and/or passengers
are in the vehicle, the system will acti-
vate with all doors and hood locked and
ignition key off. Turn the ignition key to
ACC to turn the system off.
Vehicle security system operationThe security system will give the following alarm:

The headlights blink and the horn sounds
intermittently.

The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be shut off by unlocking
a door with the key, or by pressing the
UNLOCK button on the keyfob.
The alarm is activated by:

Opening the door without using the key or
keyfob.

Opening the back door without using the
keyfob.
Opening the hood.
How to stop alarmThe alarm will stop only by unlocking a door with
the key, or by pressing the UNLOCK button on
keyfob. The alarm will not stop if the ignition
switch is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by your
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe Nissan Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Nissan Vehicle Immobilizer System
key.
If the engine fails to start using the registered
Nissan Vehicle Immobilizer System key, it may be
due to interference caused by another Nissan
Vehicle Immobilizer System key, an automated
toll road device or automated payment device on
the key ring. Restart the engine using the follow-
ing procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
SIC2045
2-16
Instruments and controls


03.1.28/Z50-D/V5.0


3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered Nissan Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
Nissan Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for Nissan Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE MANUFAC-
TURE FOR COMPLIANCE COULD VOID
THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
Security indicator lightThis light blinks whenever the registered Nissan
Vehicle Immobilizer System key is removed or
turned to OFF, ACC or LOCK position. This
function indicates the security systems
equipped on the vehicle are operational.
If Nissan Vehicle Immobilizer System is malfunc-
tioning, this light will remain on while the regis-
tered Nissan Vehicle Immobilizer System Key is
in the ON position.
If the light still remains on and/or the
engine will not start, see your NISSAN
dealer for Nissan Vehicle Immobilizer Sys-tem service as soon as possible. Please
bring all Nissan Vehicle Immobilizer Sys-
tem keys that you have when visiting your
NISSAN dealer for service.
SIC2045
Instruments and controls
2-17


03.1.28/Z50-D/V5.0


The windshield wiper and washer operates
when the ignition key is in the ON position.
Push the lever down to operate the wiper at the
following speed:1Intermittent — intermittent operation can be
adjusted by turning the knob toward
A
(Slower) or
B(Faster). Also, the intermittent
operation speed varies in accordance with
the vehicle speed. (For example, when the
vehicle speed is high, the intermittent opera-
tion speed will be faster.)
2Low — continuous low speed operation
3High — continuous high speed operationPush the lever up
4
to have one sweep
operation of the wiper.
Pull the lever toward you5
to operate the
washer. Then the wiper will also operate several
times.

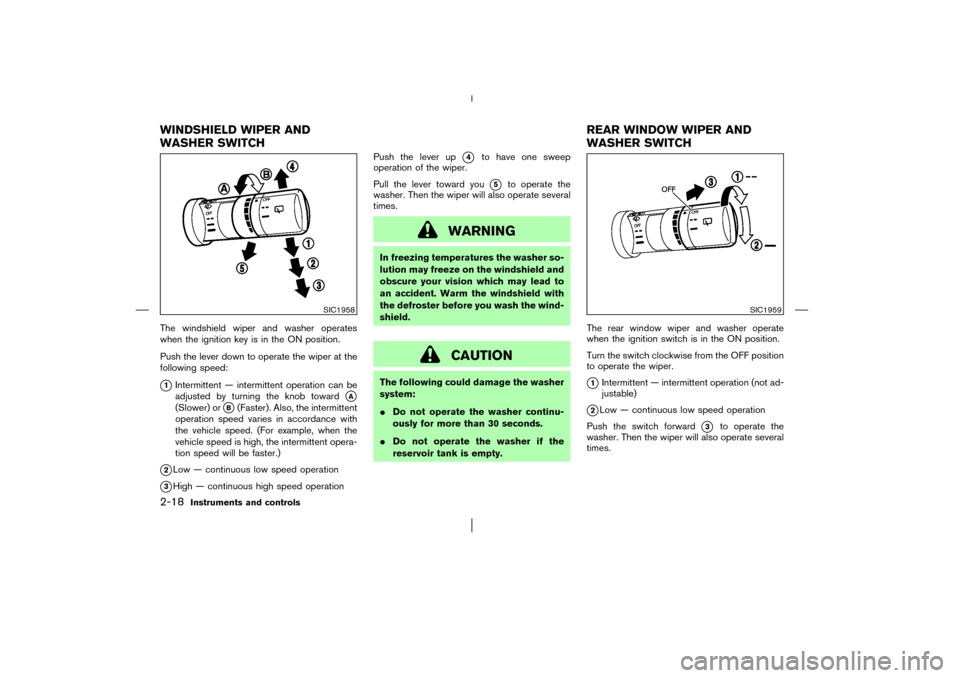

WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION
The following could damage the washer
system:

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if the
reservoir tank is empty.The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent — intermittent operation (not ad-
justable)
2Low — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.
SIC1958
SIC1959
WINDSHIELD WIPER AND
WASHER SWITCHREAR WINDOW WIPER AND
WASHER SWITCH2-18
Instruments and controls


03.1.28/Z50-D/V5.0

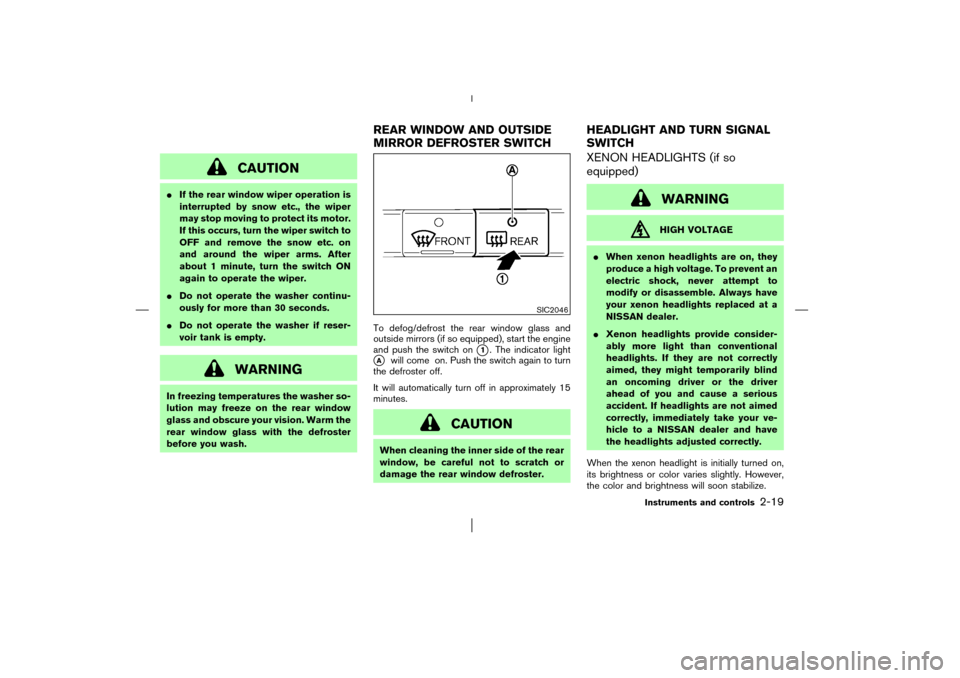

CAUTION

If the rear window wiper operation is
interrupted by snow etc., the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow etc. on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if reser-
voir tank is empty.
WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window glass with the defroster
before you wash.To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch on
1. The indicator light
A
will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
XENON HEADLIGHTS (if so
equipped)
WARNINGHIGH VOLTAGE

When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.

Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
SIC2046
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCHHEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls
2-19


03.1.28/Z50-D/V5.0


The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon headlights
is not reduced.

If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, contact a NISSAN dealer.
HEADLIGHT SWITCH
Lighting
1Turn the switch to the
position:
The front park, side marker, tail, license plate
and instrument lights will come on.
2Turn the switch to the
position:
Headlights will come on and all the other
lights remain on.
SIC2047
Type A
SIC1961
Type B
2-20
Instruments and controls


03.1.28/Z50-D/V5.0


Autolight system (if so equipped)The autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the
AUTO position.
2. Turn the ignition key to ON.
3. The autolight system automatically turns the
headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
,or
position.The autolight system can turn on the headlights
automatically when it is dark, turn off the head-
lights when it is light, and keep the headlights on
for up to 45 seconds after you turn the key to
OFF and open any door then close all the doors.
If the ignition switch is turned OFF and one of
the doors is opened and this condition is con-
tinued, the headlights remain ON for five min-
utes.
Be sure not to put anything on top of the
photo sensor
A
located on the top left-
hand side of the instrument panel. The
photo sensor controls the autolamp; if it is
covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.
SIC2051
SIC2052
Instruments and controls
2-21


03.1.28/Z50-D/V5.0
