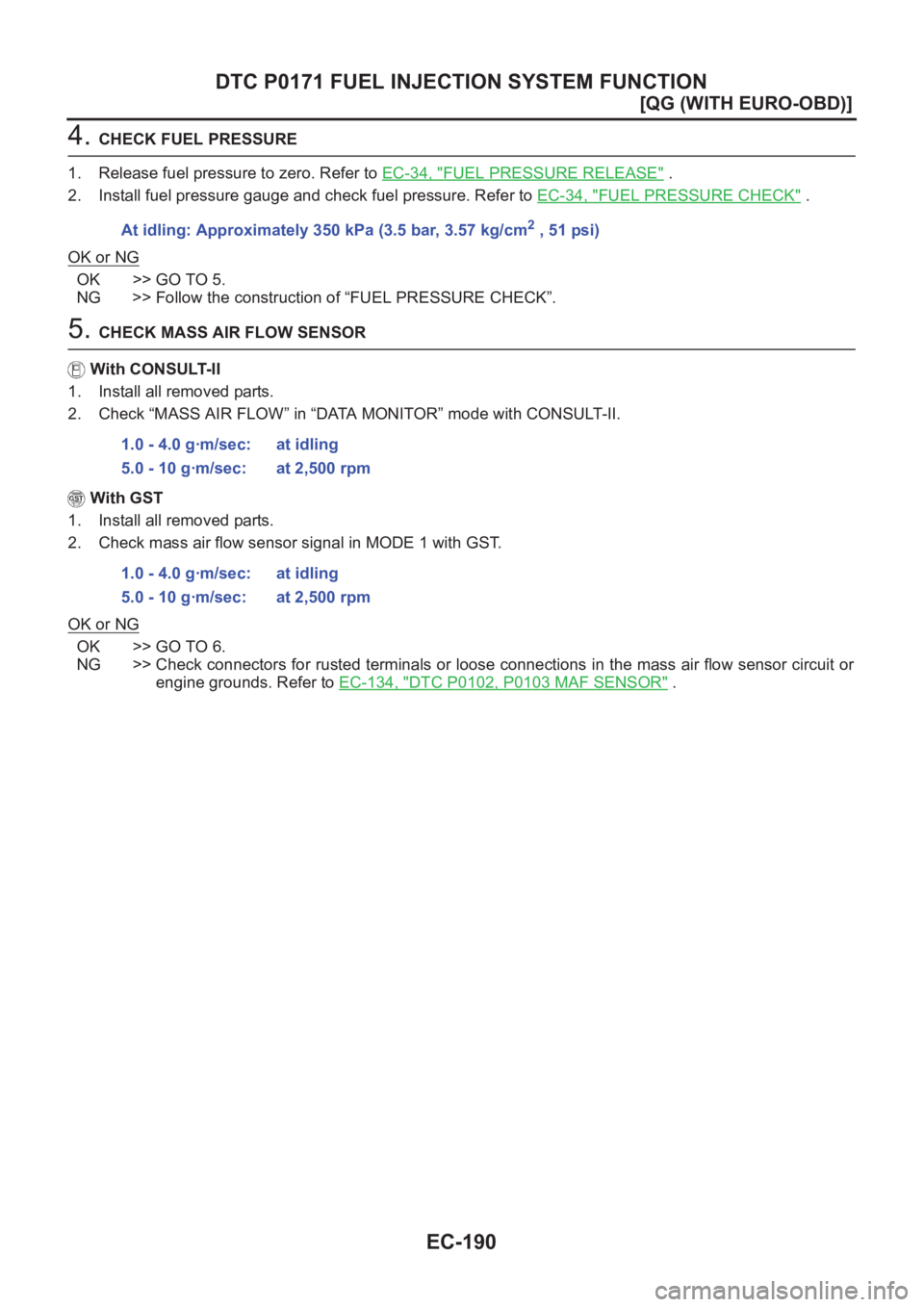

2003 NISSAN ALMERA N16 flow

EC-190
[QG (WITH EURO-OBD)]
DTC P0171 FUEL INJECTION SYSTEM FUNCTION
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-34, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-34, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 5.
NG >> Follow the construction of “FUEL PRESSURE CHECK”.
5. CHECK MASS AIR FLOW SENSOR
With CONSULT-II
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-II.
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in MODE 1 with GST.
OK or NG
OK >> GO TO 6.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
engine grounds. Refer to EC-134, "
DTC P0102, P0103 MAF SENSOR" . At idling: Approximately 350 kPa (3.5 bar, 3.57 kg/cm
2 , 51 psi)
1.0 - 4.0 g·m/sec: at idling
5.0 - 10 g·m/sec: at 2,500 rpm
1.0 - 4.0 g·m/sec: at idling
5.0 - 10 g·m/sec: at 2,500 rpm

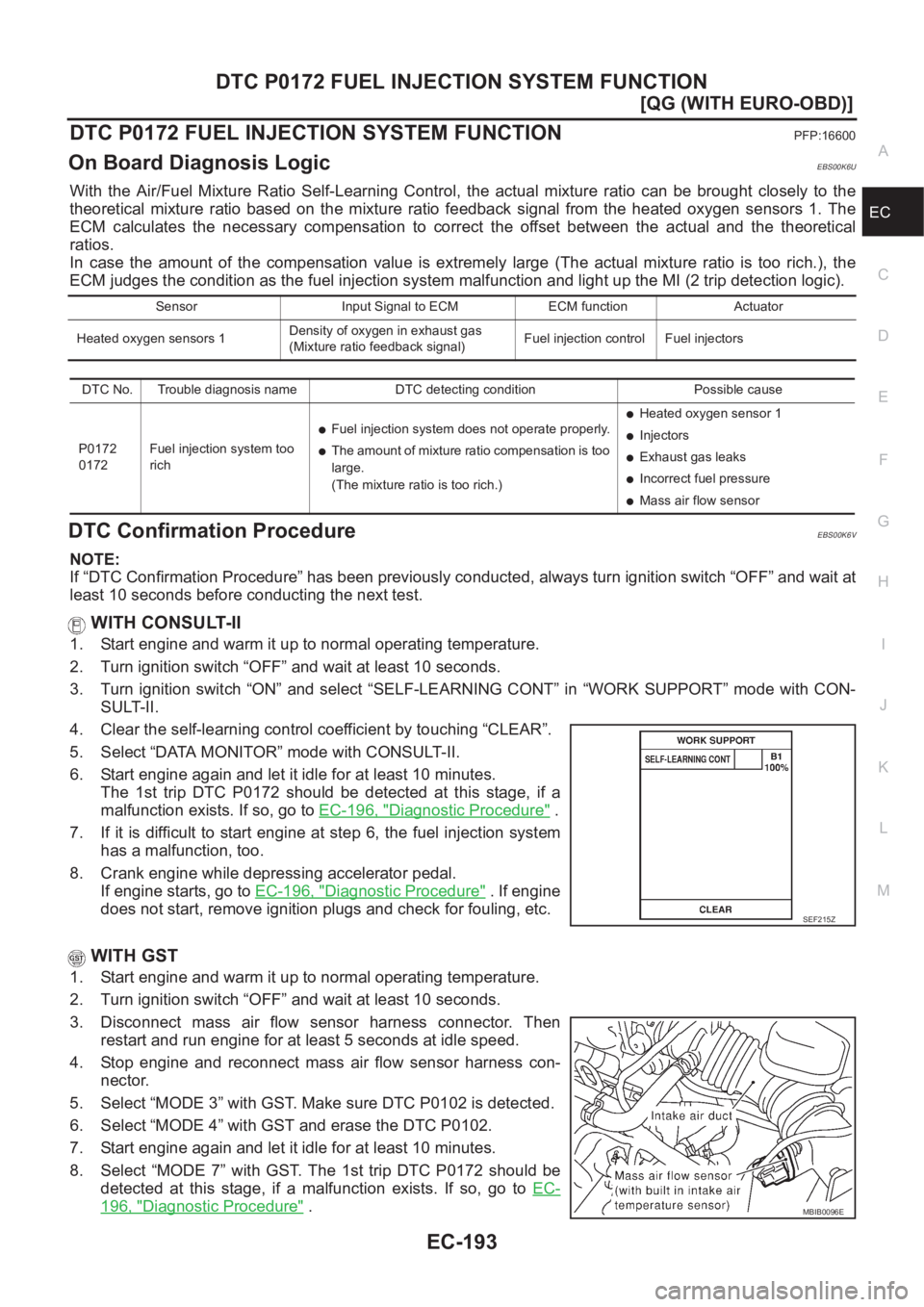

DTC P0172 FUEL INJECTION SYSTEM FUNCTION
EC-193
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0172 FUEL INJECTION SYSTEM FUNCTIONPFP:16600
On Board Diagnosis LogicEBS00K6U
With the Air/Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio feedback signal from the heated oxygen sensors 1. The
ECM calculates the necessary compensation to correct the offset between the actual and the theoretical
ratios.
In case the amount of the compensation value is extremely large (The actual mixture ratio is too rich.), the
ECM judges the condition as the fuel injection system malfunction and light up the MI (2 trip detection logic).
DTC Confirmation ProcedureEBS00K6V
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Turn ignition switch “ON” and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON-
SULT-II.
4. Clear the self-learning control coefficient by touching “CLEAR”.
5. Select “DATA MONITOR” mode with CONSULT-II.
6. Start engine again and let it idle for at least 10 minutes.
The 1st trip DTC P0172 should be detected at this stage, if a
malfunction exists. If so, go to EC-196, "
Diagnostic Procedure" .
7. If it is difficult to start engine at step 6, the fuel injection system
has a malfunction, too.
8. Crank engine while depressing accelerator pedal.
If engine starts, go to EC-196, "
Diagnostic Procedure" . If engine
does not start, remove ignition plugs and check for fouling, etc.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Disconnect mass air flow sensor harness connector. Then
restart and run engine for at least 5 seconds at idle speed.
4. Stop engine and reconnect mass air flow sensor harness con-
nector.
5. Select “MODE 3” with GST. Make sure DTC P0102 is detected.
6. Select “MODE 4” with GST and erase the DTC P0102.
7. Start engine again and let it idle for at least 10 minutes.
8. Select “MODE 7” with GST. The 1st trip DTC P0172 should be
detected at this stage, if a malfunction exists. If so, go to EC-
196, "Diagnostic Procedure" .
Sensor Input Signal to ECM ECM function Actuator
Heated oxygen sensors 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)Fuel injection control Fuel injectors
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0172
0172Fuel injection system too
rich
●Fuel injection system does not operate properly.
●The amount of mixture ratio compensation is too
large.
(The mixture ratio is too rich.)
●Heated oxygen sensor 1
●Injectors
●Exhaust gas leaks
●Incorrect fuel pressure
●Mass air flow sensor
SEF215Z
MBIB0096E

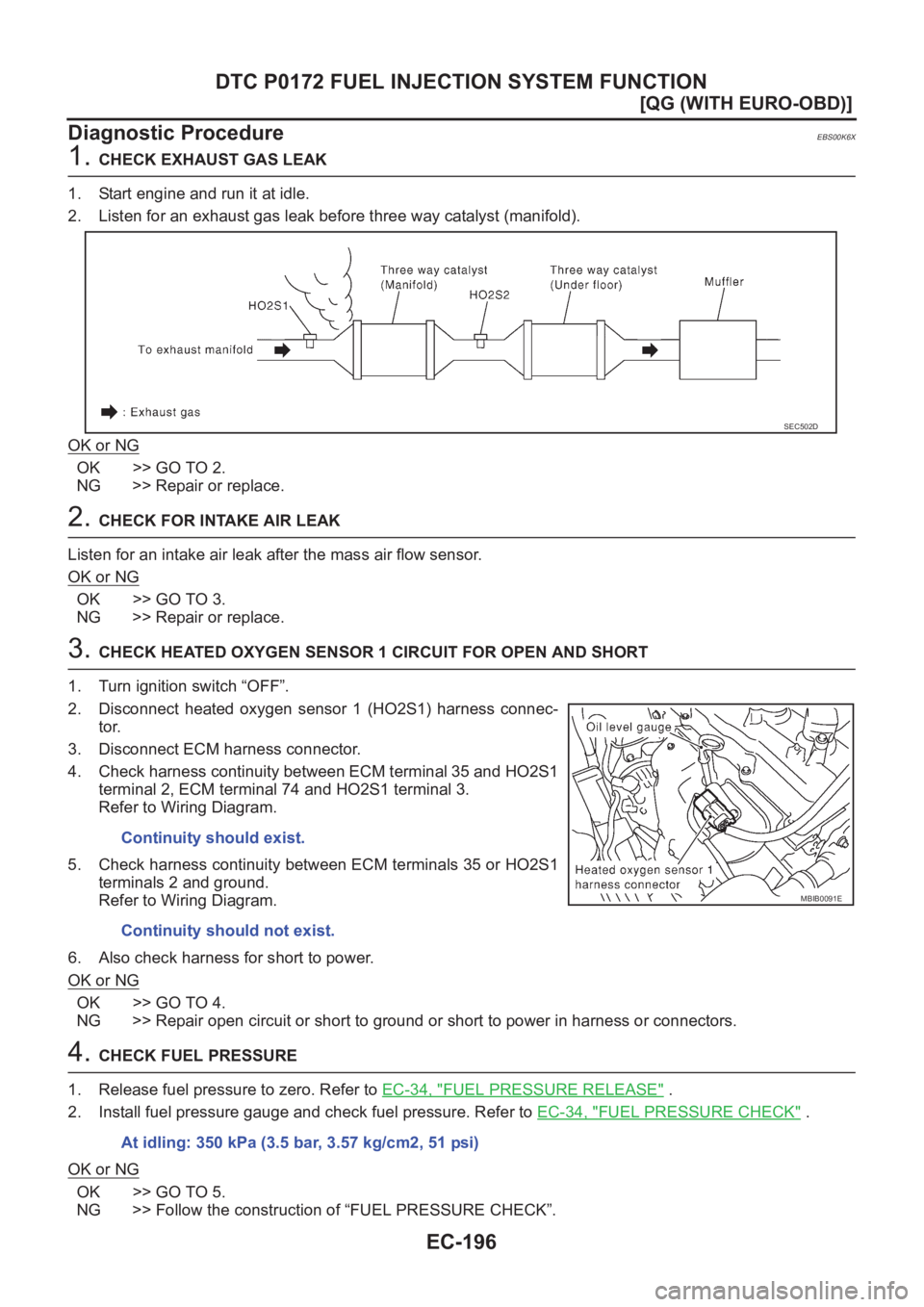

EC-196
[QG (WITH EURO-OBD)]
DTC P0172 FUEL INJECTION SYSTEM FUNCTION
Diagnostic Procedure
EBS00K6X
1. CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before three way catalyst (manifold).
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK FOR INTAKE AIR LEAK
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK HEATED OXYGEN SENSOR 1 CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect heated oxygen sensor 1 (HO2S1) harness connec-
tor.
3. Disconnect ECM harness connector.
4. Check harness continuity between ECM terminal 35 and HO2S1
terminal 2, ECM terminal 74 and HO2S1 terminal 3.
Refer to Wiring Diagram.
5. Check harness continuity between ECM terminals 35 or HO2S1
terminals 2 and ground.
Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-34, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-34, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 5.
NG >> Follow the construction of “FUEL PRESSURE CHECK”.
SEC502D
Continuity should exist.
Continuity should not exist.
MBIB0091E
At idling: 350 kPa (3.5 bar, 3.57 kg/cm2, 51 psi)

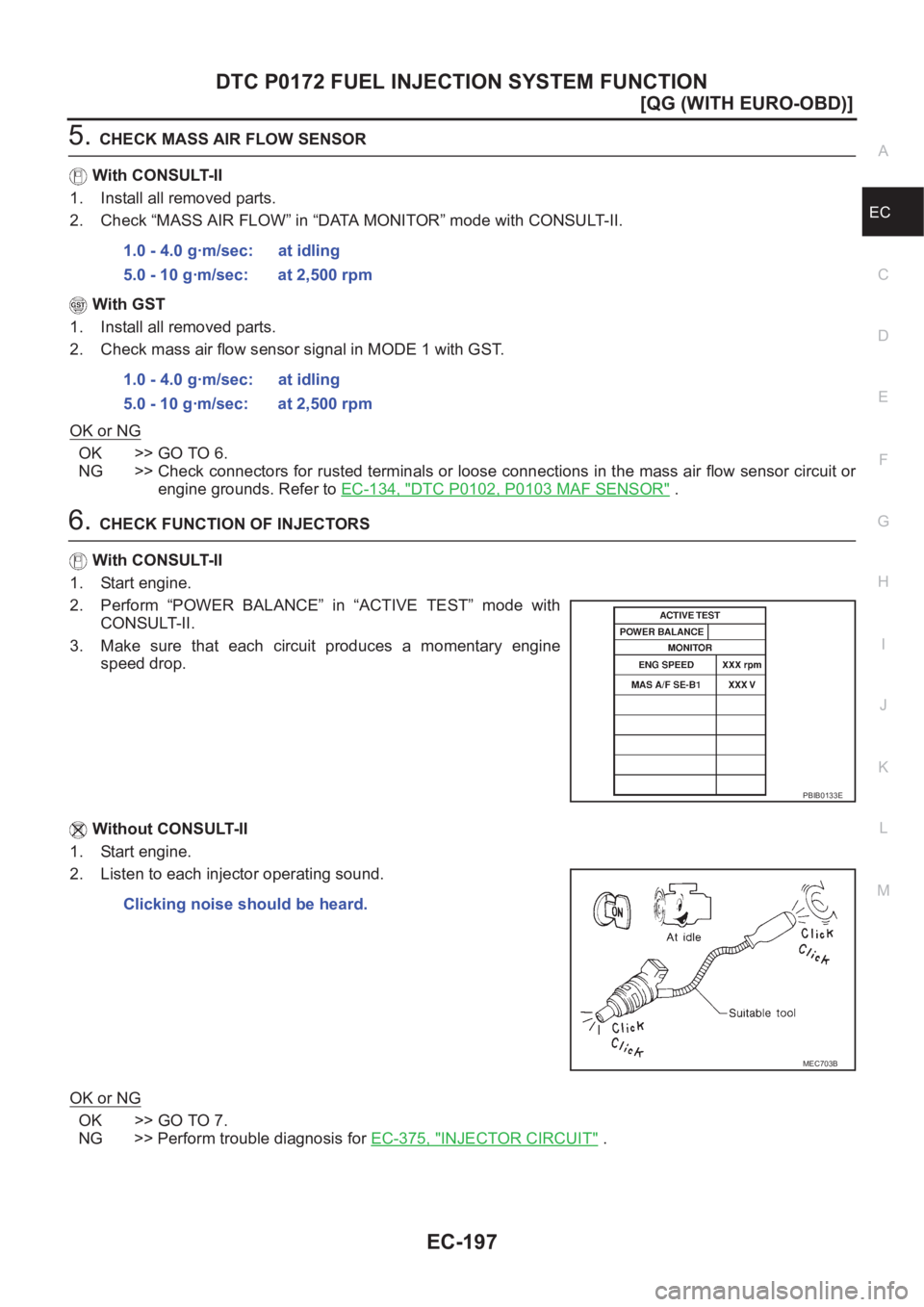

DTC P0172 FUEL INJECTION SYSTEM FUNCTION
EC-197
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5.CHECK MASS AIR FLOW SENSOR
With CONSULT-II
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-II.
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in MODE 1 with GST.
OK or NG
OK >> GO TO 6.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
engine grounds. Refer to EC-134, "
DTC P0102, P0103 MAF SENSOR" .
6.CHECK FUNCTION OF INJECTORS
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
Without CONSULT-II
1. Start engine.
2. Listen to each injector operating sound.
OK or NG
OK >> GO TO 7.
NG >> Perform trouble diagnosis for EC-375, "
INJECTOR CIRCUIT" . 1.0 - 4.0 g·m/sec: at idling
5.0 - 10 g·m/sec: at 2,500 rpm
1.0 - 4.0 g·m/sec: at idling
5.0 - 10 g·m/sec: at 2,500 rpm
PBIB0133E
Clicking noise should be heard.
MEC703B

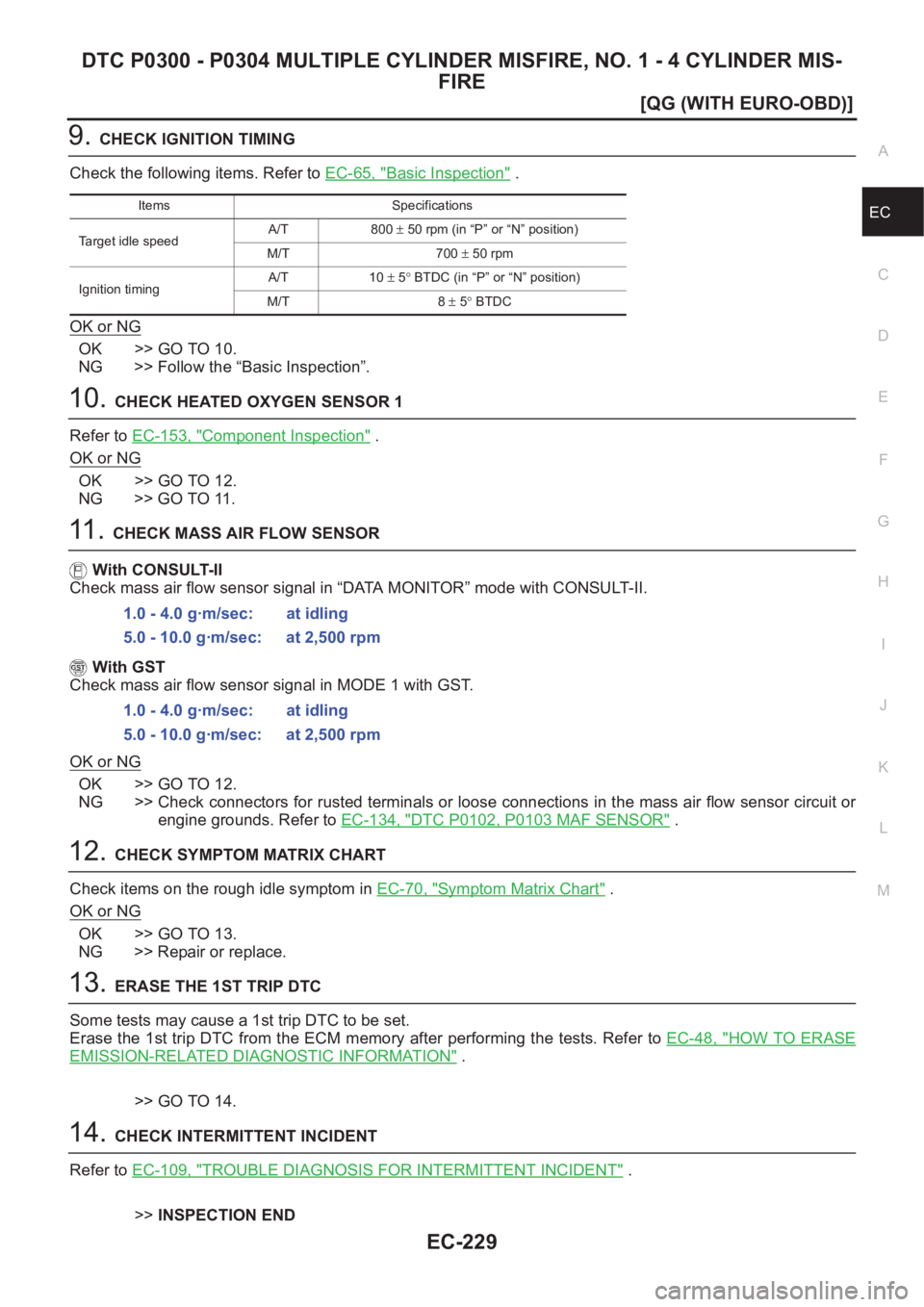

DTC P0300 - P0304 MULTIPLE CYLINDER MISFIRE, NO. 1 - 4 CYLINDER MIS-
FIRE
EC-229
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
9.CHECK IGNITION TIMING
Check the following items. Refer to EC-65, "
Basic Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Follow the “Basic Inspection”.
10.CHECK HEATED OXYGEN SENSOR 1
Refer to EC-153, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . CHECK MASS AIR FLOW SENSOR
With CONSULT-II
Check mass air flow sensor signal in “DATA MONITOR” mode with CONSULT-II.
With GST
Check mass air flow sensor signal in MODE 1 with GST.
OK or NG
OK >> GO TO 12.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
engine grounds. Refer to EC-134, "
DTC P0102, P0103 MAF SENSOR" .
12.CHECK SYMPTOM MATRIX CHART
Check items on the rough idle symptom in EC-70, "
Symptom Matrix Chart" .
OK or NG
OK >> GO TO 13.
NG >> Repair or replace.
13.ERASE THE 1ST TRIP DTC
Some tests may cause a 1st trip DTC to be set.
Erase the 1st trip DTC from the ECM memory after performing the tests. Refer to EC-48, "
HOW TO ERASE
EMISSION-RELATED DIAGNOSTIC INFORMATION" .
>> GO TO 14.
14.CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Items Specifications
Target idle speedA/T 800 ± 50 rpm (in “P” or “N” position)
M/T 700 ± 50 rpm
Ignition timingA/T 10 ± 5° BTDC (in “P” or “N” position)
M/T 8 ± 5° BTDC
1.0 - 4.0 g·m/sec: at idling
5.0 - 10.0 g·m/sec: at 2,500 rpm
1.0 - 4.0 g·m/sec: at idling
5.0 - 10.0 g·m/sec: at 2,500 rpm

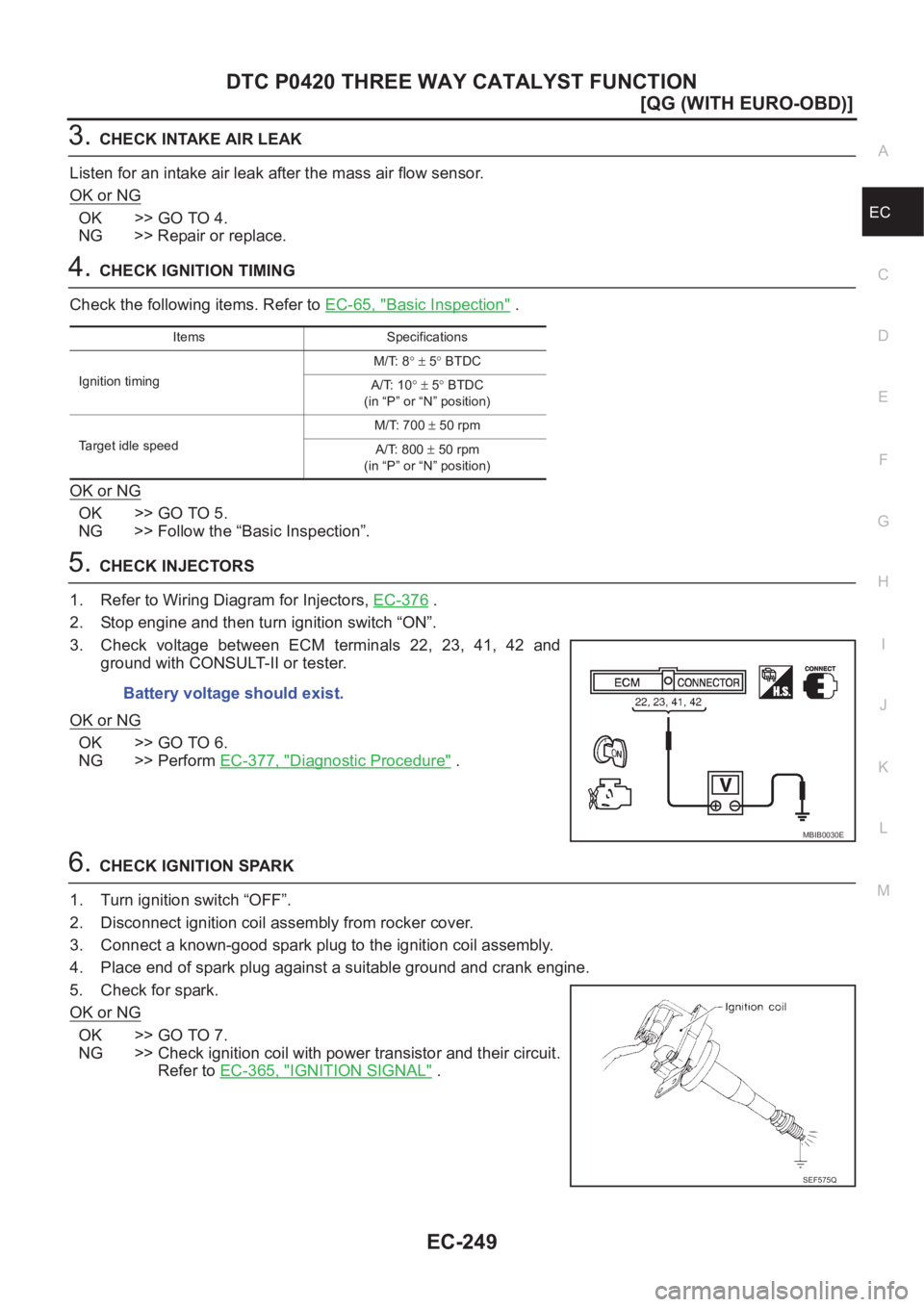

DTC P0420 THREE WAY CATALYST FUNCTION
EC-249
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK INTAKE AIR LEAK
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
4.CHECK IGNITION TIMING
Check the following items. Refer to EC-65, "
Basic Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Follow the “Basic Inspection”.
5.CHECK INJECTORS
1. Refer to Wiring Diagram for Injectors, EC-376
.
2. Stop engine and then turn ignition switch “ON”.
3. Check voltage between ECM terminals 22, 23, 41, 42 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> Perform EC-377, "
Diagnostic Procedure" .
6.CHECK IGNITION SPARK
1. Turn ignition switch “OFF”.
2. Disconnect ignition coil assembly from rocker cover.
3. Connect a known-good spark plug to the ignition coil assembly.
4. Place end of spark plug against a suitable ground and crank engine.
5. Check for spark.
OK or NG
OK >> GO TO 7.
NG >> Check ignition coil with power transistor and their circuit.
Refer to EC-365, "
IGNITION SIGNAL" .
Items Specifications
Ignition timingM/T: 8°± 5° BTDC
A/T: 10°± 5° BTDC
(in “P” or “N” position)
Target idle speedM/T: 700 ± 50 rpm
A/T: 800 ± 50 rpm
(in “P” or “N” position)
Battery voltage should exist.
MBIB0030E
SEF575Q

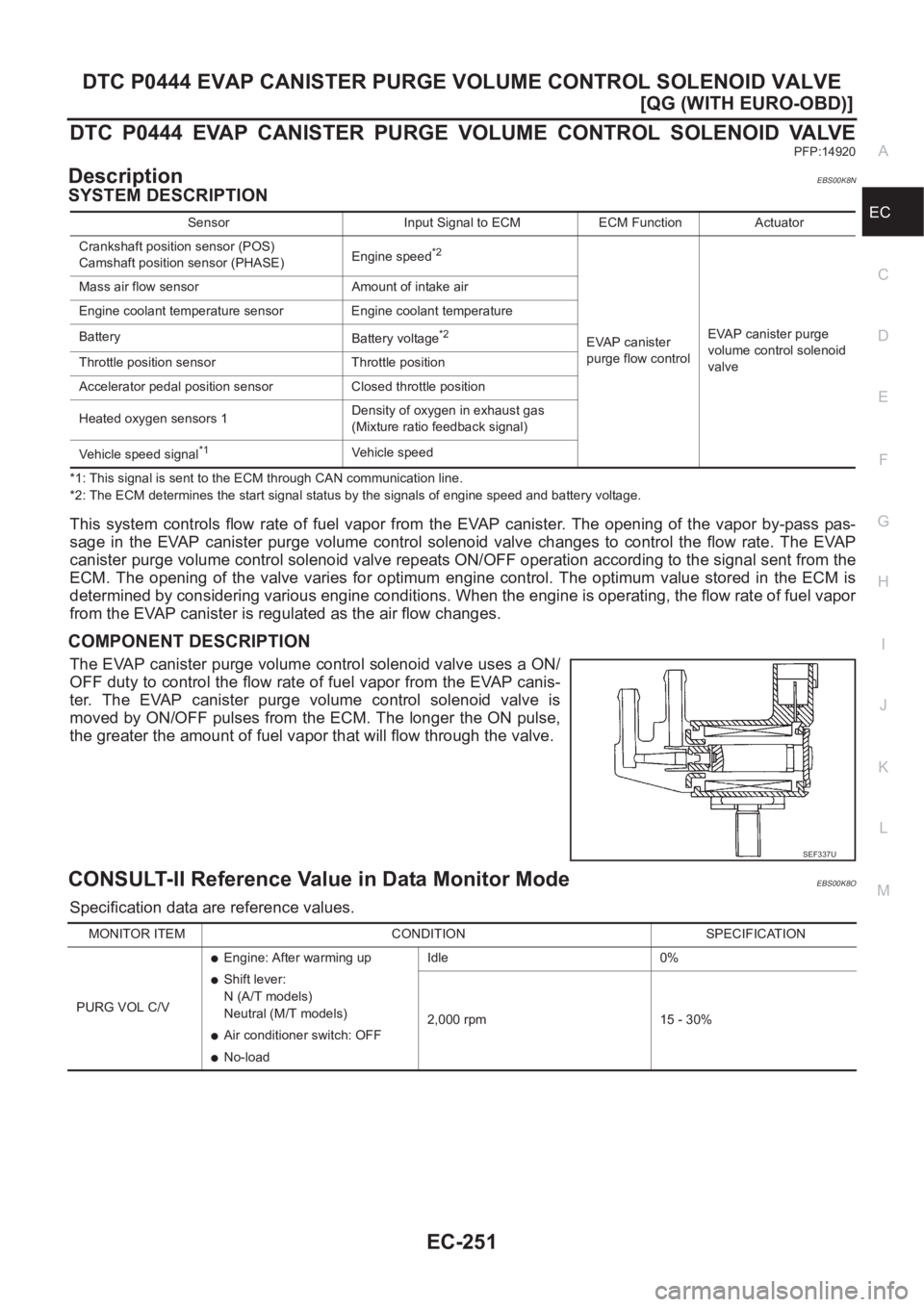

DTC P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-251
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
PFP:14920
DescriptionEBS00K8N
SYSTEM DESCRIPTION
*1: This signal is sent to the ECM through CAN communication line.
*2: The ECM determines the start signal status by the signals of engine speed and battery voltage.
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeEBS00K8O
Specification data are reference values.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
*2
EVAP canister
purge flow controlEVAP canister purge
volume control solenoid
valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery
Battery voltage*2
Throttle position sensor Throttle position
Accelerator pedal position sensor Closed throttle position
Heated oxygen sensors 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Vehicle speed signal
*1Vehicle speed
SEF337U
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 0%
2,000 rpm 15 - 30%

EC-272
[QG (WITH EURO-OBD)]

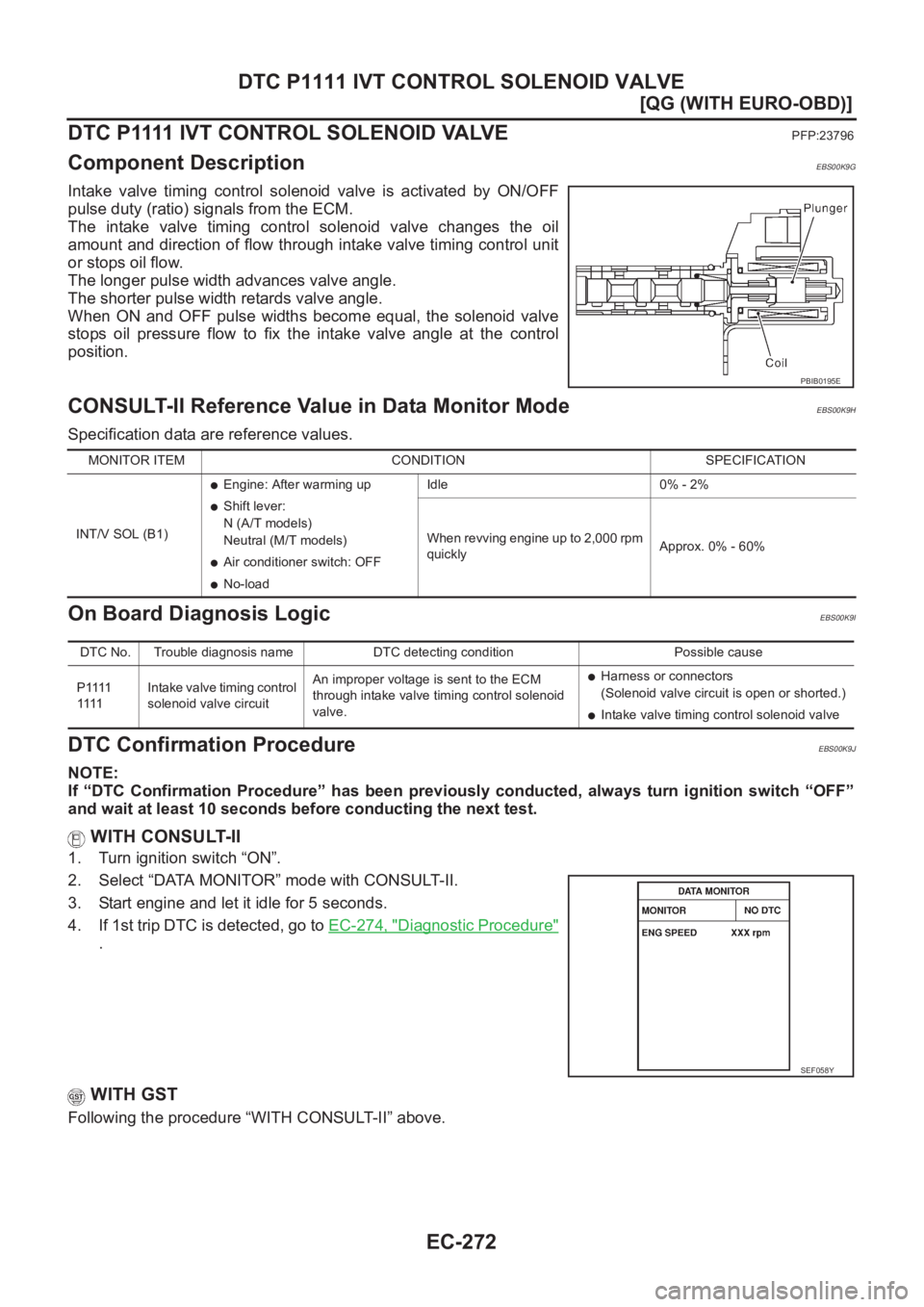

DTC P1111 IVT CONTROL SOLENOID VALVE
D T C P 1111 I V T C O N T R O L S O L E N O I D VA LV E
PFP:23796
Component DescriptionEBS00K9G
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeEBS00K9H
Specification data are reference values.
On Board Diagnosis LogicEBS00K9I
DTC Confirmation ProcedureEBS00K9J
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go to EC-274, "
Diagnostic Procedure"
.
WITH GST
Following the procedure “WITH CONSULT-II” above.
PBIB0195E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 60%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111Intake valve timing control
solenoid valve circuitAn improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.
●Harness or connectors
(Solenoid valve circuit is open or shorted.)
●Intake valve timing control solenoid valve
SEF058Y
