2003 NISSAN ALMERA N16 Timing

EC-42
[QG (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

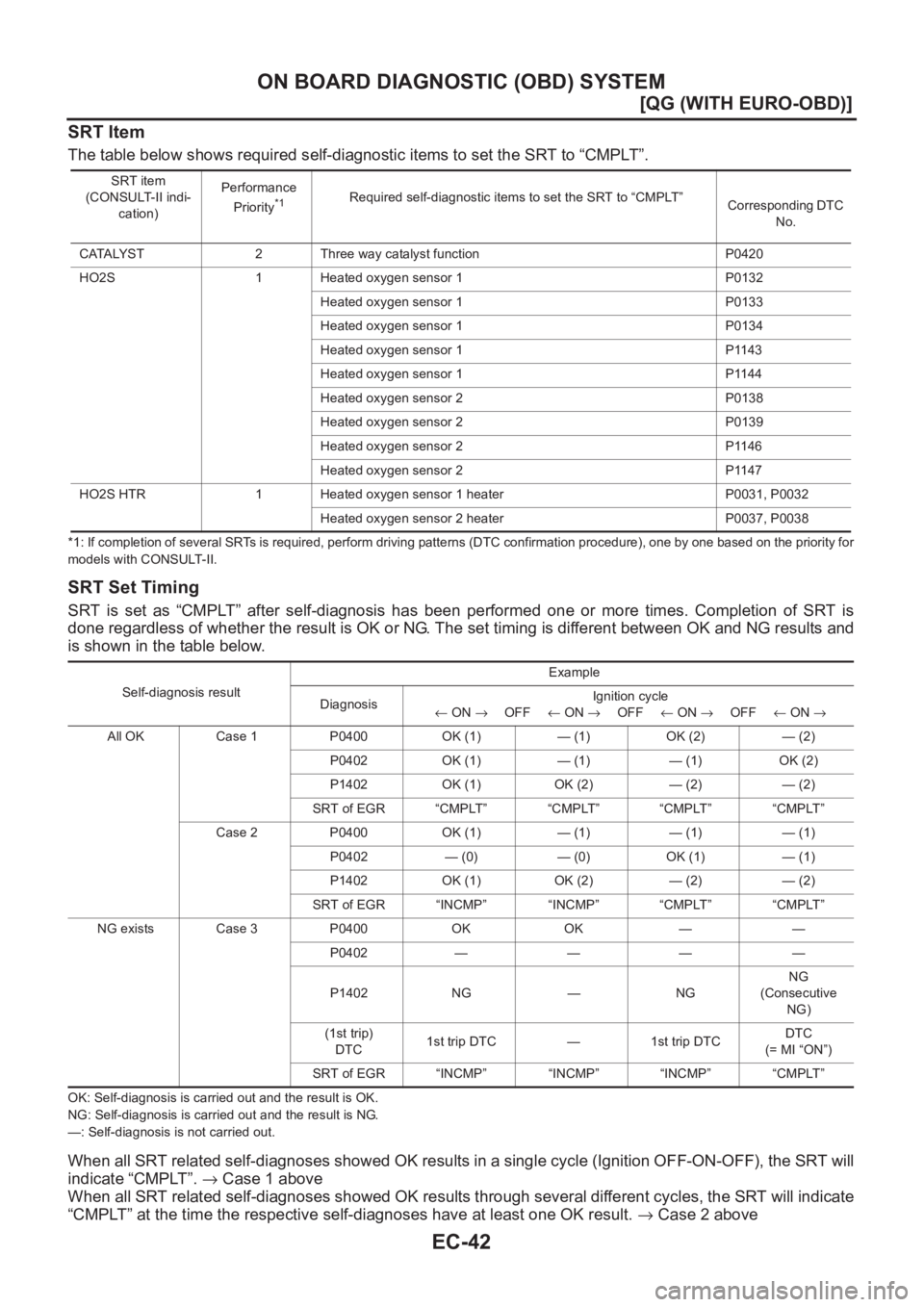

SRT Item
The table below shows required self-diagnostic items to set the SRT to “CMPLT”.
*1: If completion of several SRTs is required, perform driving patterns (DTC confirmation procedure), one by one based on the priority for
models with CONSULT-II.
SRT Set Timing
SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is
done regardless of whether the result is OK or NG. The set timing is different between OK and NG results and
is shown in the table below.
OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result is NG.
—: Self-diagnosis is not carried out.
When all SRT related self-diagnoses showed OK results in a single cycle (Ignition OFF-ON-OFF), the SRT will
indicate “CMPLT”. → Case 1 above
When all SRT related self-diagnoses showed OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective self-diagnoses have at least one OK result. → Case 2 above
SRT item
(CONSULT-II indi-
cation)Performance
Priority
*1Required self-diagnostic items to set the SRT to “CMPLT”
Corresponding DTC
No.
CATALYST 2 Three way catalyst function P0420
HO2S 1 Heated oxygen sensor 1 P0132
Heated oxygen sensor 1 P0133
Heated oxygen sensor 1 P0134
Heated oxygen sensor 1 P1143
Heated oxygen sensor 1 P1144
Heated oxygen sensor 2 P0138
Heated oxygen sensor 2 P0139
Heated oxygen sensor 2 P1146
Heated oxygen sensor 2 P1147
HO2S HTR 1 Heated oxygen sensor 1 heater P0031, P0032
Heated oxygen sensor 2 heater P0037, P0038
Self-diagnosis resultExample
DiagnosisIgnition cycle
← ON → OFF ← ON → OFF ← ON → OFF ← ON →
All OK Case 1 P0400 OK (1) — (1) OK (2) — (2)
P0402 OK (1) — (1) — (1) OK (2)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “CMPLT” “CMPLT” “CMPLT” “CMPLT”
Case 2 P0400 OK (1) — (1) — (1) — (1)
P0402 — (0) — (0) OK (1) — (1)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “INCMP” “INCMP” “CMPLT” “CMPLT”
NG exists Case 3 P0400 OK OK — —
P0402 — — — —
P1402 NG — NGNG
(Consecutive
NG)
(1st trip)
DTC1st trip DTC — 1st trip DTCDTC
(= MI “ON”)
SRT of EGR “INCMP” “INCMP” “INCMP” “CMPLT”

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-53
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
●The MI will go off after the vehicle is driven 3 times with no malfunction. The drive is counted only when
the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs while counting,
the counter will reset.
●The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (driving pattern A)
without the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and
Fuel Injection System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times
(driving pattern C) without the same malfunction recurring. The “TIME” in “SELF-DIAGNOSTIC
RESULTS” mode of CONSULT-II will count the number of times the vehicle is driven.
●The 1st trip DTC is not displayed when the self-diagnosis results in “OK” for the 2nd trip.
SUMMARY CHART
For details about patterns “B” and “C” under “Fuel Injection System” and “Misfire”, see EC-55 .
For details about patterns “A” and “B” under “Other”, see EC-57
.
*1: Clear timing is at the moment OK is detected.
*2: Clear timing is when the same malfunction is detected in the 2nd trip. Items Fuel Injection System Misfire Other
MI (goes off) 3 (pattern B) 3 (pattern B) 3 (pattern B)
DTC, Freeze Frame Data (no
display)80 (pattern C) 80 (pattern C) 40 (pattern A)
1st Trip DTC (clear) 1 (pattern C), *1 1 (pattern C), *1 1 (pattern B)
1st Trip Freeze Frame Data
(clear)*1, *2 *1, *2 1 (pattern B)

TROUBLE DIAGNOSIS
EC-63
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00K3N
●When the DTC listed below is detected, the ECM enters fail-safe mode and the MI lights up.
Priority Detected items (DTC)
1
●U1000 U1001 CAN communication line
●P0102 P0103 Mass air flow sensor
●P0112 P0113 Intake air temperature sensor
●P0117 P0118 Engine coolant temperature sensor
●P0221 P0222 P0223 P1223 P1224 P1225 P1226 P1229 Throttle position sensor
●P0226 P0227 P0228 P1227 P1228 Accelerator pedal position sensor
●P0327 P0328 Knock sensor
●P0335 Crankshaft position sensor (POS)
●P0340 Camshaft position sensor (PHASE)
●P0500 Vehicle speed sensor
●P0705 Park/Neutral position (PNP) switch
●P0605 ECM
●P1610-P1615 NATS
●P1706 Park/Neutral position (PNP) switch
2
●P0031 P0032 Heated oxygen sensor 1 heater
●P0037 P0038 Heated oxygen sensor 2 heater
●P0132 P0133 P0134 P1143 P1144 Heated oxygen sensor 1
●P0138 P0139 P1146 P1147 Heated oxygen sensor 2
●P0550 Power steering pressure sensor
●P0710-P0725 P0740-P0755 P1705 P1760 A/T related sensors and solenoid valves
●P1065 ECM power supply
●P 1111 I n ta k e v a l v e t i m i n g c o n t r o l s o l e n o i d v a l v e
●P1122 Electric throttle control function
●P1124 P1126 P1128 Electric throttle control actuator
●P1805 Brake switch
3
●P0011 Intake valve timing control
●P0171 P0172 Fuel injection system function
●P0300 - P0304 Misfire
●P0420 Three way catalyst function
●P0444 EVAP canister purge volume control solenoid valve
●P0731-P0734 A/T function
●P1121 Electric throttle control actuator
●P1217 Engine over temperature (OVERHEAT)
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.

EC-68
[QG (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

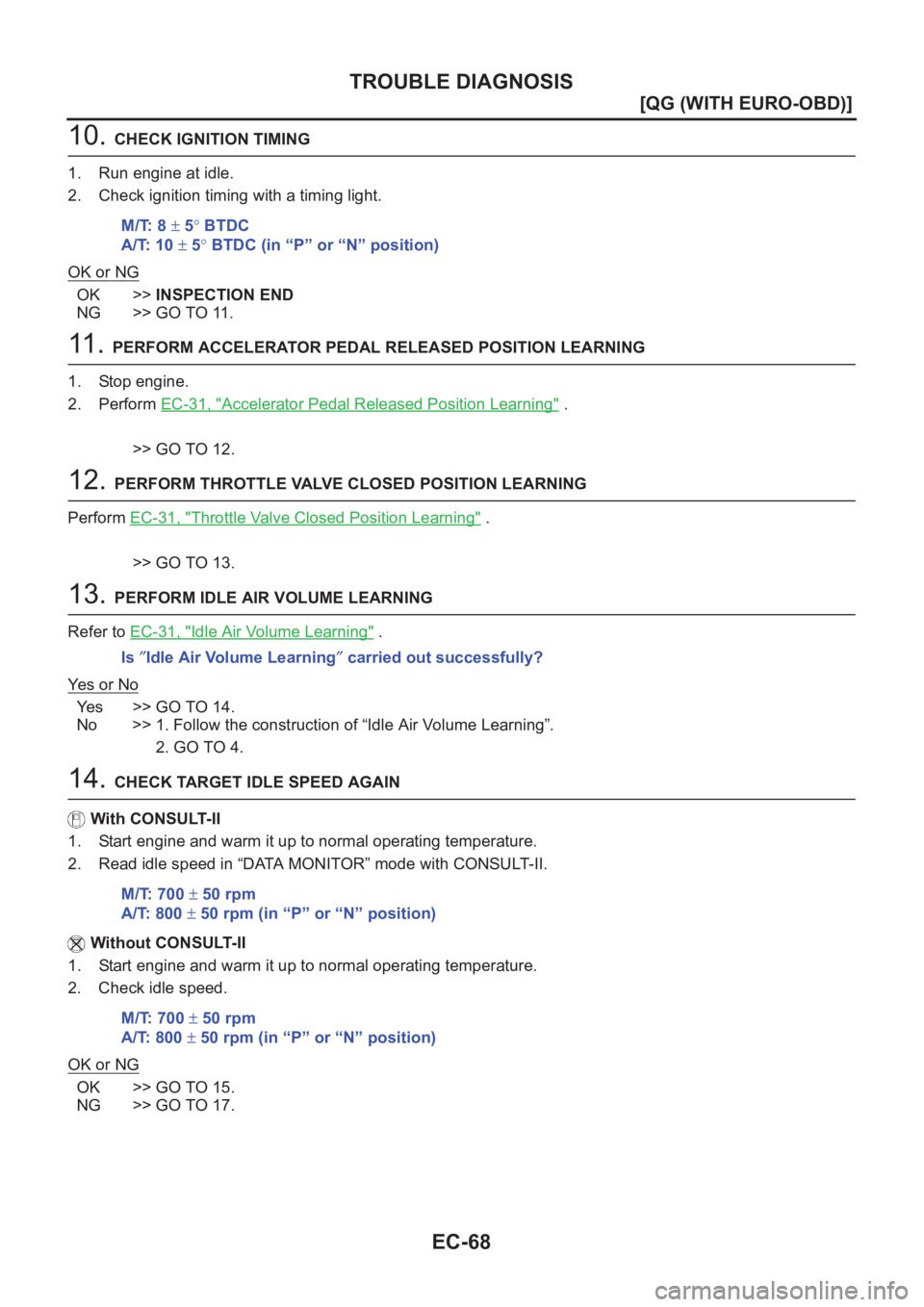

10. CHECK IGNITION TIMING
1. Run engine at idle.
2. Check ignition timing with a timing light.
OK or NG
OK >>INSPECTION END
NG >> GO TO 11.
11 . PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-31, "
Accelerator Pedal Released Position Learning" .
>> GO TO 12.
12. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-31, "
Throttle Valve Closed Position Learning" .
>> GO TO 13.
13. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-31, "
Idle Air Volume Learning" .
Ye s o r N o
Yes >> GO TO 14.
No >> 1. Follow the construction of “Idle Air Volume Learning”.
2. GO TO 4.
14. CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
OK or NG
OK >> GO TO 15.
NG >> GO TO 17.M/T: 8 ± 5° BTDC
A/T: 10 ± 5° BTDC (in “P” or “N” position)
Is ″Idle Air Volume Learning″ carried out successfully?
M/T: 700 ± 50 rpm
A/T: 800 ± 50 rpm (in “P” or “N” position)
M/T: 700 ± 50 rpm
A/T: 800 ± 50 rpm (in “P” or “N” position)

TROUBLE DIAGNOSIS
EC-69
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
15.CHECK IGNITION TIMING AGAIN
1. Run engine at idle.
2. Check ignition timing with a timing light.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.
16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-47, "
TIMING CHAIN" .
OK or NG
OK >> GO TO 17.
NG >> 1. Repair the timing chain installation.
2. GO TO 4.
17.DETECT MALFUNCTIONING PART
Check the following.
●Check camshaft position sensor (PHASE) and circuit. Refer to EC-240 .
●Check crankshaft position sensor (POS) and circuit. Refer to EC-234 .
OK or NG
OK >> GO TO 18.
NG >> 1. Repair or replace.
2. GO TO 4.
18.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of a incident, but
this is the rarely the case.)
2. Perform initialization of NATS system and registration of NATS ignition key IDs. Refer to EC-49, "
NATS
(Nissan Anti-theft System)" .
>> GO TO 4. M/T: 8 ± 5° BTDC
A/T: 10 ± 5° BTDC (in “P” or “N” position)

EC-70
[QG (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
Symptom Matrix Chart
EBS00K3P
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-381
Fuel pressure regulator system334444444 4EC-34
Injector circuit 11232 22 2EC-375
Evaporative emission system 334444444 4EC-251,
EC-399
Air Positive crankcase ventilation sys-
tem334444444 41EC-402
Incorrect idle speed adjustment 33 1111 1EC-65
Electric throttle control actuator 112332222 2 2EC-276
,
EC-278
,
EC-285
,
EC-291
IgnitionIncorrect ignition timing adjustment33111 11 1EC-65
Ignition circuit 11222 22 2EC-365
Main power supply and ground circuit 22333 33 23EC-110
Mass air flow sensor circuit 11222 22 2EC-134
Engine coolant temperature sensor circuit 11222322312EC-144
Throttle position sensor circuit 12 22222 2EC-199
,
EC-205
,
EC-335
,
EC-341
,
EC-343
,
EC-352
Accelerator pedal position sensor circuit3212 2EC-211
,
EC-218
,
EC-345
Heated oxygen sensor 1 circuit 1232 22 2EC-149
,
EC-155
,
EC-165
,
EC-296
,
EC-302
Knock sensor circuit 2 2 3EC-230
Crankshaft position sensor (POS) circuit 2 2EC-234
Camshaft position sensor (PHASE) circuit 2 2EC-240
Vehicle speed signal circuit 2 3 3 3EC-257

TROUBLE DIAGNOSIS
EC-71
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
Power steering pressure sensor circuit 2 3 3 3 3EC-260
ECM 22333333333EC-265,
EC-268
Intake valve timing control solenoid valve cir-
cuit332 13223 3EC-272
PNP switch circuit 3 33333 3EC-356
Refrigerant pressure sensor circuit 2 3 3 3 3 4EC-387
Electrical load signal circuit 3 3 3 3EC-392
Air conditioner circuit223333333 3 2AT C - 2 9
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FE-4
Fuel piping 5 5 5 5 5 5 FE-4
Vapor lock—
Valve deposit
555555 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—

EC-72
[QG (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
Air Air duct
55555 5EM-14
Air cleanerEM-14
Air leakage from air duct
(Mass air flow sensor —electric
throttle control actuator)
5555EM-14
Electric throttle control actuatorEM-16
Air leakage from intake manifold/
Collector/GasketEM-16
Cranking Battery
111111 11SC-3
Alternator circuitSC-27
Starter circuit 3 SC-13
Signal plate/Flywheel/Drive plate 6EM-70
PNP switch
4AT- 11 6,
MT-21
Engine Cylinder head
55555 55 5EM-57
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-70
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTimin g c hain
55555 55 5EM-47
CamshaftEM-32
Intake valve timing controlEM-47
Intake valve
3EM-57
Exhaust valve
Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5EM-19
, FE-
26
Three way catalyst
Lubrica-
tionOil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery
55555 55 52EM-22
, LC-
5, LC-9,
LC-4
Oil level (Low)/Filthy oilLC-8 SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
