2003 NISSAN ALMERA N16 headlamp

AT-306
[EXC.F/EURO-OBD]

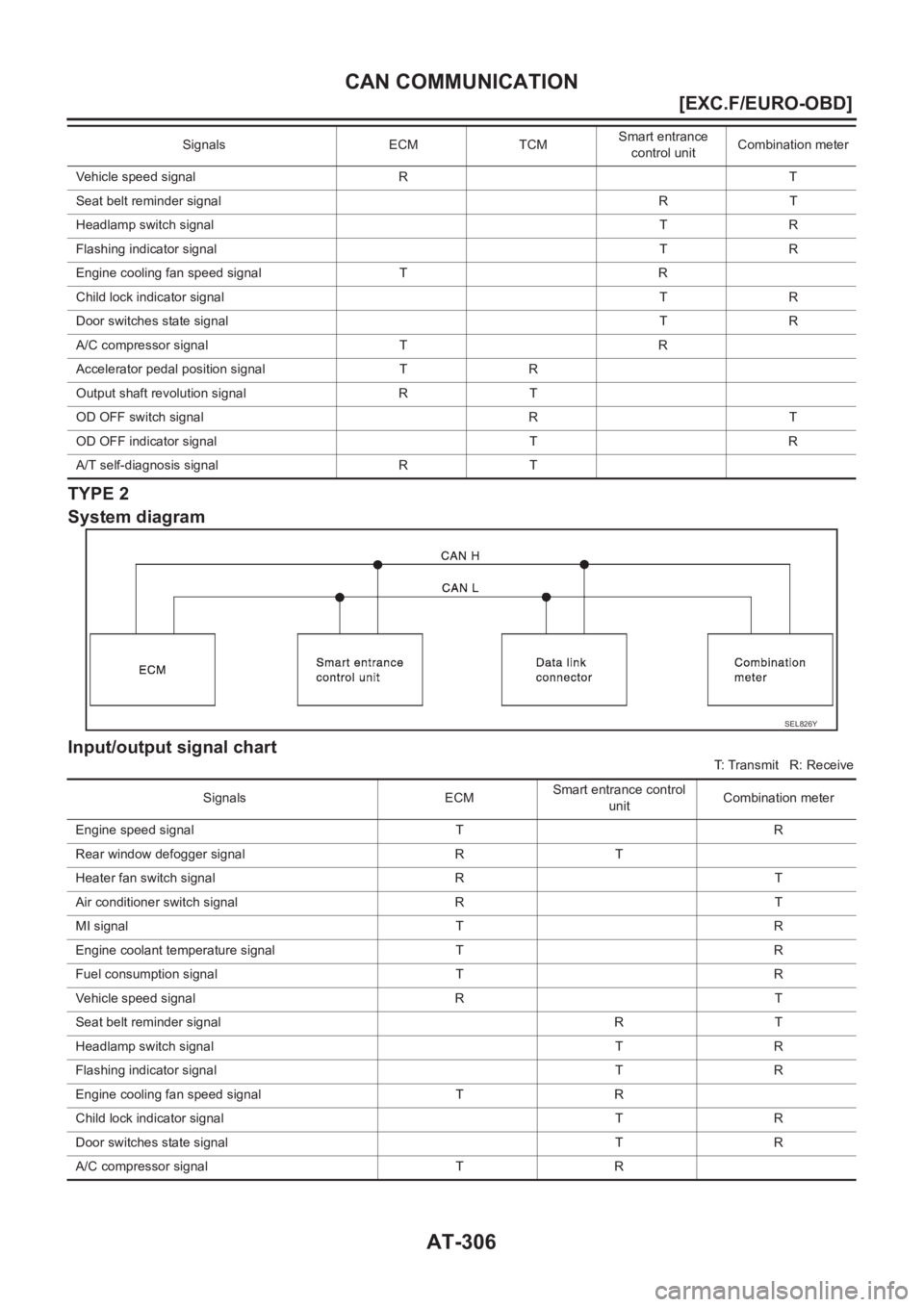

CAN COMMUNICATION
TYPE 2
System diagram
Input/output signal chart
T: Transmit R: Receive Vehicle speed signal R T
Seat belt reminder signalRT
Headlamp switch signalTR
Flashing indicator signalTR
Engine cooling fan speed signal T R
Child lock indicator signalTR
Door switches state signalTR
A/C compressor signal T R
Accelerator pedal position signal T R
Output shaft revolution signal R T
OD OFF switch signal R T
OD OFF indicator signal T R
A/T self-diagnosis signal R TSignals ECM TCMSmart entrance
control unitCombination meter
SEL826Y
Signals ECMSmart entrance control
unitCombination meter
Engine speed signal T R
Rear window defogger signal R T
Heater fan switch signal R T
Air conditioner switch signal R T
MI signal T R
Engine coolant temperature signal T R
Fuel consumption signal T R
Vehicle speed signal R T
Seat belt reminder signal R T
Headlamp switch signal T R
Flashing indicator signal T R
Engine cooling fan speed signal T R
Child lock indicator signal T R
Door switches state signal T R
A/C compressor signal T R

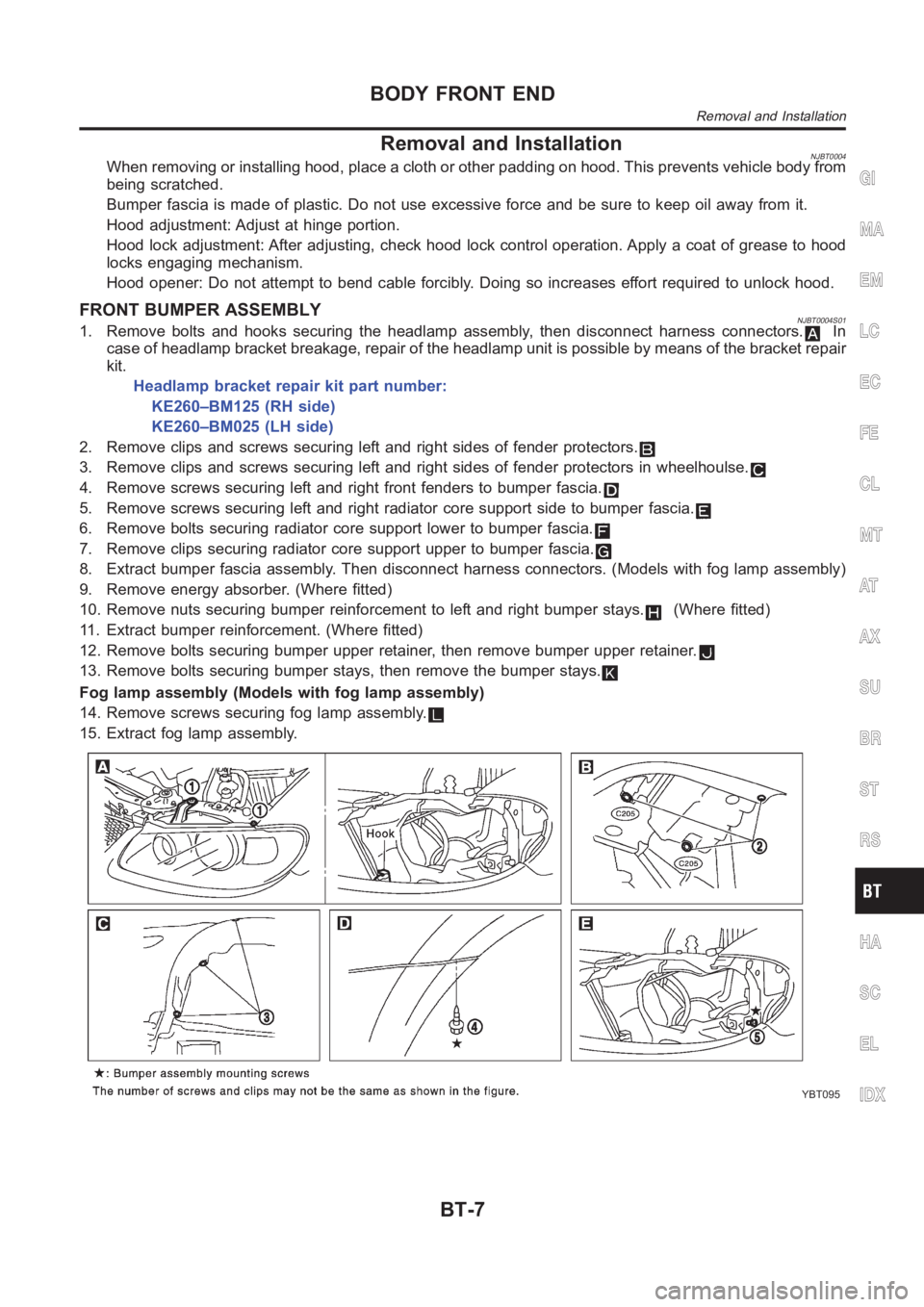

Removal and InstallationNJBT0004When removing or installing hood, place a cloth or other padding on hood. This prevents vehicle body from
being scratched.
Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.
Hood adjustment: Adjust at hinge portion.
Hood lock adjustment: After adjusting, check hood lock control operation. Apply a coat of grease to hood
locks engaging mechanism.
Hood opener: Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.
FRONT BUMPER ASSEMBLYNJBT0004S011. Remove bolts and hooks securing the headlamp assembly, then disconnectharness connectors.In
case of headlamp bracket breakage, repair of the headlamp unit is possibleby means of the bracket repair
kit.
Headlamp bracket repair kit part number:
KE260–BM125 (RH side)
KE260–BM025 (LH side)
2. Remove clips and screws securing left and right sides of fender protectors.
3. Remove clips and screws securing left and right sides of fender protectors in wheelhoulse.
4. Remove screws securing left and right front fenders to bumper fascia.
5. Remove screws securing left and right radiator core support side to bumper fascia.
6. Remove bolts securing radiator core support lower to bumper fascia.
7. Remove clips securing radiator core support upper to bumper fascia.
8. Extract bumper fascia assembly. Then disconnect harness connectors. (Models with fog lamp assembly)
9. Remove energy absorber. (Where fitted)
10. Remove nuts securing bumper reinforcement to left and right bumper stays.
(Where fitted)
11. Extract bumper reinforcement. (Where fitted)
12. Remove bolts securing bumper upper retainer, then remove bumper upperretainer.
13. Remove bolts securing bumper stays, then remove the bumper stays.
Fog lamp assembly (Models with fog lamp assembly)
14. Remove screws securing fog lamp assembly.
15. Extract fog lamp assembly.
YBT095
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
BODY FRONT END
Removal and Installation
BT-7

ELECTRICAL SYSTEM
SECTION
EL
CONTENTS
PRECAUTIONS<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[5
Supplemental Restraint System (SRS)″AIR
BAG″and″SEAT BELT PRE-TENSIONER″...............5
Precautions for Trouble Diagnosis ..............................5
Precautions for Harness Repair ..................................5
Wiring Diagrams and Trouble Diagnosis .....................6
HARNESS CONNECTOR................................................7
Description <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[...............7
STANDARDIZED RELAY................................................9
Description <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[...............9
POWER SUPPLY ROUTING......................................... 11
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[............12
Wiring Diagram - POWER - ......................................14
Inspection<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[..............23
GROUND<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[.........24
Ground Distribution ....................................................24
COMBINATION SWITCH..............................................39
Check <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011001100110011[...............39
Replacement <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[..........40
STEERING SWITCH<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011>1
Check <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011001100110011[...............41
HEADLAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[....42
Wiring Diagram - H/LAMP -.......................................42
Trouble Diagnoses.....................................................43
Bulb Replacement .....................................................44
Aiming Adjustment .....................................................44
HEADLAMP - DAYTIME LIGHT SYSTEM -.................46
System Description ....................................................46
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[............47
Wiring Diagram - DTRL - ...........................................48
Trouble Diagnoses.....................................................51
Bulb Replacement .....................................................51
Aiming Adjustment .....................................................52
HEADLAMP - HEADLAMP AIMING CONTROL -........53
Wiring Diagram - H/AIM - ..........................................53
PARKING, LICENSE AND TAIL LAMPS.....................55
Wiring Diagram - TAIL/L - ..........................................55
STOP LAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[...58
Wiring Diagram - STOP/L - .......................................58BACK-UP LAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011>0
Wiring Diagram - BACK/L - .......................................60
FRONT FOG LAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011>2
Wiring Diagram - F/FOG - .........................................62
Bulb Replacement .....................................................63
Aiming Adjustment .....................................................64
REAR FOG LAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011>5
Wiring Diagram - R/FOG -.........................................65
TURN SIGNAL AND HAZARD WARNING LAMPS.....67
System Description/QG Engine Models and YD
Engine Models with Common Rail ............................67
System Description/YD Engine Models with
Common Rail and K9K Engine Models.....................69
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[............70
Wiring Diagram - TURN - ..........................................71
Trouble Diagnoses.....................................................74
ILLUMINATION<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011001100110011>75
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[............75
Wiring Diagram - ILL - ...............................................76
INTERIOR ROOM LAMP...............................................80
System Description/QG and YD Engine Models
with Common Rail .....................................................80
System Description/YD Engine Models without
Common Rail and K9K Engine Models.....................82
Wiring Diagram - ROOM/L - ......................................84
Trouble Diagnoses/QG and YD Engine Models
with Common Rail .....................................................86
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................102
SPOT AND TRUNK ROOM LAMPS...........................108
Wiring Diagram - INT/L - .........................................108
METERS AND GAUGES............................................. 110
Component Parts and Harness Connector
Location <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[............ 110
System Description .................................................. 110
Combination Meter .................................................. 112
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[.......... 113
Wiring Diagram - METER - ..................................... 114
Combination Meter Self-Diagnosis .......................... 117
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX

Trouble Diagnoses...................................................120
Electrical Components Inspection ...........................128
WARNING LAMPS<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011>9
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........129
Wiring Diagram - WARN - .......................................130
Electrical Components Inspection ...........................135
WARNING CHIME<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011>6
Component Parts and Harness Connector
Location <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[............136
System Description/QG Engine Models and YD
Engine Models with Common Rail ..........................136
System Description/YD Engine Models without
Common Rail and K9K Engine Models...................137
Wiring Diagram - CHIME - ......................................139
Trouble Diagnoses/QG and YD Engine Models
with Common Rail ...................................................141
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................152
FRONT WIPER AND WASHER..................................158
System Description ..................................................158
Wiring Diagram - WIPER - ......................................160
Removal and Installation .........................................162
Washer Nozzle Adjustment .....................................163
Washer Tube Layout ...............................................163
REAR WIPER AND WASHER....................................164
Wiring Diagram - WIP/R -........................................164
Removal and Installation .........................................166
Washer Nozzle Adjustment .....................................166
Washer Tube Layout ...............................................167
HEADLAMP WASHER................................................168
Wiring Diagram - HLC - ...........................................168
Washer Tube Layout ...............................................169
HORN<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[............170
Wiring Diagram - HORN - .......................................170
CIGARETTE LIGHTER................................................171
Wiring Diagram - CIGAR -.......................................171
CLOCK<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[..........172
Wiring Diagram - CLOCK -......................................172
REAR WINDOW DEFOGGER.....................................173
System Description/QG and YD Engine Models
with Common Rail ...................................................173
System Description/YD Engine Models without
Common Rail and K9K Engine Models...................174
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........175
Wiring Diagram - DEF - ...........................................176
Trouble Diagnoses/QG and YD Engine Models
with Common Rail ...................................................179
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................186
Electrical Components Inspection ...........................189
Filament Check ........................................................190
Filament Repair .......................................................191AUDIO<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[...........192
System Description ..................................................192
Component Parts Location ......................................194
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........195
Wiring Diagram - AUDIO - .......................................198
Trouble Diagnoses...................................................213
Inspection<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[............213
AUDIO ANTENNA<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011>4
Location of Antenna .................................................214
Antenna Rod Replacement .....................................214
VFD DISPLAY<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011001100110011>215
System Description ..................................................215
Component Parts and Harness Connector and
Harness Connector Location ...................................217
Wiring Diagram - COMM -.......................................218
Terminals and Reference Value for Display Unit ....220
Terminals and Reference Value for Multifunction
Switch <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011[.............221
Trouble Diagnosis ....................................................222
LCD DISPLAY<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011001100110011001100110011>38
System Description ..................................................238
Precautions for Display Unit Replacement..............242
Component Parts and Harness Connector and
Harness Connector Location ...................................242
Wiring Diagram - COMM -.......................................243
Terminals and Reference Value for Display Unit ....245
Terminals and Reference Value for AV and NAVI
Control Unit <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[..........245
Terminals and Reference Value for Multifunction
Switch <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011[.............245
Trouble Diagnoses...................................................245
TELEPHONE (PRE WIRE)..........................................246
Wiring Diagram - PHONE - .....................................246
HEATED SEAT<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011>7
Wiring Diagram - H/SEAT - .....................................247
POWER SUNROOF<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011>9
Wiring Diagram - SROOF - .....................................249
Trouble Diagnoses...................................................250
DOOR MIRROR<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011>1
Wiring Diagram - MIRROR - ...................................251
POWER WINDOW<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011>3
System Description ..................................................253
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........255
Wiring Diagram - WINDOW - ..................................256
Trouble Diagnoses...................................................260
POWER DOOR LOCK.................................................261
System Description ..................................................261
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........262
Wiring Diagram - D/LOCK -.....................................264
Trouble Diagnosis/QG and YD Engine Models
with Common Rail ...................................................271
CONTENTS(Cont’d)
EL-2

Driving Test <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[..........499
Example of Symptoms Judged Not Abnormal ........500
Program Loading .....................................................508
CAN COMMUNICATION.............................................509
System Description ..................................................509
CAN Communication Unit........................................509
CAN SYSTEM (TYPE 1)..............................................512
Component Parts and Harness Connector
Location <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[............512
System Description ..................................................512
Wiring Diagram - CAN - ..........................................513
Trouble Diagnoses...................................................515
Component Inspection .............................................529
CAN SYSTEM (TYPE 2)..............................................530
Component Parts and Harness Connector
Location <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[............530
System Description ..................................................530
Wiring Diagram - CAN - ..........................................531
Trouble Diagnoses...................................................533
Component Inspection .............................................542
ELECTRICAL UNITS LOCATION...............................543
Engine Compartment ...............................................543Passenger Compartment/LHD Models ....................546
Passenger Compartment/RHD Models ...................548
HARNESS LAYOUT<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011>0
How to Read Harness Layout .................................550
Outline/Sedan ..........................................................551
Outline/Hatchback....................................................553
Main Harness<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[.......556
Engine Room Harness ............................................560
Engine Control Harness/QG Engine Models...........566
Engine Control Harness/YD Engine Models ...........570
Body Harness/Sedan ...............................................578
Body Harness/Hatchback ........................................586
Room Lamp Harness...............................................590
Front Door Harness/LHD Models ............................591
Front Door Harness/RHD Models ...........................593
Rear Door Harness..................................................595
Back Door Harness .................................................597
BULB SPECIFICATIONS............................................598
Headlamp<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[..........598
Exterior Lamp <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11[.......598
Interior Lamp<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11[.........598
WIRING DIAGRAM CODES (CELL CODES).............599
CONTENTS(Cont’d)
EL-4

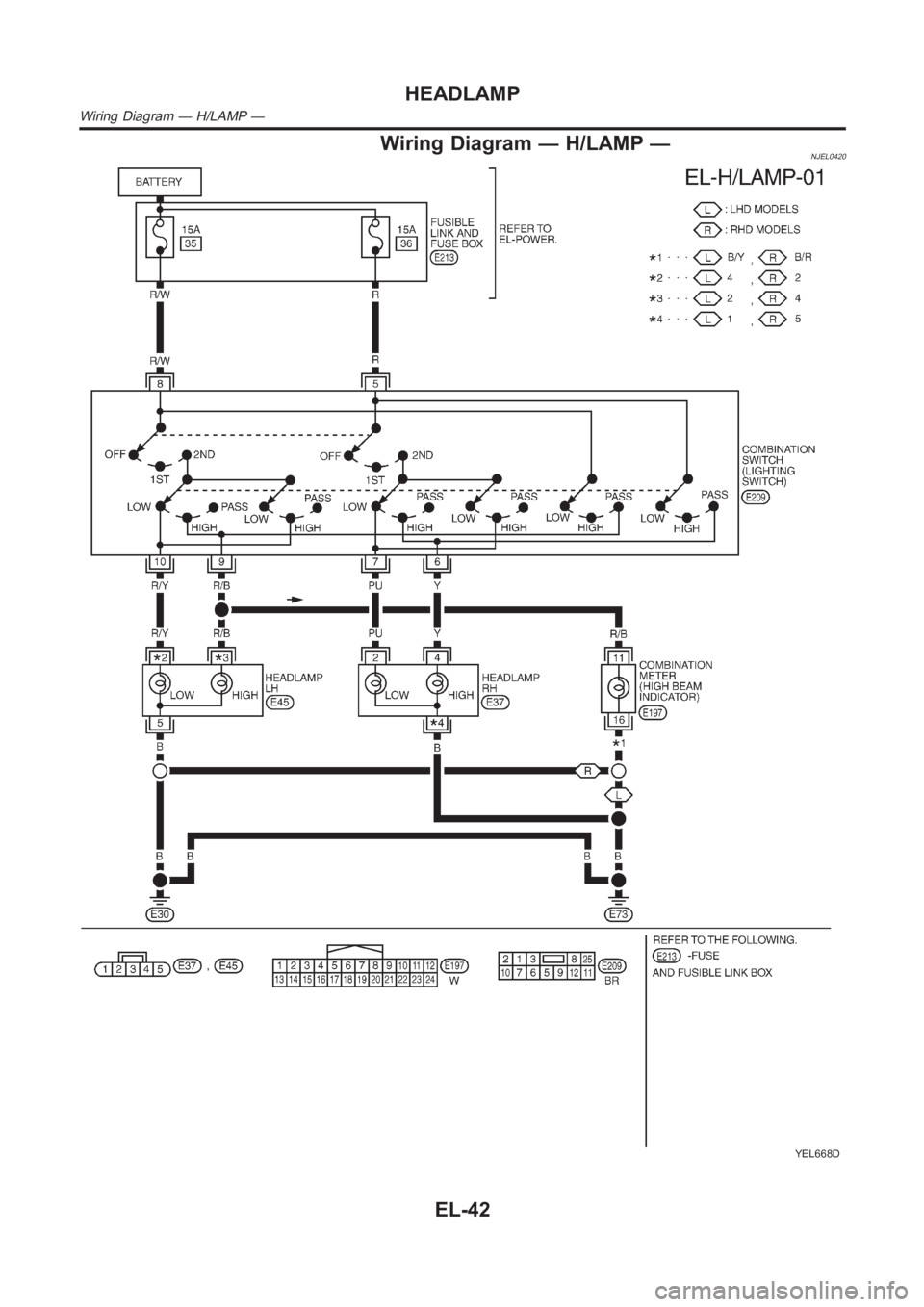

Wiring Diagram — H/LAMP —NJEL0420
YEL668D
HEADLAMP
Wiring Diagram — H/LAMP —
EL-42

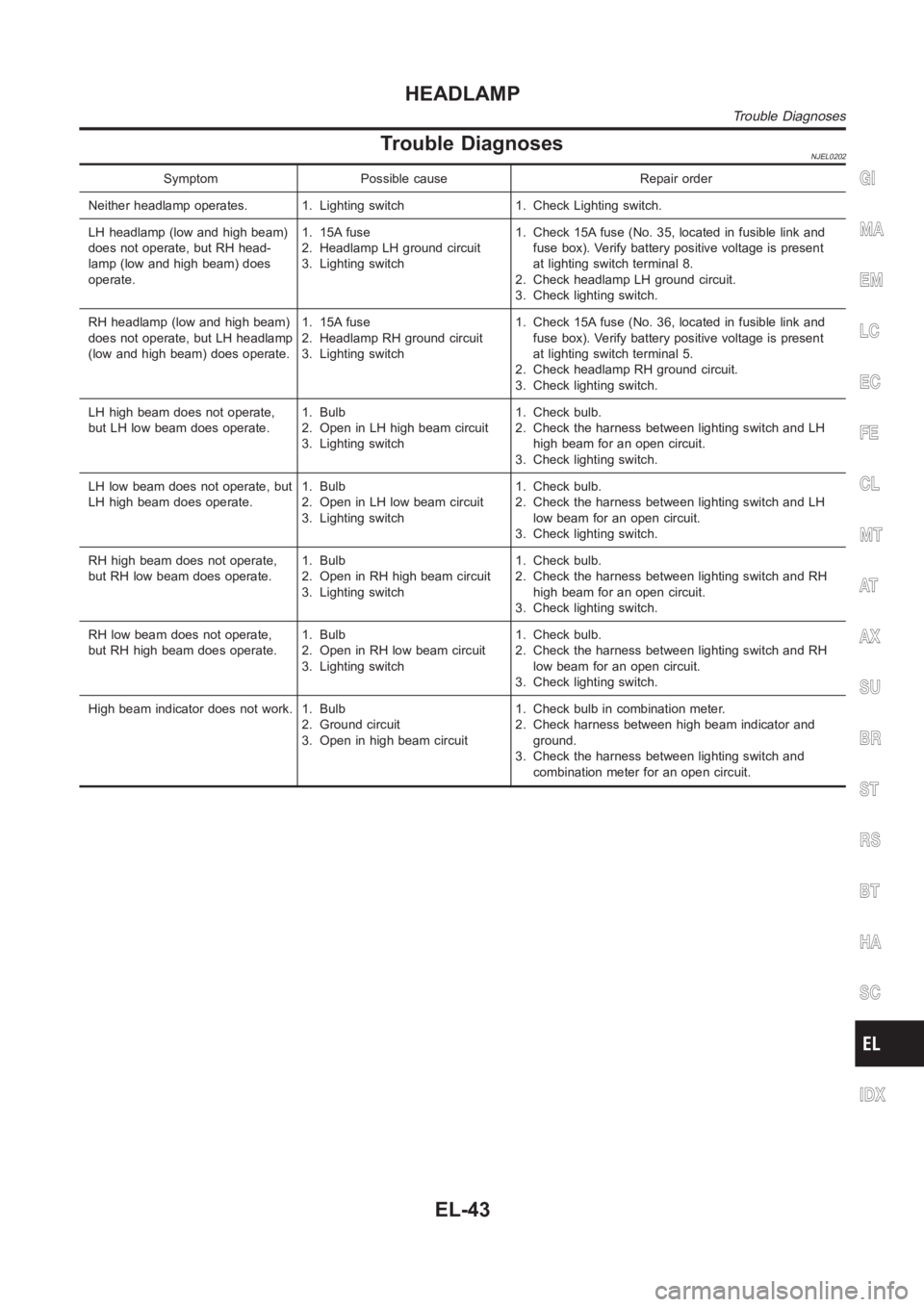

Trouble DiagnosesNJEL0202
Symptom Possible cause Repair order
Neither headlamp operates. 1. Lighting switch 1. Check Lighting switch.
LH headlamp (low and high beam)
does not operate, but RH head-
lamp (low and high beam) does
operate.1. 15A fuse
2. Headlamp LH ground circuit
3. Lighting switch1. Check 15A fuse (No. 35, located in fusible link and
fuse box). Verify battery positive voltage is present
at lighting switch terminal 8.
2. Check headlamp LH ground circuit.
3. Check lighting switch.
RH headlamp (low and high beam)
does not operate, but LH headlamp
(low and high beam) does operate.1. 15A fuse
2. Headlamp RH ground circuit
3. Lighting switch1. Check 15A fuse (No. 36, located in fusible link and
fuse box). Verify battery positive voltage is present
at lighting switch terminal 5.
2. Check headlamp RH ground circuit.
3. Check lighting switch.
LH high beam does not operate,
but LH low beam does operate.1. Bulb
2. Open in LH high beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and LH
high beam for an open circuit.
3. Check lighting switch.
LH low beam does not operate, but
LH high beam does operate.1. Bulb
2. Open in LH low beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and LH
low beam for an open circuit.
3. Check lighting switch.
RH high beam does not operate,
but RH low beam does operate.1. Bulb
2. Open in RH high beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and RH
high beam for an open circuit.
3. Check lighting switch.
RH low beam does not operate,
but RH high beam does operate.1. Bulb
2. Open in RH low beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and RH
low beam for an open circuit.
3. Check lighting switch.
High beam indicator does not work. 1. Bulb
2. Ground circuit
3. Open in high beam circuit1. Check bulb in combination meter.
2. Check harness between high beam indicator and
ground.
3. Check the harness between lighting switch and
combination meter for an open circuit.GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
HEADLAMP
Trouble Diagnoses
EL-43

YEL809D
Bulb ReplacementNJEL0015The headlamp is a semi-sealed beam type which uses a replace-
able halogen bulb. The bulb can be replaced from the engine com-
partment side without removing the headlamp body.
Grasp only the plastic base when handling the bulb. Never
touch the glass envelope.
1. Disconnect the battery cable.
2. Pull off the rubber cap.
3. Disconnect the harness connector from the back side of the
bulb.
4. Remove the bulb retaining ring.
5. Remove the headlamp bulb carefully. Do not shake or rotate
the bulb when removing it.
6. Install in the reverse order of removal.
CAUTION:
Do not leave headlamp reflector without bulb for a long period
of time. Dust, moisture, smoke, etc. entering headlamp body
may affect the performance of the headlamp. Remove head-
lamp bulb from the headlamp reflector just before a replace-
ment bulb is installed.
Aiming AdjustmentNJEL0016For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1) Keep all tires inflated to correct pressures.
2) Place vehicle on flat surface.
3) See that there is no-load in vehicle (coolant, engine oil filled up
to correct level and full fuel tank) other than the driver (or
equivalent weight placed in driver’s position).
SEL984W
CAUTION:
Be sure aiming switch is set to “0” when performing aiming
adjustment on vehicles equipped with headlamp aiming con-
trol.
HEADLAMP
Bulb Replacement
EL-44
